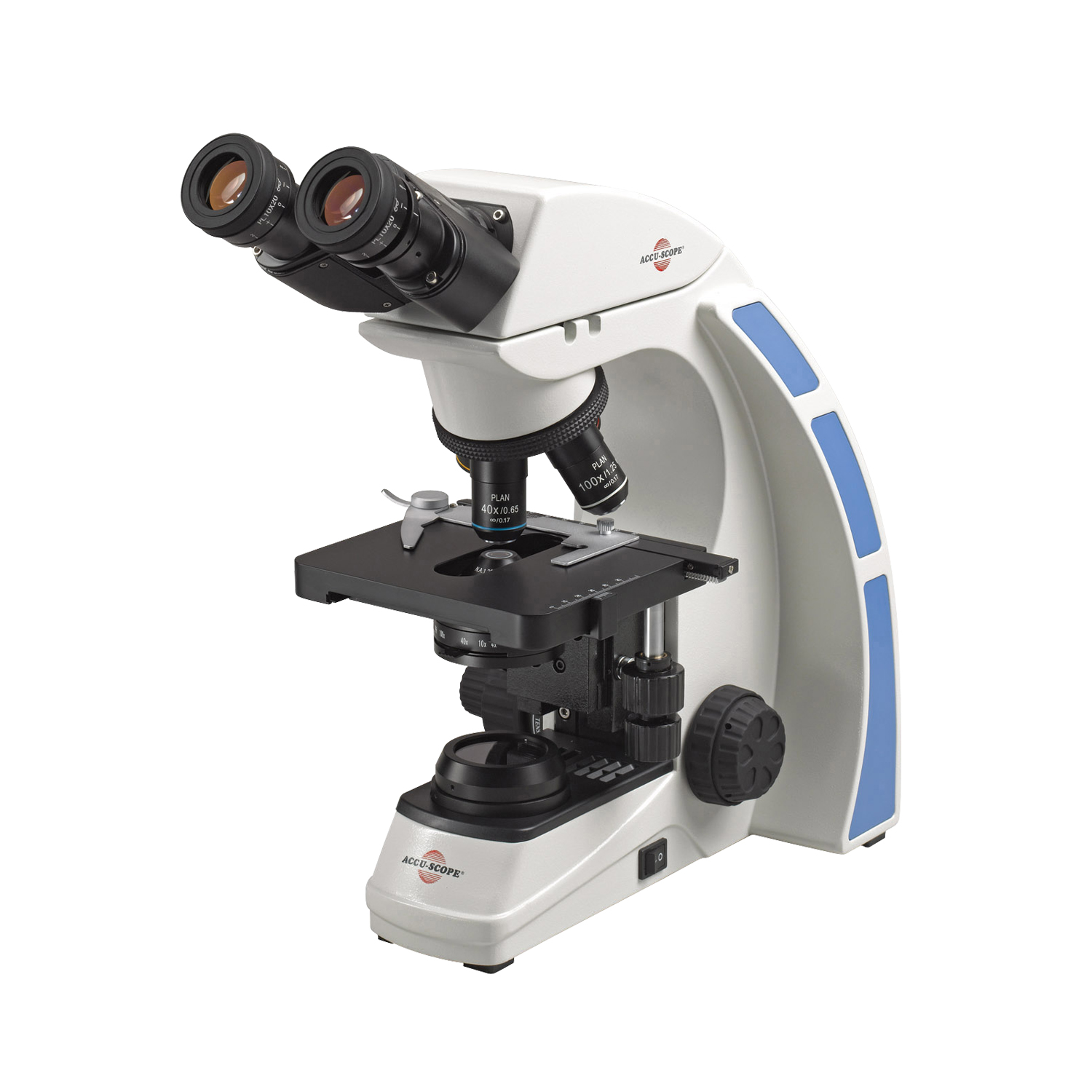

Accu-Scope 3000-LED Microscope Series
Accu-Scope 3000-LED Microscope Series
All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.
Details
Superb Optics, Durable & High Performance
The ACCU-SCOPE® 3000-LED Microscope Series delivers outstanding optical performance, value and resolution to meet the exacting standards of life science professionals and students. With a newly designed infinity plan optical system, a best in class 20mm field of view and a super-bright 3 watt LED illuminator, the 3000-LED Series provides high contrast images with outstanding resolution, precision design and enhanced illumination.
Features
Ease of Viewing
Newly designed plan achromat focusable eyepieces, with a large 20mm field of view allow users to see more quickly.
Optical Excellence
ACCU-SCOPE's new infinity plan objectives provide users with high resolution, high contrast objectives at an affordable price. Objectives are available in plan achromat and plan phase configurations.
Illumination
A super, bright white LED light provides over 15 years of illumination saving time, energy and the cost of replacement bulbs.
Optional Accessories

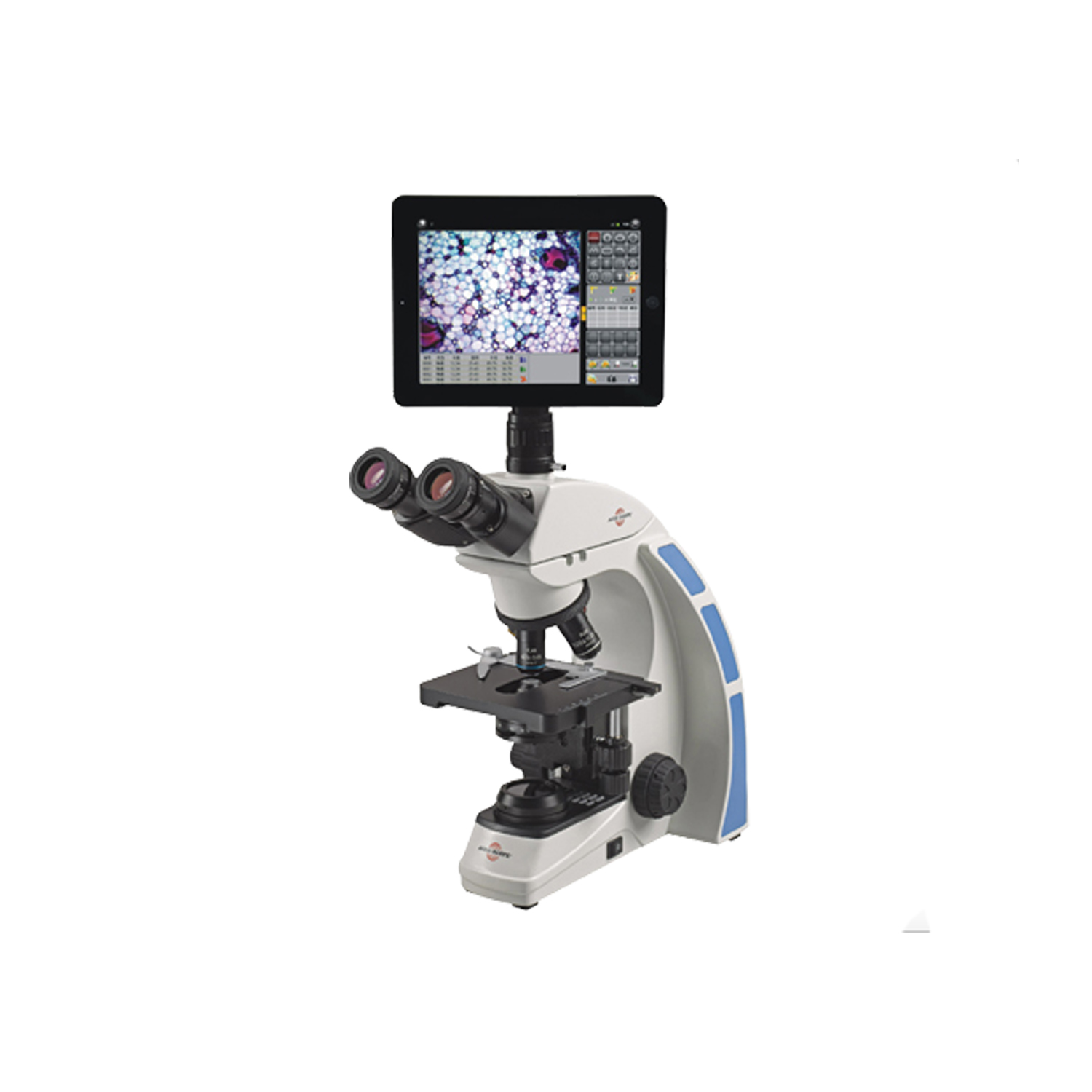

- Trinocular viewing head - 50/50 light split
- Plan achromat objectives: 20xR, 50xR oil and 60xR
- Plan phase objectives: 10x, 20xR, 40xR and 100xR oil
- Phase contrast sliders: 10x/BF/40x and 20x/BF/100x
- Darkfield slider (4x - 40x)
- Reticles
- Simple polarizer/analyzer
- Field diaphragm, 5 hole nosepiece
- Microscope carry case
Specifications
General
- Optical System: Infinity Optical System, f = 180mm, Anti-Mold
- Viewing Head: Siedentopf type, inclined 30°; interpupillary distance adjustment 48-75mm, 360° rotatable; available in binocular or trinocular configurations
- Eyepieces: HWF Plan 10x eyepiece, 20mm field of view with built-in diopter adjustment; a pointer is standard in one eyepiece; eyepieces are locked-in to prevent classroom tampering. Eyepiece accepts a ø20.5mm reticle
- Nosepiece: Rear facing quadruple, ball bearing nosepiece with positive click stops to ensure parcentration
- Objectives: Standard configuration includes Infinity Plan achromat 4x, 10x, 40xR* and 100xR oil* — (*spring-loaded)
- Condenser: N.A. 1.25 Abbe condenser (with slot for sliders) on a rack and pinion with iris diaphragm; glass lens in condensing system protects iris diaphragm from classroom tampering
- Stage: Stage size 140mm × 132mm with X-Y movement range of 76mm × 50 mm
- Stand: Cast alloy aluminum
- Illumination:3 watt LED with variable intensity control; LED bulb is rated for over 25,000 hours of continued use
- Focusing System: Coaxial focusing system with adjustable tension control and upper limit stop to prevent accidental damage to slides; all metal gears, brass fine focus gear
- Accessories: Dust cover, immersion oil and instruction manual, universal power supply 110v-240v
- Microscope Dimensions (L W H): 387mm × 196mm × 391mm
- Physical weight: 16 lbs.
- Shipping dimensions: 19" × 11" × 19"
- Shipping weight: 21 lbs.
