Details
Performance and Optical Excellence

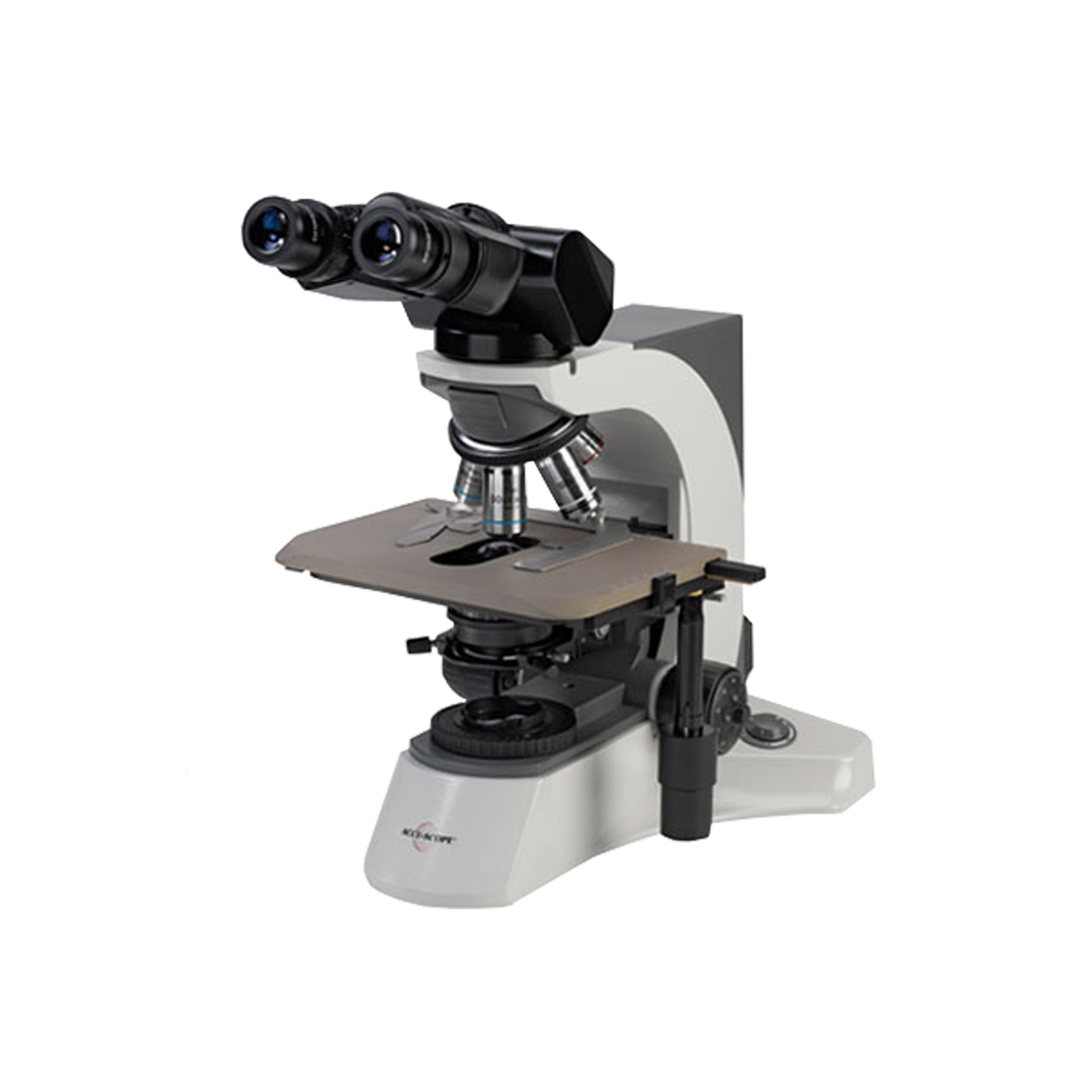

To meet the needs of today's demanding clinical laboratories, ACCU-SCOPE's 3025 Series provides the performance and value required for routine analysis in pathology, dermatology, histology and cytology applications. The 3025 Series modular configuration allows for customization of the microscope to fit any budget. Featuring AIS Infinity Plan Achromat, Plan Fluor or Plan Phase objectives with an optional ergonomic tilting binocular head the 3025 Series takes advantage of the latest advances in optical design to deliver crisp, high resolution, bright images.
Features
Ergonomic, Fatigue Free Viewing
Adjustable from 5° to 35° the ergonomic viewing head provides comfort during extended viewing periods. With focusable 22mm field of view eyepieces users can quickly and easily scan specimens. An optional beam splitter is available to allow for a digital or HD camera to be connected to the microscope.
Optical Excellence
Using our AIS Infinity Plan Achromat, Plan Fluor or Plan Phase objectives the 3025 Series delivers best in class optical performance, superb resolution and sharp, crisp images.
Illumination
Standard units are equipped with a 6 volt 30 watt halogen Koehler illuminator. Multi-viewing units are supplied with 24 volt 100 watt Koehler illuminators. LED illumination will be available in June 2012.
Optional Accessories
- Digital cameras, HD video cameras
- Trinocular viewing head

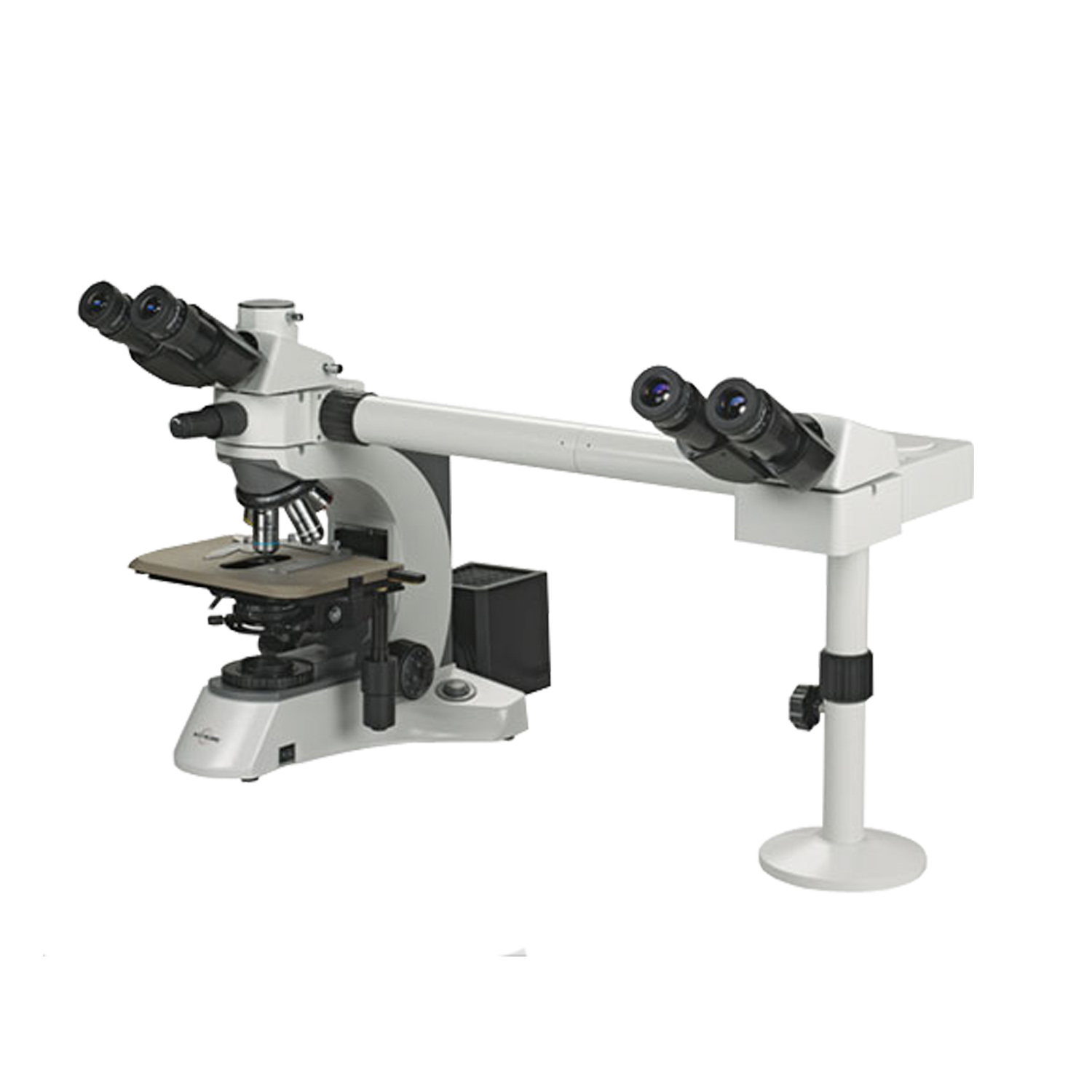

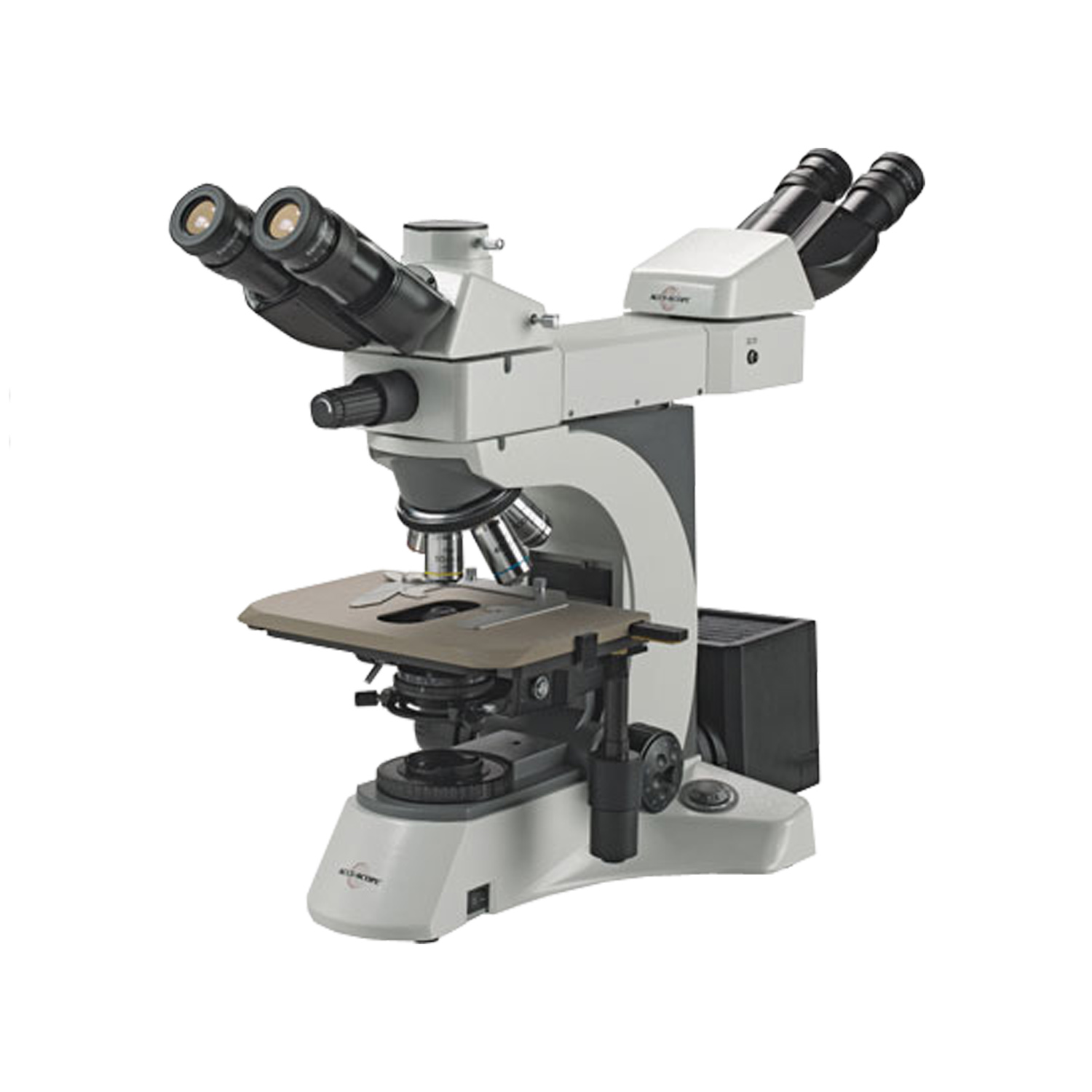

- Multi-viewing configurations
- Beam splitter for imaging applications when using the tilting binocular head
- Fluorescence attachments
- Fluorescence illumination light sources - CoolLED LED illuminators, metal halide and mercury illuminators
- Plan achromat objectives: 2x, 20xR, 50xR oil and 60xR
- Plan Fluor objectives: 4x, 10x, 20xR, 40xR and 100xR oil
- Turret phase contrast set
- Gout kit
- Darkfield Condensers, Reticles
- Simple polarizer/analyzer
- Reticles
Specifications
General
- Optical System: Infinity Optical System, f = 180mm, Anti-Mold
- Viewing Head: Siedentopf ergonomic tilting binocular (5° -35°) orstandard Siedentopf trinocular viewing head. Interpupillary distance adjustment 48-75mm, 360°rotatable
- Eyepieces: EWF Plan 10x focusable eyepieces, 22mm field of view.Each eyepiece is supplied with a roll down eyeguard
- Nosepiece: Rear facing quintuple, ball bearing nosepiece with positive click stops to ensure parcentration
- Objectives: Standard configuration includes Infinity Plan achromat 4x, 10x, 40xR* and 100xR oil*
- Stage: Ceramic Stage size 218mm × 150mm with X-Y movement range of 76mm × 35mm
- Condenser: N.A. 1.25 Abbe condenser on a rack and pinion with iris diaphragm
- Stand: Cast alloy aluminum
- Illumination: Koehler 6 volt 30 watt variable halogen illumination. Multi-viewing microscopes are supplied with Koehler 24 volt 100 watt halogen illumination.
- Focusing System: Coaxial focusing system with adjustable tension control and upper limit stop to prevent accidental damage to slides; all metal gears, brass fine focus gear
- Accessories: Dust cover, immersion oil and instruction manual, universal power supply 110v-240v
- Microscope Dimensions (LWH): 387mm × 196mm × 391mm
- Physical weight: 22 lbs.
