Details
Complete wireless x-ray panel compatible with traditional cassette holders

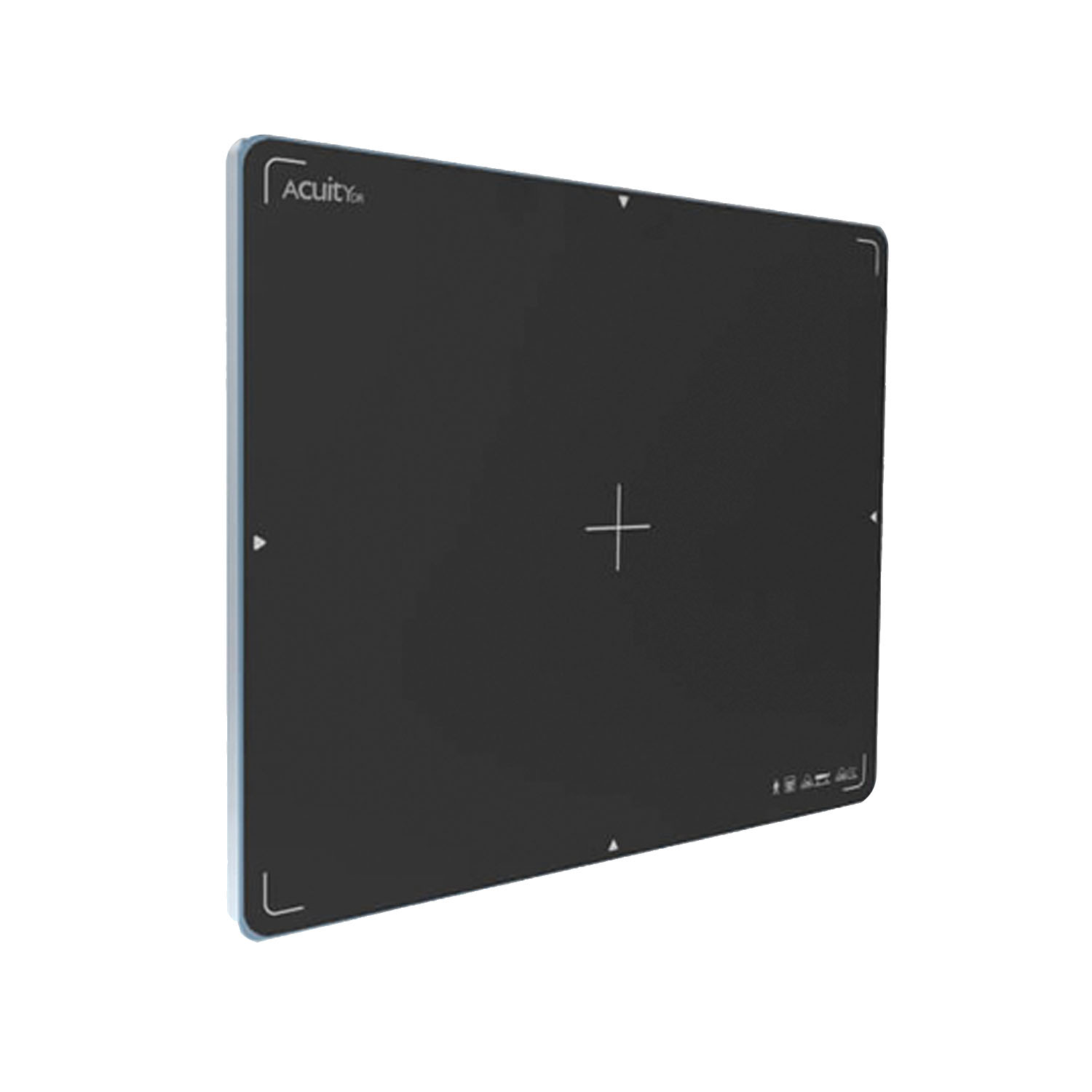

The Acuity 10x12 Wireless DR X-Ray Panel is a cost-effective solution to upgrading any traditional x-ray imaging suite. The slim panel design fits easily into any cassette holder, and provides superior image quality with low noise TFT and optimized Csl thickness.
For more information on the Acuity 10x12 Wireless DR X-Ray Panel available through Med Vest Technology, contact an Med Vest Technology representative today.
The Acuity 10x12 Wireless DR X-Ray Panel works seamlessly with AccuVue X-Ray Acquisition Software, also available from Med Vest Technology.
Features
- Wireless, cassette-sized x-ray detector panel.
- Easily transforms conventional x-ray rooms into a modern digital radiology suite.
- Panel fits easily into traditional cassette holders, integrating with almost any existing equipment.
- Lightweight panel weigh only 4.1 pounds.
- Can improve productivity by giving clinicians up to three times the patient throughput as traditional systems.
- Designed for multi-purpose clinical applications.
- Rapid image acquisition allows clinicians to review HD processed images in as little as 6 seconds.
- Mechanically optimized and engineered with metal unibody structure.
- LED display indicates battery level.
- Wireless interface with wifi sharing interface available.
- Long battery performance rated up to 630 images per charge.
- Includes 3-year hardware warranty.
- Comes standard with slim dual battery charger that allows batteries to be simultaneously charging.
Specifications
General
- Model: 10 x 12 Wireless
- Detector Type: Direct deposition Csl or Gadox
- Weight: 4.1 lbs
- Active area: 9.2 x 11.5 in
- Pixel Pitch: 76 μm
- Resolution: 3.072 x 3.840
- A/D Conversion: 16 bit
- Input Voltage: DC 12V, 5A
- Communication: Giga Ethernet / IEEE 802.11n (5 GHz)
- X-ray I/F: Lossless AED
