Details

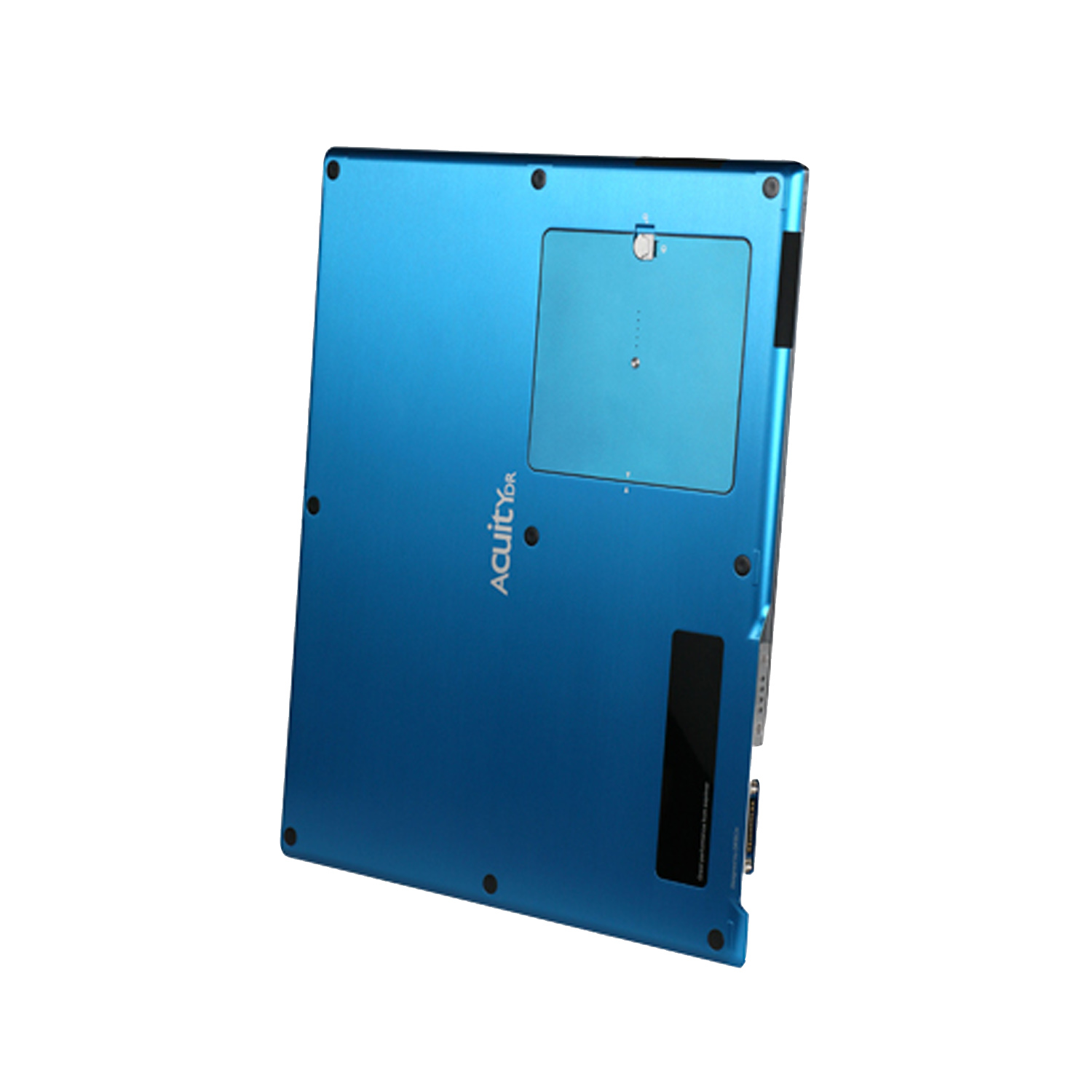

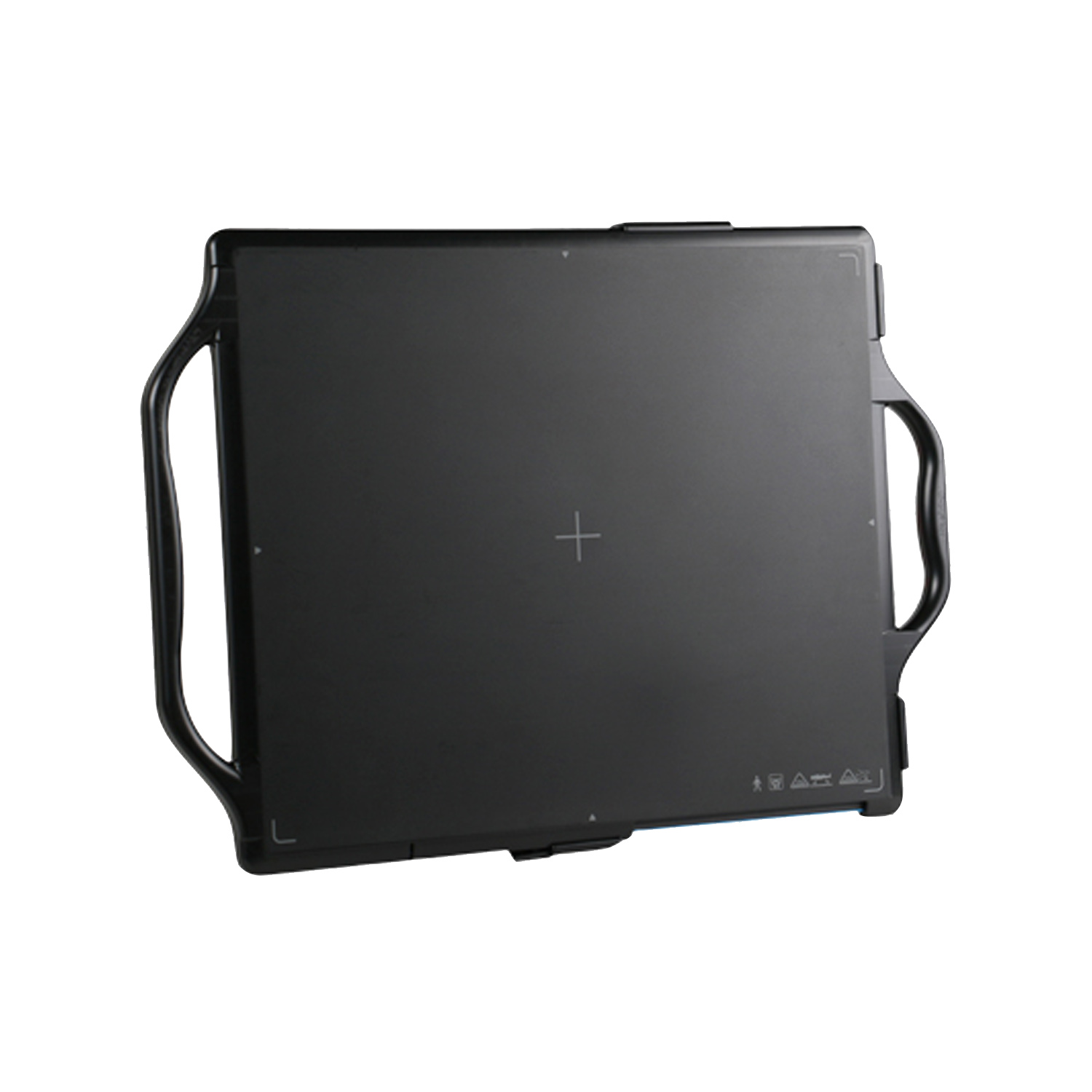

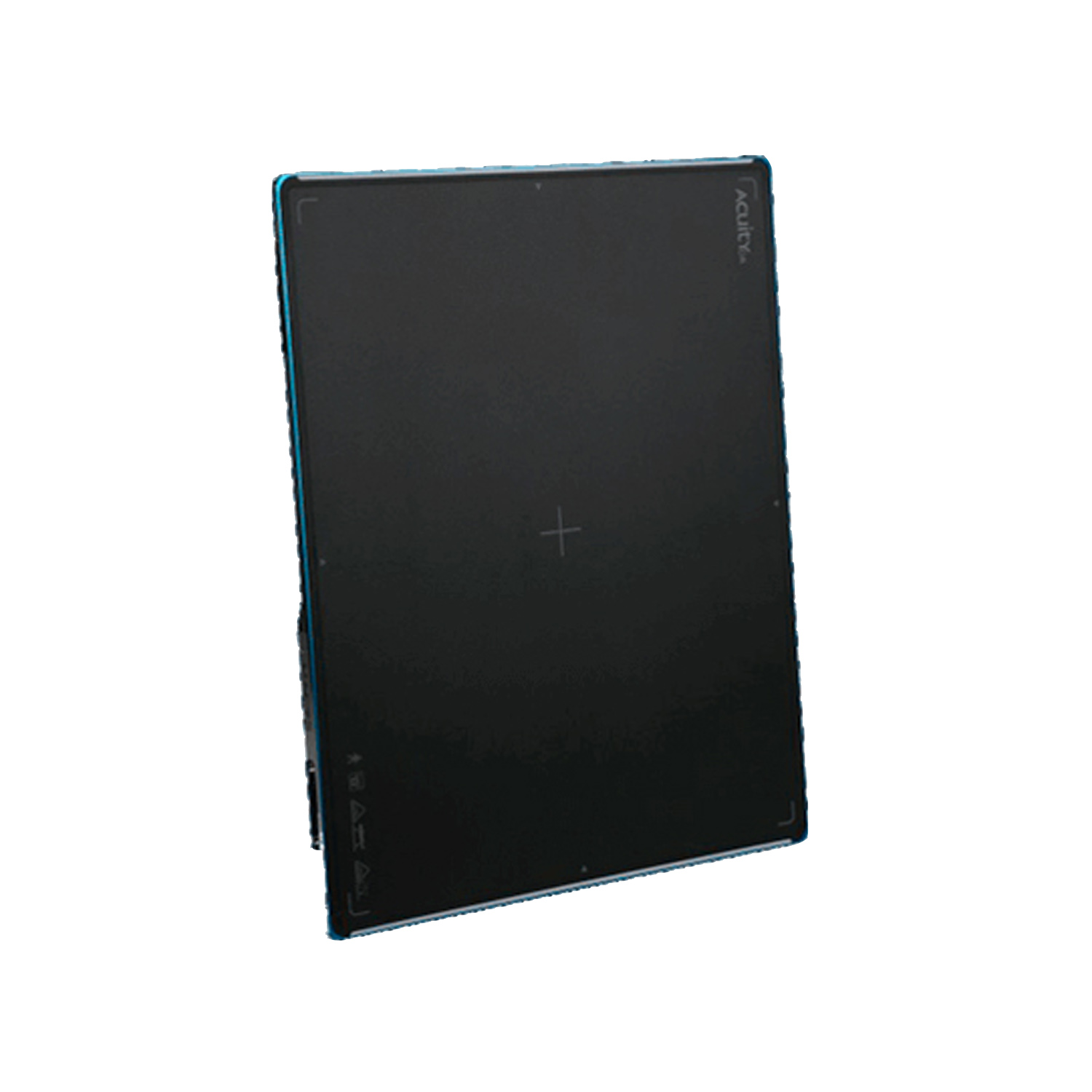

Wireless, casette-sized x-ray detector panel
The Acuity 14x17 Wireless DR Panel is the perfect, cost-effective solution for facilities seeking to upgrade their existing x-ray imaging suite. The unit features directly deposited Csl that provides clear images using low radiation dispersion compared to conventional Csl and GOS scintillators.
For more information on the Acuity 14x17 Wireless DR Panel available through Med Vest Technology, contact an Med Vest Technology representative today.
The Acuity 14x17 Wireless DR X-Ray Panel works seamlessly with AccuVue X-Ray Acquisition Software, also available from Med Vest Technology.
Features
- Wireless, cassette-sized x-ray detector panel.
- Designed for multi-purpose clinical applications.
- Compact design promotes portability and usability.
- Easily transforms conventional x-ray rooms into a modern digital radiology suite.
- Lightweight design fits easily into traditional cassette holders, integrating with almost any existing equipment.
- Highly reliable and stable operation.
- High-definition direct deposition Csl technology.
- Fast image acquisition time in less than 3 seconds.
- Wireless interface with wifi image transfer available.
- Multi-channel room sharing interface.
- LED display indicates battery level.
- Lossless AED (Automatic Exposure Detection) support.
- Comes standard with slim dual battery charger that allows batteries to be simultaneously charging.
- Includes 3-year hardware warranty.
Specifications
General
- Model: 1417 Wireless
- Detector Type: Direct deposition CsI or Gadox
- Weight: 6.5 lb
- Active Area: 14 x 17 in
- Pixel Pitch: 140 μm
- Resolution: 2560 x 3072
- A/D Conversion: 14 bit
- Input Voltage: DC 12V, 5A
- Communication: Giga Ethernet / IEEE 802.11n (5 GHz)
- X-ray I/F: Lossless AED / Sync Trigger
