Details
X-ray panel provides easy retrofit upgrade

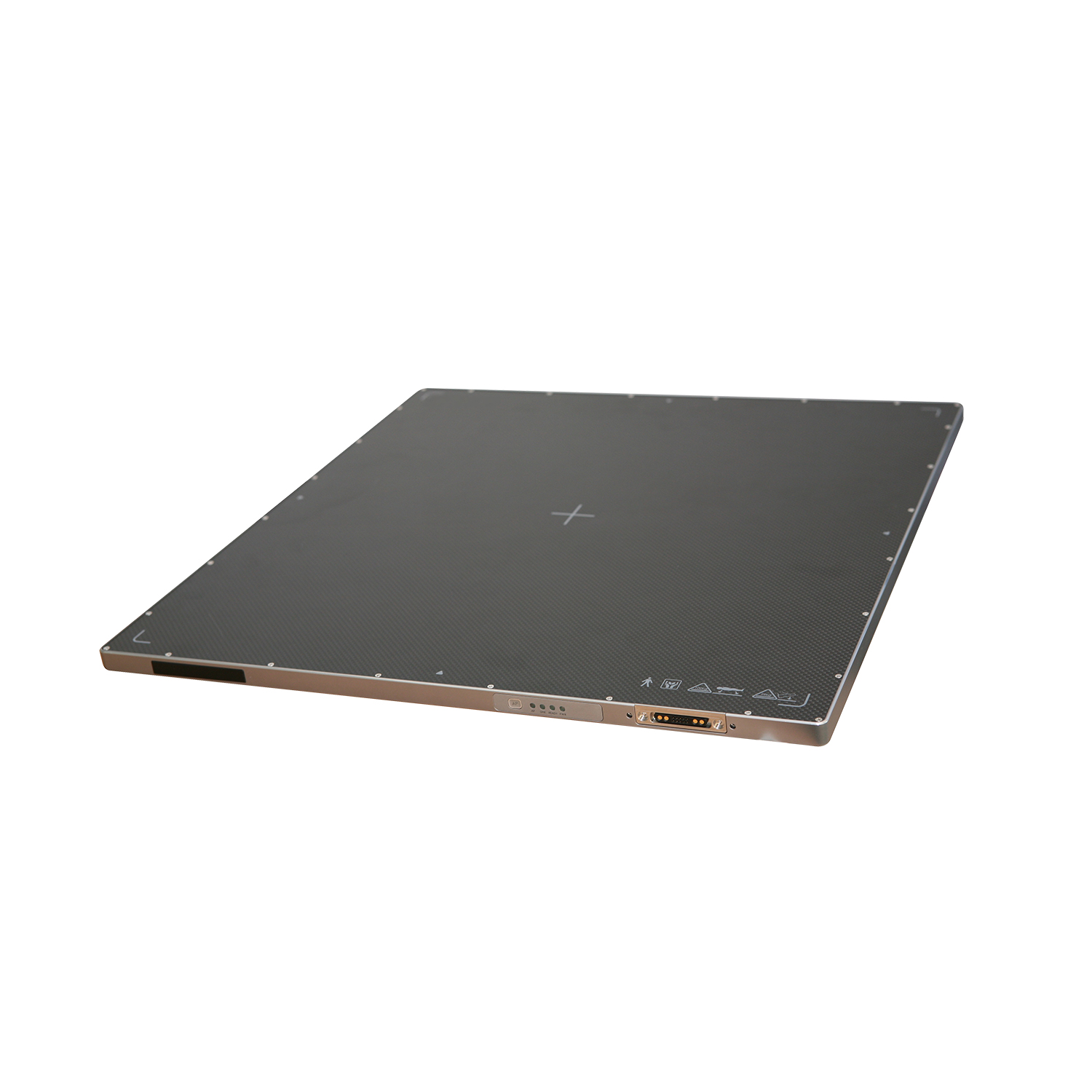

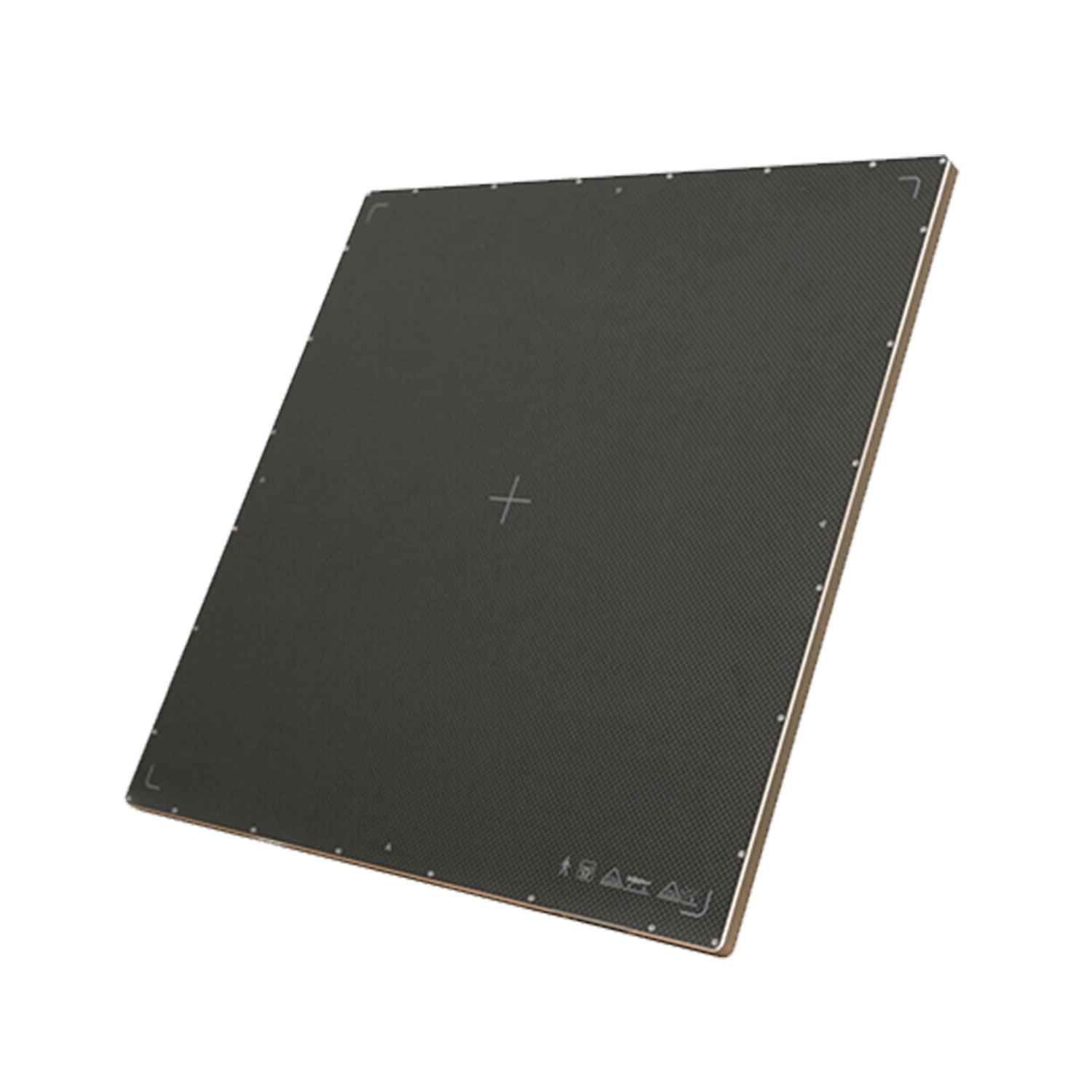

The Acuity 17x17 X-Ray Panel features a “drop in” design that allows clinicians to easily retrofit existing x-ray technology, transforming conventional x-ray spaces into a modern radiology suite. The panel’s imaging area measures 17 x 17 inches and features a rugged design with comfortable grip.
For more information on the Acuity 17x17 X-Ray Detector Panel available through Med Vest Technology, contact an Med Vest Technology representative today.
The Acuity 17x17 X-Ray Panel works seamlessly with AccuVue X-Ray Acquisition Software, also available from DRE Medical.
Features
- Slim, lightweight x-ray detector easily transforms conventional x-ray rooms into a modern digital radiology suite.
- “Drop in” design allows clinicians to retrofit existing x-ray technology.
- Panel features rugged design with comfortable grip.
- Directly deposited CsI provides enhanced image contrast and sharpness with quick image acquisition in only seconds.
- Auto exposure detection (AED) eliminates the need for a cable connection between the x-ray generator and detector for a truly “plug and play” system.
- Includes 3-year hardware warranty.
Specifications
General
- Model name: Acuity 1717
- Purpose: General radiography
- Pixel Pitch: 140 um
- Scintillator: CsI (Cesium Iodide)
- Image Matrix Size: 3072 x 3072 pixels
- Effective Imaging Area (HxV): 17 x 17 in
- Image Acquisition and Transfer Time: < 3 sec
- Spatial Resolution: Min. 3.5 line pair/mm
- Power Supply: DC + 12V 2A Max.
- Power Consumption: 12W
- Network Interface: Gigabit Ethernet
- Dimensions (mm): 18.1 x 18.1 x 0.6 in
- Weight: 9.9 lbs
