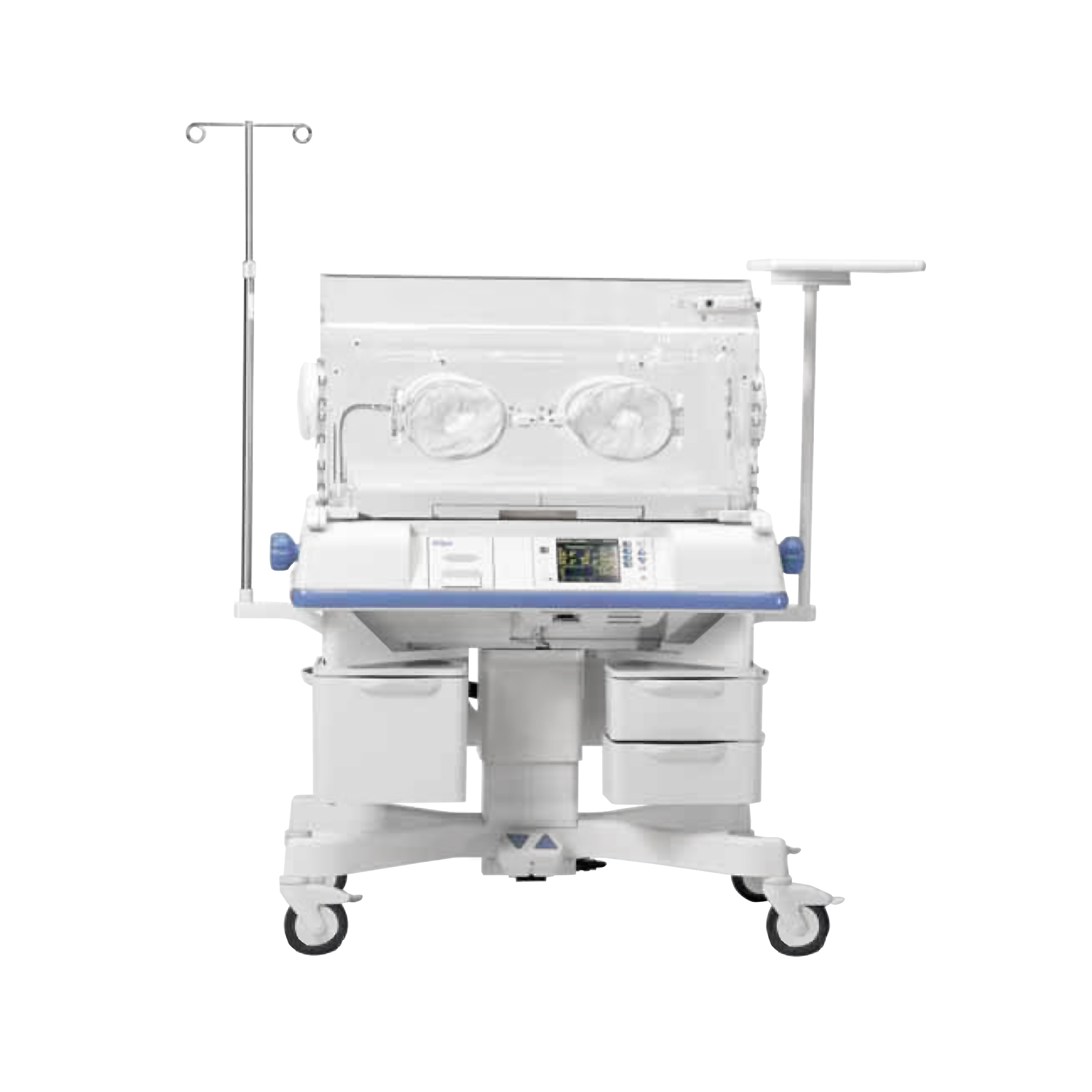

Drager Air-Shields Isolette C2000 Infant Incubator
Drager Air-Shields Isolette C2000 Infant Incubator
0 item is in your cart. View cart now
All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.
Details
THIS ITEM IS CURRENTLY UNAVAILABLE. However for hospital use we do have newer New options so please reach out to our team. We also carry infant incubators dedicated for educational and simulation purposes only.
---
Caring for low birth weight neonates requires creating the best possible thermal-neutral environment. The Drager Isolette C2000 Infant Incubator helps to promote and foster neonatal care by delivering a heated and humidified environment.
Features
- Optional Dual Access Doors – Allow access from either side, expediting care.
- Thermal Performance – Patented dual air curtains reduce radiant heat loss from the infant by warming the inner hood surface. A bi-directional airflow feature helps to minimize temperature fluctuations when the access doors are opened.
- Large Mattress and Dual Probes – The C2000 incubator allows for simultaneous care of twins in the same unit, allowing more incubators for more patients.
- Internal Noise Level less than or equal to 47dBA – Maintains a supportive environment for both patient and caregiver.
- Optional In-bed Scale – Weigh the baby in a warm environment with minimal disturbance.
- 24-hour Data Trends – This unit facilitates record keeping for air and skin temperature, oxygen, humidity, heater power, and weight changes.
Specifications
Air-Shields Incubator with VHA Stand
- Width: 38.0" (99 cm)
- Depth: 26.3" (67 cm)
- Height: 52.5" - 60" (133.4 to 152.4 cm)
- Weight: 198 lbs (90 kg)
Air-Shields Incubator with Fixed Height Stand
- Width: 46.8" (119 cm)
- Depth: 26.3" (67 cm)
- Height: 56" (142 cm)
- Weight: 175 lbs (79.5 kg)
Hood Specifications
- Mattress tray size: 16" x 32" (40.6 81 cm)
- Mattress to hood: 16.25" (41.2 cm)
- Access panel opening: 11" (28 cm)
- Standard hood includes: 4 port doors; 2 iris ports; front access panel; 3 left and 3 right tubing grommets-front
- Mattress tilt: ±12° (±1° C)
- Micro air intake filter: 99.9% efficiency
- Particle size removal: 0.3 micron
- Air mode control range: 20 to 39.0°C
- Air mode override: >37.0°C
- Air flow velocity across mattress: <10 cm/sec
- Skin mode control range: 34.0 to 38.0° C
- Skin mode override: >37.0° C
- Temperature rise time (at 22°C ambient): <35 minutes
- CO2 levels: <0.5% when delivered at 750 ml/min at a point 10 cm above the mattress
- Operating noise level in hood: 47 dBA (49 dBA with Servo Controlled Oxygen)
- Casters (4 casters, 1 steering): 5" (12.7 cm)
- RS-232 output
- Controller with LCD with brightness control
- Selectable color combinations: white on blue background (default) or yellow on black background
- Dual-skin temperature monitoring
- 6 AC (Mains) outlet
- Keypad lock
- 24 Hour trend of: Air temperature, skin temperature (1 and 2), Relative humidity, Oxygen concentration, Heater power
Environmental Requirements
- Operating temperature range: 20°C to 30°C ambient
- Storage temperature range: -25°C to 60°C ambient
- Operating humidity range: 5% RH to 99% RH, non condensing
- Storage humidity range: 0% to 99% RH, non condensing
- Operating RH sensor temp. range: 20°C to 41°C
- Operating O2 sensor temp. range: 20°C to 41°C
- O2 sensor calibration pressure: 600 to 900 mm Hg
Alarms
- Temperature (limiting ≤): 38°C for air temp. < 37°C; 40.0° C for air temp. > 37° C
- Baby set temperature: ±1° C (or ±0.5° C)
- Air set temperature: +1.5° C/-2.5° C
High/Low Skin Temperature Alarms
- High/low air temperature
- High temperature cut-out
- Air probe failure
- Skin probe failure/disconnect
- Low air flow
- Low humidity (humidity option)
- Low/high oxygen (±3%) (oxygen option)
- Oxygen calibration required (oxygen option)
- Oxygen cell difference (oxygen option)
- Oxygen solenoid failure (oxygen option)
- Scale disconnect (scale option)
- Too much weight (scale option)
System Alarms
- Controller failure
- Sensor module failure
- sensor module out of position
- Motor failure
- Power failure
- Heater failure
- Sensor disconnected
- Key stuck
Servo Humidity Option
- Water capacity: 1000ml
- Refill time: >24 hrs @ 85 RH%;
- Range: 30 to 95%
- Display accuracy: ±6% RH%
Servo Oxygen Option
- Accuracy: 100% cal ±3%
- Accuracy: 21% cal ±5%
- Range: 21 to 65%
- Resolution: 1%
Scale Option
- Weight range: 0 to 15.4 lbs (0 to 7 kg)
- Weight display resolution: 1 g or 1 oz (OIML = 10 g or 1 oz)
- Weight accuracy: 2 g ± 1/2 digit up to 2 kg (OIML = 10 g); 5 g ± 1/2 digit over 2 kg
- Weight gain or loss trended over 7 days
Other Options (Attach to Accessory Rail)
- IV Pole weight limit: 10.4 lb (4.72 kg)
- Monitor shelf weight limit: 25 lb (11.4 kg)
- Rear access door: Provided with 2 port doors and 4 additional hood grommets 2 left and 2 right
- Ventilator tube support
- Oxygen tank mount
Drawer Options
- Large deep swivel type
- Two shallow swivel out type
