Air-Shields TI-100 Transport Incubator
Air-Shields TI-100 Transport Incubator
0 item is in your cart. View cart now
All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.
Details
THIS ITEM IS CURRENTLY UNAVAILABLE. However for hospital use we do have newer New options so please reach out to our team. We also carry infant incubators dedicated for educational and simulation purposes only.
---

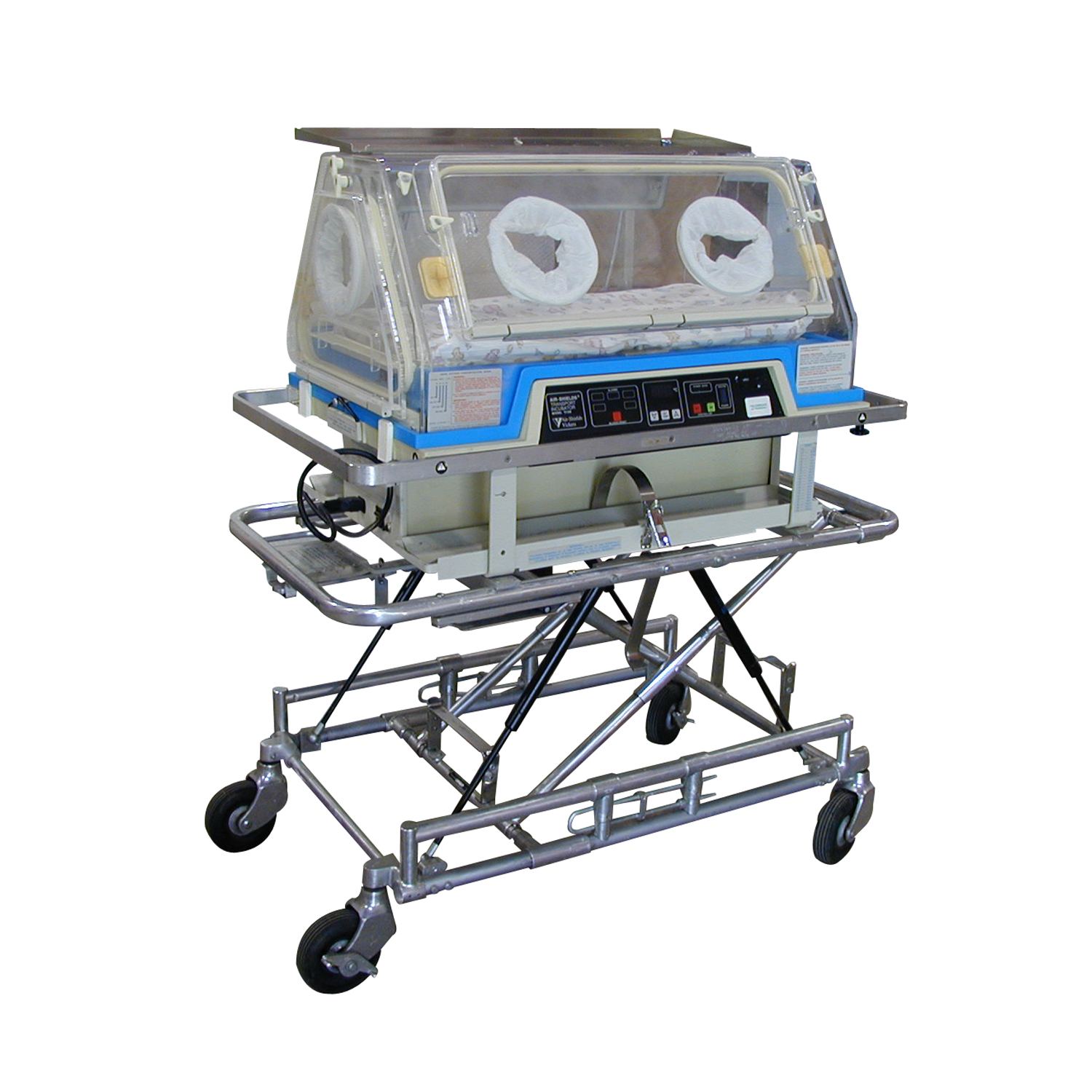

The Air-Shields TI-100 Transport Incubator is available New from Med Vest Technology.
FEATURES
- Intended for transport of high risk, premature, low birth-weight, or critically ill newborns.
- It provides a means to control air temperature, oxygen concentrations, and relative humidity.
- A double wall hood permits full visibility and provides an effective thermal barrier from the environment.
SPECIFICATIONS
Dimensions (with stand):
- Length: 40.25 in. (102 cm)
- Width: 22.25 in. (56.5 cm)
- Height: 46.75 in. (118.7 cm) maximum, 34.75 in. (88.3 cm) minimum
Power Requirements:
- AC: 110.120 VAC 50/60/400 Hz, sine or square wave 170/200 Watts and 225/270 Watts with batteries charging.
- DC: 12 VDC, 115 Watts
Internal Battery:
- Type: gel type, sealed and rechargeable.
- Voltage: 12 VDC nominal
- Quantity: 2
- Charging Time: two batteries take 20 minutes to recharge from fully discharged.
- Life expectancy: minimum 200 full charge/discharge cycles.
Chassis Leakage Current: 100 µA or less
Alarms:
- High Temp: Actuates at displayed incubator temperature of 39° ± 0.5 °C.
- Sensor: Actuates if High Temp alarm sensor is electrically open or shorted.
- Power Failure: Actuates if main AC power fails and no DC back-up power is present.
- Heater Temp: Actuates if heater temperature exceeds 77 °C nominal.
- Low DC: Actuates if incubator DC voltage has fallen below 10.5 VDC nominal.
Temperature:
- Set Point Range: 21.5 °C ± 1.0 °C to 38 °C
- Rise Time: 30 minutes
- Variability: 0.2 °C
- Overshoot: 1.5 °C maximum
- Uniformity: 1 °C
- Correlation of Displayed Incubator to Actual Incubator Temperature at Temperature Equilibrium: 1 °C
- Correlation of Displayed Incubator Temperature to Set Point at Temperature Equilibrium: ± 0.5 °C
- Observation Light Output: 10-foot candles at mattress level
