Med Vest Technology Alta V10 Anesthesia Machine
Med Vest Technology Alta V10 Anesthesia Machine
0 item is in your cart. View cart now
All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.
Details

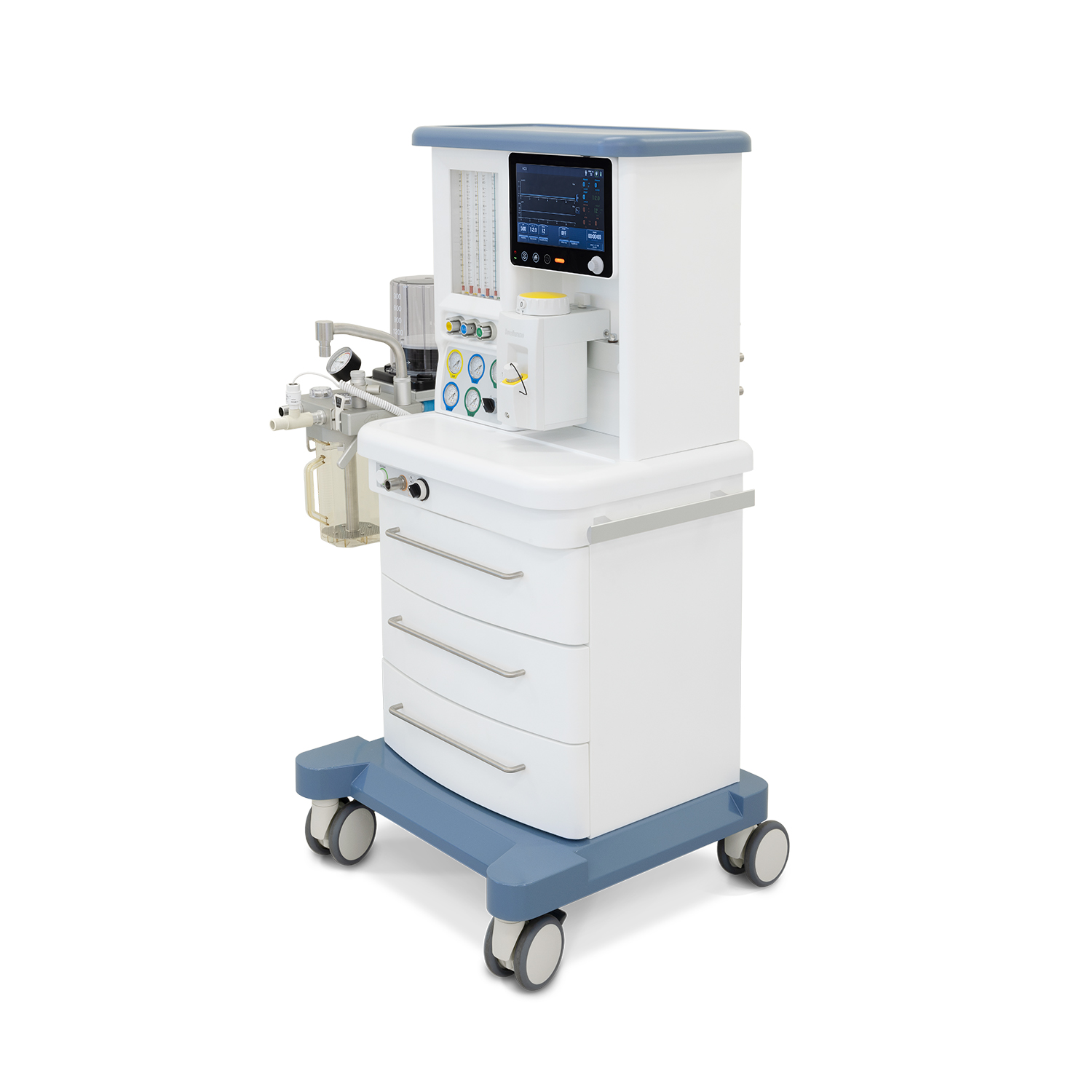

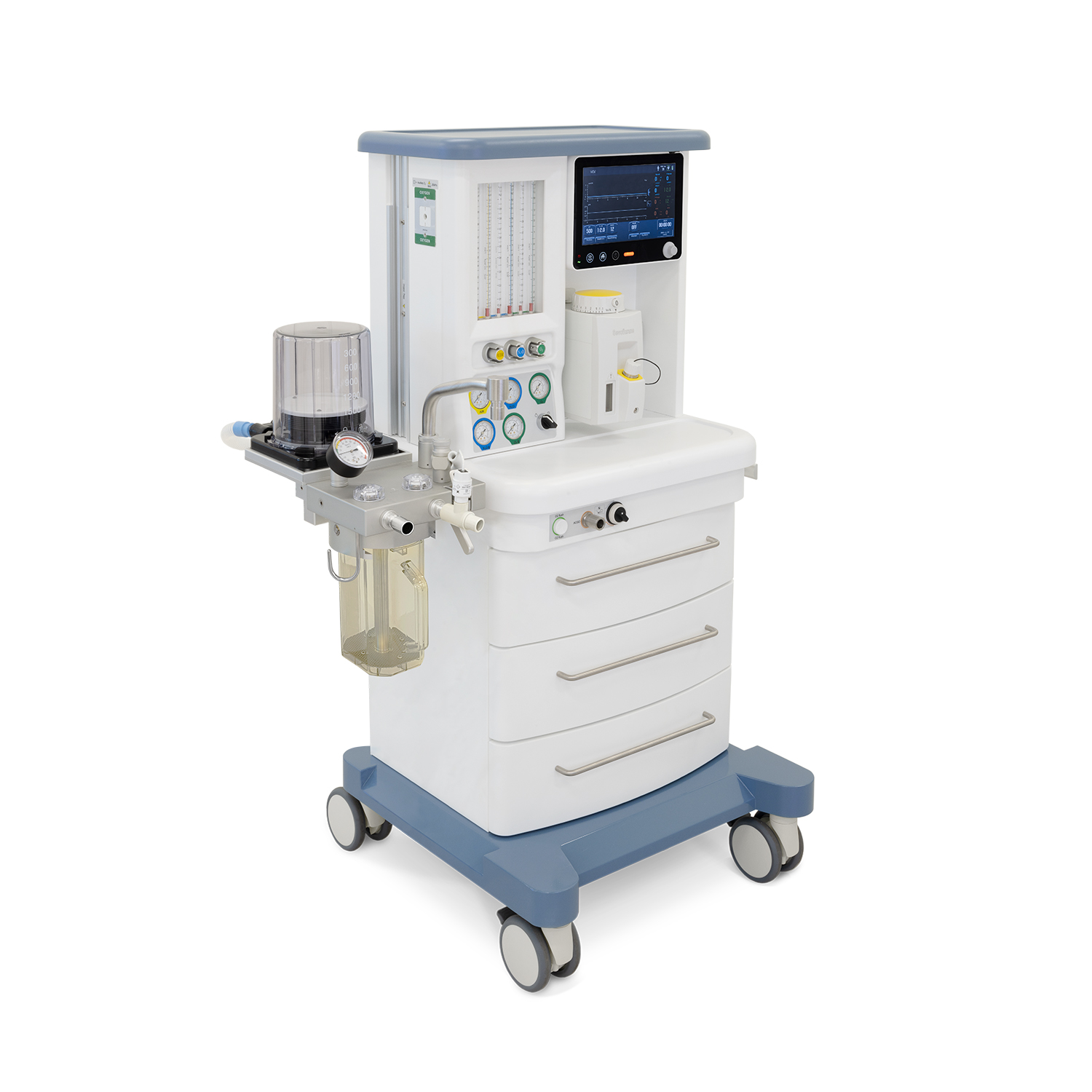

The Med Vest Technology Alta V10 is a full-featured anesthesia machine designed for use with patients of all ages. The Alta V10 is easy to operate, and features a large integrated color touchscreen. It includes three drawers for storage and four casters for quick maneuvering throughout your facility.
For more information on the Med Vest Technology Alta V10, contact an Med Vest Technology representative today.
Features
- Large integrated monitor display with touch screen, 26.4 cm (10.4")
- Fully loaded with all major modes of anesthesia ventilation (see specifications)
- Includes O2, N2O, and Air with 6-flow tubes
- Auxiliary O2 input included for nasal cannula and other O2 delivery uses
- Selectatec mounting bar
- Two vaporizer mount on back bar
- Optional: Pin yoke system (O2 and N2O)
Specifications
Anesthesia Ventilation Modes
- VCV
- PCV
- SIMV-VC
- Manual
- Standby
- Optional: SIMV-P
Setting Ranges
- Tidal volume: 50 – 1500 mL (optional: 10 – 1500 mL)
- Respiratory rate: 1 – 100 bpm
- Inspiratory time: 0.1 - 10 seconds
- Percentage of inspiratory pause: 0 – 50%
- PEEP: Off, 3 – 20 cm H2O
- Pressure support: 0 – 70 cm H2O
- Flow trigger: 0.5 - 20 L per minute
- Pressure trigger: 0 – 20 cm H2O
- PSV insp termination level: 5 – 80%
Monitored Parameters
- Inspiratory tidal volume: 0 – 2500 mL
- Expiratory tidal volume: 0 – 2500 mL
- Spontaneous minute ventilation: 0 – 60 L per minute
- Minute ventilation: 0 – 60 mL per minute
- Respiratory ratio: 4:1 to 1:10
- Compliance: 0 – 300 mL/cm H2O
- Respiratory ratio: 30:1 to 1:150
- Peak airway pressure: 0 – 100 cm H2O
- Mean airway pressure: 0 – 100 cm H20
- PEEP: 0 – 100 cm H2O
- Inspiratory plateau pressure: 0 – 100 cm H2O
- FiO2 (optional): 15 – 100%
