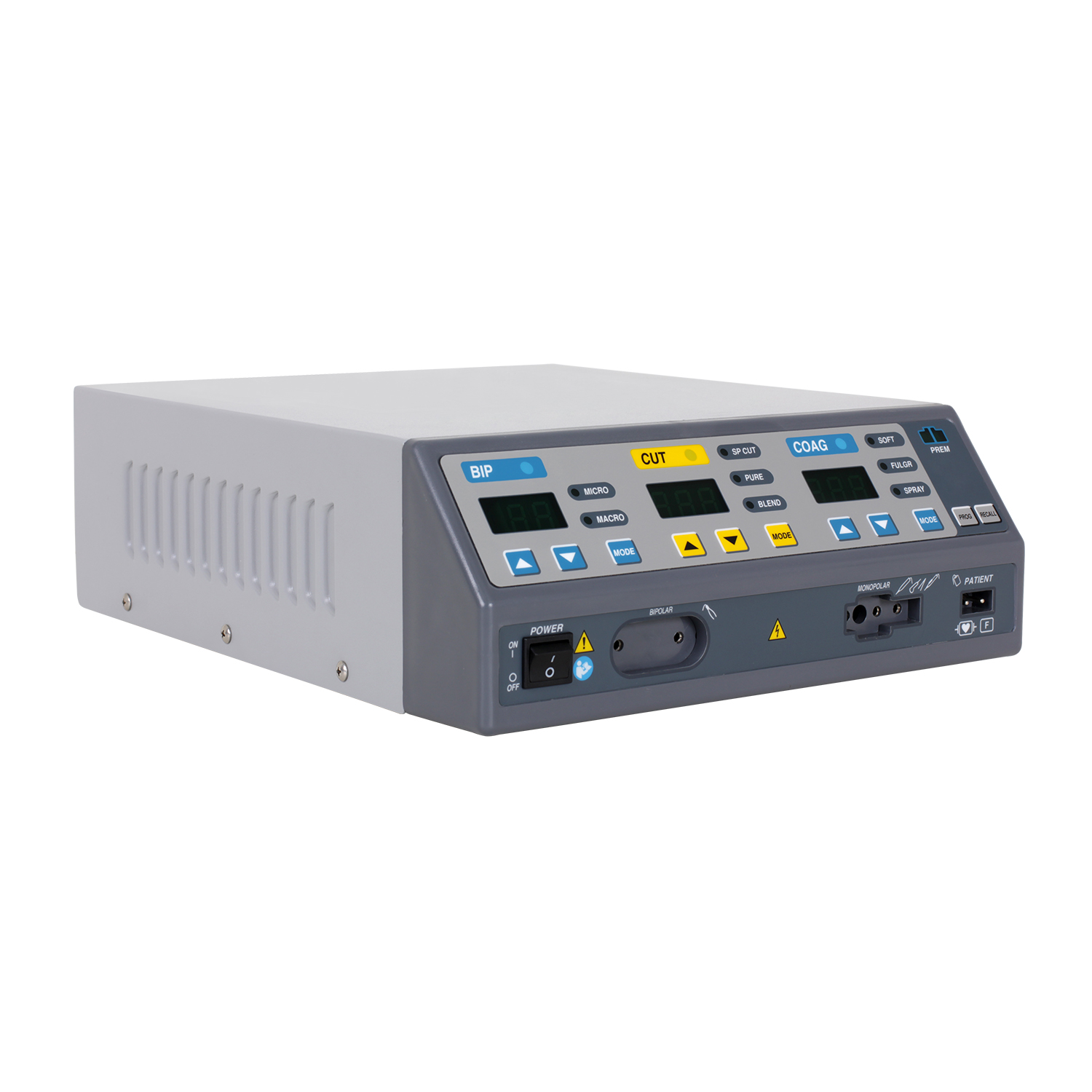

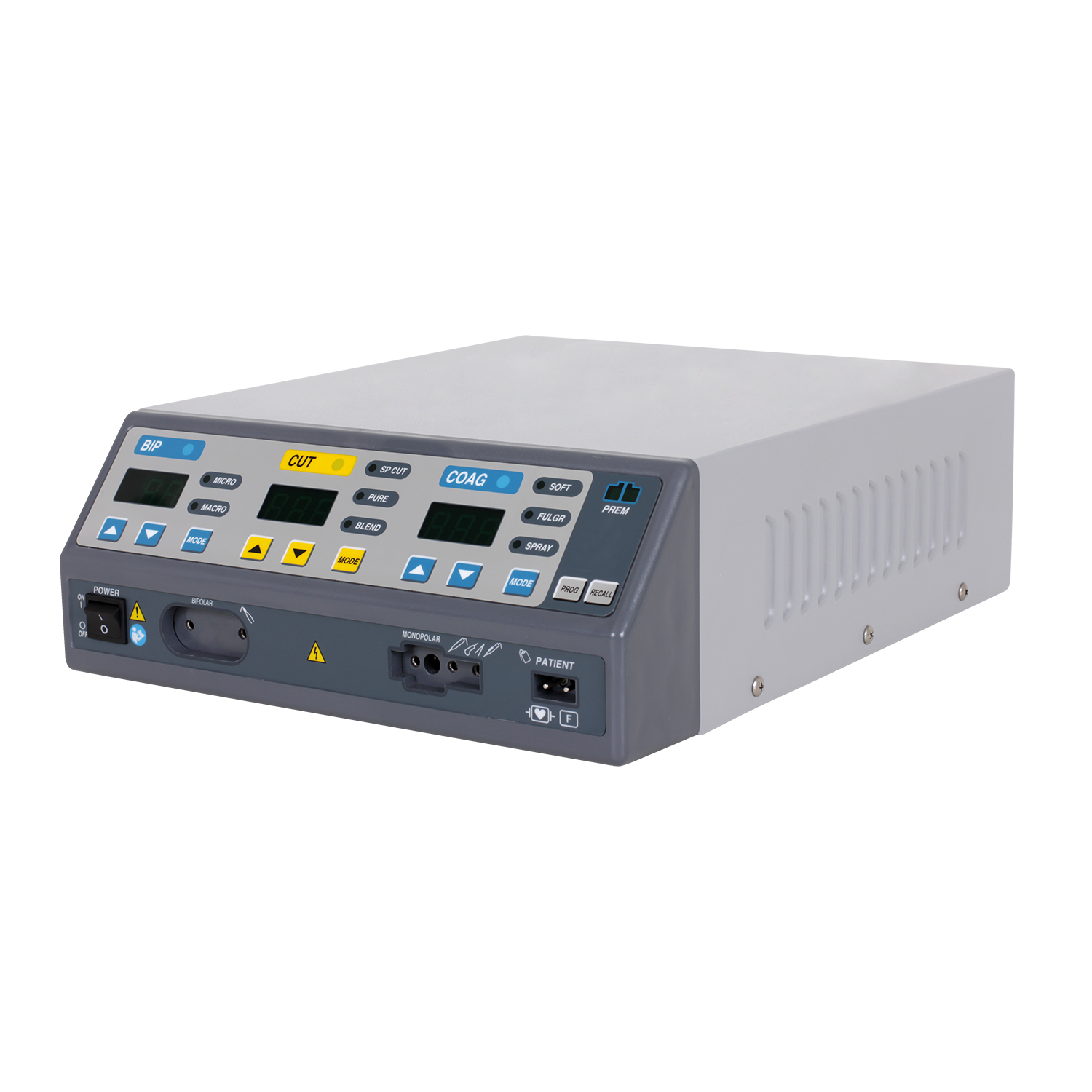

Med Vest Technology Citadel 180 Electrosurgical Unit (ESU)
Med Vest Technology Citadel 180 Electrosurgical Unit (ESU)
0 item is in your cart. View cart now
All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.
Details
The power you need, at an affordable price point
The Med Vest Technology Citadel 180 is an ideal choice for facilities who want a budget-friendly electrosurgical unit without sacrificing features. By offering 180 watts of power, instead of the standard and often unnecessary 300, the Med Vest Technology Citadel 180 is available at a value in today’s market. Often, 180 watts is more than enough power for procedures in Plastic Surgery, Endoscopy, Laparoscopy, Gynecology, Dermatology, ENT, Ophthalmology and Urology.
Clinicians using the Med Vest Technology Citadel 180 can easily operate in both monopolar and bipolar modes, with a variety of settings to suit each unique procedure. The Med Vest Technology Citadel 180 also runs self-diagnostic checks to verify the unit and its accessories are in working order.
The Med Vest Technology Citadel 180 Electrosurgical Unit is available with an optional safety timeout function, argon beam coagulation, a smoke evacuator and a suction irrigation module — ask your Med Vest Technology representative for details.
Features
- Stable, 180-watt power supply with unique tissue feedback technology maintains set power over a wide range of tissue types.
- Patient return electrode monitor increases patient safety by preventing electrode site burns.
- Self-diagnostic protocols help to ensure all parts and accessories are properly functioning.
- Spray coagulation function provides homogenous, efficient coagulation over a large area.
- Soft / Desiccate Coagulation setting allows for faster cutting with coag, ideal for thicker tissues.
- Monopolar and bipolar capable with the appropriate accessories.
- Efficiently Navigate through various surgical modes with the easily-programmable user interface.
- Durable, waterproof pedals.
- Optional — Remote power settings allow operators to change mode and power settings from the sterile field.
- Optional — Timeout function automatically stops the HF output in the event of an unintended activation.
- Optional — Argon beam coagulation, ultrasonic aspirator, smoke evacuator, suction irrigation module.
Optional Accessories
- Bipolar footswitch
- Monopolar footswitch
- ESU Pens and Pencils
- Grounding pads
Specifications
Dimensions
- Length: 15 in (38 cm)
- Width: 12 in (30.5 cm)
- Height: 4.5 in (11.5 cm)
- Weight: < 11 lbs (5 kg)
Power
- Operating Voltage: 180-265 V AC
- Max. Power input: 1000 VA
- Fuse: 4 A
- UPS Backup: 1 KVA
Monopolar AutoCut
- Pure Sine wave 390 kHz
- Sp Cut: Programmable Pulse or continuous output, 200 W at 300 Ω, CF 1.5
- Pure: Continuous output, 200 W at 300 Ω, CF 1.5
- Blend: Bursts repeating at 29 kHz 55% ON cycle, 120 W at 300 Ω, CF 2.5
Bipolar
- Pure Sine wave 390 kHz
- Micro: Lower output voltage, 50 W at 100 Ω, CF 1.5
- Macro: Higher output voltage, 50 W at 100 Ω, CF 1.5
Monopolar Coag
- Damped Sine wave 460 kHz
- Soft: Repetition Frequency 62 kHz, 80 W at 500 Ω, CF 5.0
- Fulgurate: Repetition Frequency 34 kHz, 80 W at 500 Ω, CF 7.0
- Spray: Randomized Repetition Frequency 34 kHz < f < 50 kHz, 80 W at 500 Ω, CF 8.0
Leakage Currents
- RF leakage current: Monopolar < 150 mA rms, Bipolar < 60 mA rms
- Low frequency leakage currents: Normal polarity, intact ground < 10 μA, Normal polarity, ground open < 50 μA
Feedback System
- 3 Microprocessor Controlled 6SENSE Technology with sampling rate about 4000 sense/second
- Maximum output power deviation < 15% or 5 watts, whichever is greater at any setting with PER-98
PREM System
- Measuring Frequency: 85 kHz ± 10 kHz
- Measuring current: < 10 μA
- Acceptable Resistance Range: Dual Area PREM Patient Return Electrode 10-35 Ω, Single Area Patient Return Electrode: < 10 Ω
