Med Vest Technology Citadel 300 Electrosurgical Unit (ESU)
Med Vest Technology Citadel 300 Electrosurgical Unit (ESU)
0 item is in your cart. View cart now
All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.
Details

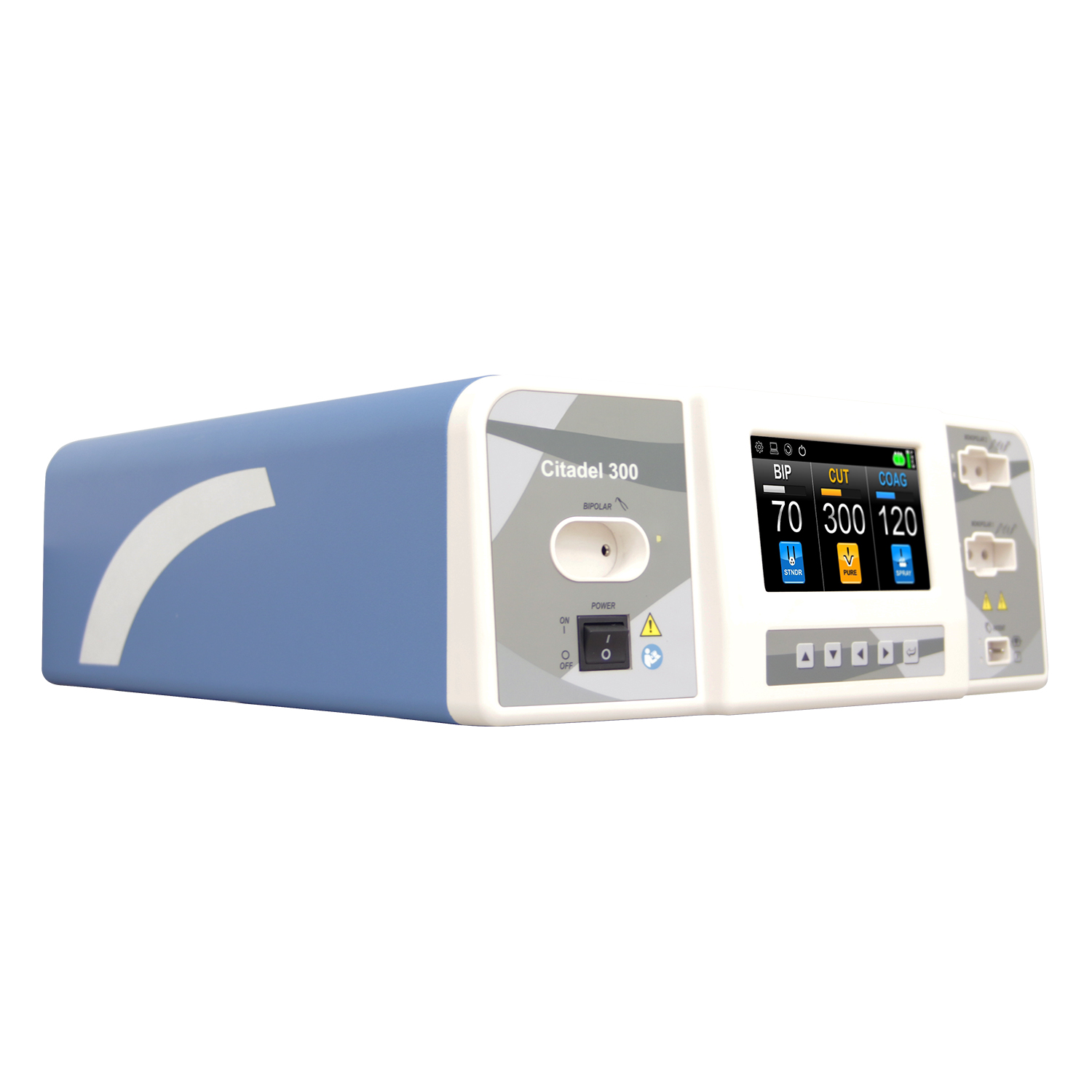

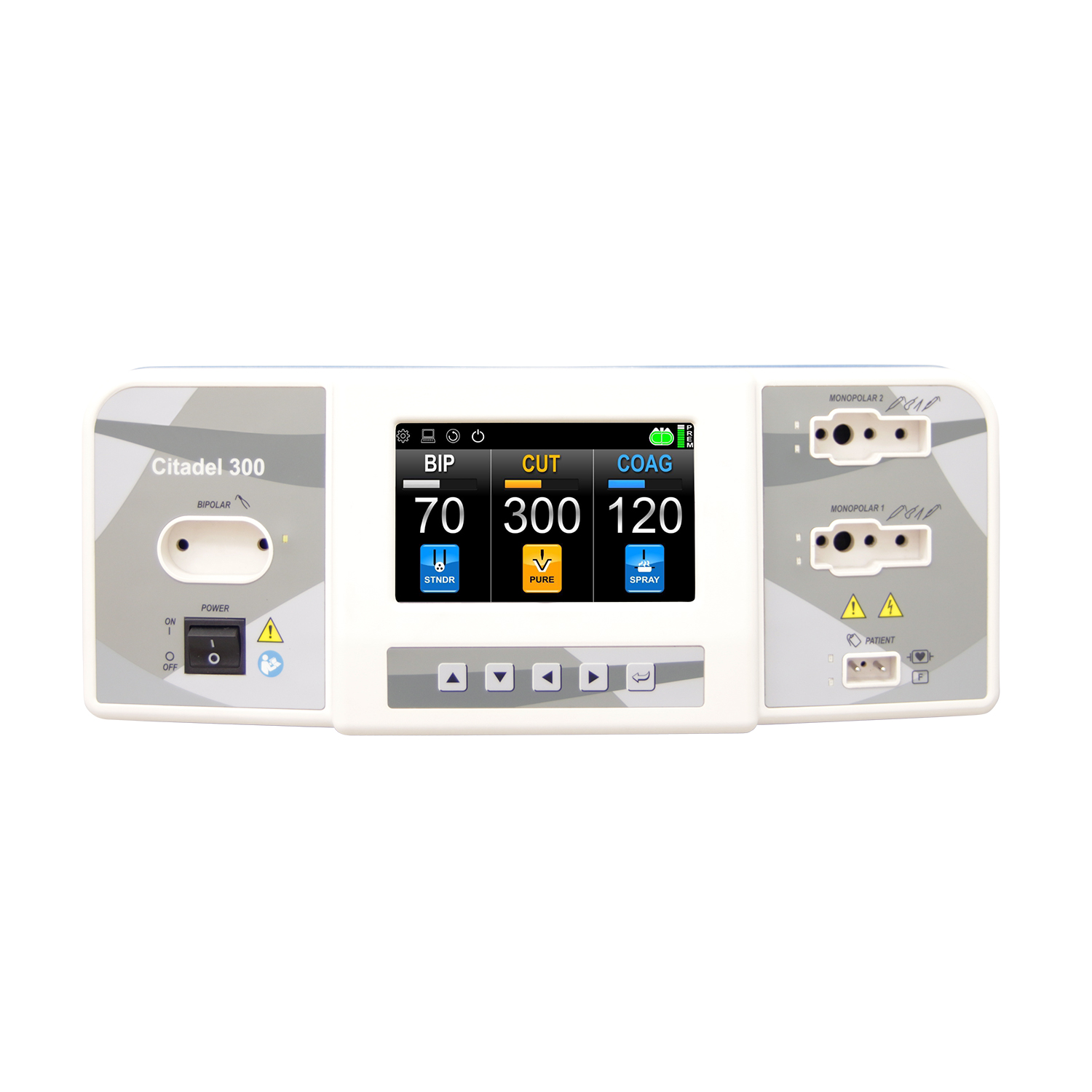

The Avante Citadel 300 is a full-featured, 300 watt ESU for today’s operating room.
The Med Vest Technology Citadel 300 is a touchscreen ESU that can easily adapt to a variety of surgical environments. It provides clinicians with 300 watts of stable power for many applications: Plastic Surgery, ENT, Endoscopy, Laparoscopy, Ophthalmology, Urology, Gynecology and Thoracic procedures.
The Citadel 300 features six Bipolar modes with BiCut mode. Easily operate the machine with built-in features such as Auto Bipolar Mode and accessory activation indicators.
The Med Vest Technology Citadel 300 is available with various footswitches, ESU pens and pencils and grounding pads. Contact an Avante Representative for more information.
Features
- Intuitive touchscreen interface for easy operation.
- Tissue sensing technology provides a microprocessor controlled feedback system to detect changes in voltage, current, power, tissue density, electrode contact and leakage RF current.
- 4 Cut Modes: Low, Pure, Blend Cut and EndoCut (optional)
- 4 Coag Modes: Soft, Swift, Fulger and Spray Coag
- 6 Bipolar Modes: Micro, Standard and Macro Modes and three Auto Modes with high impedance bipolar output.
- Fully microprocessor controlled system for enhanced clinical precision.
- Auto Bipolar Mode for automatic activation.
- Programmable delay time feature for bipolar modes.
- More than 50 customizable settings for individual surgeons and various procedures.
- Accessory activation indicator.
Specifications
Dimensions
- Length: 45.0 cm
- Width: 35.5 cm
- Height: 11.5 cm
- Weight: < 7.5 kg
Environmental
- Transport Temperature Range: -40° to 70°C
- Transport Relative Humidity: 10% to 100%, condensing
- Operating Temperature Range: 10°C to 40°C
- Operating Relative Humidity: 30% to 75%, non-condensing
Input Power
- Mains nominal voltage: 110 Volt
- Maximum VA at nominal line voltage: Idle: 60 VA | Bipolar: 390 VA | Cut: 920 VA | Coag: 520 VA
- Input mains voltage, full regulation range: 90-135 Vac
- Input mains voltage, operating range: 80-140 Vac
- Mains current (maximum): Idle: 0.4 A | Bipolar: 2.8 A | Cut: 7 A | Coag: 3.8 A
- Mains line frequency range (nominal): 50 to 60 Hz
- Fusing: 10A
- Power cord: E108 US Type
Available Power Settings
- Bipolar: 1 to 40 by step of 1, 40 to 70 by step of 5
- Monopolar Cut - Low and Pure: 1 to 40 by step of 1, 40 to 100 by step of 5, 100 to 300 by step of 10
- Monopolar Cut - Blend: 1 to 40 by step of 1, 40 to 100 by step of 5, 100 to 200 by step of 10
- Monopolar Coag: 1 to 40 by step of 1, 40 to 100 by step of 5, 100 to 120 by step of 10
