Med Vest Technology Citadel EZ Electrosurgical Unit (ESU)
Med Vest Technology Citadel EZ Electrosurgical Unit (ESU)
0 item is in your cart. View cart now
All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.
Details

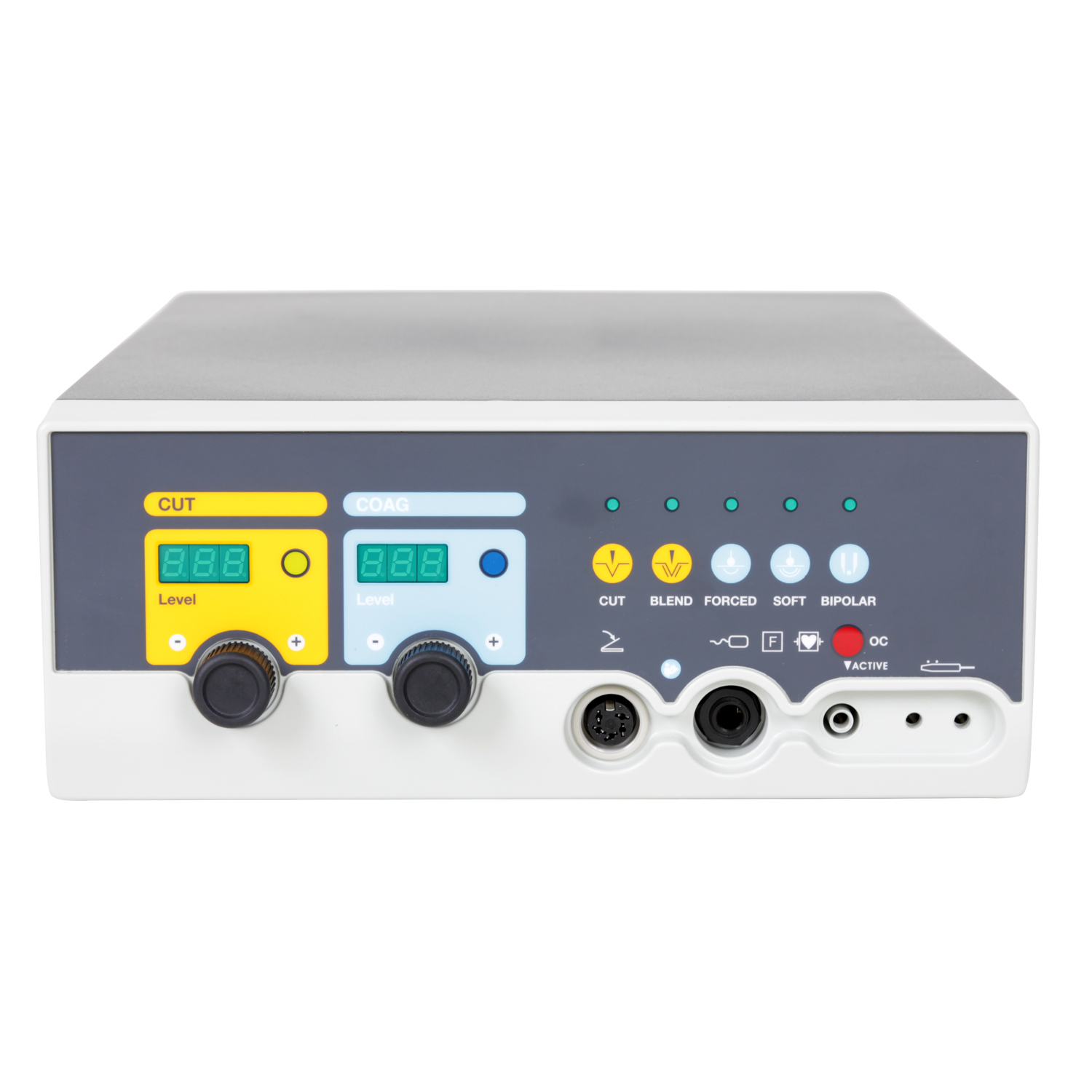

The Med Vest Technology Citadel EZ is a high frequency electrosurgical unit designed for light to moderate surgical procedures. Available with a wide range of electrosurgical accessories.
Available in a 160-watt configuration. Contact your Med Vest Technology representative for more details.
Features
- High frequency, 120-watt electrosurgical unit ideal for light to moderate surgical procedures.
- Multi-functional ESU operates in the following modes: Pure Cut, Blend, Forced Coag, Soft Coag, and Bipolar.
- Neutral electrode connection is constantly monitored for safe operation.
- Control the monopolar handpiece output for complete attention to the surgical field.
- Self check controls help to ensure all parts and accessories are functioning properly.
- Self patient plate circuit monitoring for patient safety.
- Self impedance monitoring for continuous output during surgical procedures.
- Also available in 160-watt configuration. Ask your Avante representative for details.

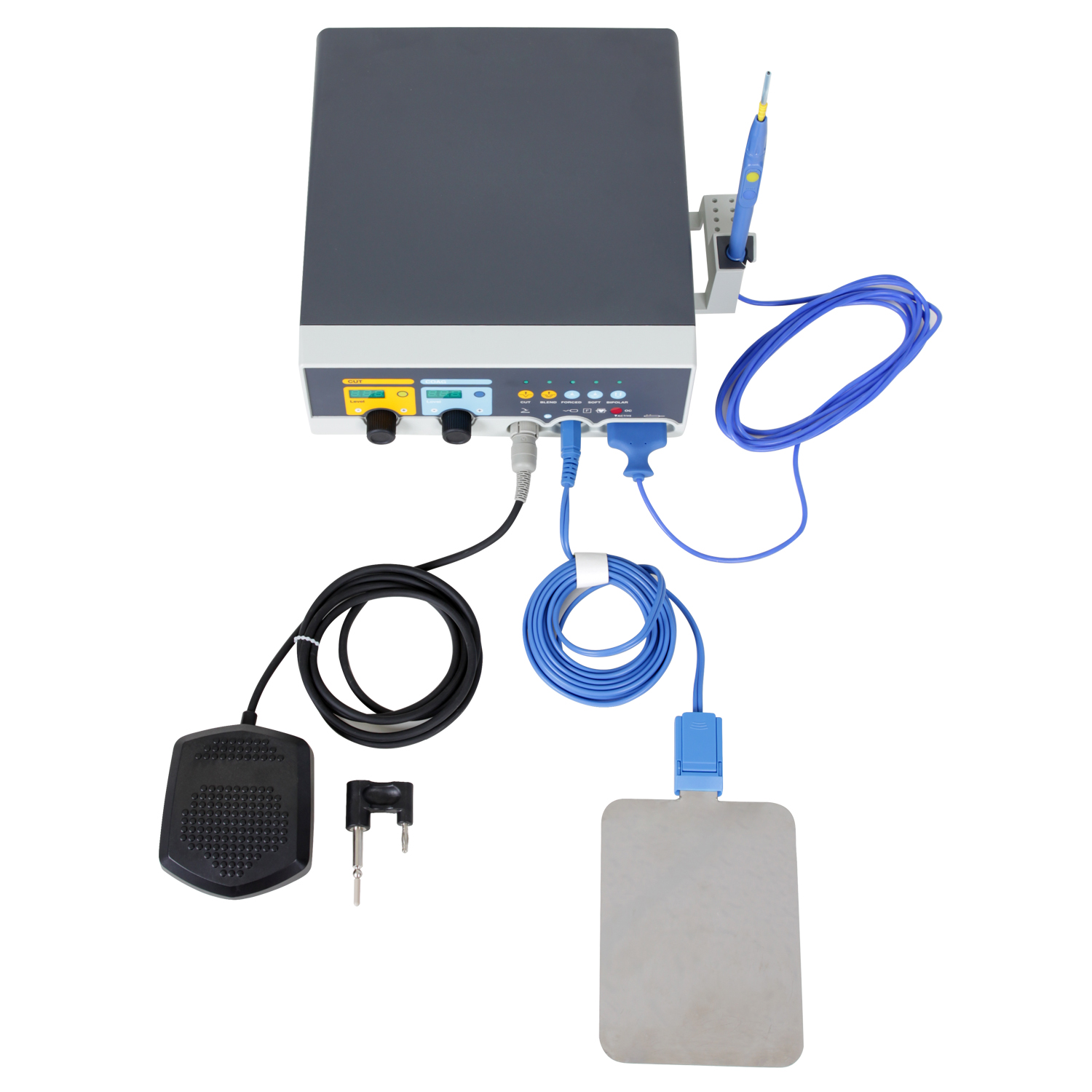

Standard Accessories
- Power cord
- Reusable electrode cable

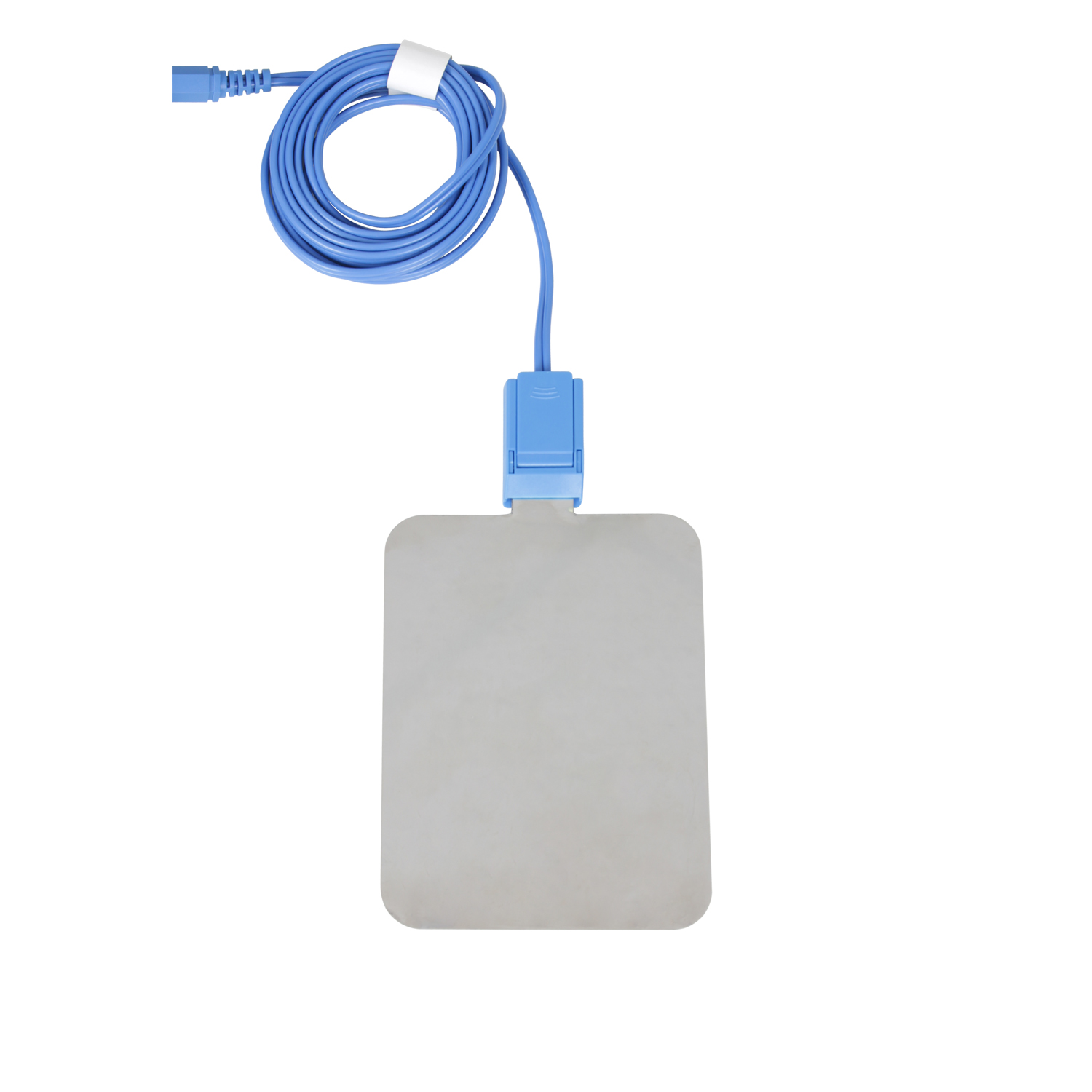

- Reusable electrode plate

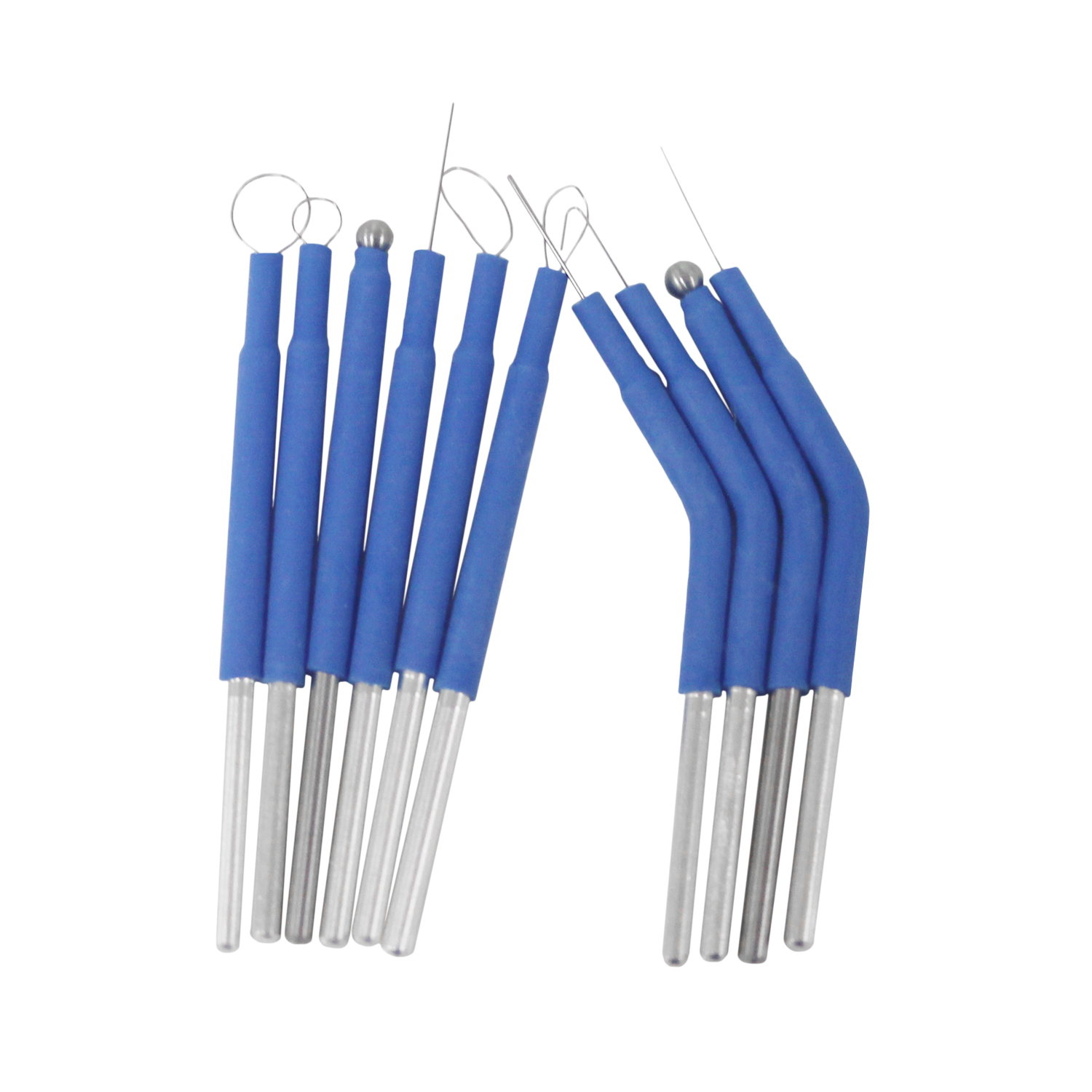

- Electrosurgical tips (pack of 10)

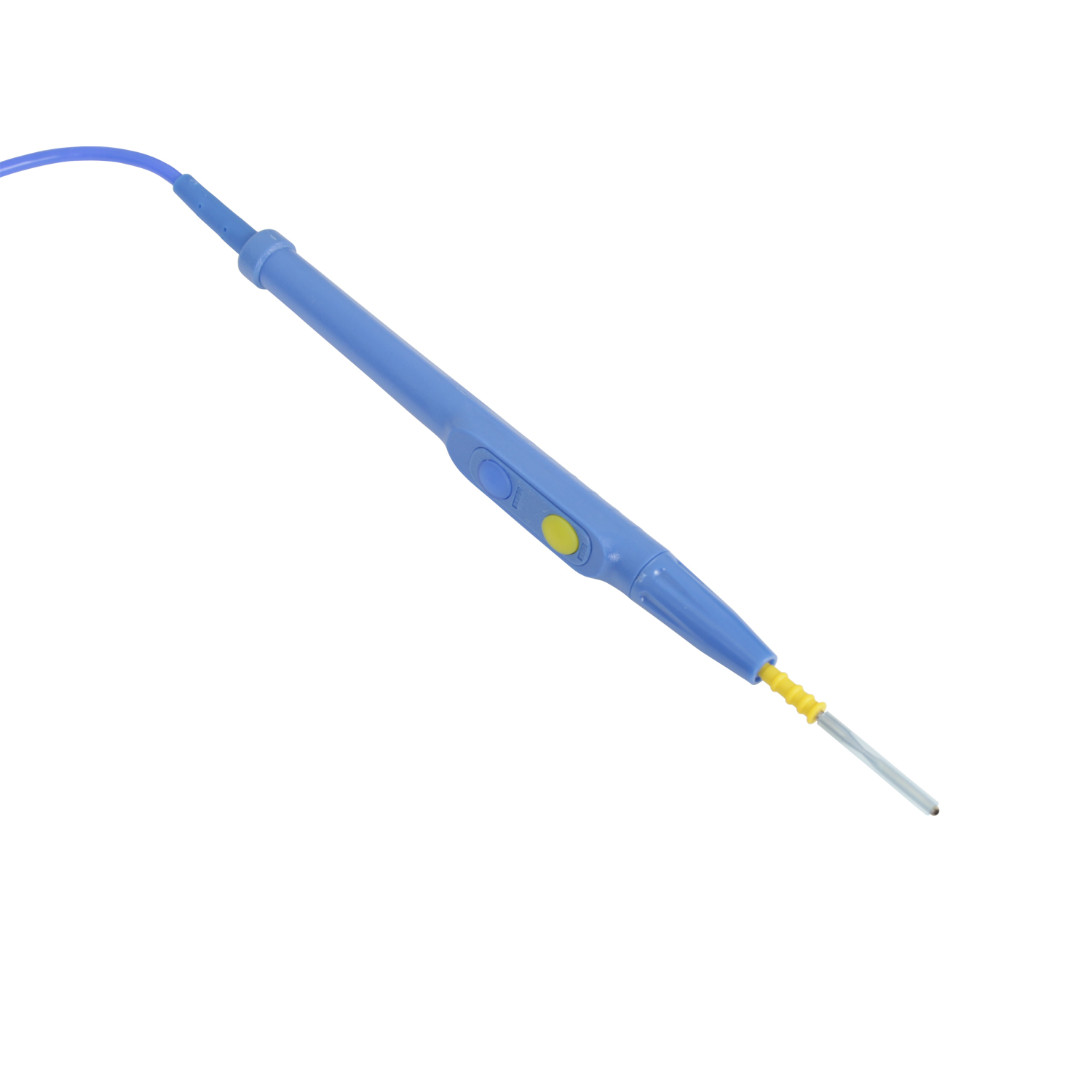

- Reusable hand switching pen

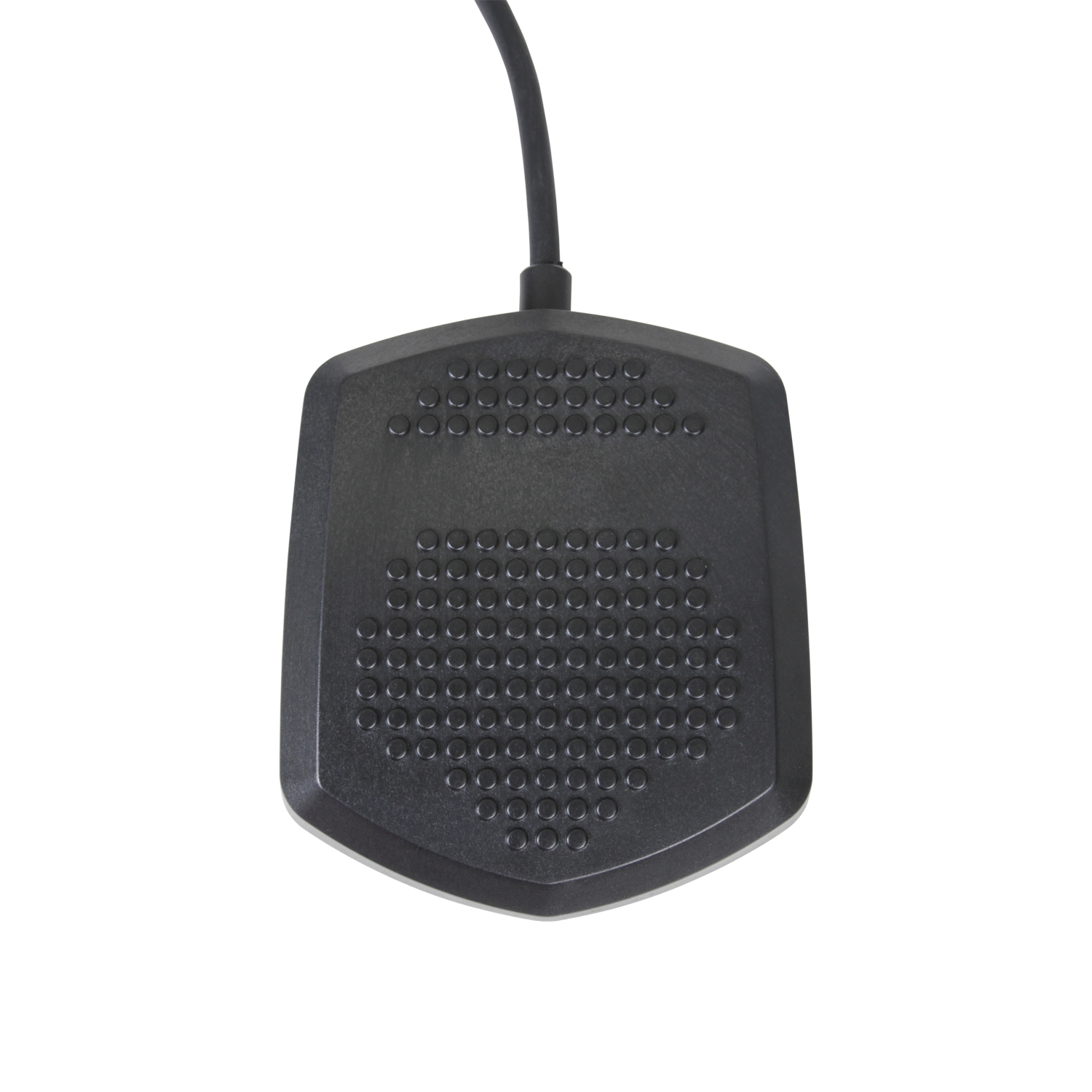

- Reusable foot switch

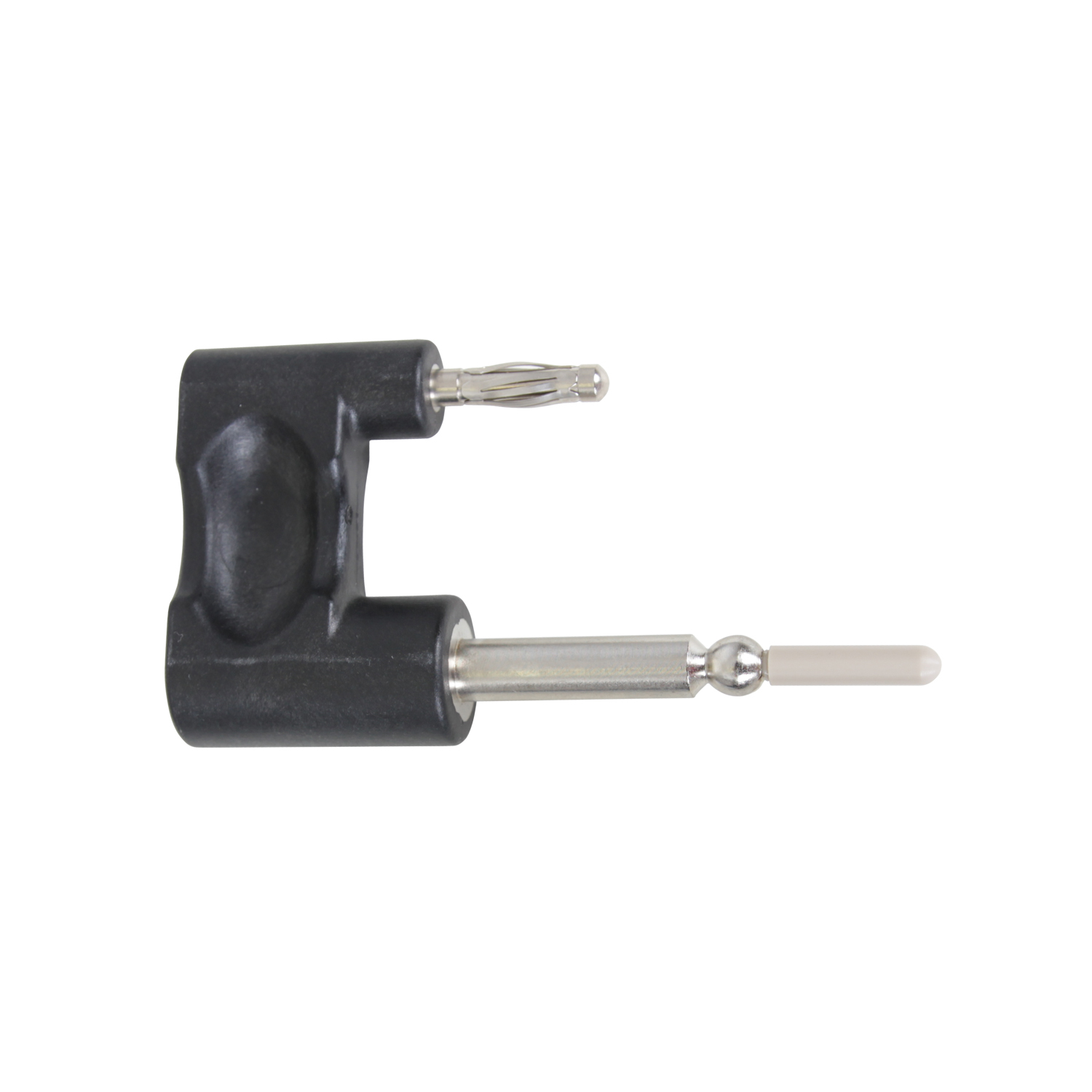

- Bipolar adapter
Specifications
Maximum Output Power
- CUT - max output: 120 W-250 Ω
- BLEND - max output: 90 W-200 Ω
- FORCED COAG - max output: 80W-150Ω
- SOFT COAG - max output: 60 W-100 Ω
- BIPOLAR - max output: 40 W-100 Ω
General
- Working frequency: 600 KHz
- Selectable input voltage: 115-230 Vac
- Mains frequency: 50-60 Hz
- Electrical input power: 300 VA
- Dimensions: 10 in W x 4.1 in H x 11.3 in
- Weight: 11 lb
