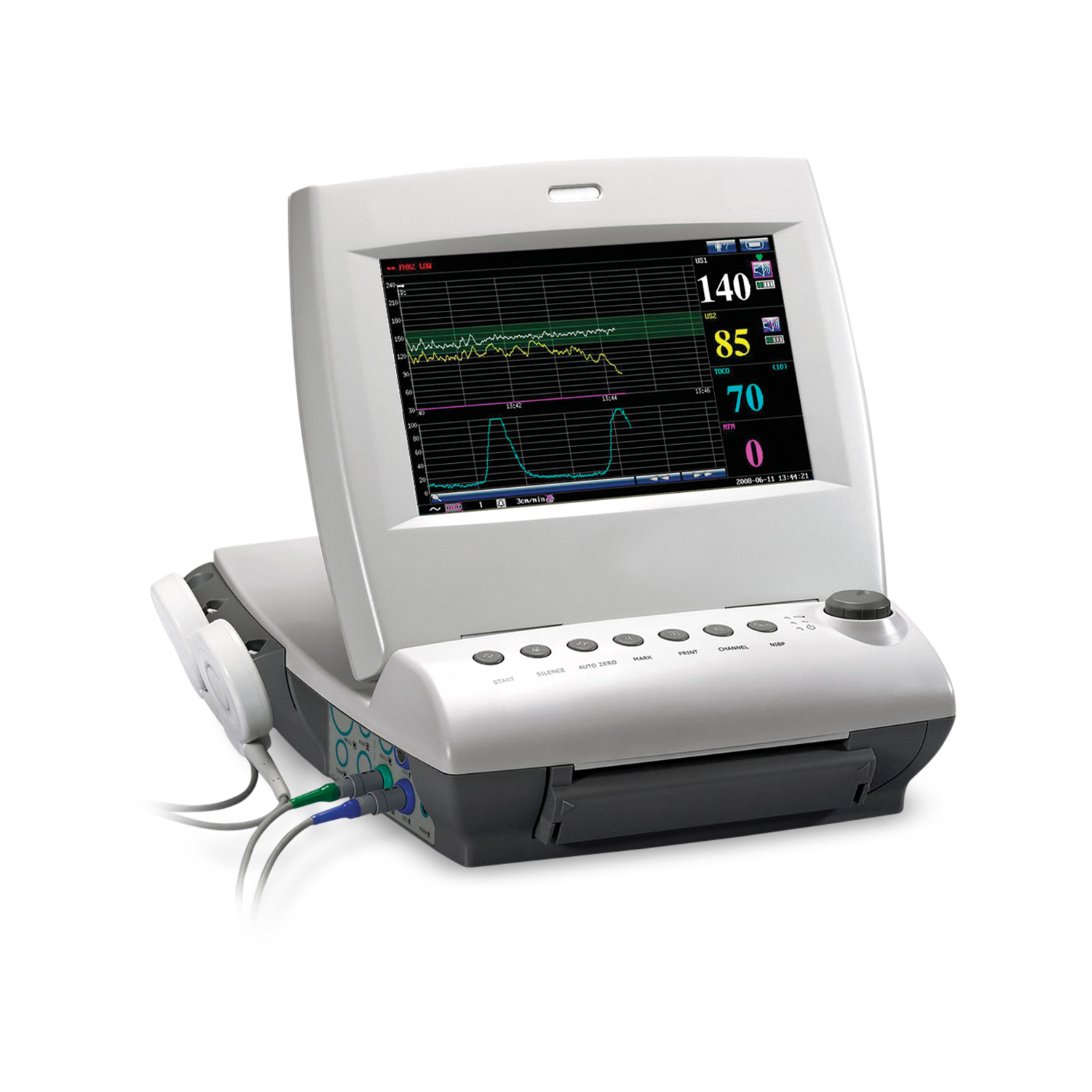

Med Vest Technology Compact FM Fetal Monitor
Med Vest Technology Compact FM Fetal Monitor
0 item is in your cart. View cart now
All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.
Details
Compact fetal monitor with dual fetal heart rate and TOCO monitoring
Features
- 10.2" folding color widescreen
- Multi-crystal pulsed wave transducer
- FM marker, automatic fetal movement detection
- Signal overlap verification
- 12 hours data storage and review
Specifications
Physical Weight & Dimensions
- Dimensions: 347 × 330 × 126 mm
- Weight: Approx. 6 kg
Performance
- Display: 10.2" color TFT-LCD
- Resolution: 800 × 480
- Paper: Z-fold, thermosensitive
- Recorder: US/International Standard; 1/2/3 cm/min real-time printing speed; fast print speed (stored traces) up to 25 mm/sec
Ultrasound
- Technique: ultrasound pulse doppler with auto-correlation
- Pulse repetition rate: 2 KHz
- Ultrasound frequency: 1.0 MHz ± 10%
- FHR range: 50 bpm -240 bpm
- Accuracy: ±2 bpm
TOCO
- TOCO range: 0-100 relative (%)
- Resolution: 1 count
- Zero mode: Automatic / manual
Auto Fetal Movement
- Technique: Pulse doppler ultrasound
- AFM range: 0-100 (%)
- Resolution: 1%
Marking
Manual fetal movement work
Battery
- 14.8 V rechargeable Lithium-ion battery
- Continual working time: 4 hours
Signal Interface
RS-232 interface and Ethernet interface
