Med Vest Technology Compass 101 Microscope

Med Vest Technology Compass 101 Microscope

Brand: Med Vest Technology
Web ID: 13824

0 item is in your cart. View cart now

Need help choosing?

Ask an Equipment Expert

(781) 302-6019

Listing Terms & Conditions

All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.

Details

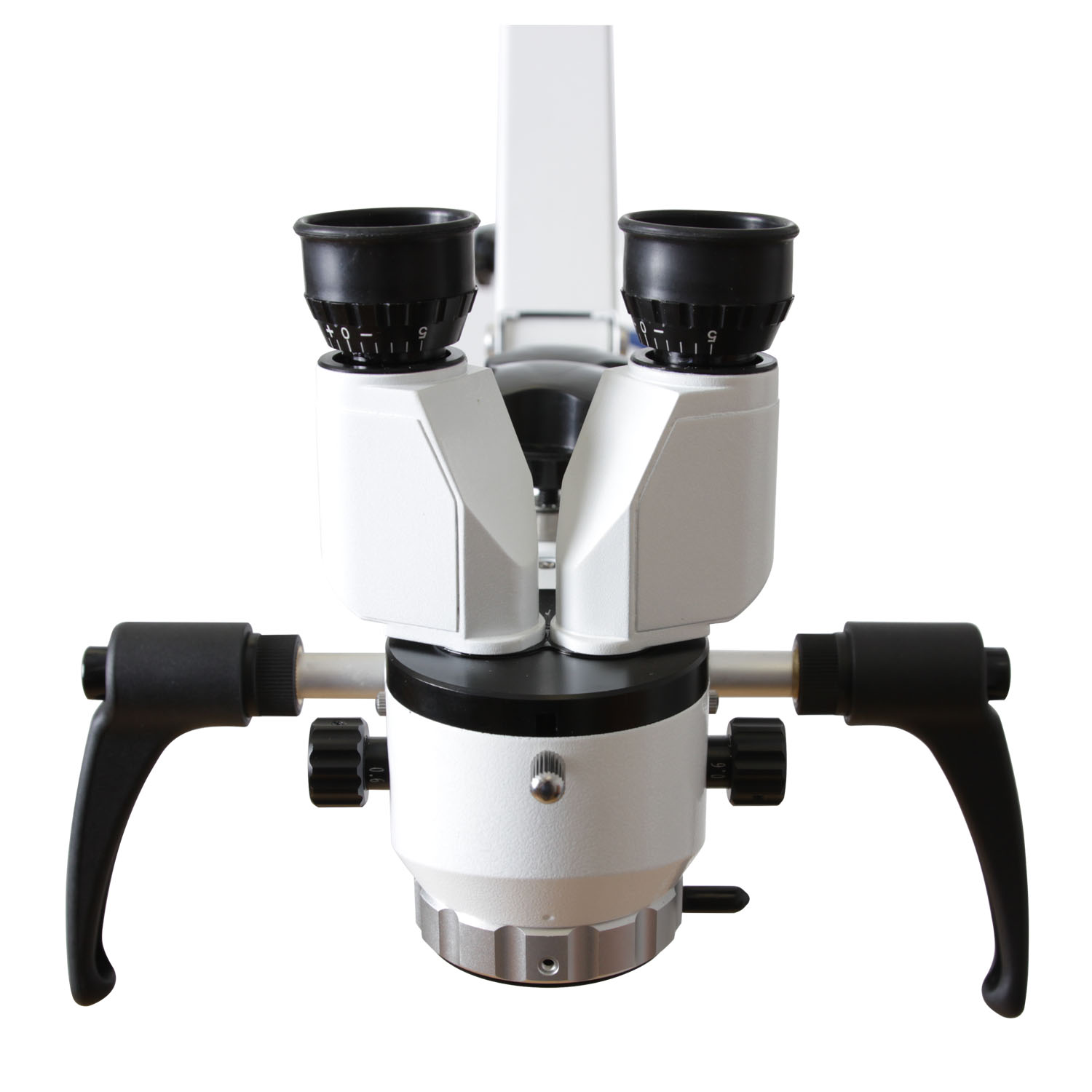

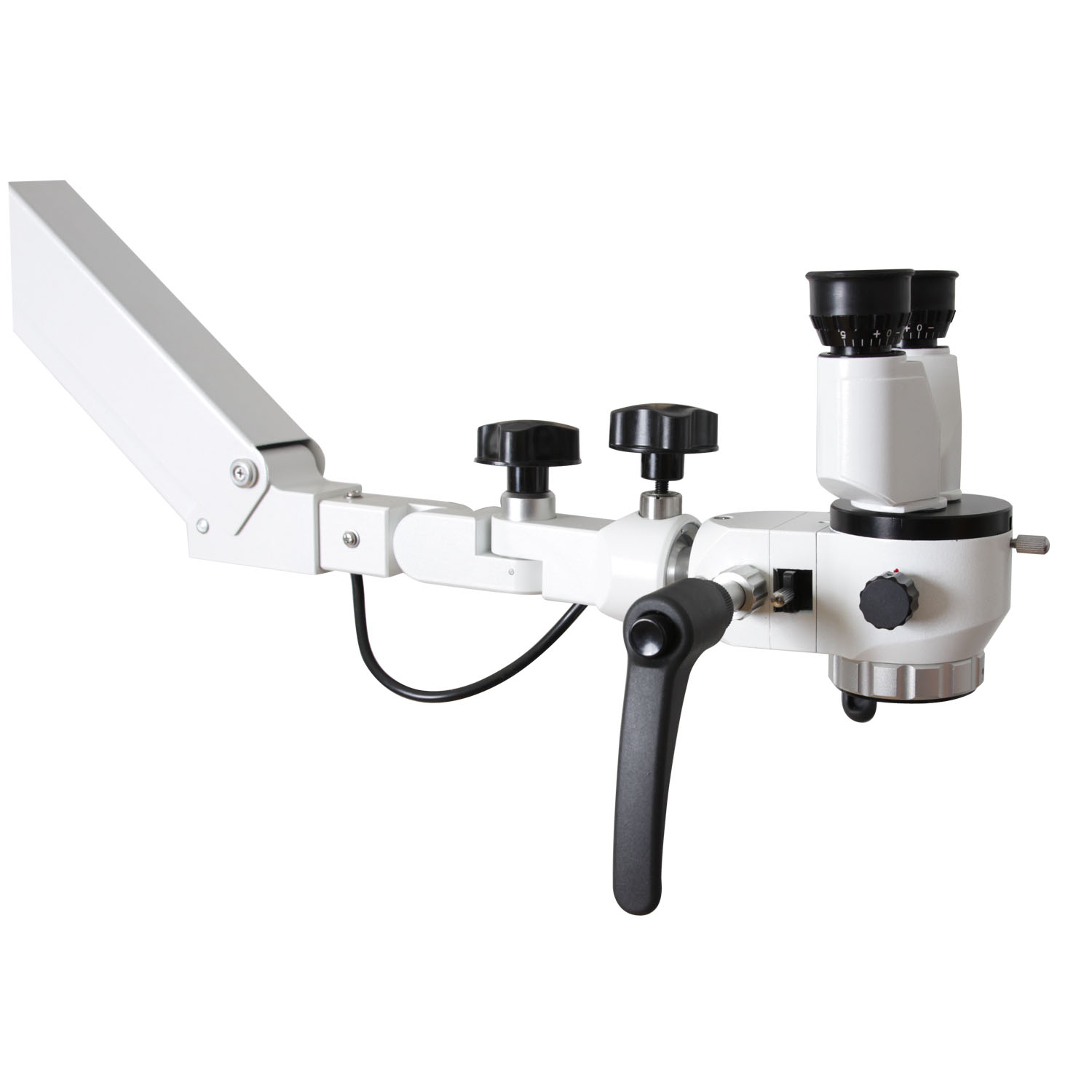

The Avante Compass 101 offers superb optical performance

The Avante Compass 101 is a high-performing ENT microscope that ensures clear and precise three-dimensional images. The Compass 101 is designed with an LED illumination source that guarantees a bright and long lasting light, and an excellent parfocal which provides more accurate results. Included is a superb 3-step magnification system that creates contrast and image depth for sharp images, as well as built-in colored filters for improved clarity.

The Avante Compass 101 is available through Med Vest Technology. For more information, contact an Avante representative today.

  • Three step magnification system
  • Built-in green and yellow filters
  • Two-part column fitted on a five-star stand base
  • Straight observation
  • Two-part arm for easy maneuvering
  • 20,000 hours LED lifespan
  • 50,000 LUX objective illumination

Specifications

Dimensions

  • Column height: 1200mm (47.24 in) max
  • Arm length: 1500mm (59 in) max
  • Arm height range: 600-1550mm (23.62-61.02 in)

Lens and Magnification

  • 200/250mm objective lens
  • 300/400mm objective lens (optional)
  • Total magnification: 2.4X - 12X
  • 10mm fine focusing range
  • 3-step magnification change: 0.6X, 1X, 1.6X

Power

  • 10W LED illumination system
  • LED lifespan: 20,000 hours
  • Power supply voltage: 90V/60HZ-250V/50HZ
-->
