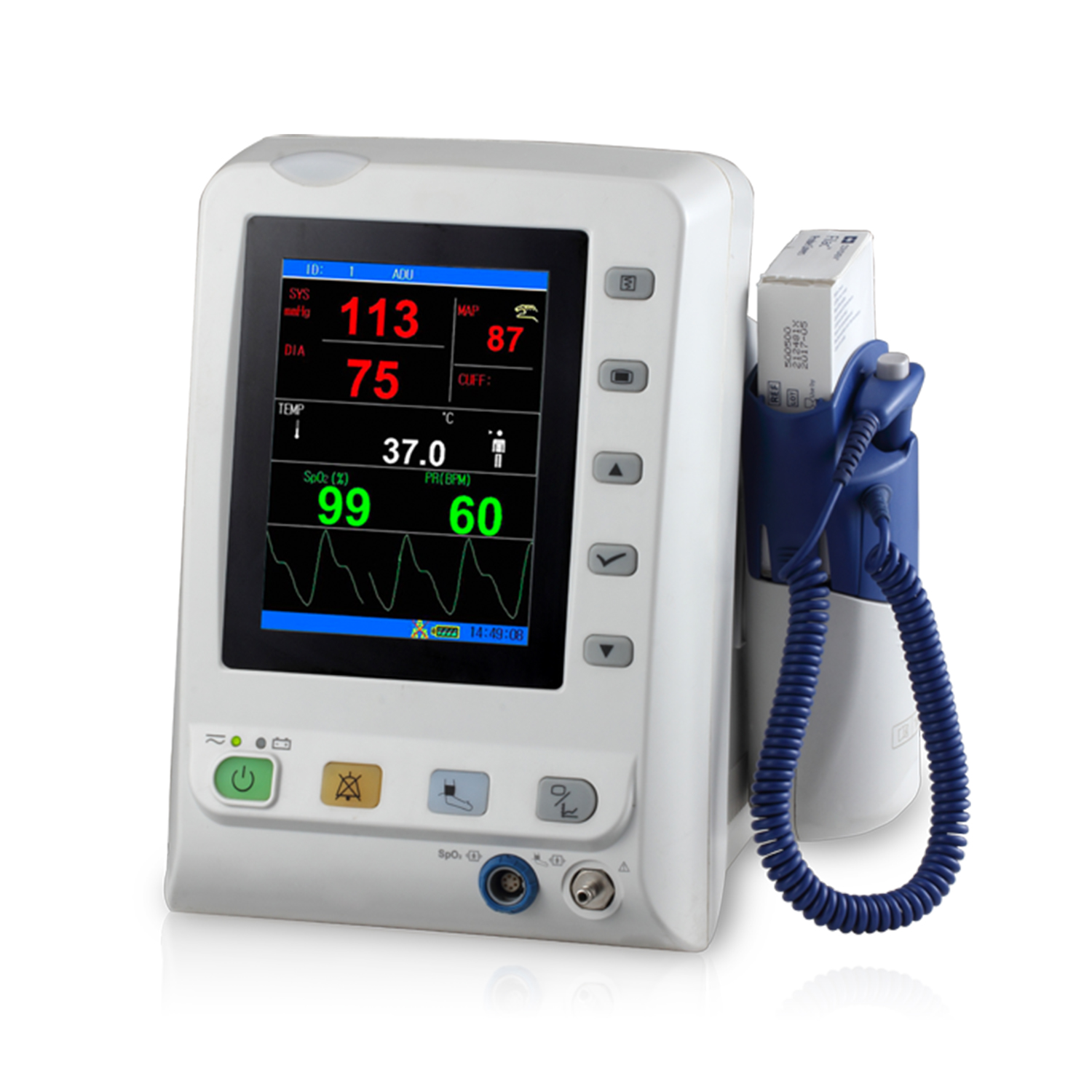

Med Vest Technology Echo Portable Vital Signs Monitor
Med Vest Technology Echo Portable Vital Signs Monitor
0 item is in your cart. View cart now
All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.
Details
Ultra-lightweight and portable with a 10 hr battery.
Pre-op/post-op vital signs monitor
The accurate, cost-effective Med Vest Technology Echo vital signs monitor is available in configurations with your choice of SpO2, NIBP and Temperature. The portable monitor has multi-parameter functionality suited for out-patient care and doctor's offices.
Features
- NOW with Covidien Quick Temp Technology
- 5.7 inch high resolution display for easy reading
- Flexible configurations
- Built-in rechargeable Lithium-ion battery for 10 hours of continuous working
- Optional thermometer for obtaining temperature in approximately 15 seconds
- Real-time parameters measurement display with trend table for easy reviewing
- Bi-directional communications with central station by wired or wireless network
- Suitable for adult, pediatric and neonatal patient
- Optional Nellcor Oximax™
- PR measurement (from SpO2/ NIBP)
- Optional recorder
Specifications
General
- Size: 200.8mm (L) × 241mm (H) × 189 mm (D)
- Weight: 3 kg
- Display: 5.7 inches,LCD
- Color TFT resolution: 640X480
- Power Supply: 100-240 VAC, 50/60HZ
- Pmax=70VA FUSE T 1.6AL
- Battery Type: Lithium-ion
- Voltage: 14.8 V DC Capacitance: 4,400 mAh
- Working period: Color TFT 480min
- Rechargeable period: < 360min
- Recorder: (Optional)
- Record Width: 48 mm
NIBP
- Method: Oscillometric
- Mode: Manual, Auto, Continuous
- Measuring Interval in AUTO Mode: 1/2/3/4/5/10/15/30/60/90/120/240/480 Min
- Continuous: 5min, interval is 5s
- Measuring Type: Systolic Pressure, Diastolic Pressure, Mean Pressure, Measuring Range
- Adult Mode:
- SYS: 40~270mmHg
- DIA: 10~215mmHg
- MAP: 20~235mmHg
- Pediatric Mode:
- SYS: 40~200mmHg
- DIA: 10~150mmHg
- MAP: 20~165mmHg
- Neonatal Mode:
- SYS: 40~135mmHg
- DIA: 10~100mmHg
- MAP: 20~110mmHg
- Cuff Pressure measuring Range: 0~290mmHg
- Pressure Resolution: 1mmHg
- Maximun mean error: 5mmHg
- Maximum Standard deviation: 8mmHg
- Entire Measuring Period 30~45s typical (depend on HR/motion disturbance)
- Dual Overpressure protection:
- Adult: 297 3mmHg
- Pediatric: 240 3mmHg
- Neonatal: 145 3mmHg
- PR:
- Measuring Range: 40~240bpm
- Resolution: 1bpm
- Accuracy: 3bpm or 3% of the maximum
- IEC 60601-2-30
SpO2
- Resolution: 1 %
- Accuracy
- Adult (including Pediatric):
- 2% 70%~100% SpO2
- Undefined 0~70% SpO2
- Neonate:
- 3% 70%~100% SpO2
- Undefined 0~70% SpO2
- Measuring Range: 0 ~ 100 %
- Alarm Range: 0 ~ 100 %
- Pulse Rate:
- Measuring and Alarm Range: 30 ~ 300bpm
- Resolution: 1bpm
- Accuracy: 3bpm
- Data update period: 2s
- ISO 9919
