Med Vest Technology Envoy TS (Vital Signs Telemetry)
Med Vest Technology Envoy TS (Vital Signs Telemetry)
0 item is in your cart. View cart now
All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.
Details

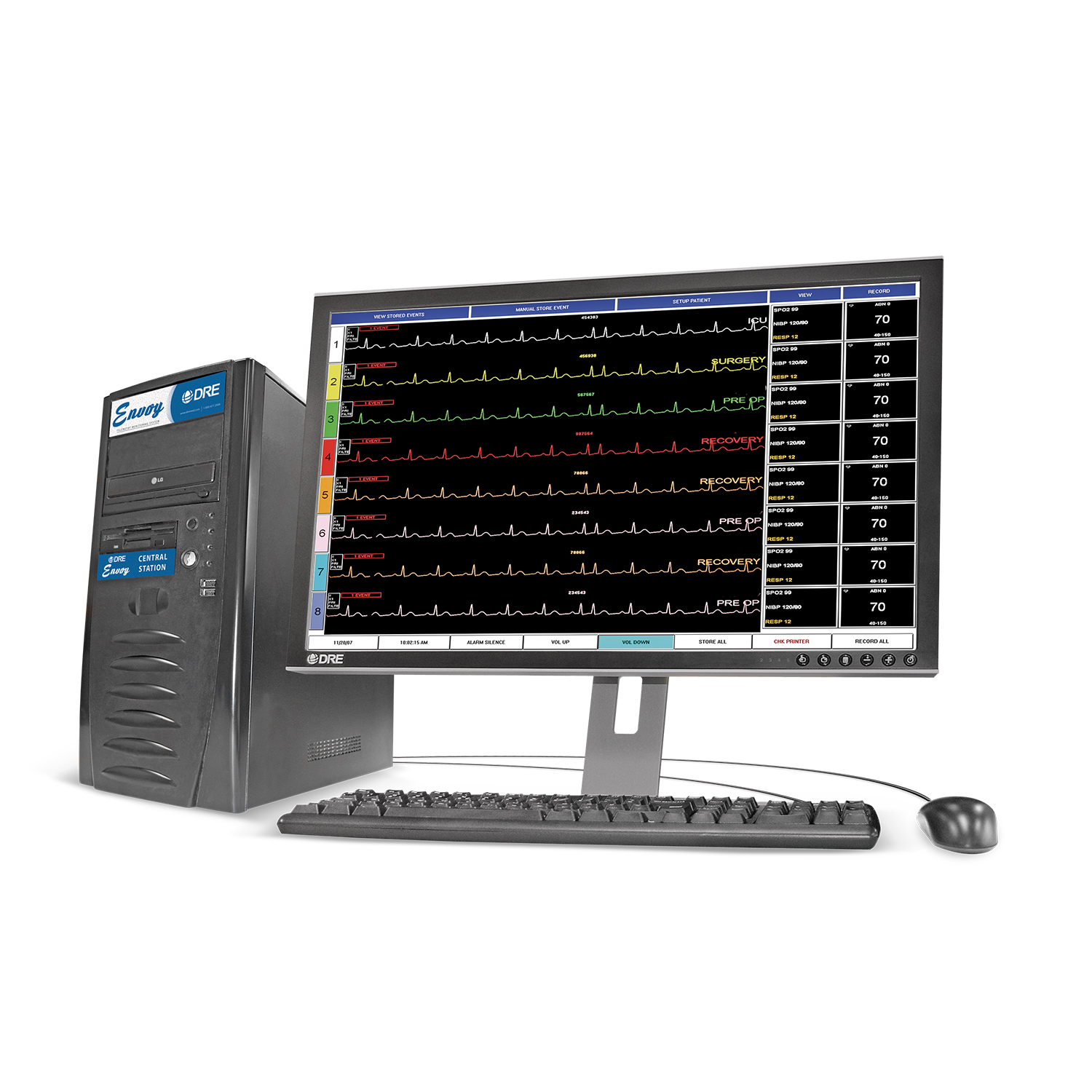

The new Med Vest Technology Envoy TS is the next generation Central Station Cardiac Monitor. Its design is based on state-of-the-art computer and software technology. The arrhythmia algorithm is built on the same safe, time-proven algorithm. The mobile telemetry system is designed to be easy to use, yet completely configurable and adaptable to almost any hospital configuration.
With the Med Vest Technology Envoy TS, you can monitor as many as 16 patients as once using portable ECG transmitters. Plus, you can monitor multiple parameters by integrating the telemetry system with Med Vest Technology Waveline Pro and Med Vest Technology Waveline Touch vital signs monitors.
Features
- Arrhythmia detection
- Patient waveform colors
- Programmable alarm processing
- Trend processing
- Auto charting
- Multi-lead support
- Complete full disclosure system
- Strip chart recorder and graphics printer
- Bi-directional bedside support
- Ethernet network support
- Dial-up live waveforms
- Fax on-demand full disclosure data
- OEM System Configuration

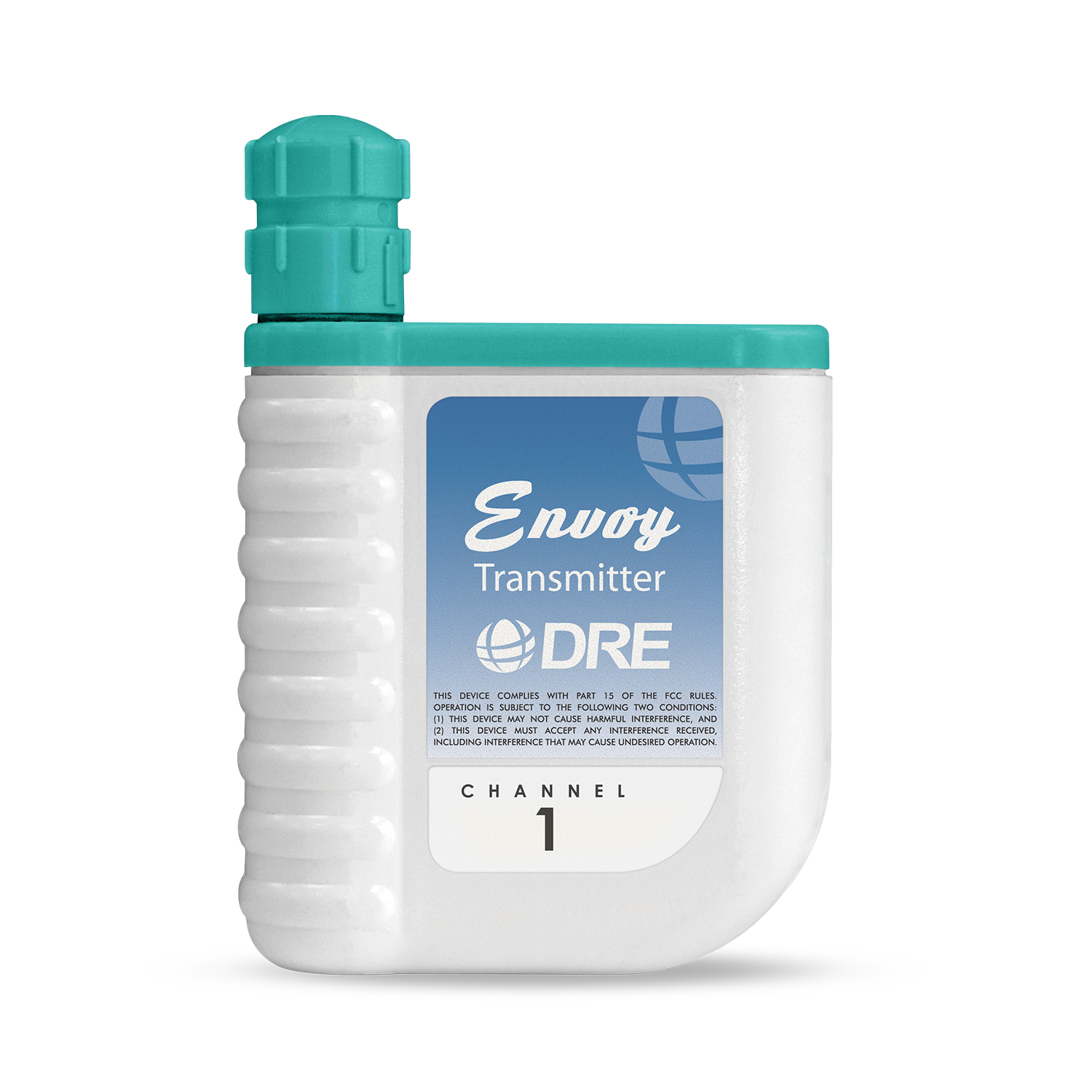

Dual-lead telemetry transmitters provide wireless ECG monitoring
- Independent lead-wires
- Three-day battery
- Waterproof
- Small and lightweight
- Two bi-polar ECG leads
Specifications
Physical Weight & Dimensions
- Height: 3.1 inches
- Width: 2.8 inches
- Depth: .93 inches
- Weight: 4 ounces with batteries
Power
- Power: 2 "AAA" alkaline batteries
- Battery life: Nominal three days of continuous operation
- Frequency: RANGE 608-614 MHz
- Frequency stability: Crystal controlled to within .0015 per cent of assigned frequency
Other
- Temperature: 30 to 135°F
- Humidity: Waterproof
- Bandwidth: .5 to .65 Hz nominal
- Construction: Solid state circuitry in impact resistance molded waterproof case, including battery
- Defibrillator protection: 5,000 volt 400 joules
- Recovery time ECG: Amplifier recovers within 1 second after defib discharge
- Pacer pulse tolerance: Up to 1 volt amplitude and 2 MS width at rates up to 150 BPM
- Input configuration: 2 true differential inputs
- Input amplitude range: 5 MV P-P with up to 200 MV DC offset
- Input resistance: 20 Megohms nominal
- Gain accuracy: Less than 1.5$ mid band gain error
- Non-linear: Less than 0.25 per cent
- FCC Certification: Complies with part 15, subpart E
