Details
C-Arm and Vascular Table with Floating Top Movement
The Avante Delphi CF is an affordable C-arm table with high-end, easy-to-use features. For more information, contact an Med Vest Technology representative today. Ideal for imaging, pain management, vascular, and hybrid operating room applications.
Features
- Easy-to-use, five-movement C-arm table with high-speed actuators.
- Rapid positioning via the following table motions: height, lateral tilt, Trendelenburg, longitudinal travel, lateral travel.
- Maximum patient weight:
- Patient support, centered on column with height adjustment: 661 lb.
- Full articulation, centered on column: 500 lb.
- Full articulation, including slide: 450 lb.
- Comes standard with onboard control panel and handheld remote control.
- High-quality casters and braking system allow clinicians to easily move the table.
- Compatible with a variety of popular C-arm systems from industry-leading brands.
- Available with a variety of accessories — ask your Med Vest Technology representative for details.
- Micromotors ensure quick, smooth, and balanced table movements.
- Carbon fiber table allows clinicians to get high-quality, clear images with low X-ray doses.

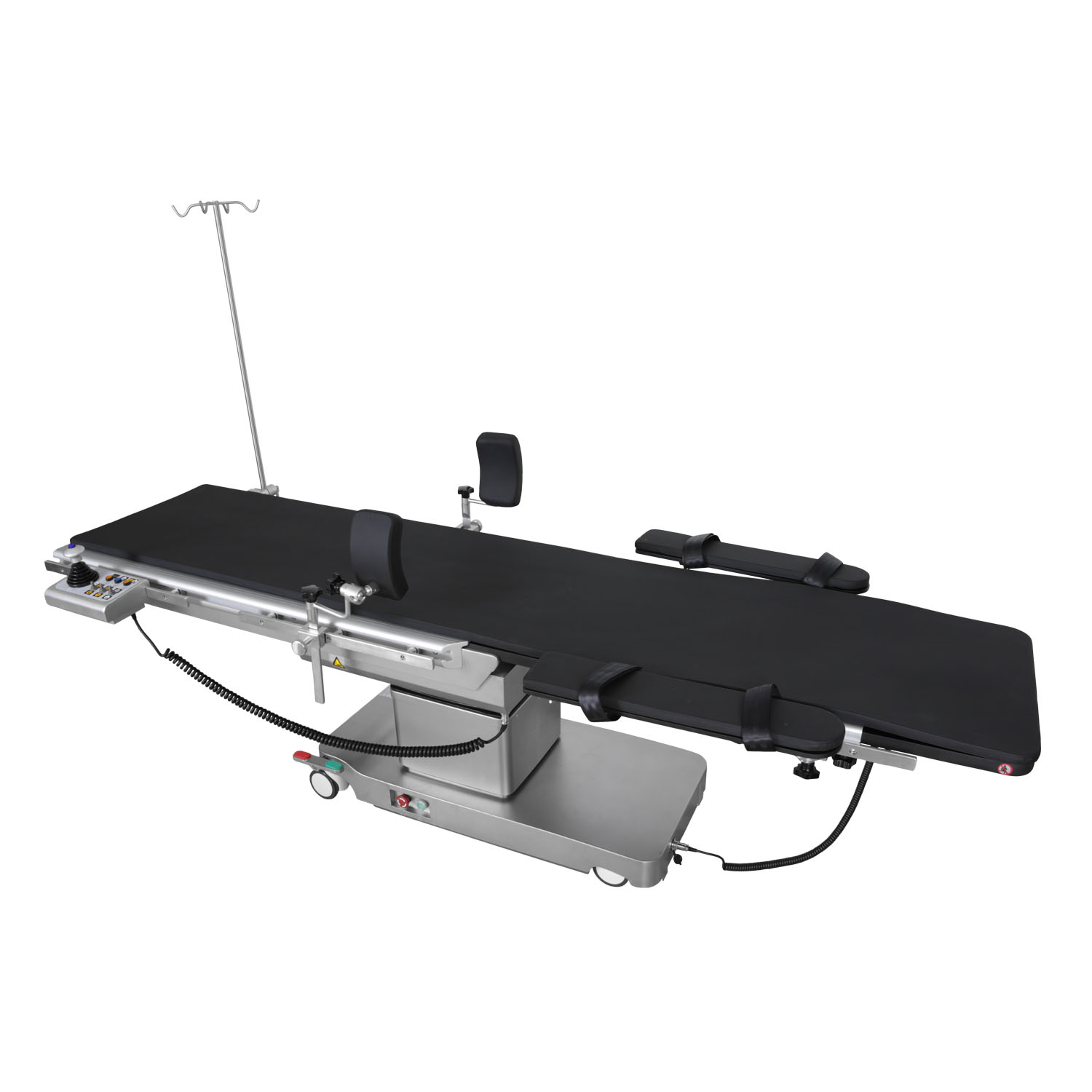

Standard Accessories
- Mattress - 1 piece

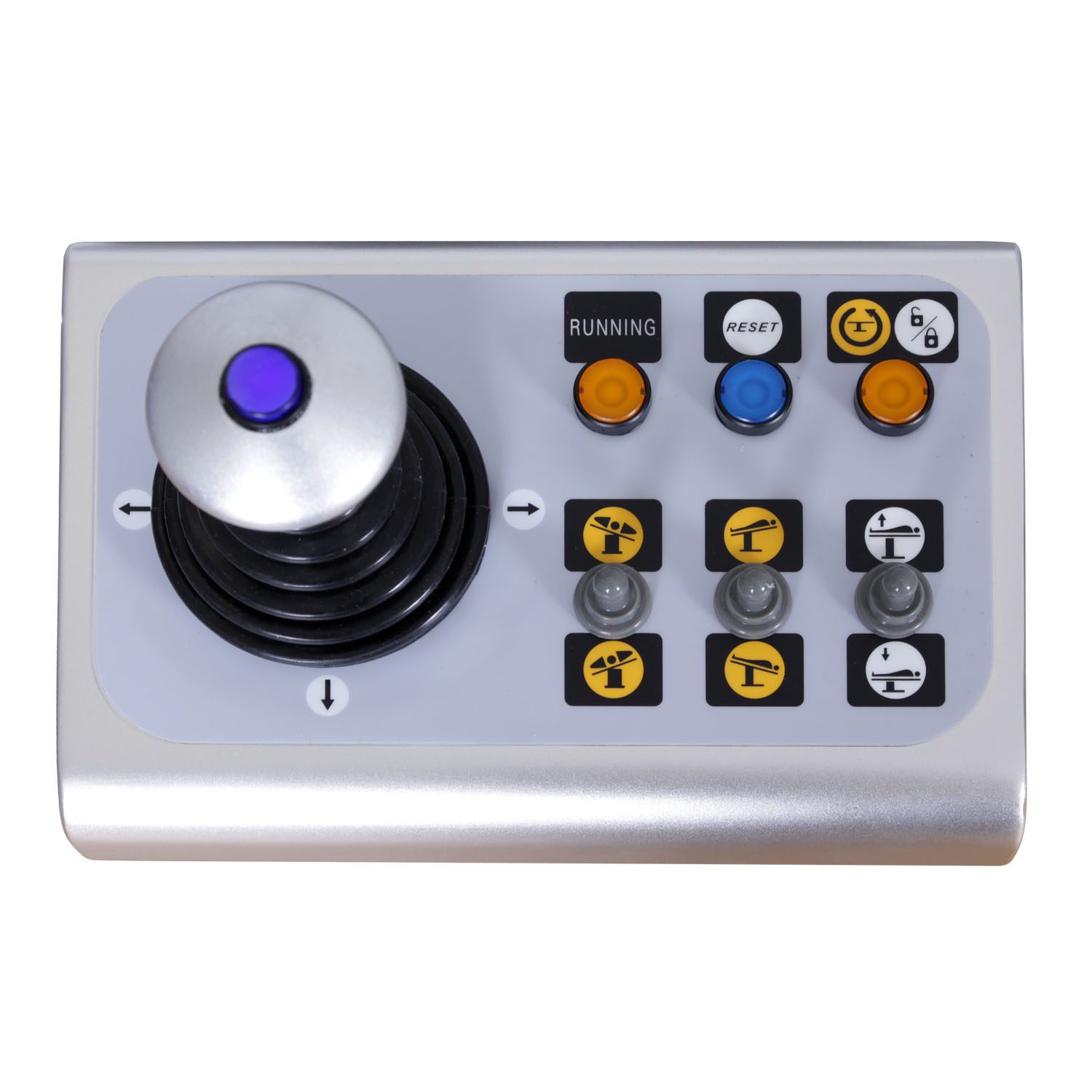

- Onboard Controller - 1 set

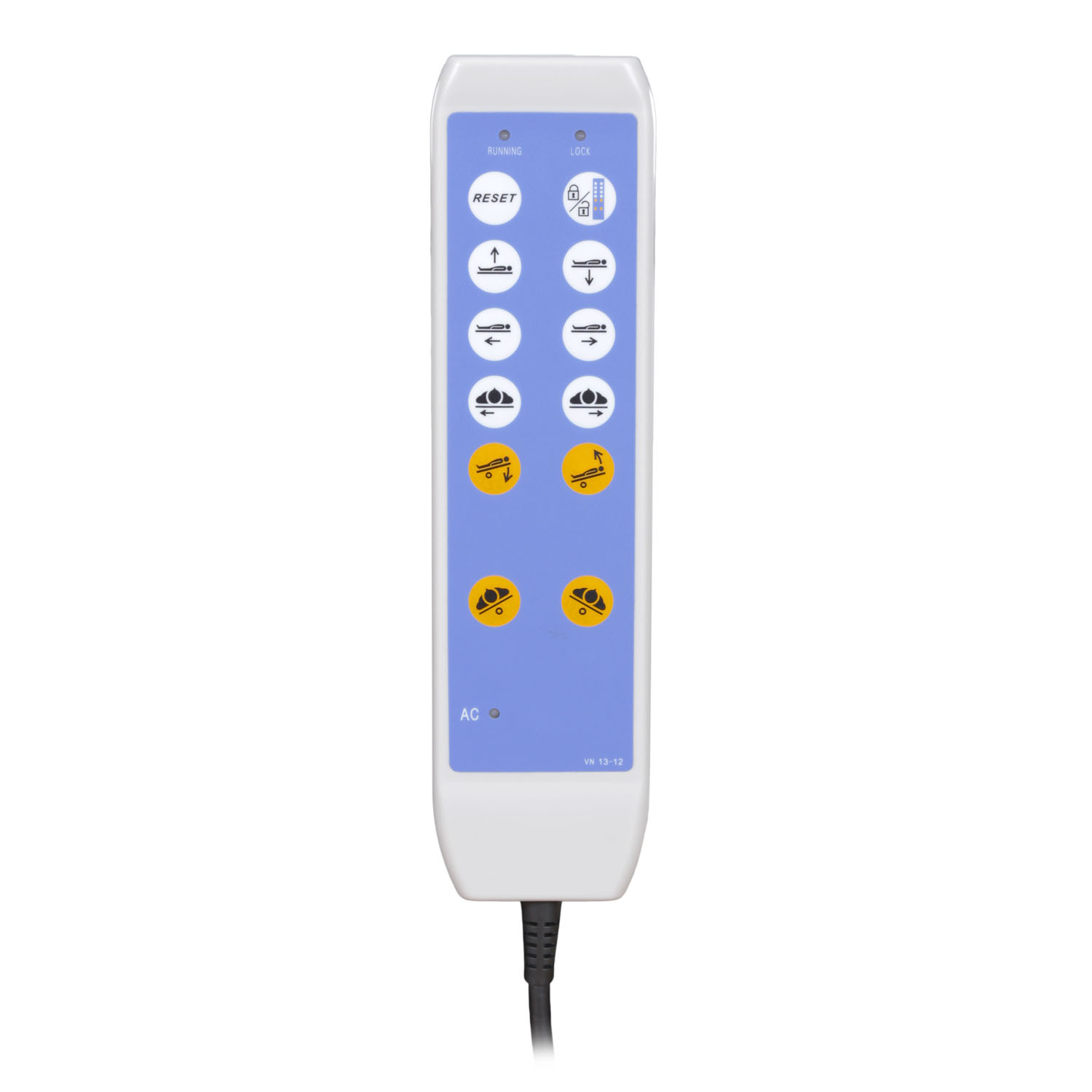

- Remote Control - 1 set
- Lateral support - 1 pair
- IV pole
- Fixed belts - 1 pair
- Arm boards - 1 pair
- Anesthesia screen
- Removable rail - 2 pieces
Optional Accessories
- Lead drape
Specifications
General
- Tabletop Length: 96.75 in
- Tabletop Width: 20.9 in
- Tabletop Thickness: 1.5 in
- Power: 120 V / 50 Hz / 350 VA (available in 220 V)
- Max. Patient Weight: 661 lb, including raise/lower (centered on column)
- Max. Full Articulation Weight: 500 lb centered on column; 450 lb including slide
Tabletop Movement
- Head Section Transparency: 72.5 in
- Foot Section Transparency: 32.75 in
- Longitudinal Travel: 31.5 in

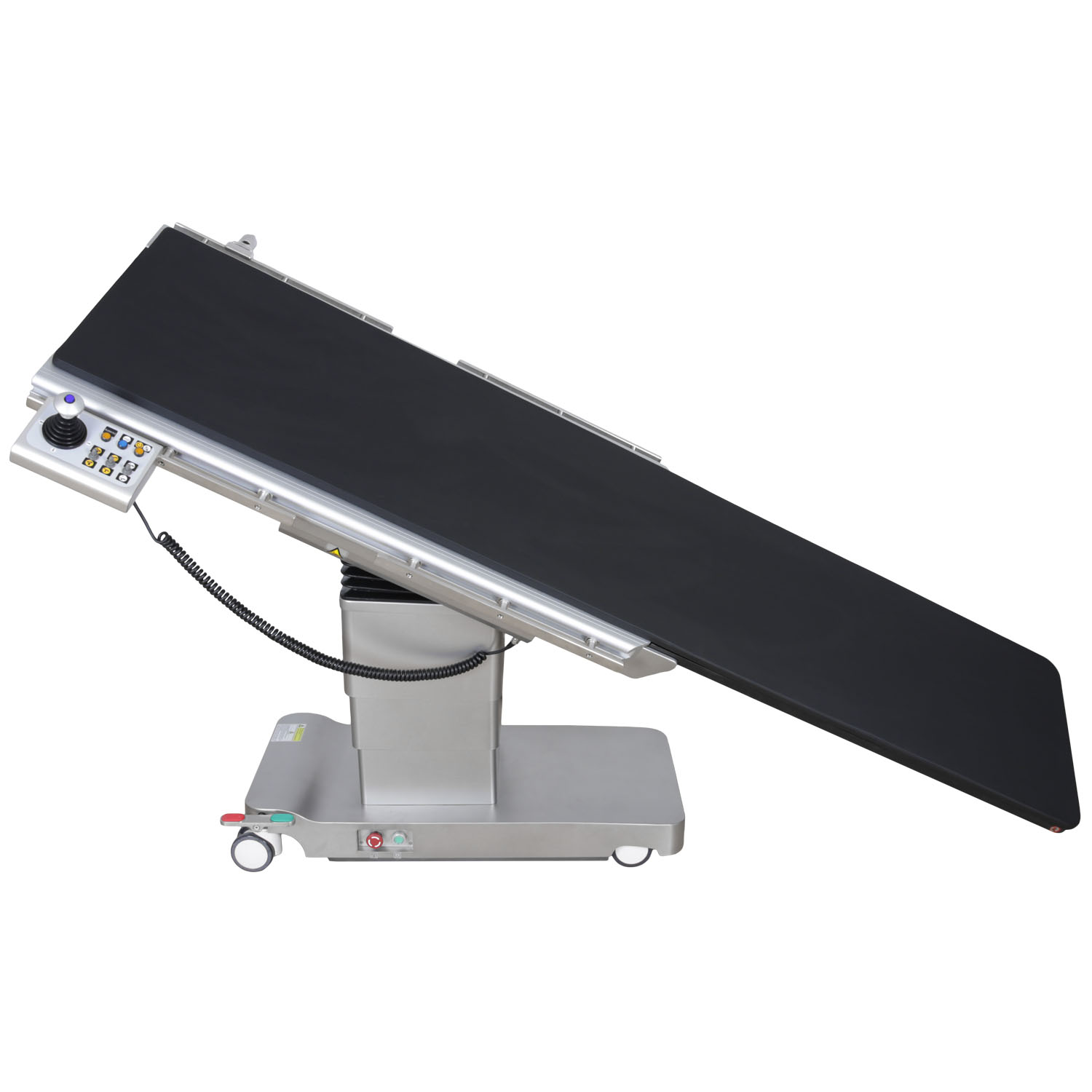

- Trendelenburg: 0-27°
- Reverse Trendelenburg: 0-27°
- Lateral Travel: 8 in
- Lateral Roll: 0-27°
- Vertical - Min. distance from floor: 28 in
- Vertical - Max. distance from floor: 44.75 in
- Vertical - Travel: 16.75 in
