Details

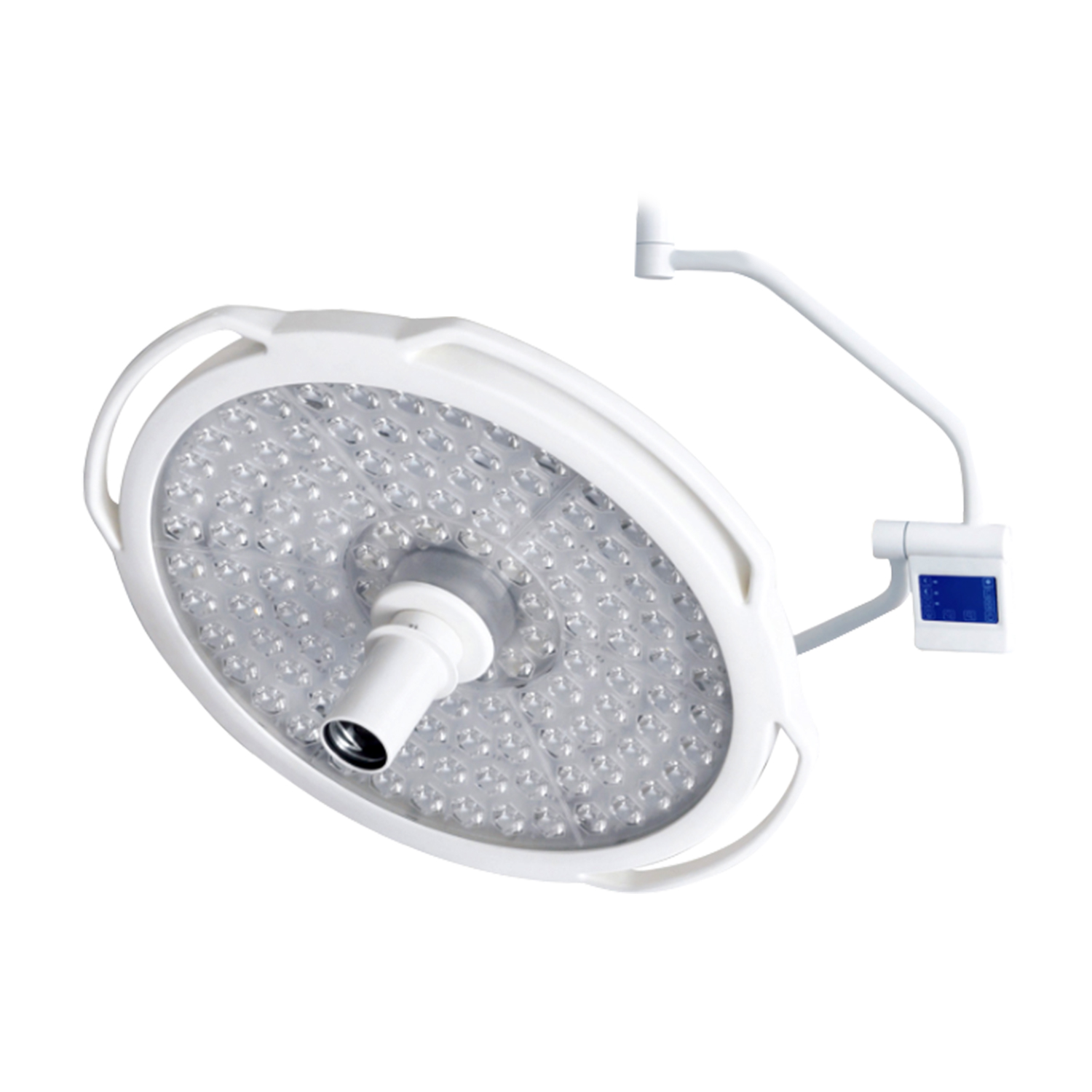

The Med Vest Technology Maxx Luxx LED 160 is an advanced, cost-efficient surgery lighting system with an HD camera. It offers an exceptional 160,000 lux and a rich, adjustable color temperature. Its German-manufactured spring arms offer superior and reliable positioning.
Available in dual ceiling, single, and wall configurations.
Features
- LCD touch-screen for easily adjustable output.
- Quality German engineered arm system for superior positioning.
- Adjustable color temperature for optimizing human tissue colors.
- Built to last. Rated for up to 50,000 hours.
- Adjustable focusing.
- Adjustable CRI.
- Cool output LED light source.
- Complies with sterilizing and laminar flow cleaning requirements
- Energy efficient.
Specifications
General
- 120-350 mm spot diameter
- 160,000 lux (14,800 foot candles)
- Color temperature of 3500°-5000° Kelvin
- Illumination Depth(mm):700-1500
- 30,000 to 50,000-hour life rated LED life
- LED power(W):120
- Color Rendering Index(%):≥93
- Available Color: Creme
CCD
- Camera 1/3”SONY EFFIO CCD
- Total pixels 1020 (H) × 508 (V)
- Effective pixel 976 (H)×582 (V)
- Scanning system 2:1 Interlace
Camera Specifications
- Model SR10A
- Resolution 210 megapixel 1920(H)X 1080(V)
- Communication Mode - RS2322
- Communication protocols - HITACHI / SONY VISCA
- Connector - LVCMOS36pFPC(YCbCr 4:2:2) compatibility 110/LVDS 30P
- Sensor type - 1/2.9" CMOS
- Scan mode - Progressive Scan
- Day And Night System - Color/black and white/automatic
- Minimum color - 0.1Lux black and white - 0.01Lux
- Illumination --
- Synchronization mode - Intersync
- Video output - Digital signal
- SNR - ≥50dB(AGC OFF)
Lens
- IRCUT - IRCUT double filter automatic switching
- Automatic diaphragm - Support
- Optical lenses - 10X f=5mm~50mm
- Field angle - H:47°(W) ~5.3°(T) V 35.6°(W) ~3.96°(T)
Function
- Exposure mode - A/M
- White balance - Automatic/indoor/outdoor/manual
- Focus Mode - A/M
- Gain control - A/M
- Picture Effect - Automatic/color/black and white/negative
- Electronic amplification --
- Backlight compensation - on/off
- Image Freeze
- Mirroring function - Support (horizontal mirror + vertical mirror)
- Image rollovers - Support
- Blank Screen
- Wide Dynamic - DWDR
- DNR - 2DDNR
- Electronic shutter - 1/30s~1/10,000s
- Digital Slow Shutter
- Contrast ratio - Adjustable
- Saturation - Adjustable
- Antifog function - Support
- Motion detection
- Privacy Shelter
- Marginal - Support
