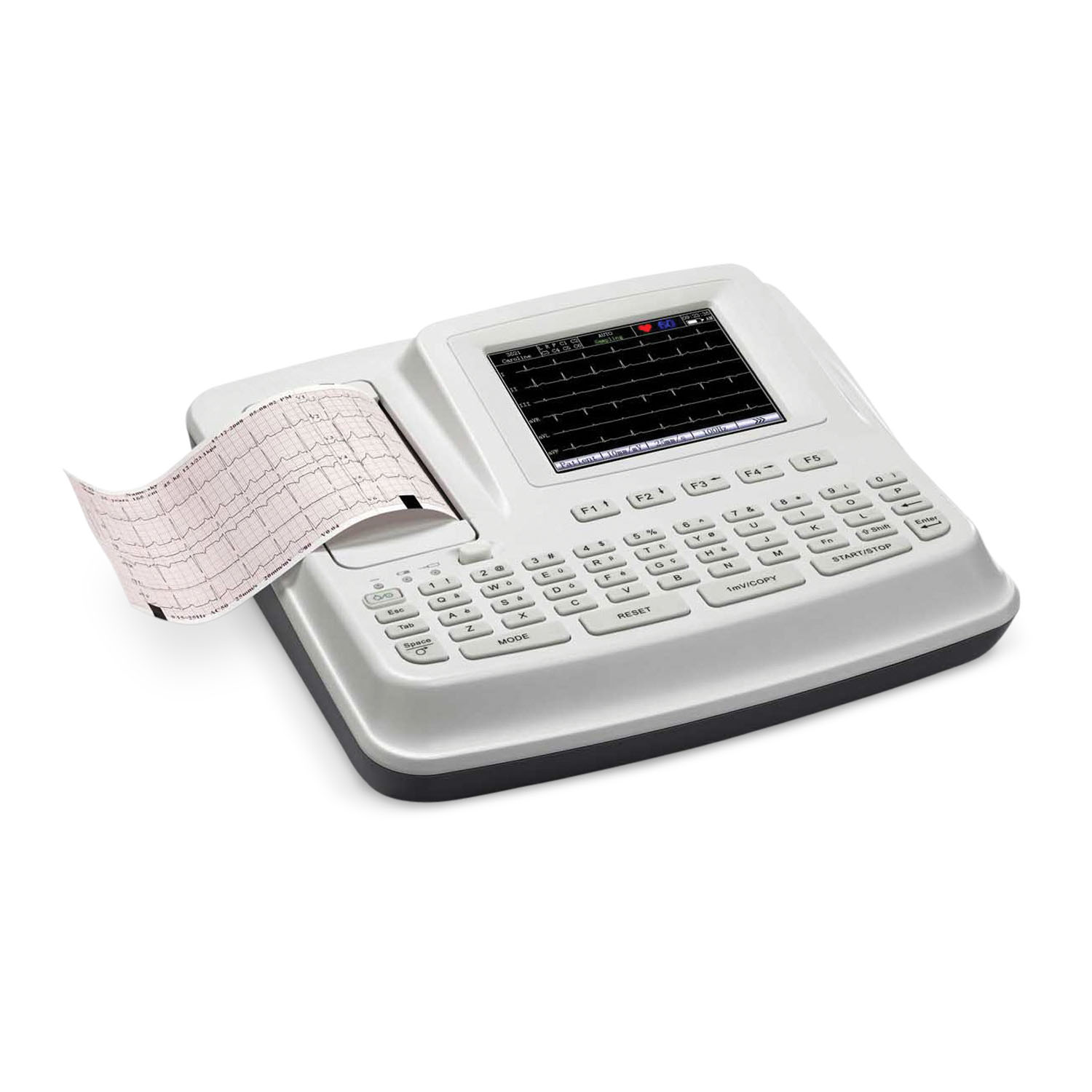

Med Vest Technology True ECG Plus Six-channel EKG Machine

Brand: Med Vest Technology

Type: EKG Machines - Med Vest Technology

Web ID: 1200

Product Number: 60135

0 item is in your cart. View cart now

Need help choosing?

Ask an Equipment Expert

(781) 302-6019

Listing Terms & Conditions

All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.

Details

An excellent cost-effective EKG machine for hospitals, family practices and emergency responders.

Features

Portable, lightweight design - Convenient for mobile use and offices with limited space
Easy data input and operation - Alphanumeric keyboard and one-touch operation
Power supply - Built-in rechargeable battery, AC/DC power supply
Pacemaker detection - Meets the requirements of ANSI/AAMI EC11
EKG / ECG Interpretation - Automatic measurement and interpretation for adults and pediatrics

Periodic recording - Two-step exercise test with periodic recording
Heart rate variability (HRV) analysis
Recording - Internal thermal printer and external printer
Memory and data transmission - SD card and card reader, and flash drive (not included)

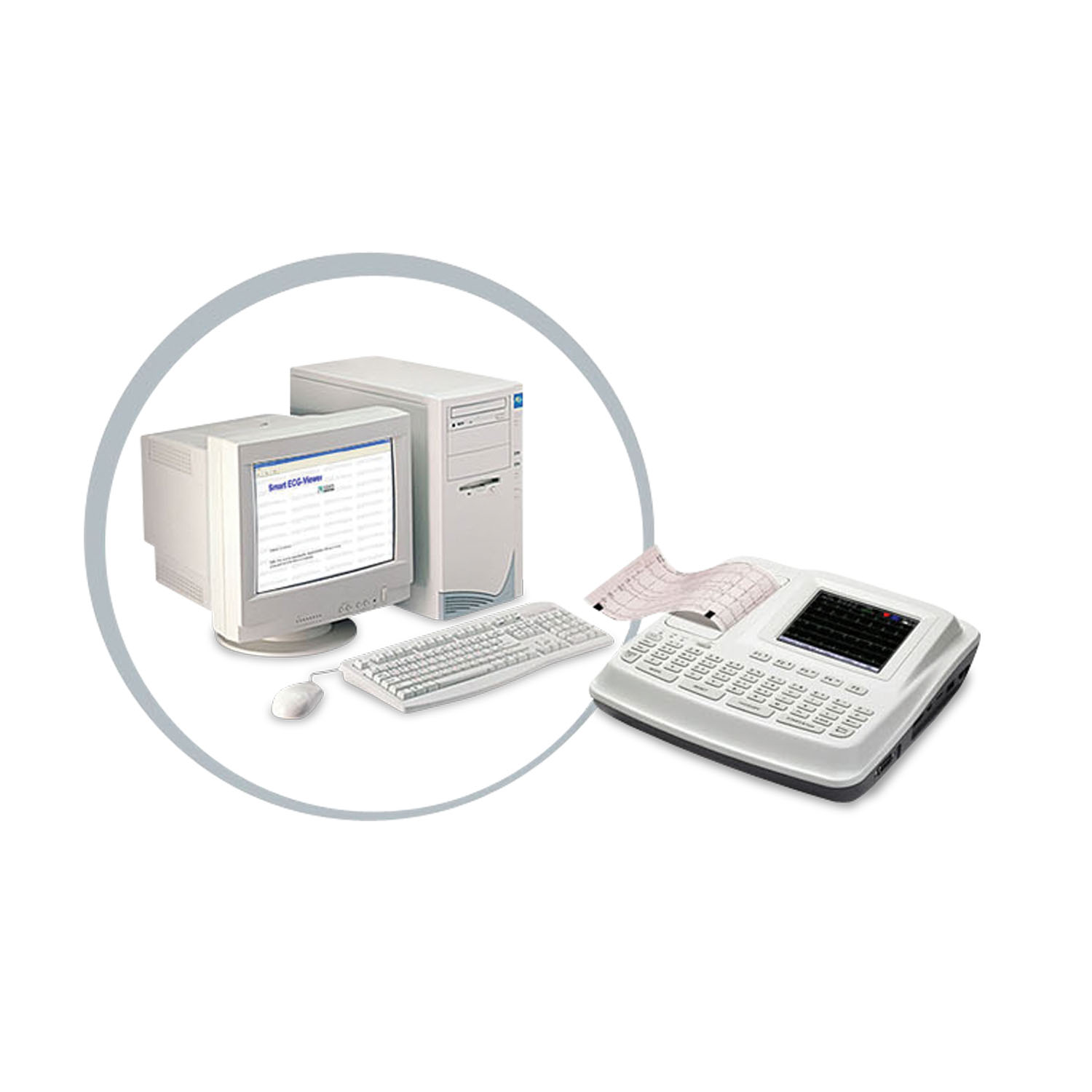

Data transmission to PC via Ethernet or RS232 port

Options

Internal storage upgrade to 200 ECGs
PC-based data managementsoftware (Smart ECG Viewer)
XML format export
SD card and card reader, flash disk
Rolling stand and carrying bag

Specifications

General

Input circuit: Defibrillation protection
Lead: Standard 12 leads
Acquisition mode: 12-channel simultaneous (10-24s adjustable)
A/D converter: 24 bits
Sampling rate: 1000Hz/channel, 10,000Hz for pacemaker detection
Input voltage range: ±5mVp-p
Time constant: >3.2s
Frequency response: 0.05Hz-150Hz
Calibration voltage: 1mV±2%
Sensitivity: 2.5, 5, 10, 20, 10/5, AGC (mm/mV)
Input impedance: >50M Ω
Input circuit current: < 10nA
Noise level: < 12.5 μ Vp-p
Patient leakage current: < 10 μ Vp-p (220V-240V)
Patient auxiliary current: < 0.1 μ A (DC)
Filters: EMG filter 25Hz/35Hz/45Hz/OFF, Anti-baseline drift 0.05/0.15/0.25/0.5Hz, Low-pass filter 75Hz/100Hz/150Hz, AC filter 50Hz/60Hz

CMRR: >115 dB
Recording modes: Auto/manual/rhythm
Rhythm lead: Single channel or three channels selectable
Power supply: AC (100-240V@50/60Hz) 12V Vehicle-Carried Inverter Li-ion Battery
Battery: Built-in rechargeable Li-ion battery 2200mAh@14.8V for 6 hours general use or 280 copies EKG / ECGs continuous printing
Recorder: Thermal printer
Recording paper: 110mm × 140mm × 144P (Z-fold)
Recording speed: 5mm/s,6.25mm/s,10mm/s (±3%) 12.5mm/s,25mm/s,50mm/s (±3%)
Weight: Approximately 3 kg (including battery and paper)
Dimensions: 322m × 310mm × 101mm
Display: 5.7" TFT color LCD, 640x480 dots
External input: 100K Ω, sensitivity 10mm/V±5
External output: 100 Ω, sensitivity 1V/mV±5%
Communication interfaces: Ethernet or RS232
