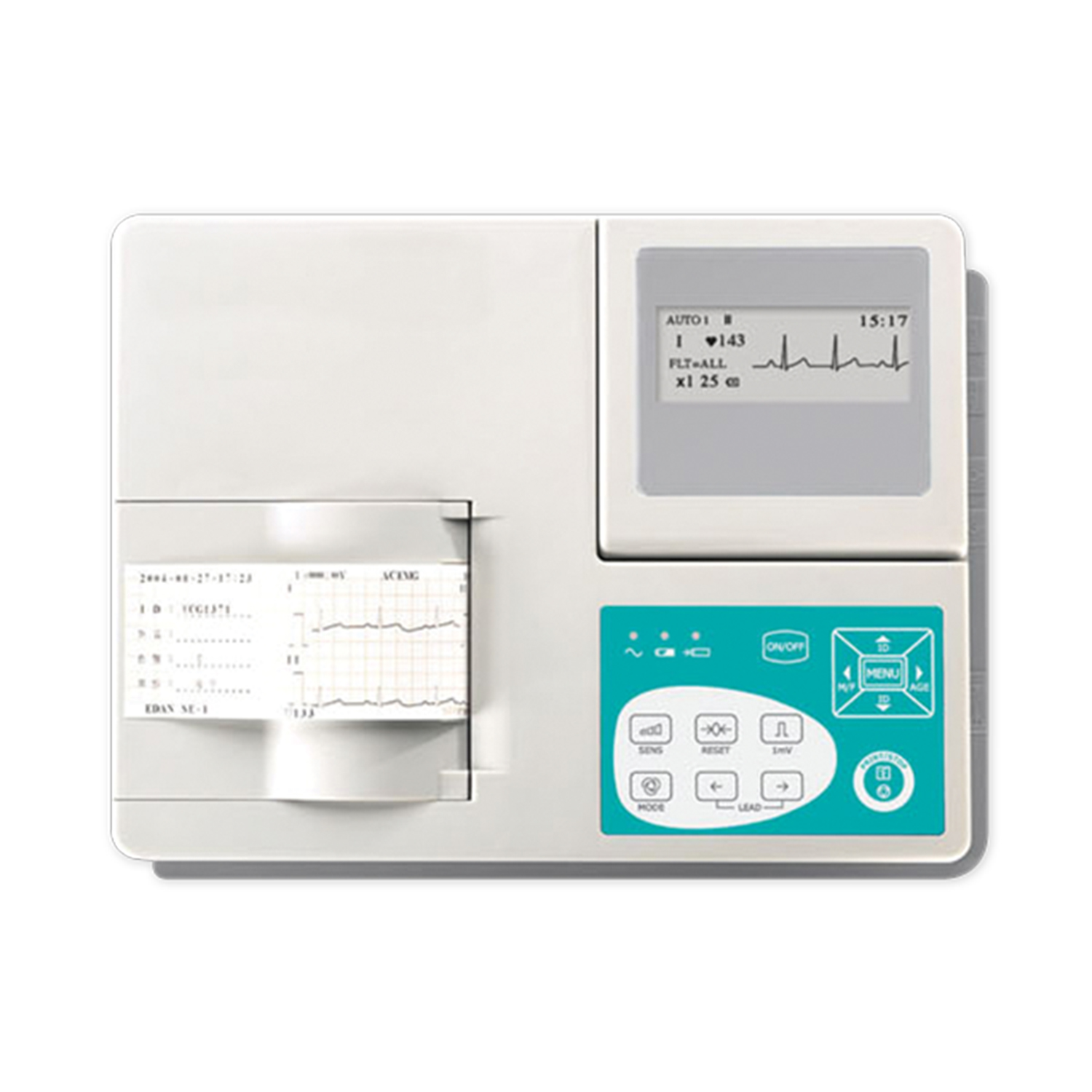

Med Vest Technology True ECG-1 Single Channel ECG/EKG

Brand: Med Vest Technology

Type: EKG Machines

Web ID: 1225

Product Number: 60125

0 item is in your cart. View cart now

Need help choosing?

Ask an Equipment Expert

(781) 302-6019

Listing Terms & Conditions

All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.

Details

One-channel ECG that is accurate, portable and affordable

Med Vest Technology True ECG-1 One-channel EKG

Built-in high-resolution thermal printer
Built-in rechargeable Li-ion battery and AC/DC power supply
Digital filtering (resists baseline drift, AC and EMG interference)
Auto/manual work modes,

Specifications

General

Input Circuit Defibrillator protection built-in
Lead Standard 12 leads
Acquisition Mode Single lead
A/D Converter 12 bits
Measurement Range ±5mVpp
Time Constant > 3.2s
Frequency Response 0.05Hz ~ 150Hz
Calibration Voltage 1mV ± 3%
Sensitivity 2.5, 5, 10, 20 (mm/mv)
Input Impedance > 10M Ω
Input Circuit Current
Noise Level
Anti-Baseline Drift Auto
Patient Leakage Current
Patient Auxiliary Current
Filter - EMG Filter 35Hz (-3dB) - AC Filter 50 Hz/60Hz (-20dB)

CMRR >90dB
Weight 2.3 kg (w/ battery)
Display 192 × 64 pixels LCD
Recording Mode - Auto 1CH, 1CH+1R – Manual 1CH
Rhythm Lead Any lead selectable
Power Supply – AC 100V-115V / 220V-240V, 50/60Hz – Built-in rechargeable Li-ion battery Voltage=14.4V
More than 3 hours continuous work under battery supply
Recorder Thermal printer
Record Paper 500mm × 30m
Paper Speed 25mm/s, 50mm/s (± 3%)
Dimension 288mm × 210mm × 70mm
External Input/Output – Input >100 k Ω; Sensitivity 10mm/V ± 5% – Output
Communication Interface RS232
