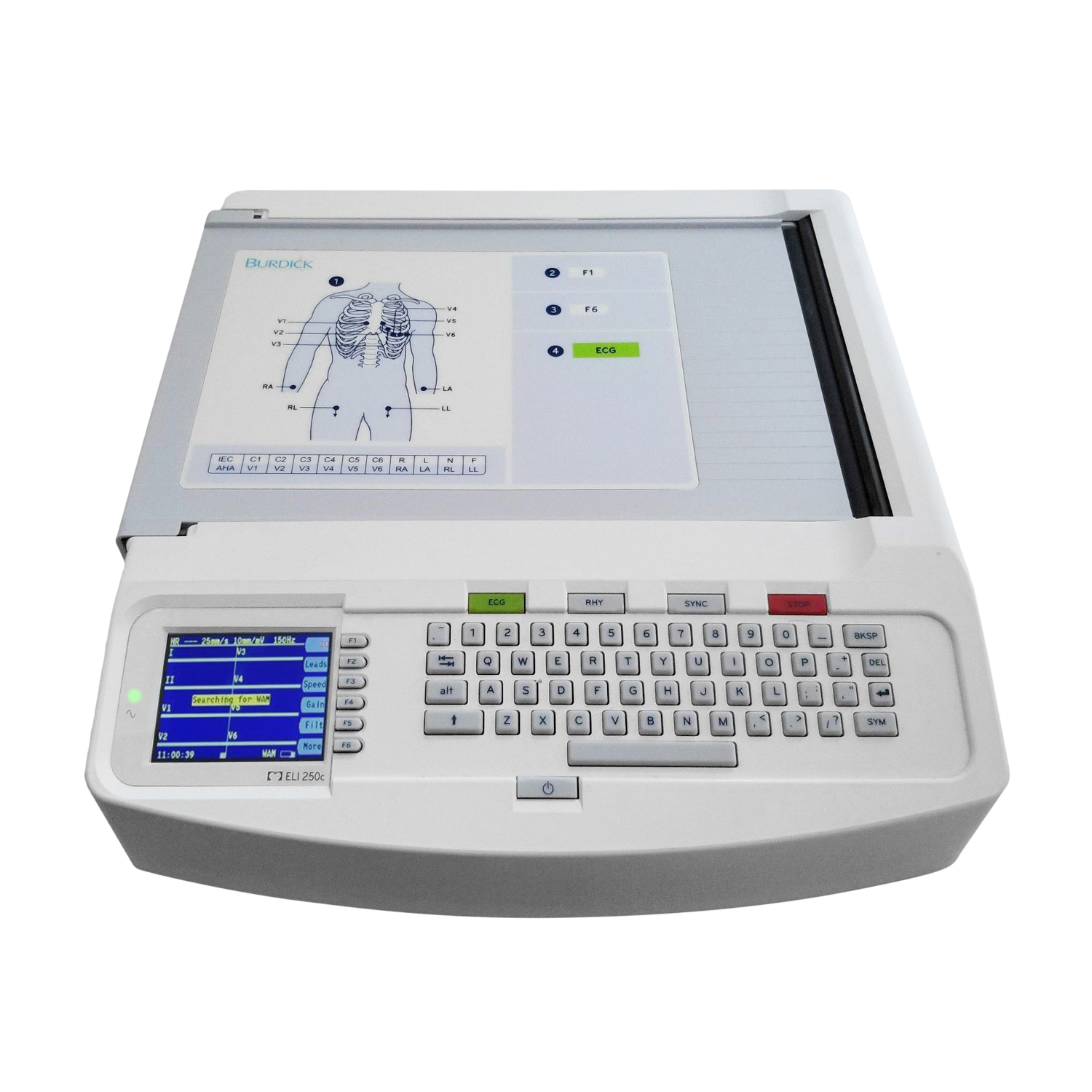

Burdick / Mortara ELI 250c EKG Machine

Burdick / Mortara ELI 250c EKG Machine

Brand: Burdick
Type: EKG Machines
Web ID: 1658
Condition: Brand New

0 item is in your cart. View cart now

Need help?

Get an Equipment Quote

(781) 302-6019

Listing Terms & Conditions

All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.

Details

The Burdick / Mortara ELI 250c is an easy to use ECG machine that offers comprehensive functionality in a compact and lightweight form factor. This portable electrocardiograph includes a crisp, high-resolution color display that is perfect for Primary Care Physicians, Cardiologists, Family Physicians, Doctors of Osteopathy and Hospitals. With the Best 10 feature, the ELI 250c automatically selects and displays the best 10 seconds of ECG data, reducing the need for repeat ECGs.

The ELI 250c offers the innovative WAM™ wireless acquisition module or the AM12™ acquisition module. Both modules include replaceable lead wires, lead fail indicator, and a remote control with buttons for ECG acquisition and rhythm printing. With chest and limb lead reversal indicators clearly visible on the display, the clinician can easily view possible errors during ECG acquisition. To learn more about the Burdick / Mortara ELI 250c ECG machine, request a quote or speak with an Med Vest Technology equipment specialist.

Features

  • Comprehensive functionality in an easy-to-use, portable device.
  • High-resolution color display provides clear visibility of waveforms, including 3, 6, 8 or 12-leads of data.
  • 1,000 sps per channel data capture provides more in-depth ECG signal assessment during analysis, display and printing. 40,000 sps per channel offers unsurpassed pacemaker spike detection.
  • Best 10 feature automatically selects and displays the best 10 seconds of ECG data, reducing the need for repeat ECGs.
  • Chest and limb reversal indicators on the display assist the clinician with possible errors during ECG acquisition.
  • Multiple options ensure patient data transfers easily to the location of your choice.

Specifications

Instrument Type

  • 12-lead electrocardiograph

Input Channels

  • Simultaneous acquisition of all 12 leads

Standard Leads Acquired

  • I, II, III, aVR, aVL, aVF, V1, V2, V3, V4, V5, V6

Waveform Display

  • Backlit, 1/4 VGA color LCD (320 x 240); 3, 4+4, or 6+6 lead presentation

Input Impedance

Input Dynamic Range

Electrode Offset

Tolerance

Common Mode Rejection

  • Meets or exceeds the requirements of ANSI/AAMI EC11

Patient Leakage Current

Chassis Leakage Current

  • Meets or exceeds the requirements of ANSI/AAMI ES1

Digital Sampling Rate

  • 40,000 s/sec/channel used for pacemaker spike detection; 1000 s/sec/channel used for recording and analysis

Optional Functions

  • VERITAS resting ECG interpretation algorithm with age and gender specific criteria; connectivity with bidirectional communication

Paper

  • Perforated Z-fold thermal paper, A4 or 8.5 x 11” wide, 250 sheets

Thermal Printer

  • Computer-controlled dot array; 1 dot/ms horizontal, 8 dots/mm vertical

Thermal Printer Speeds

  • Computer-controlled dot array; 1 dot/ms horizontal, 8 dots/mm vertical

Gain Settings

  • 5, 10, or 20 mm/mV

Report Print Formats

  • Standard or Cabrera: 3+1, 3+3, 6, 6+6, or 12 channel

Rhythm Print Formats

  • 3, 6, or 12 channel with configurable lead groups

Keyboard

  • Elastomer keyboard with complete alphanumeric keys, soft-key menu, and dedicated function keys

Frequency Response

  • 0.05 to 300 Hz

Filters

  • High-performance baseline filter; AC interference filter 50/60 Hz; low-pass filters 40 Hz, 150 Hz, or 300 Hz

A/D Conversion

  • 20 bits (1.17 microvolt LSB)

Device Classification

  • Class I, Type CF defibrillation-proof applied parts

ECG Storage

  • Internal storage up to 40 ECGs; optional expanded up to 200 ECGs

Weight

  • 11.25 lbs. (5.1 kg) including battery (without paper)

Dimensions

  • 15.5 x 17 x 4” (39.4 x 43.2 x 10.2 cm)

Power Requirements

  • Universal AC power supply (100-240 VAC at 50/60 Hz) 110 VA; internal rechargeable battery
-->
