Datex AS/3 Compact Multi-Parameter Patient Monitor
Datex AS/3 Compact Multi-Parameter Patient Monitor
0 item is in your cart. View cart now
All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.
Details

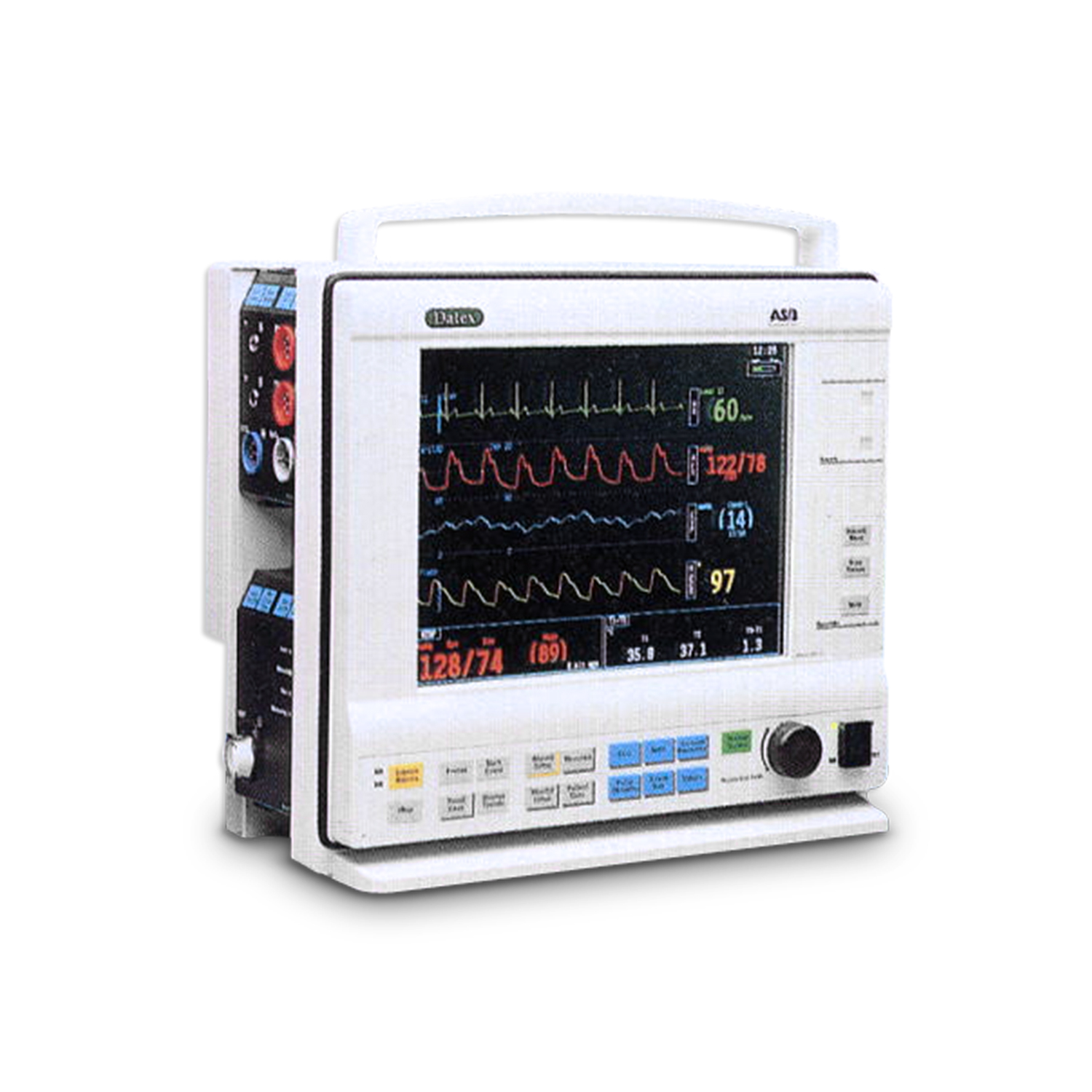

The Datex AS/3 Compact Multi-Parameter Patient Monitor is a portable patient monitor which measures ECG, NIBP, SpO2 and temperature. Configurations are available with CO2 and 5-agent monitoring and a recorder.
Specifications
Physical Weight & Dimensions
- Height: 5.3 inches (135 mm)
- Width: 12.4 inches (315 mm)
- Depth: 16.1 inches (412 mm)
- Depth with modules: 16.3 (412 mm)
- Weight without modules: 21 lbs (9.5 kg)
Power Supplies
- Rated voltages and frequencies: 110-120 Volts, 60 Hz
- Allowed voltage fluctuations: 110V - 10%; 120 V + 10%
- Maximum power consumption: 300 VA
Trends
- Graphical trends (all parameters, selectable times): 2, 4, 12, 24 hrs
- Numberical trends (all parameters, sampled every 5 minutes after NIBP, PCWP and C.O. measurement and with mark event key)
Alarms
- Anesthesia alarm system: Classified into three categories according to priority in anesthesia; color and audio tone coded
- Central alarms display and adjustment page 10-minute graphical mini trends referenced to set alarm limits
- Automatic alarm limits function: Alarm limits automatically calculated from current parameter reading when selected
Display
Main Display Option: 10" color LCD display
- Display size: 10.4" diagonal
- Display type: Active matrix 8-color LCD
- Display resolution: VGA resolution, 640x480
- Number of traces: Up to 6
- Display layout and colors: User-configurable
