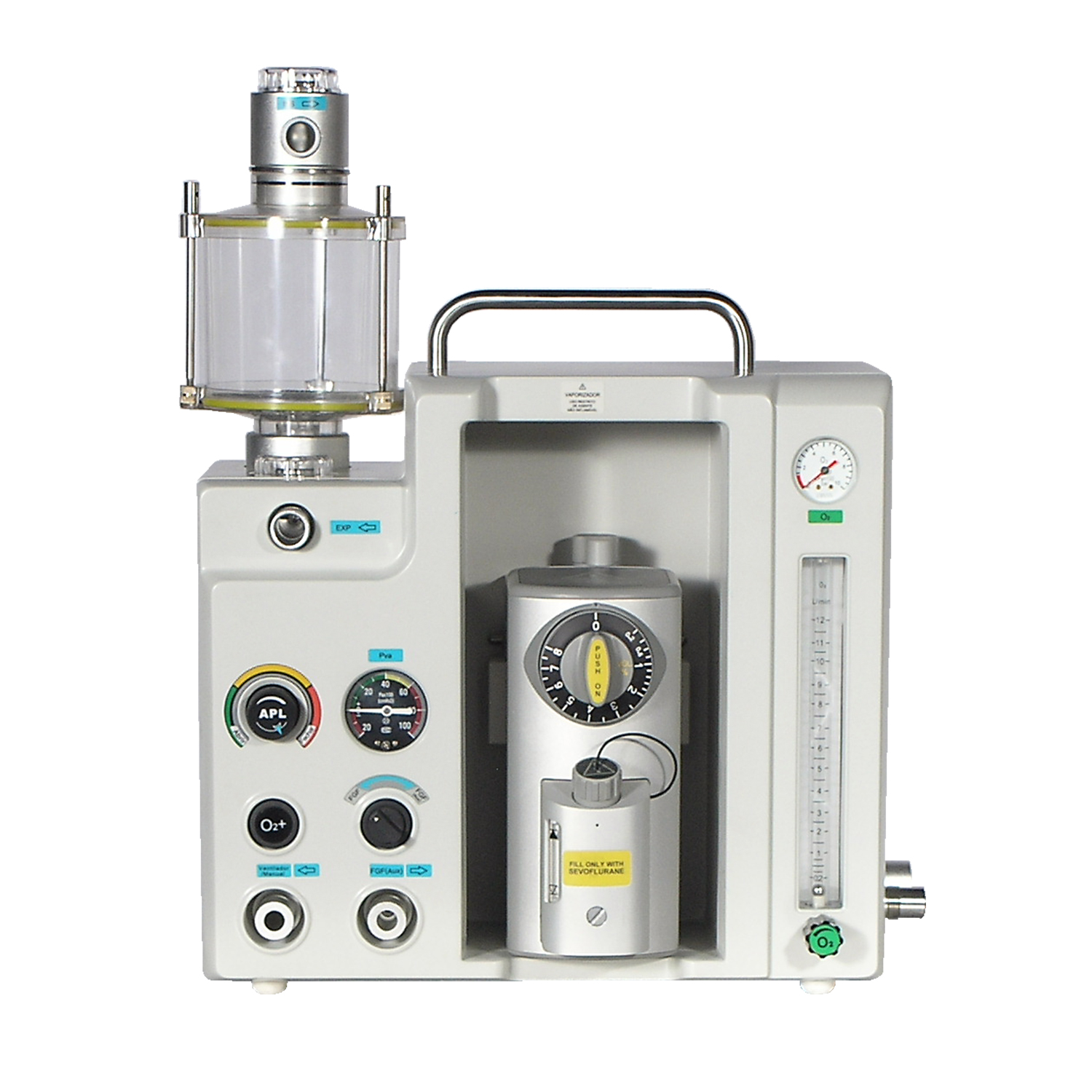

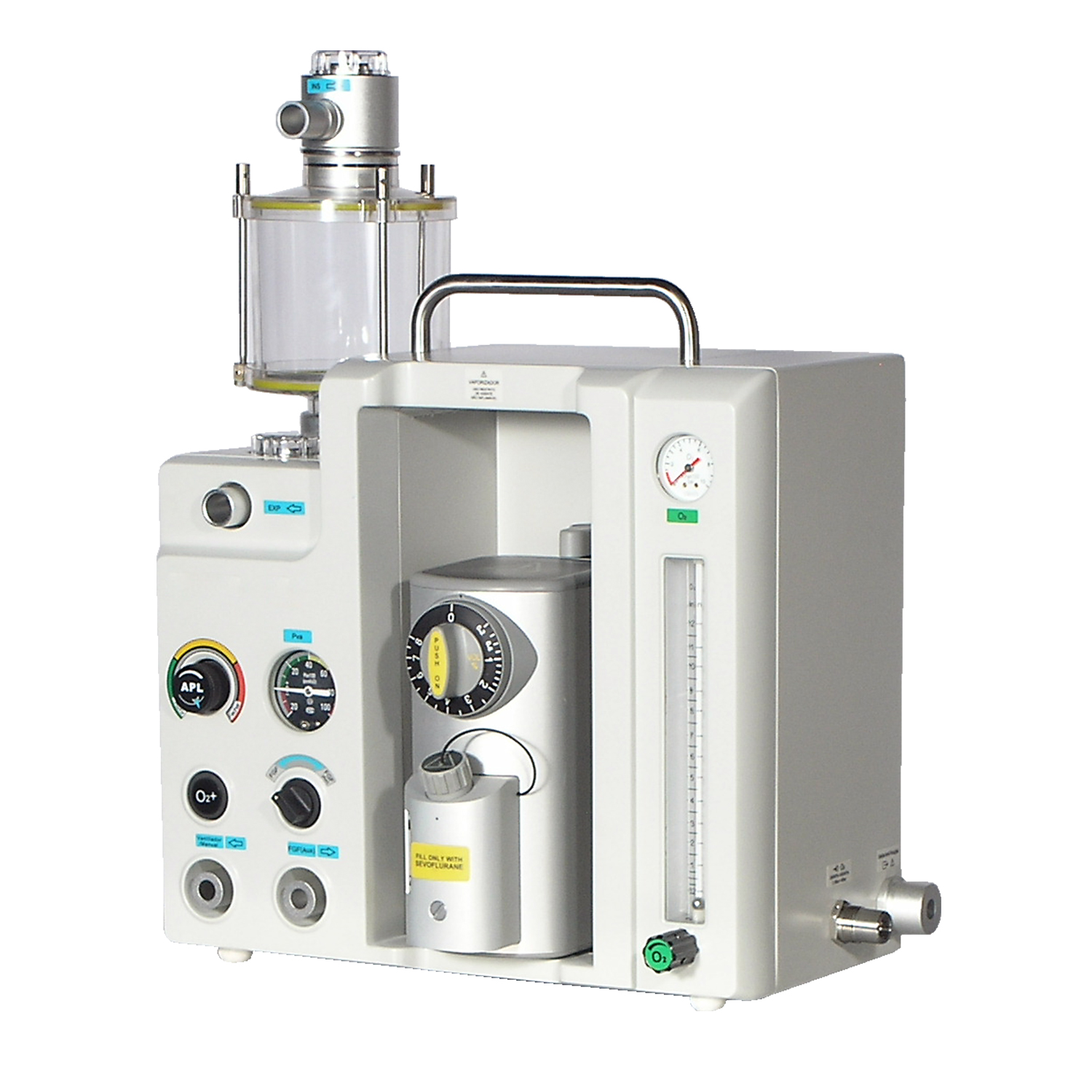

Med Vest Technology Transport 5000 Plus Portable Anesthesia Machine

Dimensions

• Height: 520 mm (20.47 inches)
• Weight: 20 kg (45 lbs.)
• Width: 490 mm (19.29 inches)
• Depth: 290 mm (11.41 inches)

Gas Supply

• Pipeline gas: O2
• Output pressure of regulator: 280kPa-300kP
• Security valve discharge pressure: ≤600 kPa
• Pressure of pipeline inlet: 280kPa-600kPa

Flowmeter

• Precision: At 20, atmospheric pressure is101.3kPa,the precision of flowmeter is level:2.5.
• O2 flushing: 35L/min ~ 75L/min
• Gas: scale
• O2: 0.0L/min ~10L/min

Respiration System

• Absorbent: 1000mL
• System leakage: When pressure is lower than 3kPa, ≤125mL/min
• System compliance: ≤4mL/kPa
• APL valve ~0.19-6 kPa
• Resistance of ventilator system:
  • Flow-rate: 30L/min <0.16kPa
  • Flow-rate: 60L/ min <0.52kPa
