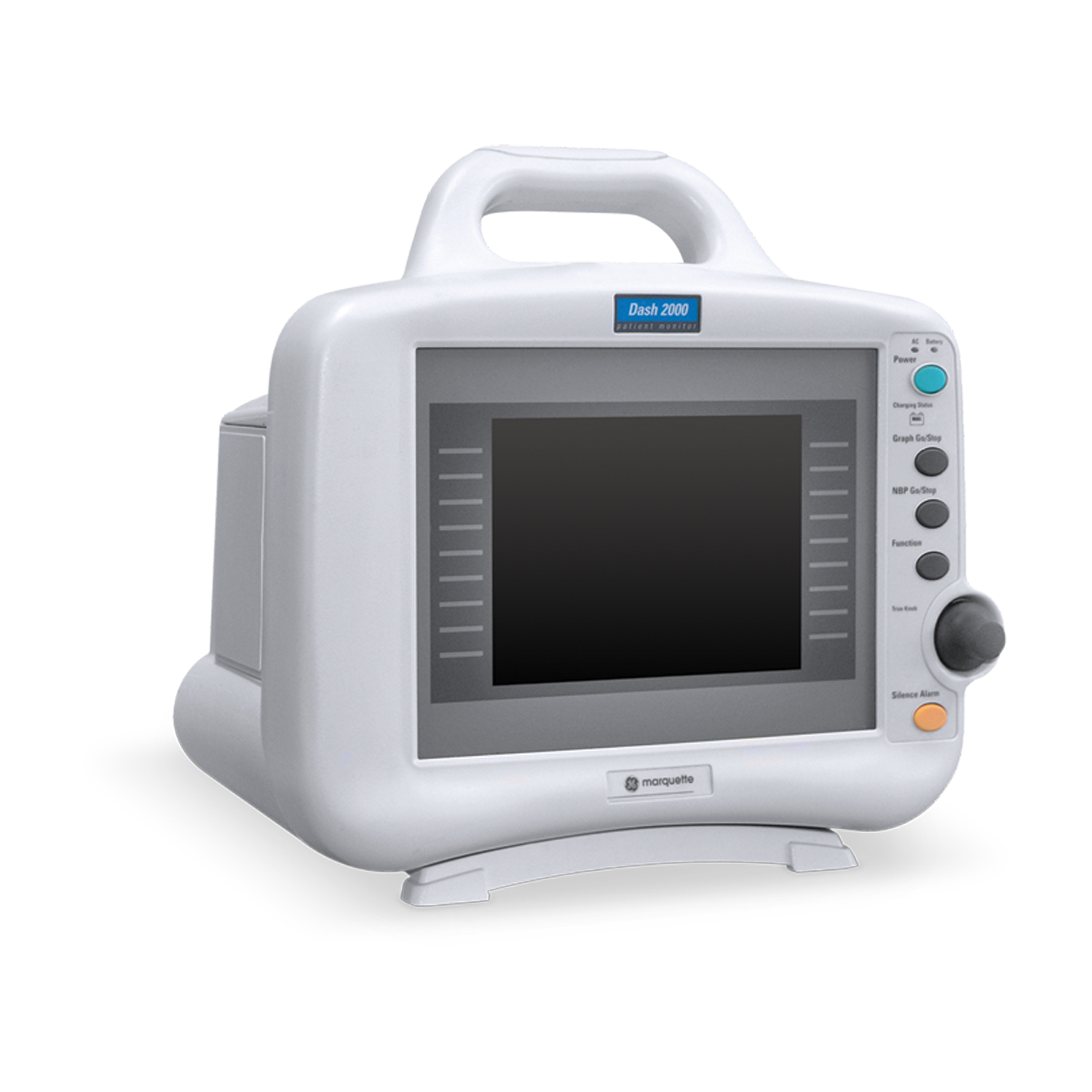

GE Dash 2000 Pro Monitor
GE Dash 2000 Pro Monitor
0 item is in your cart. View cart now
All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.
Details
Only the DASH 2000 Pro provides clinicians with GE Medical Systems Information Technologies gold-standard performance at such an affordable price. This unique combination of performance and value makes the DASH 2000 Pro ideal for special procedure rooms and physicians offices.
Features
Gold-Standard NIBP Accuracy
- Only full-featured monitor with DINAMAP® technology built-in
- System consistently produces the most accurate, reliable NIBP determinations available in a bedside monitor
- Stepped deflation with patented peak matching technology helps ride through artifact
- Ideally suited for NICU, PICU and adult hypertensive patients
Gold-Standard Arrhythmia Detection
- EK-Pro® simultaneous multi-lead arrhythmia detection sets the standard for sensitivity and specificity in a patient monitor
- Multiple leads assure uninterrupted monitoring and help detect localized events that otherwise might be missed
- Incremental updating helps eliminate noise, for accurate tracking of subtle, progressive changes in beat shapes
- Continuous correlation provides accurate QRS detection in the presence of noise or artifact
- Contextual analysis helps reduce false alarm rates and improve arrhythmia recognition relative to a given patient's unique rhythm
Easy To Use
- Shares a common user interface with all GE Medical Systems Information Technologies monitors for quick, confident transitioning from one monitor to the next
- Intuitive menu structure simplifies operation and minimizes training
- Common connectors with SOLAR® and TRAM® monitors allow quick seamless transition should changing patient condition call for higher-acuity monitoring
Specifications
Physical Display
- Height: 10.25" (26 cm)
- Depth: 8" (20 cm)
- Width: 11" (28 cm)
- Weight: 12 lbs (5.5 kg) maximum
- Size: 5.8" (16 cm) diagonal
- Type: monochrome LCD; optional color LCD
- Resolution: 320 x 240 pixels
- Number of traces: 3
- Number of seconds/trace: 3.8 at 25 mm/sec
- Sweep speed: 25 mm/sec (with erase bar)
- Information window: display non-real-time information without obstructing the display of real-time information
- Display organization: prioritized by parameter
ECG
- Leads: I, II, III, V, aVR, aVL, and a VF.
- Lead fail: identifies failed lead.
- Alarms: user-selectable upper and lower limits.
- Heart rate range: 30 to 300 bpm
Respiration
- Measurement technique: impedance variation detection.
- Respiration rate range: 0 to 200 breathes per minute.
- Alarms: user-selectable upper and lower respiration rate limits and apnea limit.
IBP
- Number of channels: 1.
- Transducer sites: arterial, pulmonary arterial venous, left arterial, intracranial and special.
- Range: -25 mmHg to 300mmHg.
- Alarms: user-selectable upper and lower limits for systolic, diastolic and mean pressures
Temperature
- Number of channels: 1.
- Range: 0°C to 45°C (32°F to 113°F).
- Resolution: ±0.1°C (0.18°F).
- Accuracy: ±0.1°C (0.18°F).
- Alarms: user-selectable upper and lower limits
NIBP
- Measurement technique: oscillometric.
- Displayed parameters: systolic, diastolic and mean pressures, pulse rate, time of last measurement.
- Measurement modes: manual, auto and start in adult ICU and OR modes; a/manual and auto in neonatal mode.
- Heart rate detection: 30 to 300 beats per minute.
- Total cycle time: 20 to 40 seconds typical.
- Automatic cycle times: 0 to 24 hours.
Pulse Oximetry
- Parameters monitored: arterial oxygen saturation (SpO2) and peripheral pulse rate (PPR).
- SpO2 range: 50 to 100%.
- PPR range: 30 to 300 beats per minute (±3 beats per minute).
- SpO2 accuracy: ±2% (70 to 100% SpO2),±3% (50 to 69% SpO2).
- PPR accuracy:±3 beats per minute
Alarms
- Categories: patient status and system status.
- Priority: 4 levels - crisis, warning, advisory, message.
- Notification: audible and visual.
- Setting: default and individual.
- Silencing: 1 minute, current alarm only.
- Pause: 5 minutes in adult ICU mode, 3 minutes in neonatal ICU mode, and 5, 15 minutes or permanent pause in OR mode.
- Volume: default 70%, 70 dB measured at 1 meter.
Controls
- Trim Knob® control.
- Five hard keys: silence alarm, graph go/stop, NBP go/stop, function and power on/off.
Electrical
- Power requirements: 90 to 264 VAC 50/60 Hz 500 mA.
- Power consumption: 40 Watts (fully loaded).
- Cooling: convection. Heat dissipation: 135Btu/br maximum
