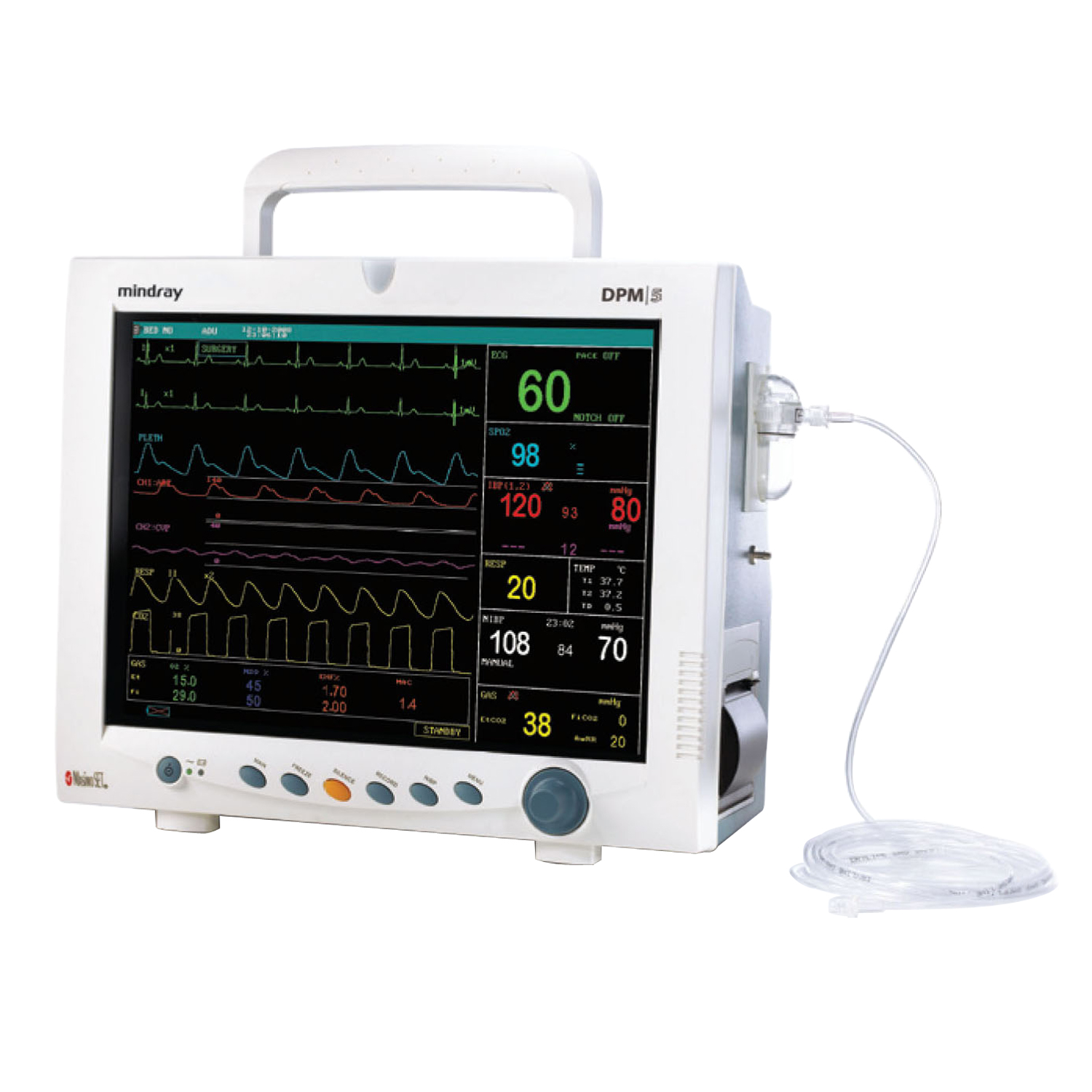

The Mindray DPM5 is an easily-configurable, highly-portable patient monitor built to adapt to your facility’s particular needs.
At just over 10 pounds, the Mindray DPM5 Patient Monitor can be transported quickly from room to room. The monitor features quick-action keys on the front panel, allowing operators to easily set-up and begin use.
The clear, TFT color display panel can show up to eight waveforms for maximum data analysis of the following parameters: 3 to 5-lead ECG, NIBP, Nellcor® Oximax® SpO2, pulse rate, respiration, dual-channel invasive blood pressure and dual-channel temperature. The Mindray DPM5 is available with EtCO2 measurement, arrhythmia and ST analysis in a variety of mounting options. Contact your Med Vest Technology Representative for details.
Features
- Multi-parameter monitor:
- Dual-channel temperature
- Dual-channel invasive blood pressure
- Respiration
- Pulse rate
- Nellcor® Oximax® SpO2
- NIBP
- 3 to 5-lead ECG
- Crisp, 12.1” TFT color display for clear readings
- Screen is configurable with up to 8 waveforms
- Comes standard with lithium-ion battery
- Integrated recorder prints real-time and historical data
- 40-seconds of full disclosure waveform recall for detailed review of physiological events
- Flash backup in the event of sudden loss of power
- Large numerics mode for increased visibility
- Optional features include DPM Sidestream CO2, arrhythmia and ST analysis
- Various mounting configurations available
Specifications
General
- Dimensions: 12.5” (318 mm) W x 10.6” (270 mm) H x 5.4” (137 mm) D
- Weight (standard configuration): 10.3 lbs (4.7 kg)
- Display: 12.1” (307 mm), color TFT LCD
- Recorder: Thermal dot array
- Power supply: 1 AC power connector
- Network: 1 standard RJ45 network connector, 100 BASE-TX
- VGA: 1 standard color VGA monitor connector, 15-PIN D-sub
- Auxiliary output: 1 BNC connector
- Equipotentiality: 1 equipotential grounding connector
- IEEE 802.11g, Wifi compatible
Environmental
- Operating Temperature: 32 - 104°F (0 - 40°C), 41 - 95°F (5 - 35°C) with CO2 module, 50 - 95°F (10 - 35°C) with AION AG module
- Operating Humidity: 15 to 95%, non-condensing
- Operating Altitude: -1640 to 15092 ft (-500 to 4600 m), -1000 to 9889 ft (-305 to 3014 m) with CO2, AG or Nellcor SpO2 Module
- Storage Temperature: -4 to 140°F (-20 to 60°C)
- Storage Humidity: 10 to 95%, non-condensing
- Storage & Transportation Altitude: -1640 to 15092 ft (-500 to 13100 m), -1000 to 20000 ft (-305 to 6096 m) with CO2, AG or Nellcor SpO2 module
Power
- Input Voltage: 100 to 240V ~
- Current: 1.4A to 0.6A
- Frequency: 50/60Hz
- Fuse: T 3 A, 250 V
- Battery: 2 Sealed lead-acid battery or lithium-ion battery
