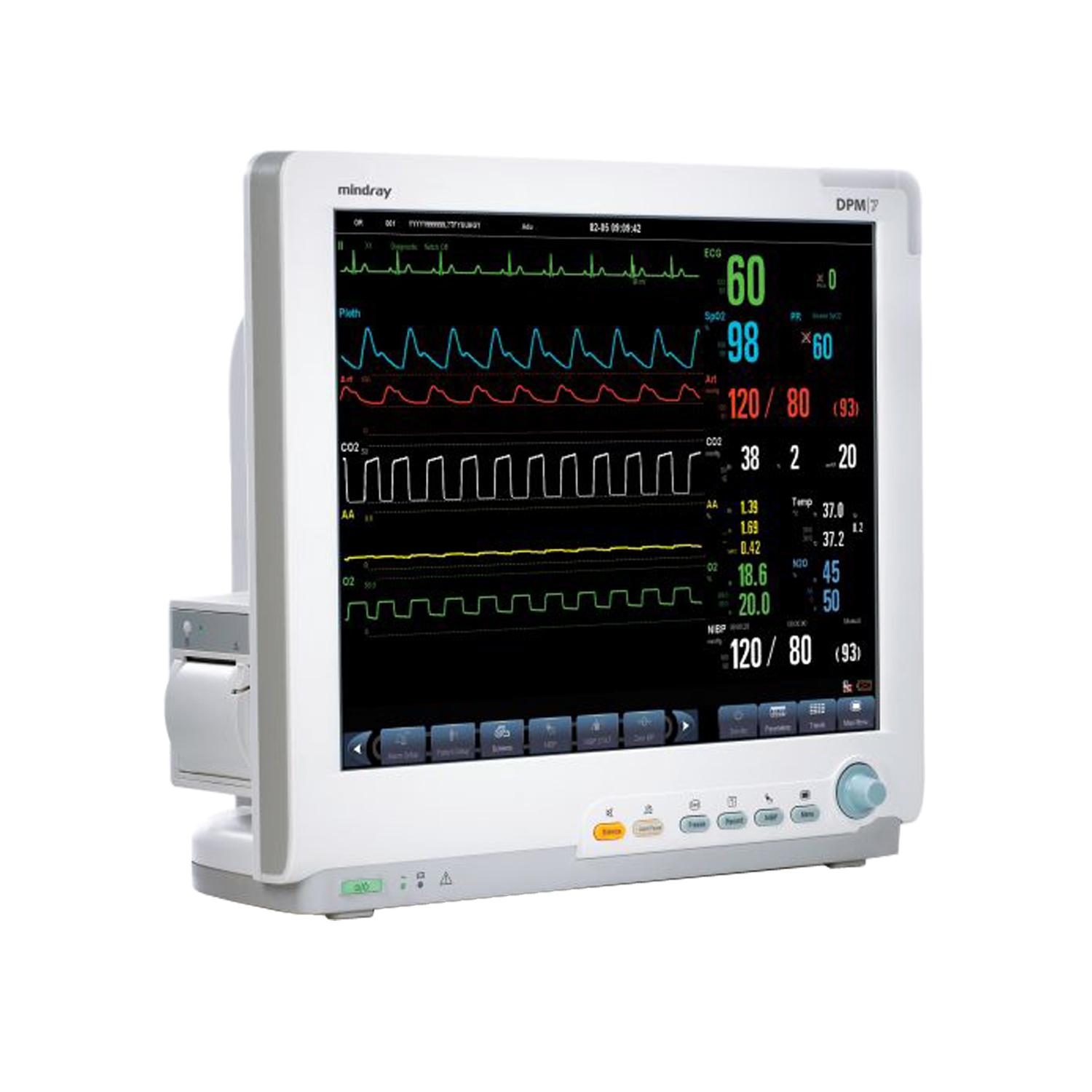

Mindray DPM7 Patient Monitor
Mindray DPM7 Patient Monitor
0 item is in your cart. View cart now
All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.
Details
A multi-parameter patient monitor ideal for high-acuity facilities
With a large, 17-inch touch screen and diverse monitoring functions, the Mindray DPM7 is an asset to any intensive care unit or operating room. The unit provides clinicians with multi-vector arrhythmia monitoring, as well as 3, 5 and 12-lead ECG monitoring, RESP, NIBP, ST analysis, CO, CCO/SVO2, CO2, 8 invasive blood pressures, and 5-agent multi-gas analysis with auto-ID and data storage.
The Mindray DPM7 Patient monitor also features a unique ECG split-screen feature, allowing operators to view 5-lead ECG while still analyzing real time data. Available with optional conventional or Microstream® EtCO2, Masimo SET® or Nellcor® OxiMax® SpO2, and various mounting configurations. Ask your Med Vest Technology Representative for details.
Features
- Multi-parameter monitor:
- Multi-gas analysis
- RESP
- Pulse Rate
- NIBP
- Multi-vector arrhythmia and ST analysis
- 3, 5 and 12-lead ECG monitoring
- Clear, 17” high-resolution color touchscreen
- Comes standard with lithium-ion batteries
- Customizable touchscreen quick-action keys for efficiency
- Large numerics display mode for increased visibility
- Wireless networking capabilities
- Records up to 120 hours of graphs and trends
- Retains 48 hours of full disclosure waveform review
- Features 5 built-in module slots
- Monitors up to 8 invasive blood pressures
- Defibrillator synchronization
- ECG split-screen feature to view 5-lead ECG while maintaining visibility of other real time data
- Optional SpO2: Masimo SET® or Nellcor® OxiMax®
- Optional CO2: DPM Sidestream or Oridion® Microstream
- Available in various mounting configurations
Specifications
General
- Dimensions: 14.6” (370 mm) H x 15.7” (400 mm) W x 7.6” (193 cm) D
- Weight: > 31.9 lbs (14.5 kg) including display, MPM, AG module, 2 lithium batteries, recorder, CF components
- Display: 17” (432 mm)
- Power Supply: 1 AC power connector
- Network: 2 RJ45 network connectors, 100 BASE-TX
- Video: 1 standard DVI-D video interface connector
- Auxiliary output: 1 BNC connector
- Equipotentiality: 1 equipotential grounding connector
- IEEE 802.11g Wifi compatible
Environmental
- Operating Atmospheric Pressure: 425 - 809 mmHg, 430 - 795 mmHg (Microstream CO2 module), 428 - 790 mmHg (Sidestream CO2 module), 525 - 900 mmHg (AG module)
- Operating Temperature: 41° - 104°F (5° to 40°C), 32° - 104°F (0°C to 40°C) Microstream CO2 module, 41° - 95°F (5°C to 35°C) Sidestream CO2 module, 50° - 104°F (10°C to 40°C) AG Module
- Operating Humidity: 15% to 95%, non-condensing
- Storage Atmospheric Pressure: 120 - 809 mmHg, 430 - 795 mmHg (Microstream CO2 module), 428 - 790 mmHg (Sidestream CO2 module), 525 - 900 mmHg (AG module)
Power
- Input Voltage: 100 to 240VAC
- Current: 2.8 to 1.6A
- Frequency: 50/60Hz
