Details

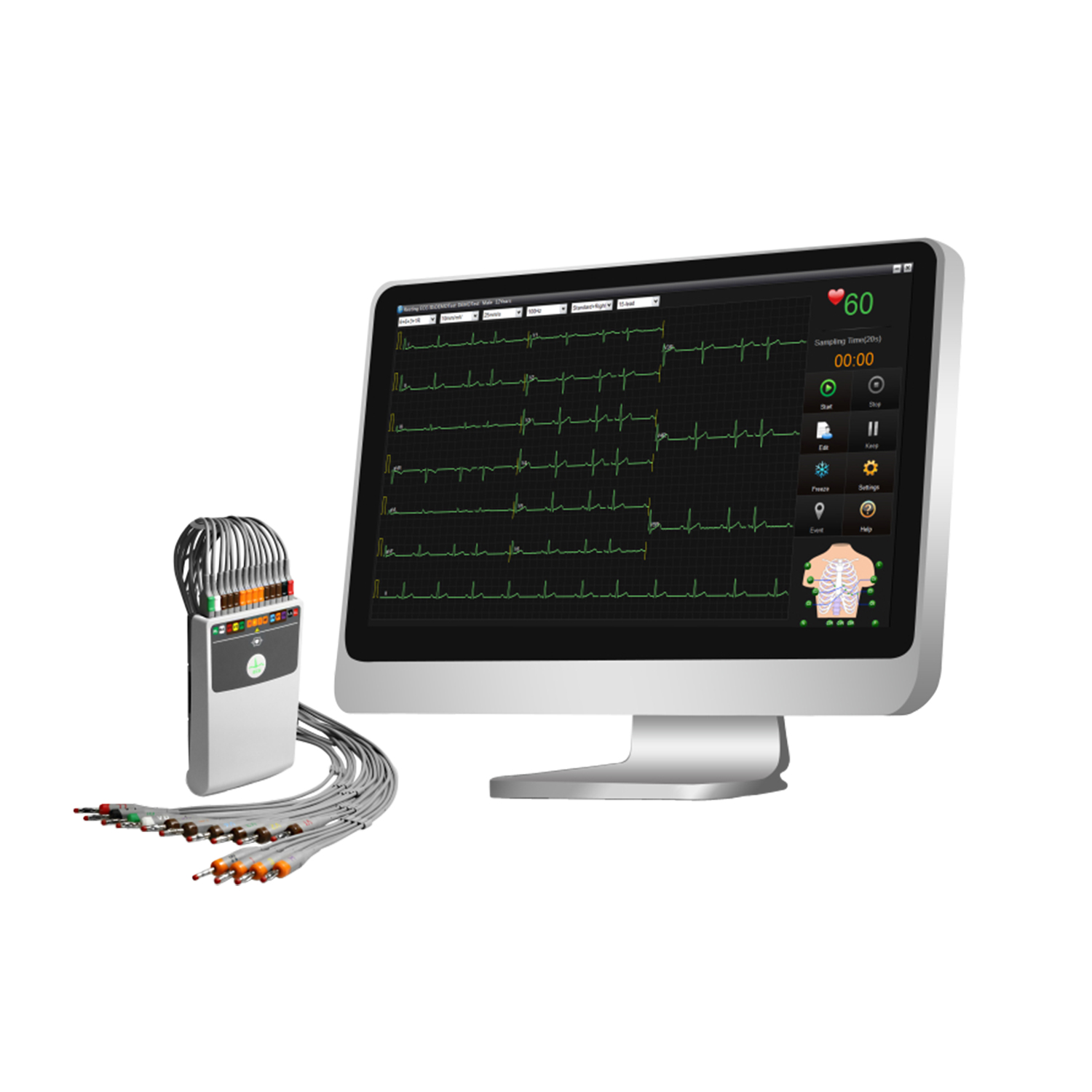

The Med Vest Technology Velocity Pro is a comprehensive, wireless ECG solution with an incorporated PC-based platform

The Med Vest Technology Velocity Pro Wireless ECG is a complete ECG system that integrates hardware, PC ECG software and standard accessories. Features resting ECG capabilities, built-in lead reversal, automatic arrhythmia detection, unlimited user-defined protocols and an ECG glossary.

For more information on the Med Vest Technology Velocity Pro Wireless ECG, contact an Med Vest Technology representative today.

Features

Complete wireless ECG system available in nine, 12, 15 or 18 lead setup.
Integrates hardware, PC ECG software and standard accessories.
Resting ECG function supports up to half an hour of ECG acquisition with full waveforms.
Available with VCG, TVCG, SAECG, QTD, HRV and HRT analysis.
Ensure proper electrode placement with built-in lead reversal function.
Signal quality indicators for a reliable connection every time.
Automatically detect, highlight and save arrhythmias.
Features a color-coded lead map that coordinates with ECG waveforms.
Add event markers for later analysis.
Unlimited user-defined protocols with automatic 12-lead reports.

Supports ST assessment, METs, Double Product, Duke Score and FAI%.
Unique data management capabilities:
- Complete ECG data management and reporting.
- Share reports and data easily via email.
- Multi-user configurations and permissions.
- Supported formats: XML, SCP, DICOM, PDF, JPG, BMP, TIF, PNG.
Built-in ECG glossary includes diagnostic templates and descriptions.
Correct lead reversals on PC even after ECG acquisition.
Compatible with Windows 8 and Windows 10 platforms.
Optional — stress test configuration.

Specifications

Dimensions

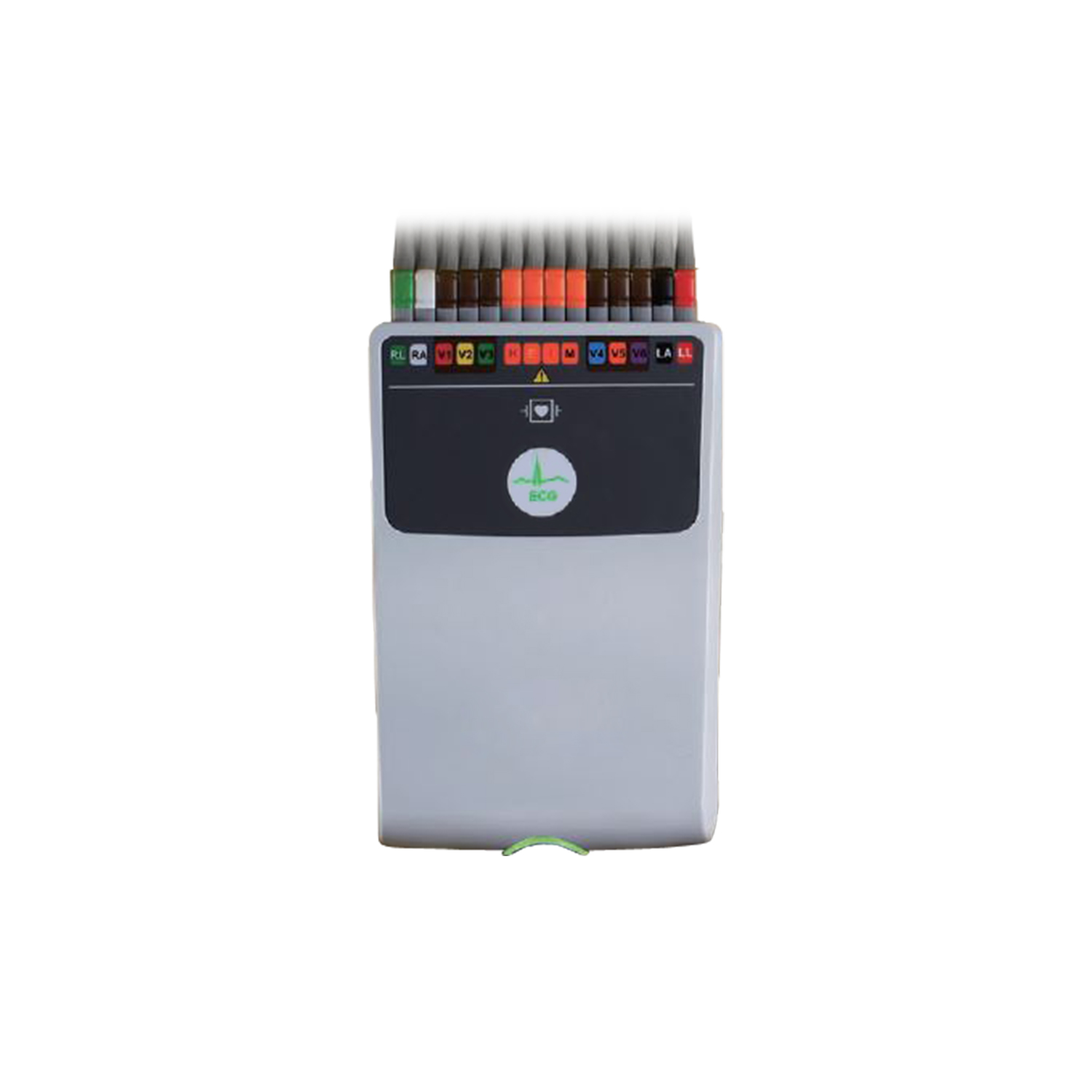

DE18/DE15 ECG Sampling Box: 5.47 in × 3.78 in × 0.98 in, ± 0.2 in
DP12 ECG Sampling Box: 5.83 in (L) × 3.94 in (W) × 1.57 in (H) , ± 0.08 in
DX12 Transmitter: 2.48 in (L) × 4.21 in (W) × 0.91 in (H), ± 0.08 in

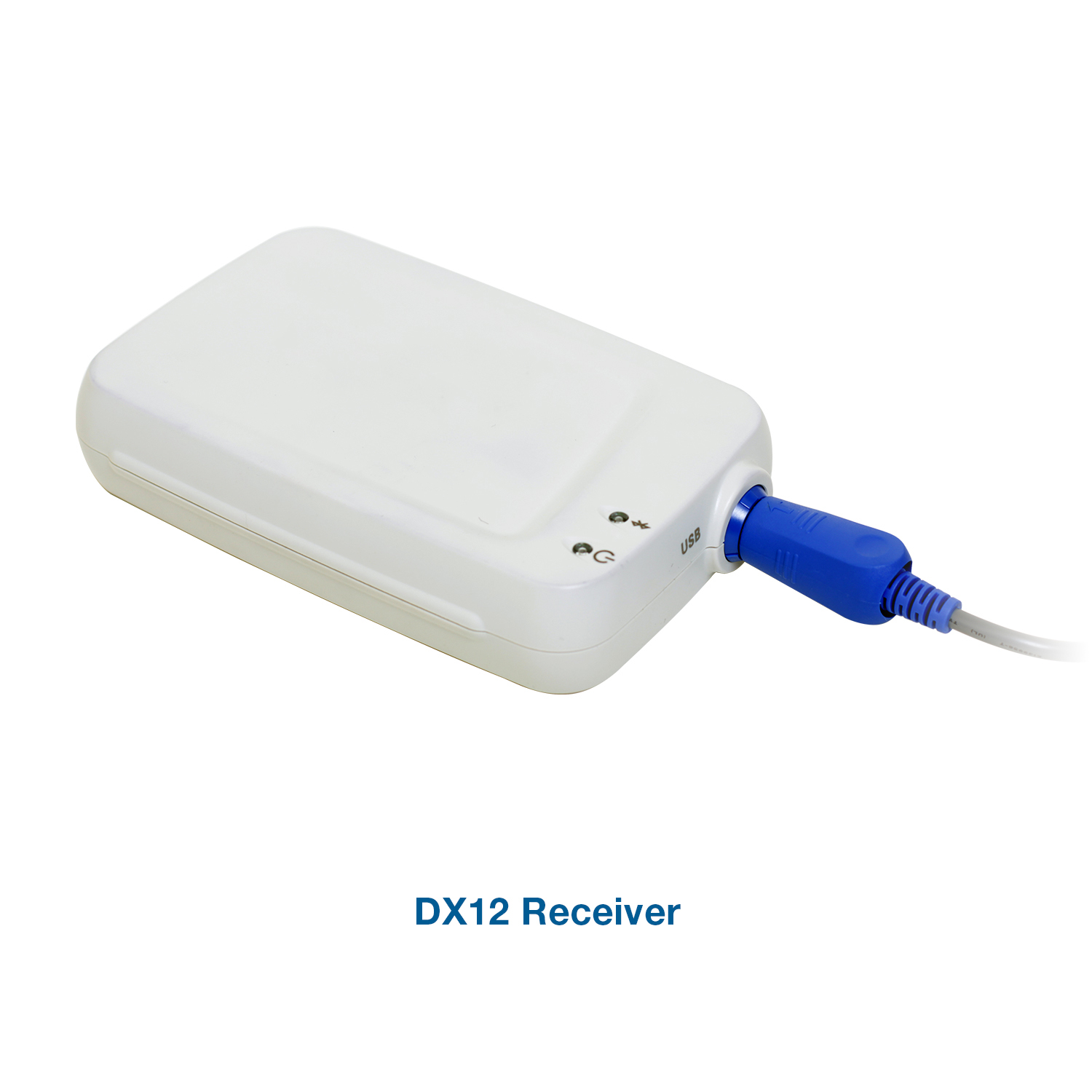

DX12 Receiver: 6.10 in (L) × 3.94 in (W) × 1.18 in (H), ± 0.08 in

Weight

DE15/DE18 ECG Sampling Box: Approx. 215g
DP12 ECG Sampling Box: Approx. 210g
DX12 Transmitter: Approx. 113g (not including battery)
DX12 Receiver: Approx. 173g

Power

PC Operating Voltage: 110V-240V~
PC Operating Frequency: 50 Hz/60Hz
DE18/DE15 ECG Sampling Box: DC 5V
DE18/DE15 ECG Sampling Box Input Power: 1 VA (MAX), 0.5 VA (MIN)
DP12 ECG Sampling Box: 5V, 1VA (MAX), 0.5VA (MIN)

DX12 Transmitter: Input Power: 2x1.5V Excell Alkaline AA IEC LR6;
DX12 Transmitter Operation Life of Battery: ≥12 hours
DX12 Receiver: DC 5V
DX12 Receiver Input Power: 350mW

Environment

Transport Temperature: DP12/DE15/DE18 ECG sampling box: -40ºC (-8ºF) ~ +55ºC (+131ºF) | DX12 ECG sampling box: -20ºC (-4ºF) ~ +55ºC (+131ºF)
Working Temperature: +5ºC (+41ºF) ~ +40ºC (+104ºF)
Transport Relative Humidity: 25% RH ~ 93% RH (Non-Condensing)
Working Relative Humidity: 25% RH ~ 80% RH (Non-Condensing)
Transport Atmospheric Pressure: 70 kPa ~106 kPa
Working Atmospheric Pressure: 86 kPa ~ 106 kPa
