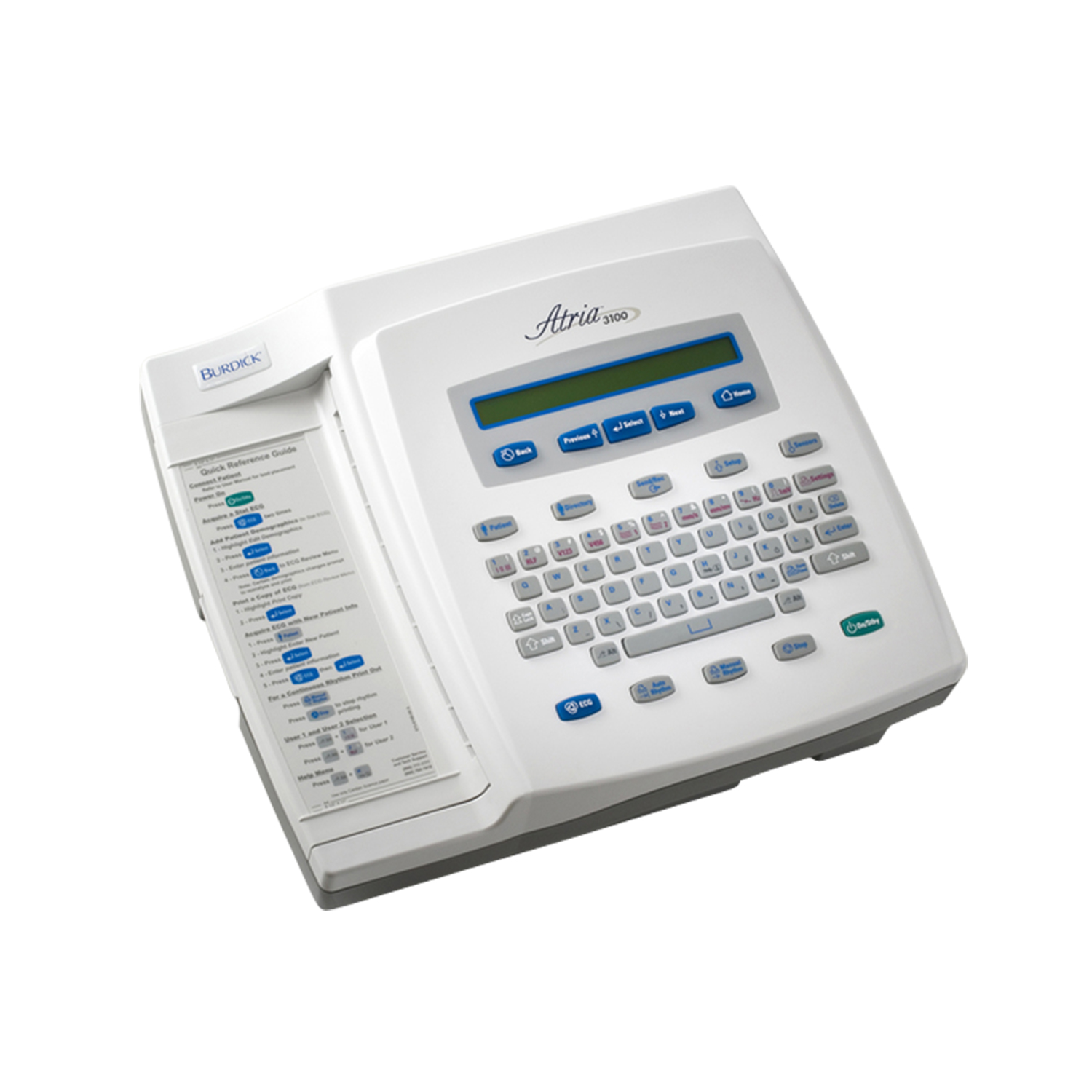

Burdick Atria 3100 ECG
Burdick Atria 3100 ECG
0 item is in your cart. View cart now
All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.
Details
The Burdick Atria 3100 ECG is compact yet powerful. With the latest technology, the Atria 3100 provides high quality and accuracy while giving protocol choices, eliminating transcription errors and improving workflow.
For more information about the Burdick Atria 3100 ECG, contact an Med Vest Technology representative today.
Features
- Stores 50 ECGs
- Manual or automatic 3-, 4-, 6-, and 12-lead ECG printouts
- Standard with wired Ethernet, wireless 802.11, and Bluetooth; complies with FAA requirements
- Bi-directional communication with our HeartCentrix connectivity software
- Reduce typing mistakes and save time by downloading patient information from your electronic medical record (EMR) system.
- Cutting-edge communication tools available: Ethernet is included on all units, wireless 802.11 and Bluetooth also available
- Quickly review test results – reports can be viewed, edited, and confirmed right from the patient’s chart.
- AccuPrint feature restricts ECG printing if lead wires are not properly attached
- Eliminate the hassle of scanning and filing hard copies by transmitting test results directly to your EMR system.
Specifications
Attributes
- Height: 5.5 in
- Weight 11 lb (5 kg) (including external power supply)
- Length: 13.1 in
- Width: 15 in
- Data Storage: 50 records
- Network Connection: Wired - Wireless
Power Supply
- AC operation: 115/230 V AC +/-10%, 50/60 Hz at external power source
- Battery operation: 14.4 V NiMH rechargeable battery pack
- Battery duration: 300 pages continuous printing without communications enabled
Printout
- Printout device: 216 mm thermal dot array
- Paper dimensions: 8.5 in x 11 in (US letter) or 210 mm x 300 mm (A4)
- Paper type: Thermal sensitive (Burdick Assurance or Heartline paper recommended)
- Chart speeds: 12.5, 25, 50 mm/sec
- Gain: 5, 10, 20 mm/mV chest or limb (may be split)
- Printout formats: 3-, 4-, 6-, or 12-channel; additional rhythm formats
Acquisition
- Lead selection: Meets IEC 60601-2-51I, II, III, aVR, aVL, aVF , V1, V2, V3, V4, V5, V6, V4R; supports Cabrera and alternate chest lead (chest lead selection V2R thru V9R + V7,V8,V9) Measurement (standard)
- Pacemaker display capability: Meets or exceeds ANSI/AAMI EC11-1991
- A/D Conversion: 8,000 samples/second, 2.5 µV LSB RTI
Environmental
- Operating temperature: 50°F to 104°F (10°C to 40°C)
- Operating relative humidity: 20% to 90%, non-condensing
- Operating atmospheric pressure: 1060 hPa to 700 hPa (-500 ft to 10,000 ft reference to sea level)
- Storage temperature: -4°F to 115°F (-20°C to 45°C)
- Storage relative humidity: 10% to 90%, non-condensing
