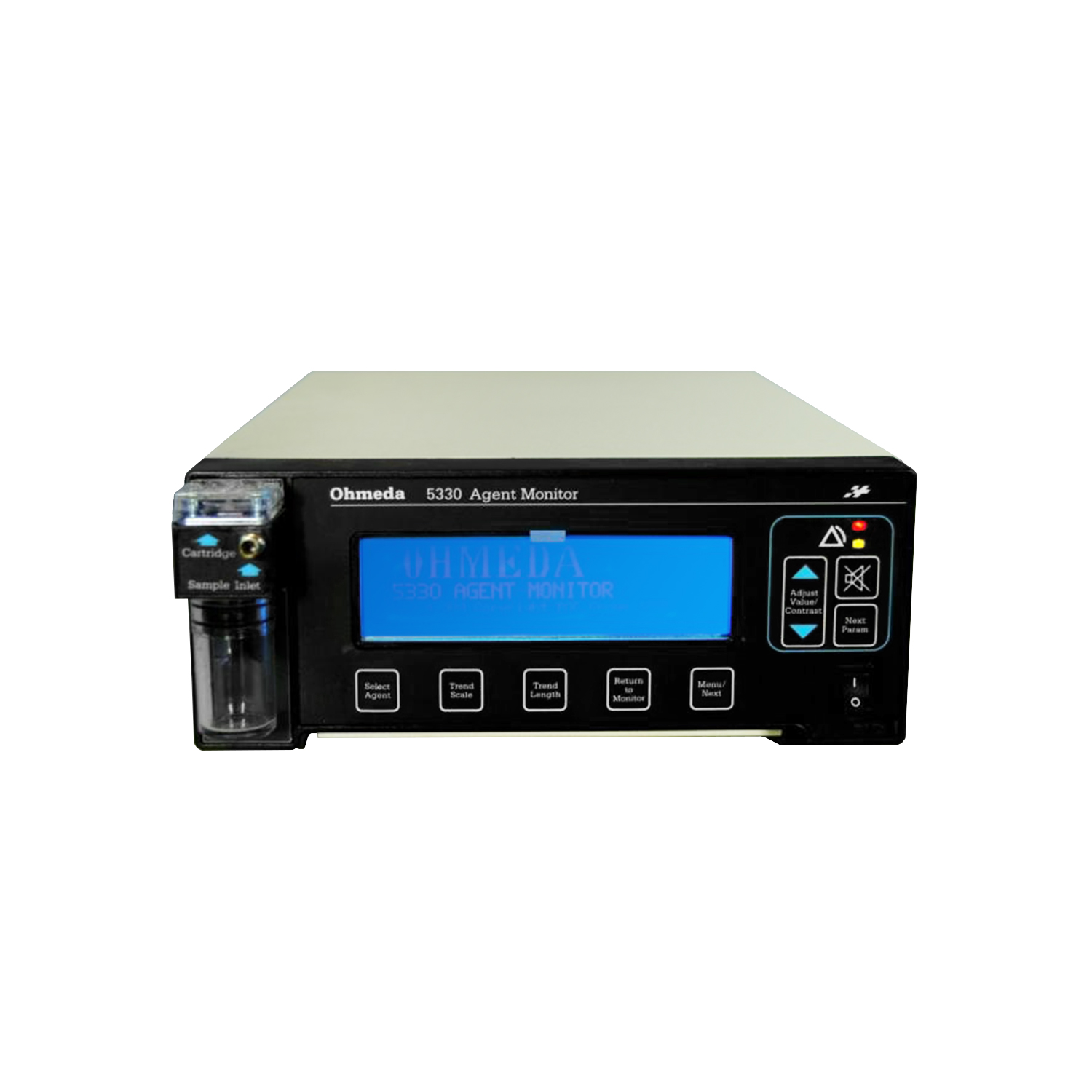

Datex Ohmeda 5330 Agent Monitor
Datex Ohmeda 5330 Agent Monitor
0 item is in your cart. View cart now
All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.
Details
Datex-Ohmeda 5330's are suitable for performing anesthetic vaporizer concentrations checks in the field. These units are available either used or professionally New from DRE.
Features
- Monitors 5 Agents: Enflurane, Halothane, Isoflurane, Sevoflurane, Desflurane
- Easy-to-read digital display screen 5330
Specifications
Dimensions / Power
- Height: 4 inches (10.16 cm)
- Width: 10 inches (25.4 cm)
- Depth: 16 inches (40.64 cm)
- Weight: 13.25 lbs (6 kg)
- Power Input: 110, 120 VAC, 50/60 Hz
Operational Environment
- Temperature: 15 to 35°C
- Humidity: 0 to 95% RH, non-condensing
Storage Environment
- Temperature: -5 to 50°C
- Humidity: 0 to 95% RH, non-condensing
Display
- Displayed Parameter: Agent inspired & expired concentration levels (%)
- Trendgraph: Last 120 breaths, 20 min, 60 min, 120 min
- Sample Flow Rate: 250 mL/min
- Response Time: 600 msec
- Warm-Up Time: 5 minutes to operation
- Compensation: Temperature & barometric pressure
- Analog Output: Anesthetic agent waveform
- Digital Output: RS-232 compatible
Enflurane, Halothane, Isoflurane, Sevoflurane
- Range: 0 to 9%
- Accuracy: 0 to 1.0% (± 0.2%)
- 1.1 to 6.0% (± 0.3%)
- 6.1 to 7.0% (± 0.35%)
- Resolution: 0.1%
- Alarms: High expired 0.2 to 10% agent concentration
- High inspired 0.2 to 10% agent concentration
- Low expired 0 to 9.8% agent concentration
- Low inspired 0 to 9.8% agent concentration
Desflurane
- Range: 0 to 24%
- Accuracy: 0 to 4.9% (± 0.2%)
- 5.0 to 9.9% (± 0.5%)
- 10.0 to 18.0% (± 1.0%)
- 18.1 to 22.0% (± 2.0%)
- Resolution: 0.1%
- Alarms: High expired 0.2 to 10% agent concentration
- High inspired 0.2 to 10% agent concentration
- Low expired 0 to 9.8% agent concentration
- Low inspired 0 to 9.8% agent concentration
