Med Vest Technology SLS 9000 Plus LED Surgery Light
Med Vest Technology SLS 9000 Plus LED Surgery Light
All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.
Details
The Med Vest Technology SLS 9000 Plus provides bright, consistent illumination and excellent engineering.

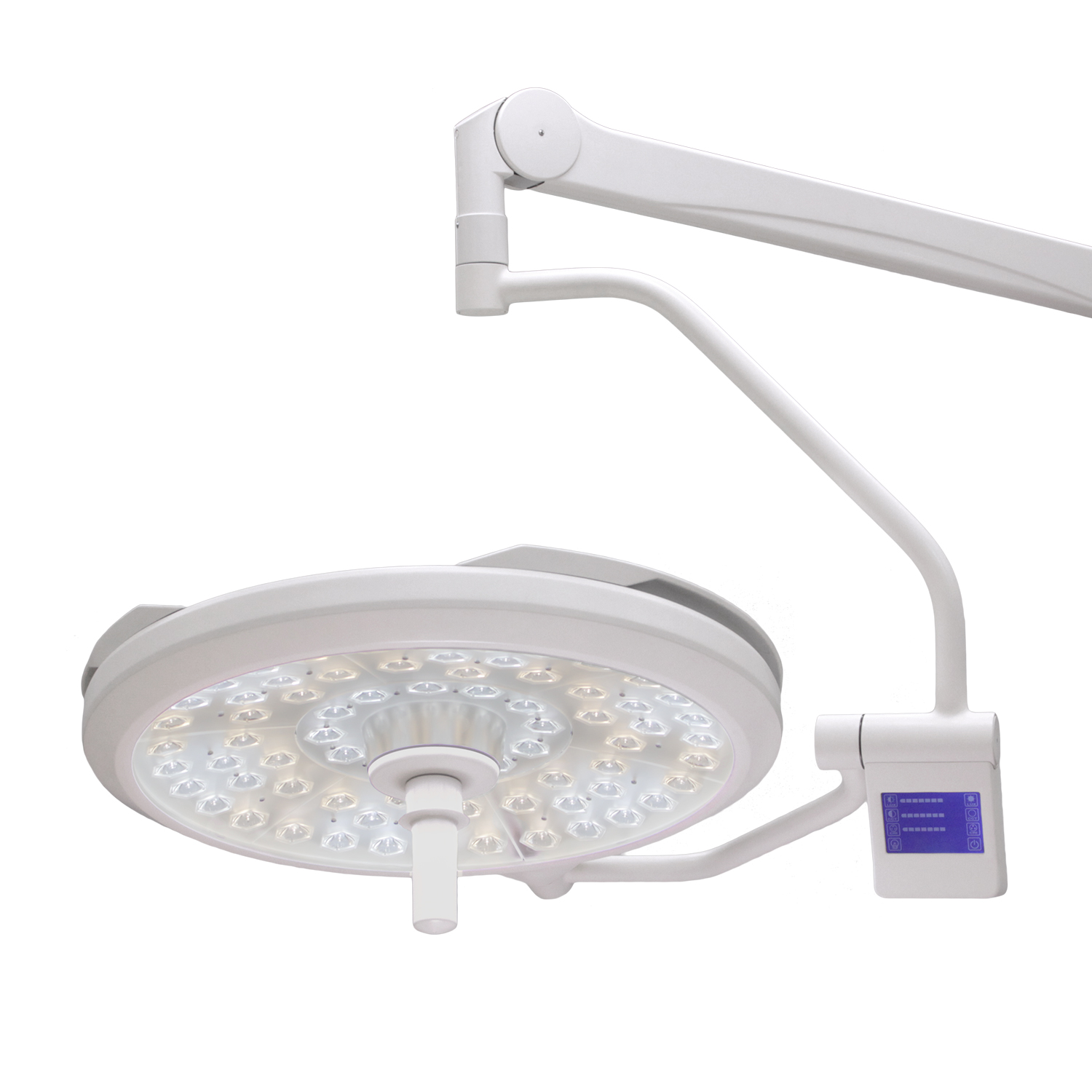

The Med Vest Technology SLS 9000 Plus is a shadowless surgery light designed for bright, long-lasting illumination. The light provides up to 140,000 Lux at maximum intentisty and is rated for 50,000 hours of LED life.
Using the on board LCD touchscreen, clinicians can easily adjust the illumination intensity, color temperature and Chromogenic index. The Med Vest Technology SLS 9000 Plus is available in multiple configurations to fit your operating room needs.
For more information on the Med Vest Technology SLS 9000 Plus, contact an Med Vest Technology representative today.
Features
- Maximum output rated at 140,000 Lux.
- Cost-efficient surgical lighting system rated for 50,000 hours of LED life.
- Choose a single or dual head ceiling mount.
- Energy saving LED lighting provides consistent illumination at a cool light temperature.
- Expertly engineered design makes it easy to position and adjust light heads for any surgical procedure.
- LCD touch screen operation measures illumination intensity, color temperature and Chromogenic index.
Specifications
Weight
- Single Ceiling Mount Assembly: approx. 66.1 lb
- Dual Ceiling Mount Assembly: approx. 90.4 lb
- Light Head Assembly: approx. 22.7 lb
Dimensions
- Ceiling Casting: 11.4 in x 10.2 in
- Arm (articulated): 35.4 in x 0.9 in x 2.4 in
- Light Head Assembly: 24.4 in x 46.9 in
Rotations
- Ceiling Mount/Extension Arm Interface: Continuous
- Articulating Mount/Extension Arm Interface: Continuous
- Articulating Arm Vertical Movement: +30°, -40°
- Articulating Arm/Yoke Interface: Continuous
- Yoke/Lamp Interface: +/- 135° (270° range)
Electrical
- Input Voltage: 100 - 240 VAC 50/60 Hz - Single Phase
- LED Life: 50,000 hours (average)
Power
- Single: 54 W
- Dual: 108 W
Optical
- Correlated Color Temperature: 3,500 - 5000° Kelvin
- Irradiance: 233 W/m2 (39.4 in)
- Color Rendering Index: 91.6
- Focal Length: (27.6 in)
- Central Illuminance (adjustable): 140,000 Lux
- Light Field Diameter (adjustable): 4.7 in - 13.8 in
- Depth of Illumination: 55.1 in
Environmental
- Operating temperature: 41° - 104° F
- Storage temperature: 41° - 104° F
- Humidity: 10 - 90% relative humidity
General
- Available Color: Creme
