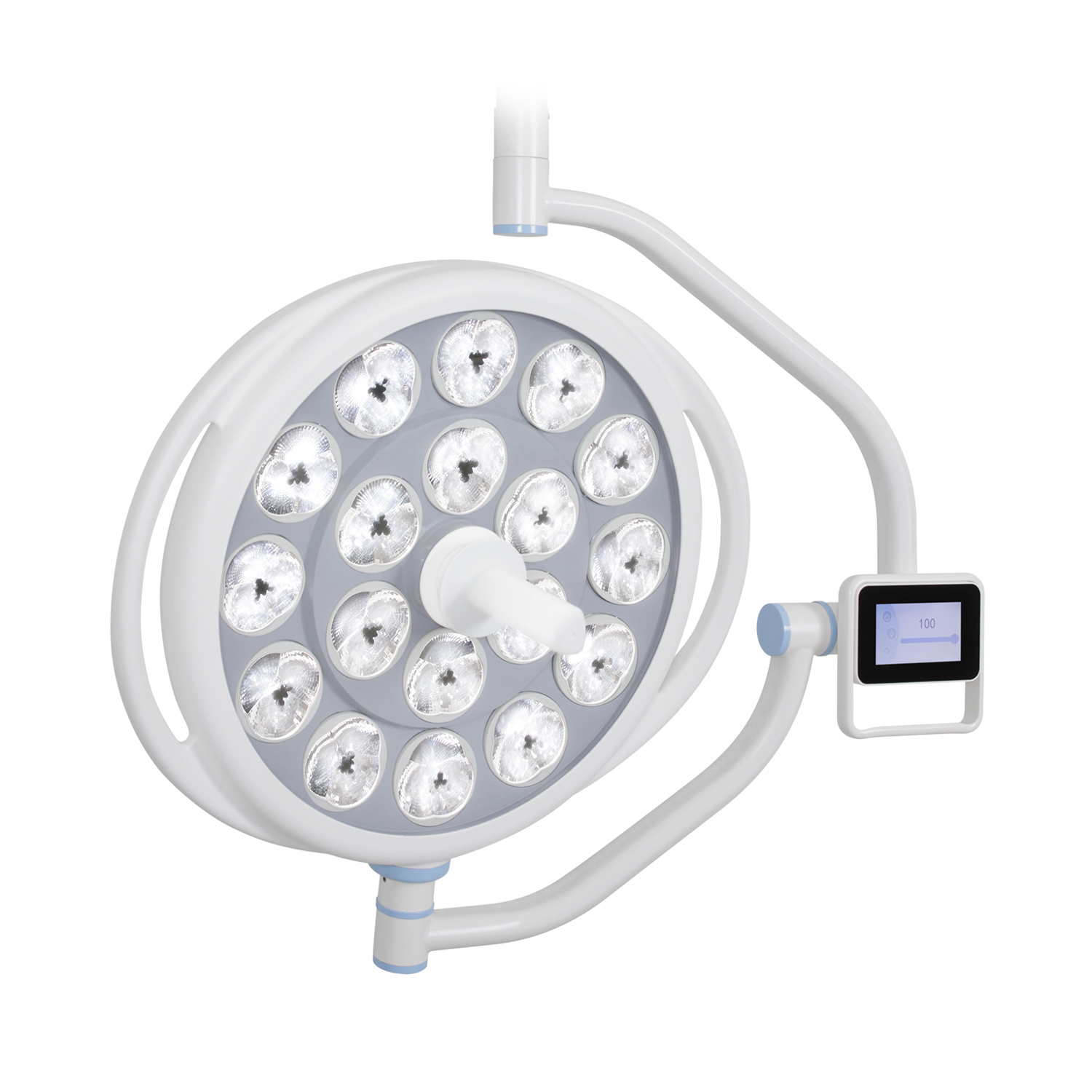

Med Vest Technology Vision LED 120 Surgical Lighting System

Brand: Med Vest Technology

Type: Lights - Surgical

Web ID: 17292

Product Number: 70Z120D

0 item is in your cart. View cart now

Need help choosing?

Ask an Equipment Expert

(781) 302-6019

Listing Terms & Conditions

All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.

Details

Economical, dual head surgical light with convenient touchscreen controls

The Med Vest Technology Vision LED 120 is a dual head surgical lighting system designed for use in hospitals and surgery centers. Using the convenient LCD touchscreen, clinicians can easily adjust each light head’s illumination. Focus and position the light heads with removable, sterilizable handles.

Features

Dual head surgical light designed for OR use in hospitals and surgery centers.
Shadowless light clearly illuminates operating area.
Maximum illumination rated at 120,000 Lux.
Color temperature rated at 4,300 Kelvin.
LCD touchscreen adjusts illumination.
Focusing handle can be removed and sterilized in accordance with sanitation requirements.
Easily toggle between ambient mode and surgical mode.

Specifications

Light Head Specifications

Central Luminance: 36,000 Lux ≤ Ec ≤ 120,000 Lux
Spot Diameter: d10 ≥ 280mm | d50 ≥ 150mm
Focusing Depth: ≥ 1500mm
Ra: ≥95
Color Temp: 4300K±250K
Net Weight (single light head): 78kg
Load Capacity of Ceiling: More than 500kg

Shadowless Specifications

Shadowless rate with single baffle: ≥35%
Shadowless rate with double baffles: ≥35%
Shadowless rate in deep cavity of the body: ≥90%
Shadowless rate with single baffle in deep cavity: ≥30%
Shadowless rate with double baffles in deep cavity: ≥35%

General Specifications

Power: 220V 50Hz/120V 60Hz
Temperature: +10 ~ +30°C
Humidity: ≤75%
Atmospheric Pressure: 700~1060hpa
