Med Vest Technology Vista LED Examination Light

Med Vest Technology Vista LED Examination Light

Brand: Med Vest Technology
Web ID: 1425
Product Number: 706131 7061322=WallMount

Select A Model

(4 available)

Med Vest Technology Vista LED - Portable

  • Web ID: 17232
  • Product ID: 706131

Med Vest Technology Vista LED - Single Ceiling

  • Web ID: 17233
  • Product ID: 706131

Med Vest Technology Vista LED - Dual Ceiling

  • Web ID: 17234
  • Product ID: 706131

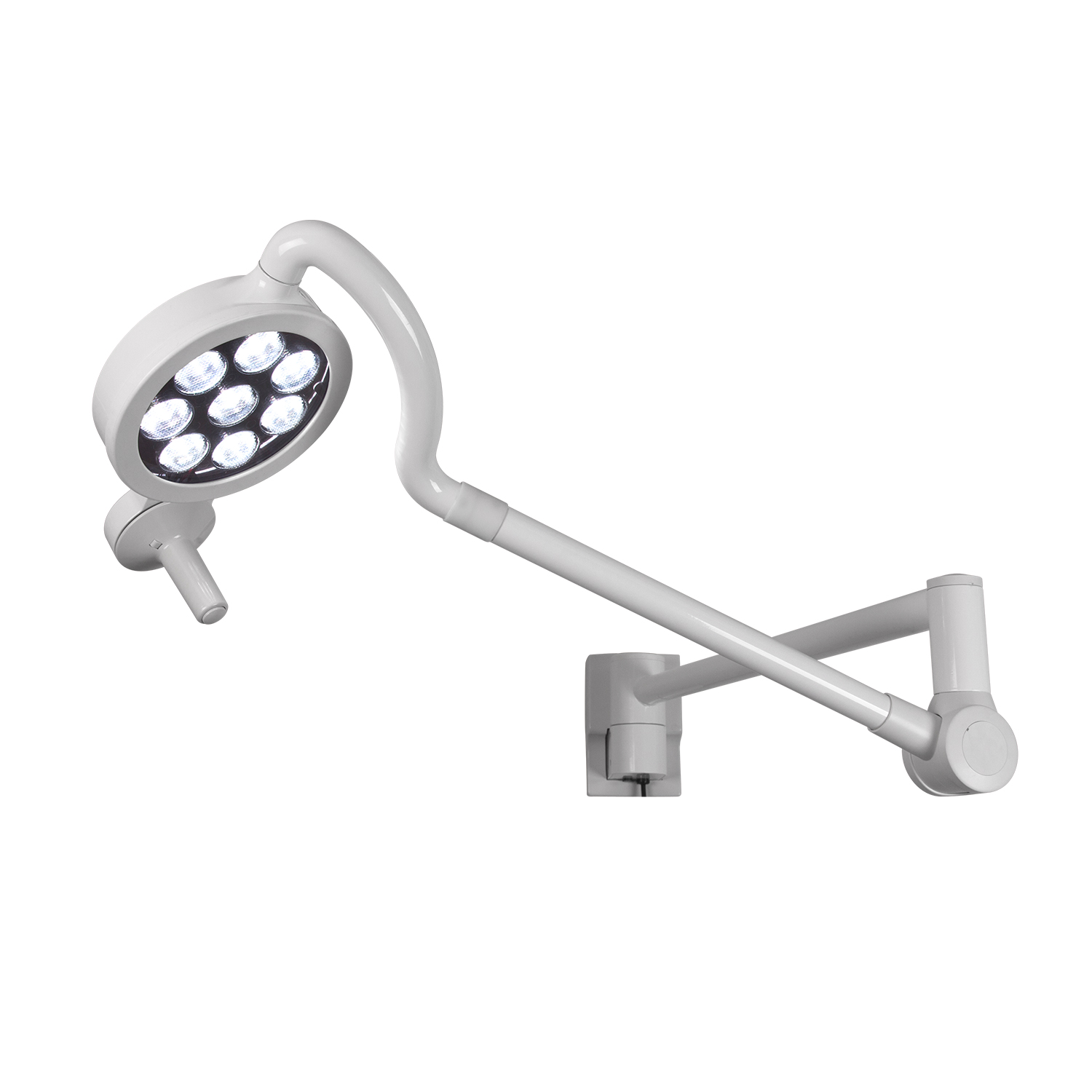

Med Vest Technology Vista LED - Wall Mount

  • Web ID: 17235
  • Product ID: 7061322

Need help choosing?

Ask an Equipment Expert

(781) 302-6019

Listing Terms & Conditions

All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.

Details

Compact LED exam light offers brilliant illumination at an affordable price

The Avante Vista is a powerful LED examination light in a compact package with two-stage dimming. Controlling the positioning of the Avante Vista LED is easy with the light’s smooth arm articulation.

The light emits virtually no radiant heat, keeping clinicians cool and comfortable even during lengthy surgical procedures. The Avante Vista LED is highly efficient, producing uncompromising illumination with economical energy consumption.

For more information on the Avante Vista LED Examination light, contact an Med Vest Technology representative today.

Features

  • Affordable, compact light provides powerful illumination.
  • LED array offers maximum sharpness and color accuracy.
  • Two-stage dimming allows control over brightness within the illumination field.
  • Compact head design with smooth arm articulation.
  • Maximum output rated at 50,000 Lux.
  • 4,300° K bright white illumination.
  • Color Rendering Index: 97.
  • Long-life LED’s rated at 50,000 hours.
  • Light array emits virtually no radiated heat.

Specifications

Optical Specifications

  • Number of LED’s: 8
  • Output: 55,000 Lux @ 24 in (0.6 m)
  • CCT: 4,300° K
  • CRI: 97
  • Focal length: 24 in (0.6 m)
  • Dimming levels: 2
  • Dimming percentages: 100%, 50%
  • Endo mode: No
  • Light field (d10): ≈Ø6.0 in (Ø152 mm)
  • Light field (d50): ≈Ø3.5 in (Ø89 mm)
  • Irradiance: 71W/m²

Electrical Specifications

  • Supply circuit: 100 - 240 VAC, 50/60Hz
  • Fuse rating: 1.5 Amp/250VAC
  • Power supply: 65W
  • Light head power consumption: 16W @24VDC

Mechanical Specifications

  • Light head weight: 5.6 lbs (2.5 kg)
  • Light head dimensions: Ø9.2 in (234 mm) | 2.6 in (66 mm)
  • Arm assembly weight (single): 48.3 lbs (22.0 kg)
  • Arm assembly weight (dual): 77.1 lbs (35.0 kg)
  • Articulating arm vertical movement: +15° Up, -60° Down
  • Articulating arm horizontal movement: ≈540°
  • Articulating arm/yoke interface: ≈540°
  • Yoke/light head interface: ≈300°

Environment Specifications

  • Ambient/operating temperature: 41°F to 104°F (5°C to 40°C)
  • Storage temperature: -4°F to 122°F (-20°C to 50°C)
  • Humidity: 10 - 90% relative humidity
  • Pressure: 100kPA (@<2k meters)
-->
