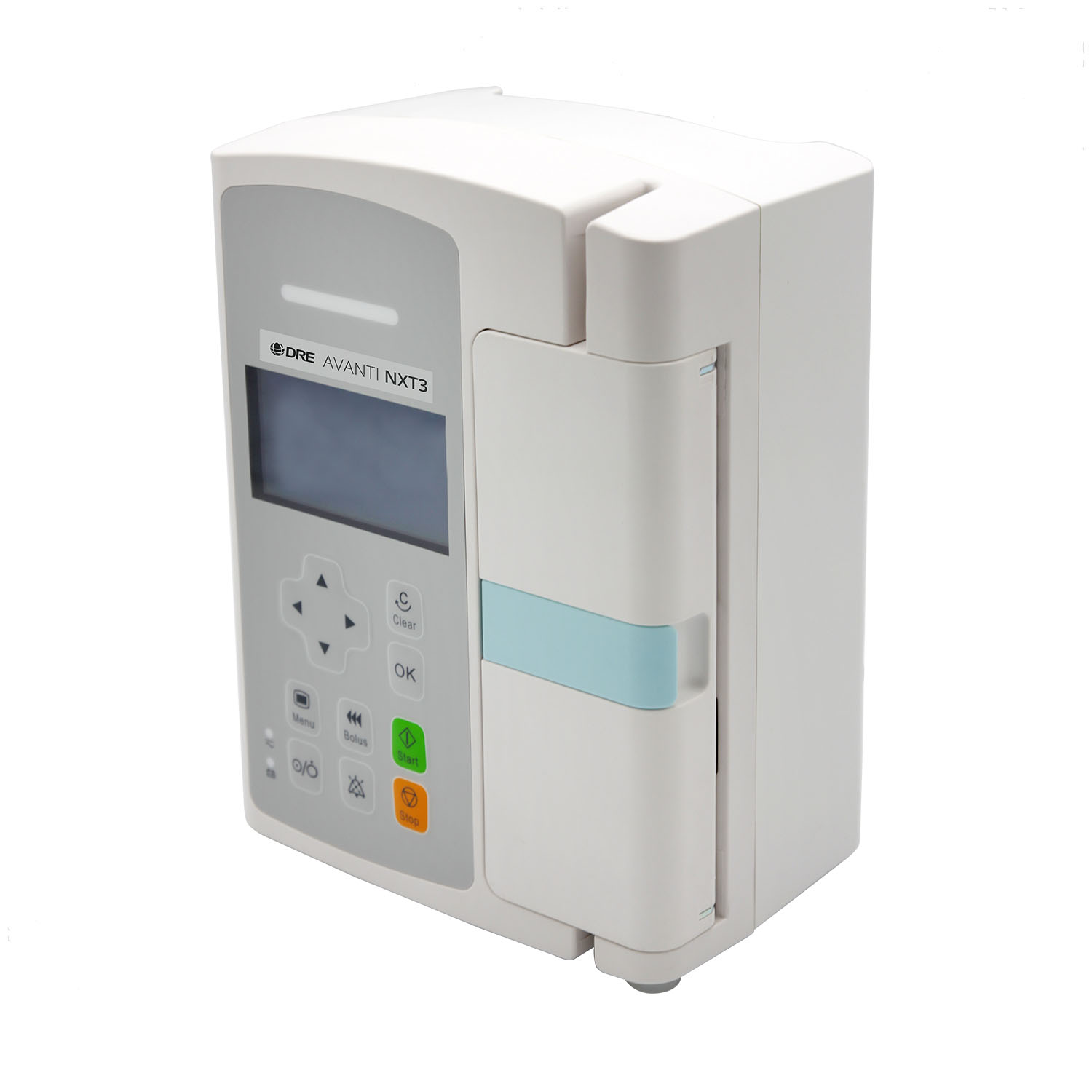

Avanti NXT3 Infusion Pump

Brand: Med Vest Technology

Type: Infusion Pumps

Web ID: 13851

Product Number: 70600V3

0 item is in your cart. View cart now

Need help choosing?

Ask an Equipment Expert

(781) 302-6019

Listing Terms & Conditions

All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.

Details

The Avanti NXT3 is an infusion pump that provides comprehensive infusion care for any medical facility. With an easy user interface you can set all functions with just six buttons. The Avanti NXT3 includes an extensive drug library as well as automatic and manual bolus.

The DRE Avanti NXT3 infusion pump is available through Med Vest Technology. Contact an Med Vest Technology representative today for more information.

Features

Avanti NXT3 Infusion Pump features varying modes of operation:
- Vol/rate mode
- Time mode
- Body weight mode
- Optional: Drop rate mode
Unique design allows for a more streamlined appearance and workflow.
Pump design is compatible with straight line tubing sets from any manufacturer.
Anti-bolus technology for increased safety after sudden occlusion release.
Onboard alarms indicate: infusion completion, low battery, air bubbles, downstream occlusion, no AC power, and more.
Save and calibrate as many as three separate line sets.

Specifications

Dimensions

Weight : 1.6kg (3.5 lbs)
Width: 146 mm (5.74 in)
Height: 193 mm (7.6 in)
Depth: 95 mm (3.74 in)

Power

AC power supply: 100-240 V; 50/60 Hz
External DC power supply: DC 10V-16V

Display & Alarms

Screen: 3 in, monochrome LCD, 240 x 128 pixels
Downstream occlusion, air in line, door open, VTBI completed, KVO finish, battery low, battery empty, no AC power, reminder, system error, VTBI near done, standby time expired, system error, tubing not inserted.

Environment

Operating Temperature: 5 - 40 C
Operating Air Pressure: 57 - 106 kPa
Operating Humidity: 15 % - 95 %
Storage Temperature: -20 - 60 C
Storage Air Pressure 50 - 106 kPa
Storage Humidity: 10 % - 95 %

General

Mechanism: Linear Peristaltic Movement
Preset volume: 1-9999 ml
Accumulated infusion volume: 1-9999 ml
Increment: 0.1 ml/h
Accuracy: ± 5%
Lock function, automatic bolus, drug library, history record, last configuration memory, change rate while operating
Drip sensor (optional)
KVO Rate: 0.1 - 5.0 ml/h (selectable)
Bolus Rate: 0.1 - 1500 ml/h (adjustable)
