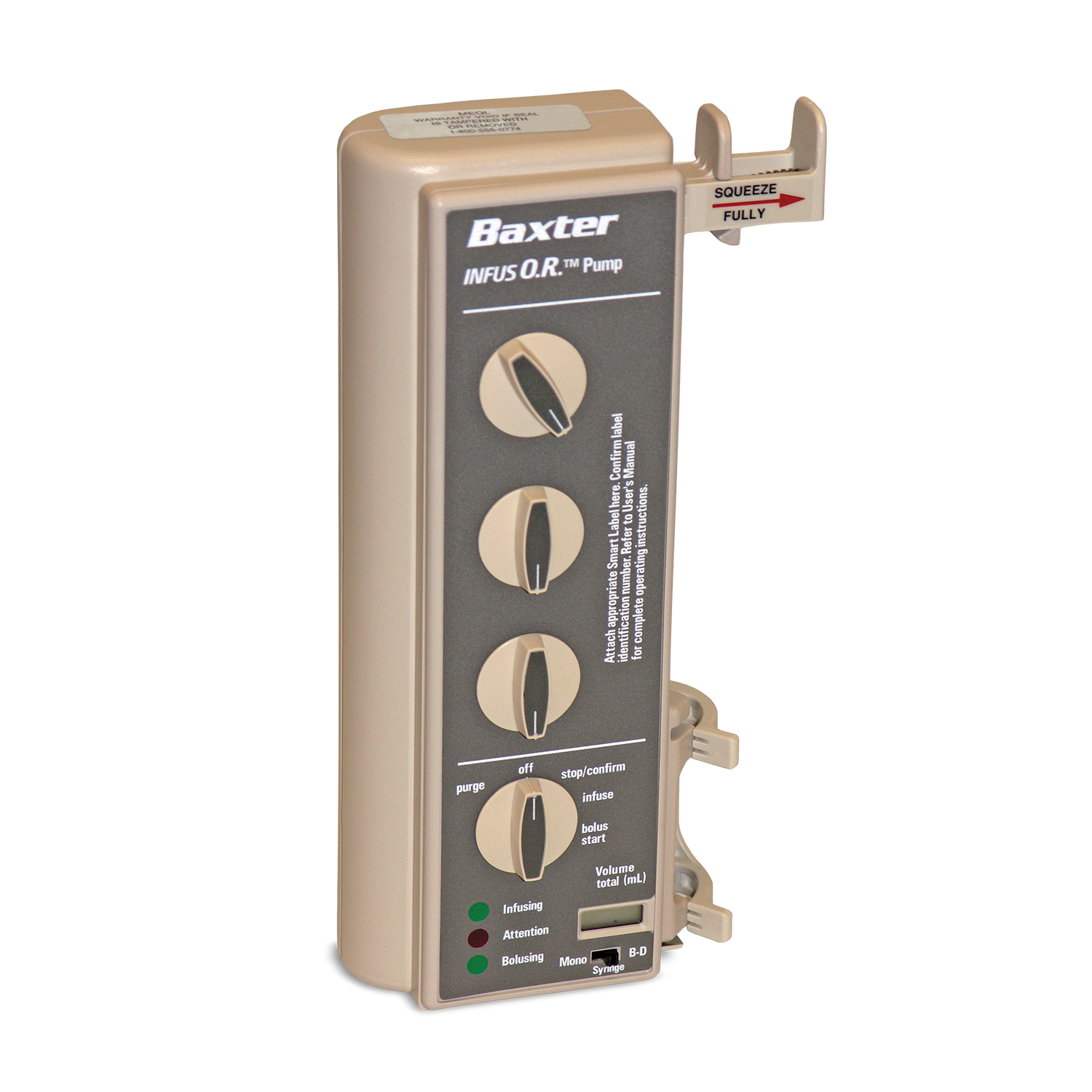

Baxter Bard Infus O.R. Syringe Pump

Brand: Baxter

Type: Infusion Pumps

Web ID: 32

Condition: Brand New

Product Number: 70231irs

0 item is in your cart. View cart now

Need help choosing?

Ask an Equipment Expert

(781) 302-6019

Rental Available

Listing Terms & Conditions

All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.

Details

The Infus O.R. Pump is a syringe infusion device that will aid in the administration of many intravenous agents given during anesthetic procedures. It provides for the convenient delivery of narcotics, muscle relaxants, and vasoactive drugs through the SMART LABEL System and is an excellent device for outpatient surgical settings. The Baxter Bard Infus O.R. is available New from Med Vest Technology.

Features

Modify dose without multiple reprogramming steps.
Adjust settings easily at any time during infusion.
Change dial settings with a single hand for an immediate response.
Save calculation time.
Minimize risk of calculation error.

Change Infusion Parameters/Rates with SMART LABELS
SMART LABELS are magnetically coded/drug specific.
Select from the available SMART Label library.
Ideal for administering drugs requiring multiple dosage adjustments.

Specifications

Physical Weight & Dimensions

Height: 9.2 inches
Width: 4.5 inches

Depth: 2.0 inches
Weight: 2 lbs (with batteries)

Syringes

Monoject® or B-D®

Monoject® or B-D® 20 cc

Accuracy

Infusion: linear rate ±3%

Bolus: linear displacement ±3%

Other

Batteries: Four "C" alkaline cells
Battery Life: Typical Use: 150 hours; at low battery and typical use: 4 hours
Operating Voltage: 5 - 7 volts
Low Battery Voltage: 5.0 volts (approx.)
Flow Rates: 0 - 600 mL/hr
Flow Profile: Bolus: Continuous; Infusion: Pulsed Intermittently

Occlusion Force: 8 ± 1 lb.
Maximum Occlusion Pressure: 11 psi with 60 cc syringe; 20 psi with 20 cc syringe
Occlusion Detection Time: 120 seconds at 36 mL/hr (inverse related to flow rate)
Volume Stored on Occlusion: 1.1 mL (approx.)
Back Pressure Effect on Accuracy: None to Occlusion Pressure
