Conmed Beamer Mate - Endoscopic Electrosurgical System

The Conmed Beamer System is an Argon based electrosurgical unit designed specifically with endoscopy and endoscopic surgery in mind.  The system is modular and includes separate parts that can be found and purchased individually or together.  The primary technology is housed in the Conmed Beamer Mate CE200 electrosurgical generator.

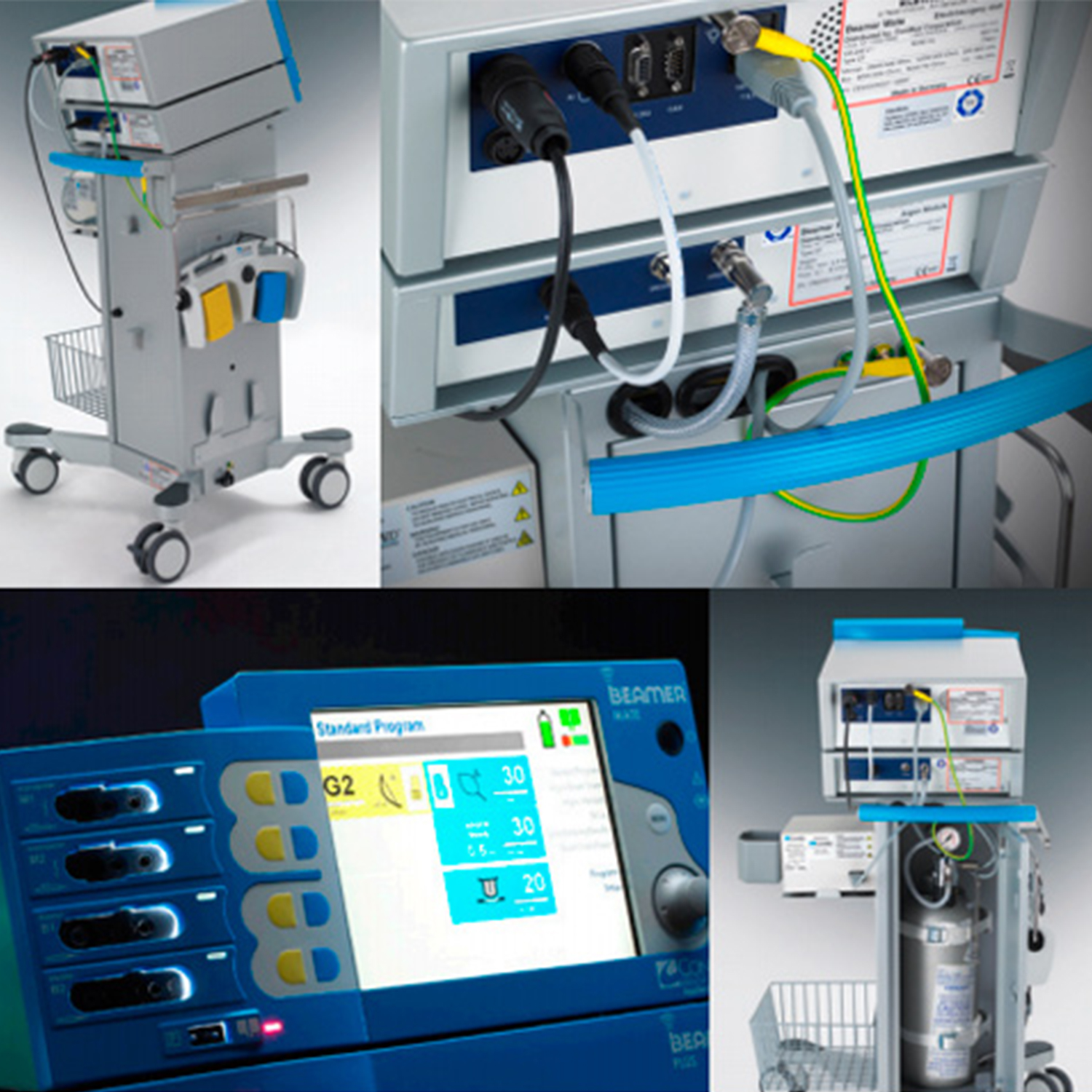

Beamer System CE600 Modular Components:

• Beamer Mate CE200 Electrosurgical Unit
• Beamer Plus CB200
• Beamer Cart CC200
• Beamer Irrigating Pump System CETEGP-100

The Beamer System components can be found in the aftermarket together or separately.  Please ask your Med Vest Technology Representative for specifics on product module availability and specific components to be quoted.

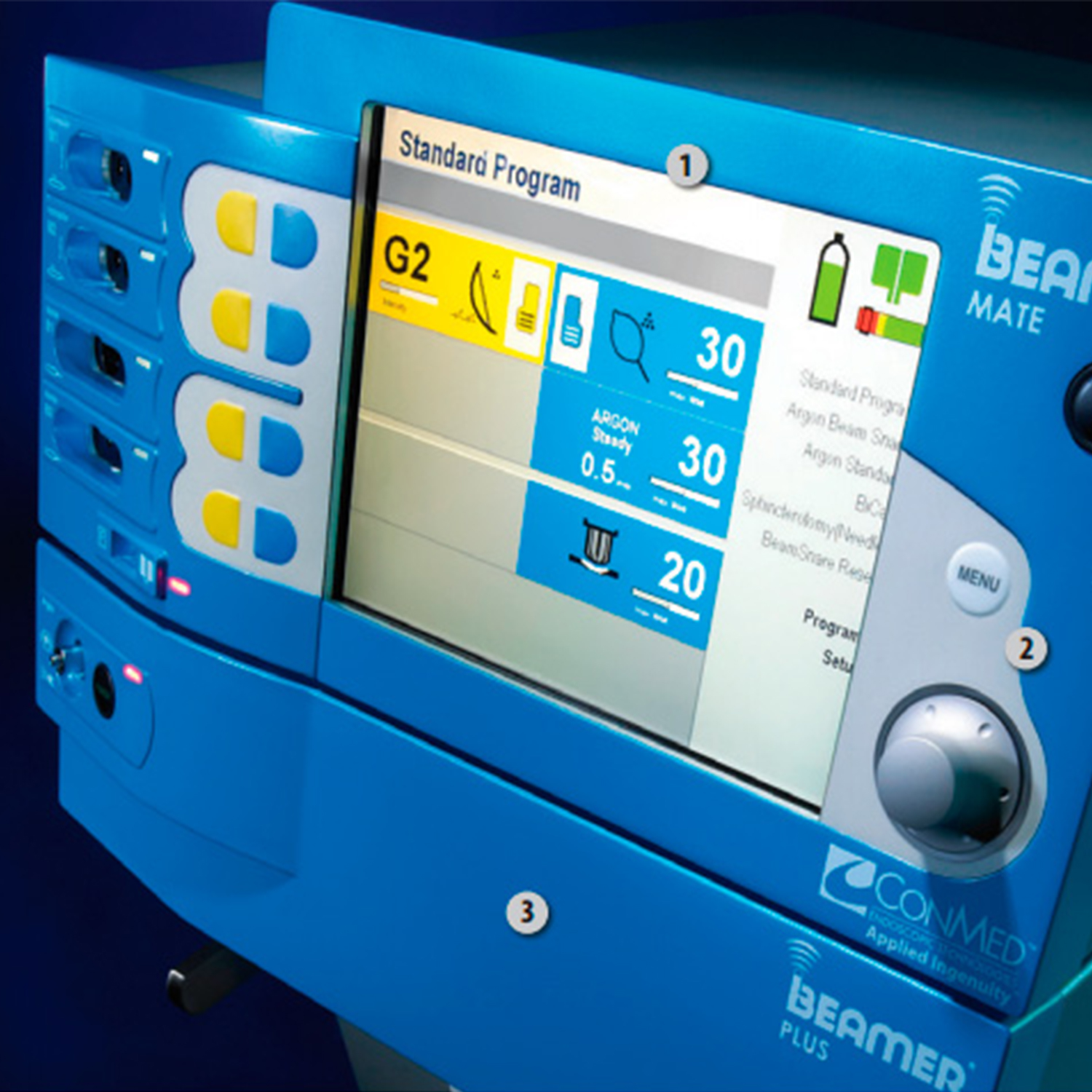

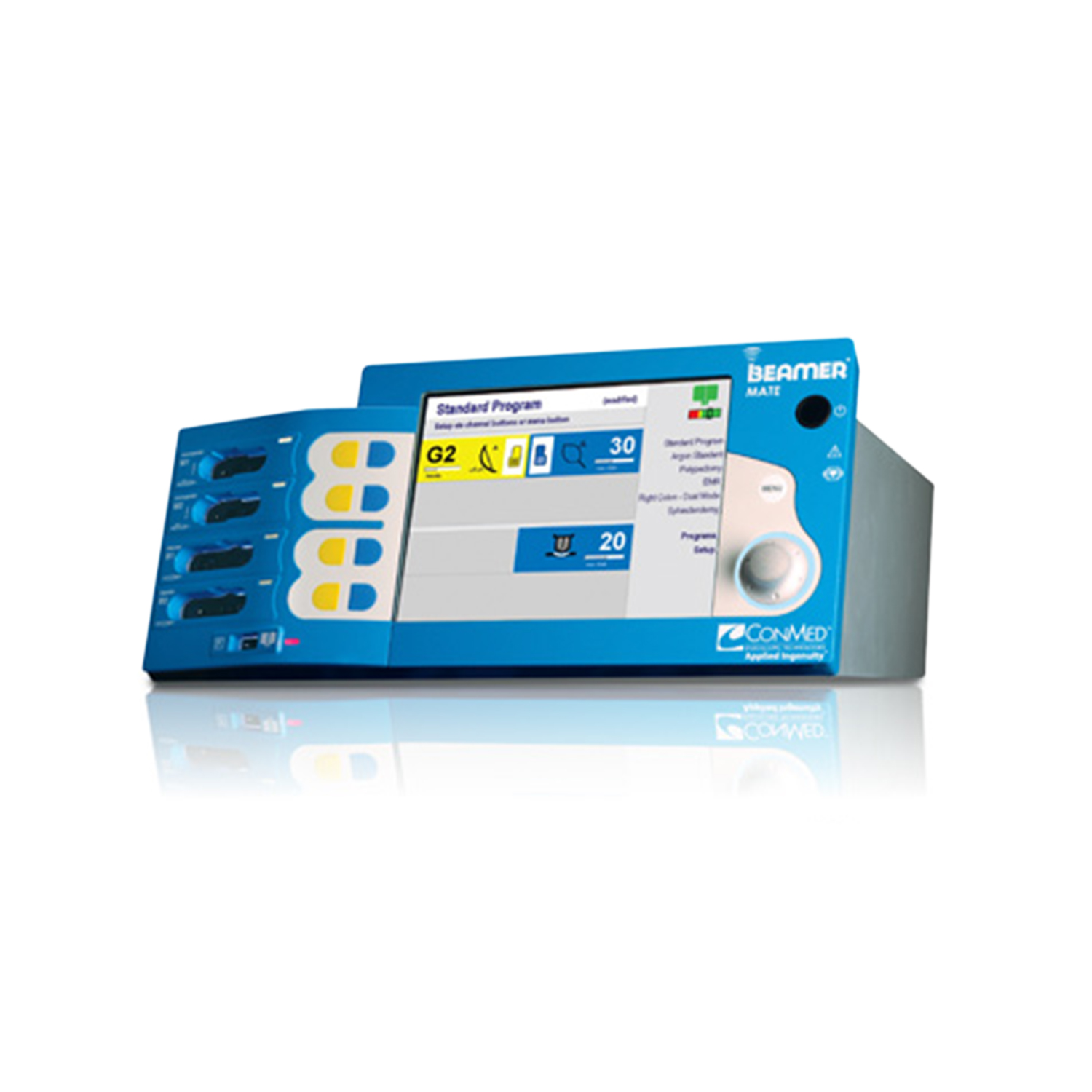

The Beamer CE200 was specifically designed for endoscopic use and offers multiple therapies from a single platform. Combining sophisticated technology with unrivalled ease of use, the Beamer CE200 assists in the delivery of outstanding clinical results whatever your level of expertise in electrosurgery. Integrating built in intelligence, innovation and an intuitive user interface, Beamer CE200 allows the quick selection of desired clinical effect, and delivers consistent repeatable clinical results.

Automatic Cutting Effect Regulation (ACE)

The Beamer Mate CE200 features Automatic Cutting Effect (ACE) regulation that provides continuous monitoring of sparks around the active electrode and maintains the spark formation required for effective controlled cutting.

Active in all Automatic Modes, ACE monitors and automatically adjusts voltage, spark and power. This results in the delivery of consistent, repeatable endoscopic cutting and hemostatic effects and removes the variability often seen in endoscopic applications of electrosurgery.

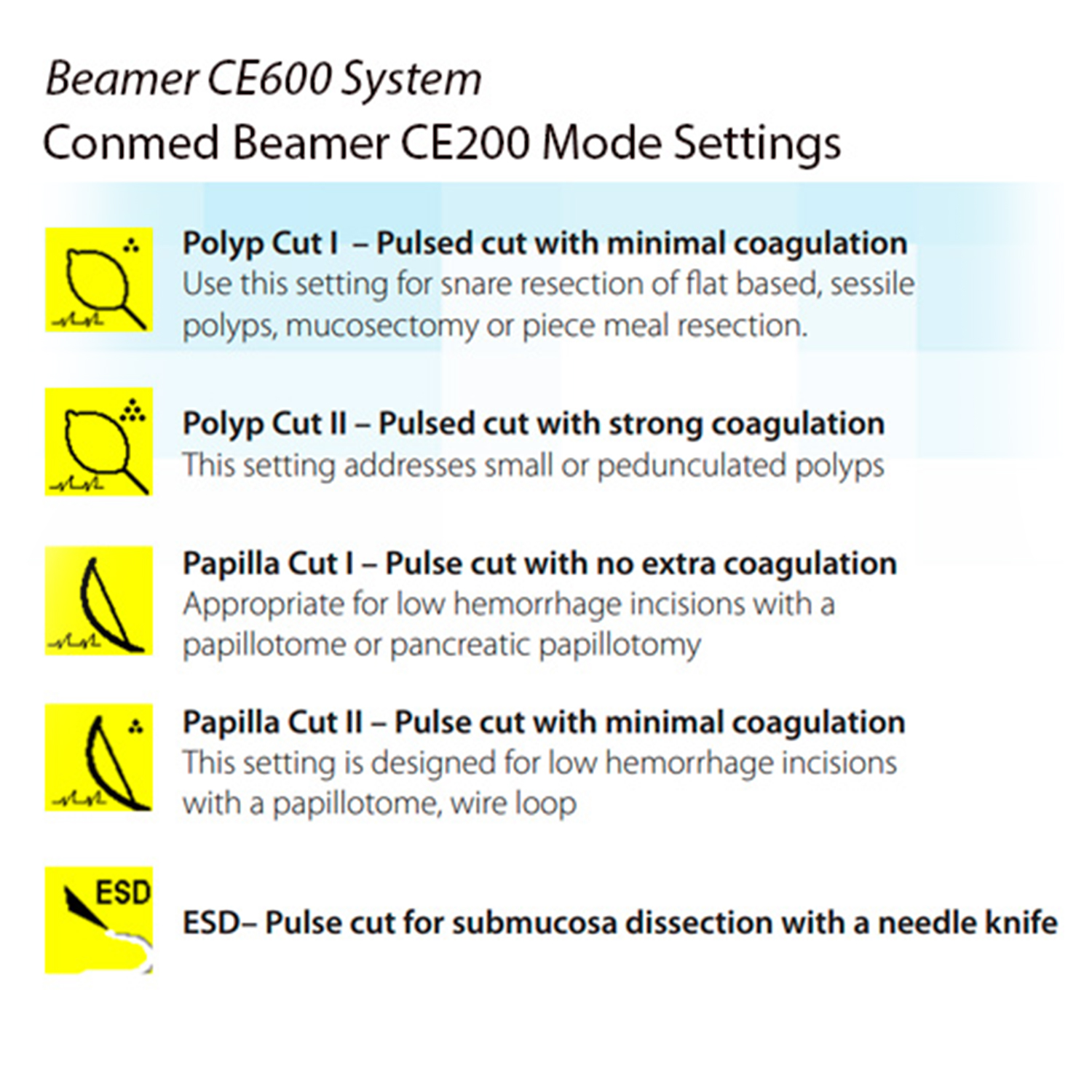

Endo-Mode Dynamic Cutting Mode

Endo-Mode is a dynamic process controlled cutting mode. It offers pulsed or fractionated currents that provide controlled cutting with varying, adjustable degrees of coagulation. Intelligence Redefined Automatic Cutting Effect Regulation (ACE)

The Beamer® CE200 features Automatic Cutting Effect (ACE) regulation that provides continuous monitoring of sparks around the active electrode and maintains the spark formation required for effective controlled cutting.

Active in all Automatic Modes, ACE monitors and automatically adjusts voltage, spark and power. This results in the delivery of consistent, repeatable endoscopic cutting and hemostatic effects and removes the variability often seen in endoscopic
applications of electrosurgery.

• Specifically designed for endoscopic applications Endo-Mode features periods of cut, separated by periods of coagulation.
• G levels permit quick adjustments to the duration or length of the cut and the intensity of the hemostatic effects.
  • Polypectomy
  • Hot Biopsy
  • Sphincterotomy
  • BiCap® Hemostasis

Argon Beam Coagulation
