Details

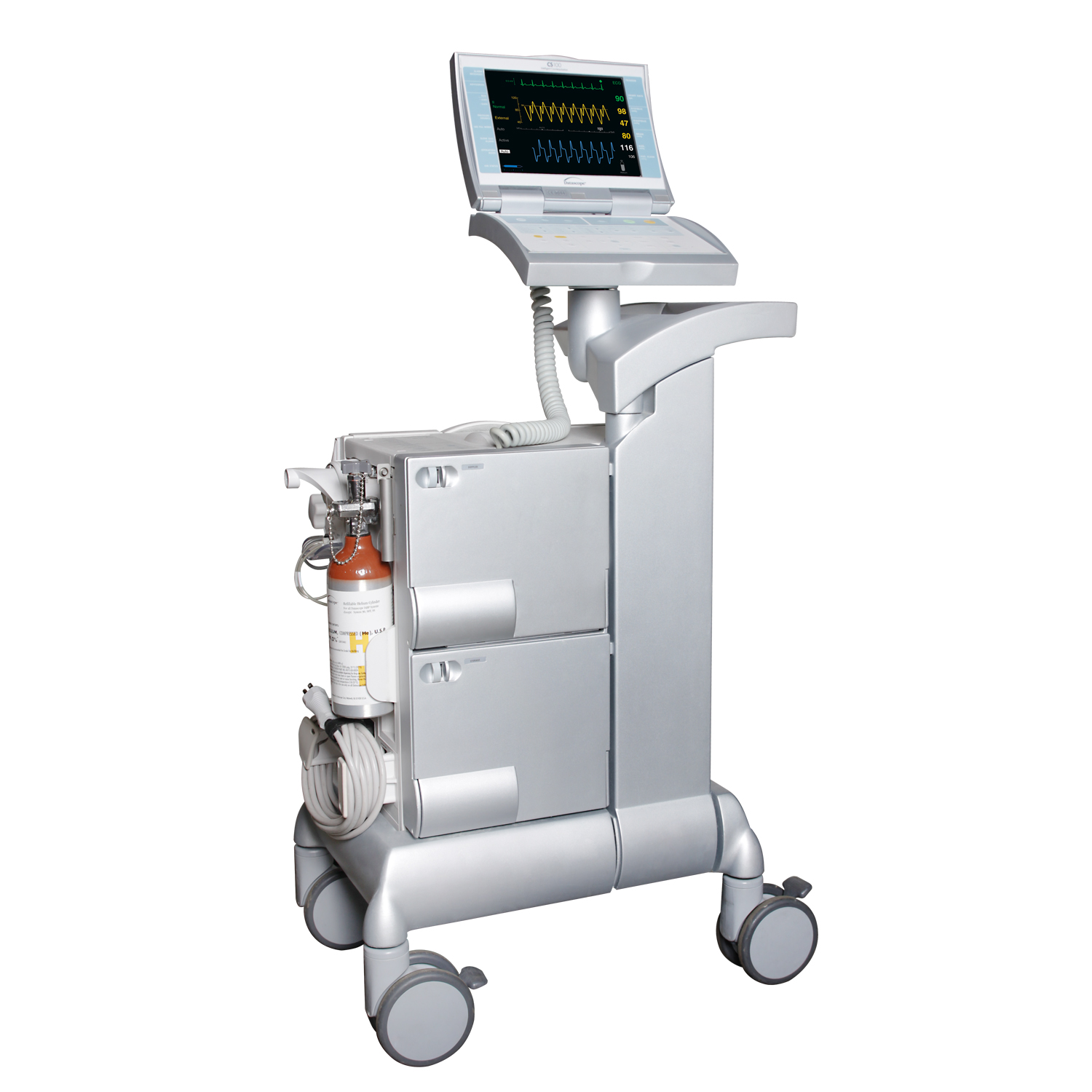

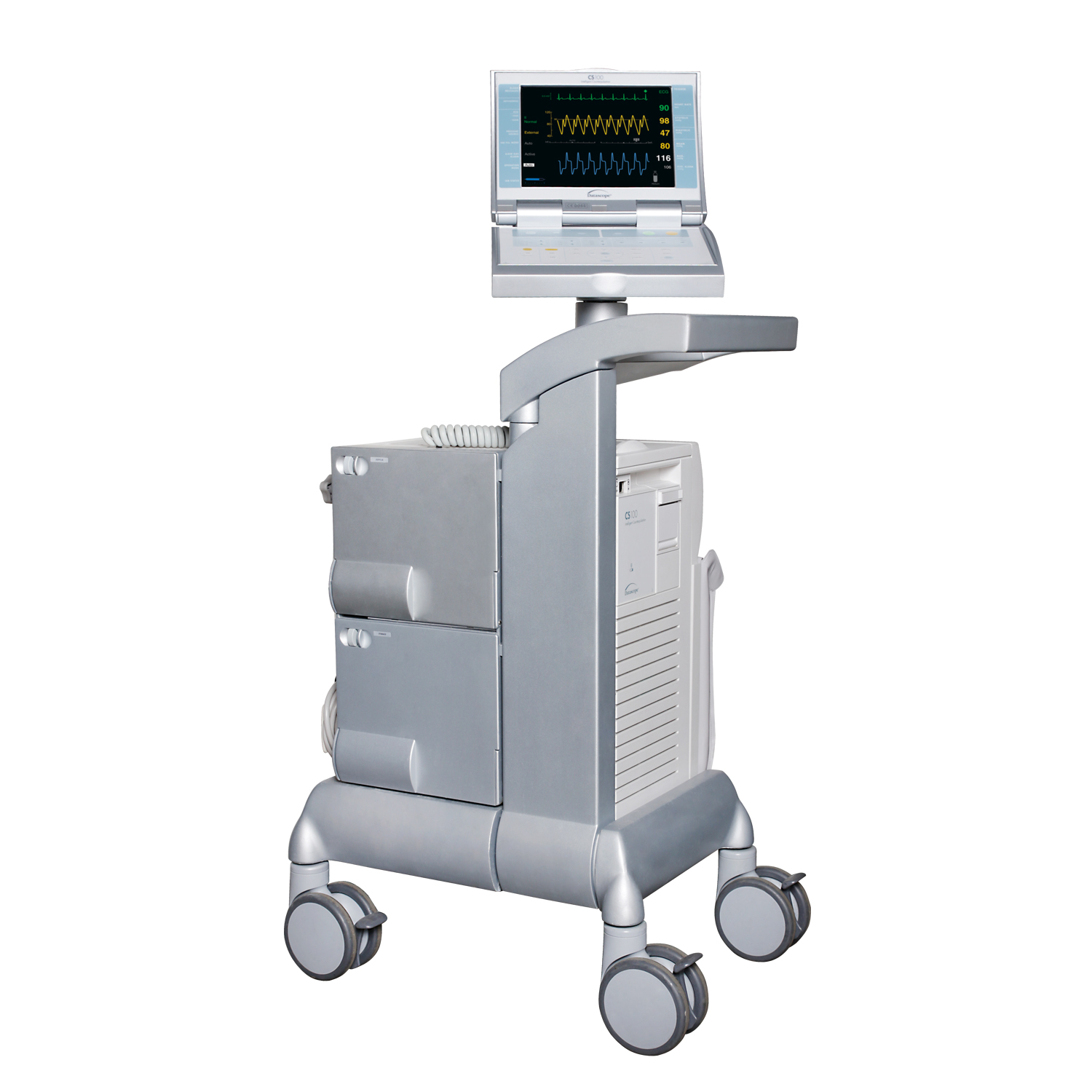

The Datascope CS100 is a highly customizable balloon pump system that allows caregivers to deliver the best care in a variety of situations. The unit has three modes of operation: Automatic, Semi-Automatic and Manual. This allows caregivers to use the C100 to manually operate the pump, or set up the unit to offer automatic specialized therapy.
The laptop-style display and keypad easily fold up and detach, allowing clinicians to remotely monitor patients. For more information on the Datascope CS100 Cardiac Assist Balloon Pump System, available New from Med Vest Technology, contact an Avante Representative today.
Features
- Fast, one-button start-up automatically conducts autofill and initiates 1:1 assist.
- Full color, high contrast display tilts for easy viewing.
- Display and keypad in laptop-style configuration, allowing caregivers to fold and detach the unit for remote operation.
- Easy-to-use keypad with intuitive user interface.
- Customizable display panel allows operators to adjust sweep speed, brightness, balloon waveform and inflation markers.
- Switch easily between three operation modes: Automatic, Semi-Automatic and Manual.
- Automatically evaluates and selects optimal trigger source and lead.
- System detects changes and easily adapts to new patient rhythms.
- Fully annotated printouts with user-configurable waveforms and strip lengths.
- Locking casters and durable design keep the CS100 secure in a variety of settings.
Specifications
General
- Operation Modes: Auto, Semi Auto, Manual
- Mains Voltage: 100-120 VAC ± 10% or 220-240 VAC ± 10%
- Mains Frequency: 50/60 Hz ± 3 Hz
- Internal Battery: 24 VDC (nominal), 17.2 Amp-hour, 3 hrs. (approx. @ 90 bpm)
- Battery Type: Maintenance free; Sealed lead-acid
- Operating Temperature: 10°C - 40°C
- Operating Humidity: 5 - 95% (R.H.) non-condensing
- Operating Altitude: 0 - 12,000 feet (3,657 m); automatic altitude correction for IAB pressure
Dimensions
- Dimensions (with cart): 45.2 in (114.8 cm) H x 17.6 in (44.7 cm) W x 23.4 in (59.4 cm) D
- Console Weight: 76.8 lbs (34.8 kg)
- Hospital Cart Weight: 64 lbs (29.1 kg)
- Dimensions (without cart): 28.2 in (71.6 cm) H x 11.3 in (28.7 cm) W x 21.5 in (54.6 cm) D
- Monitor Weight: 9.5 lbs (4.3 kg)
- Internal Battery: 34 lbs (15.4 kg)

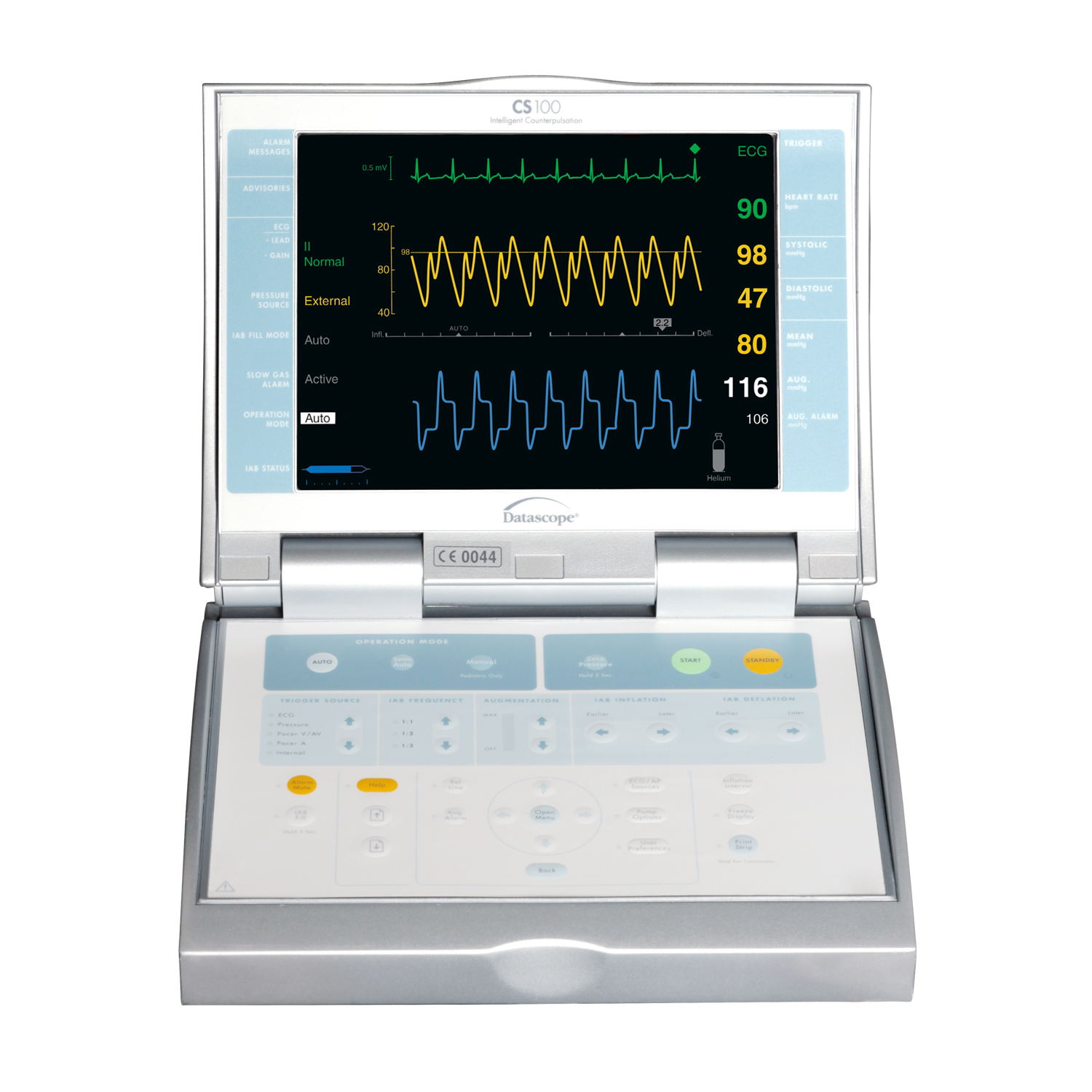

Color Display
- Dimensions: 8.3 in (21 cm) W x 6.2 in (15.8 cm)
- Viewing Angle: up 45°, down 55°, right 70°, left 70°, rotates 330°, tilts 180°
- Detachable, laptop-like closure for storage and protection
- Remote monitor mount (optional)
