Datex Ohmeda S/5 Monitor
Datex Ohmeda S/5 Monitor
0 item is in your cart. View cart now
All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.
Details

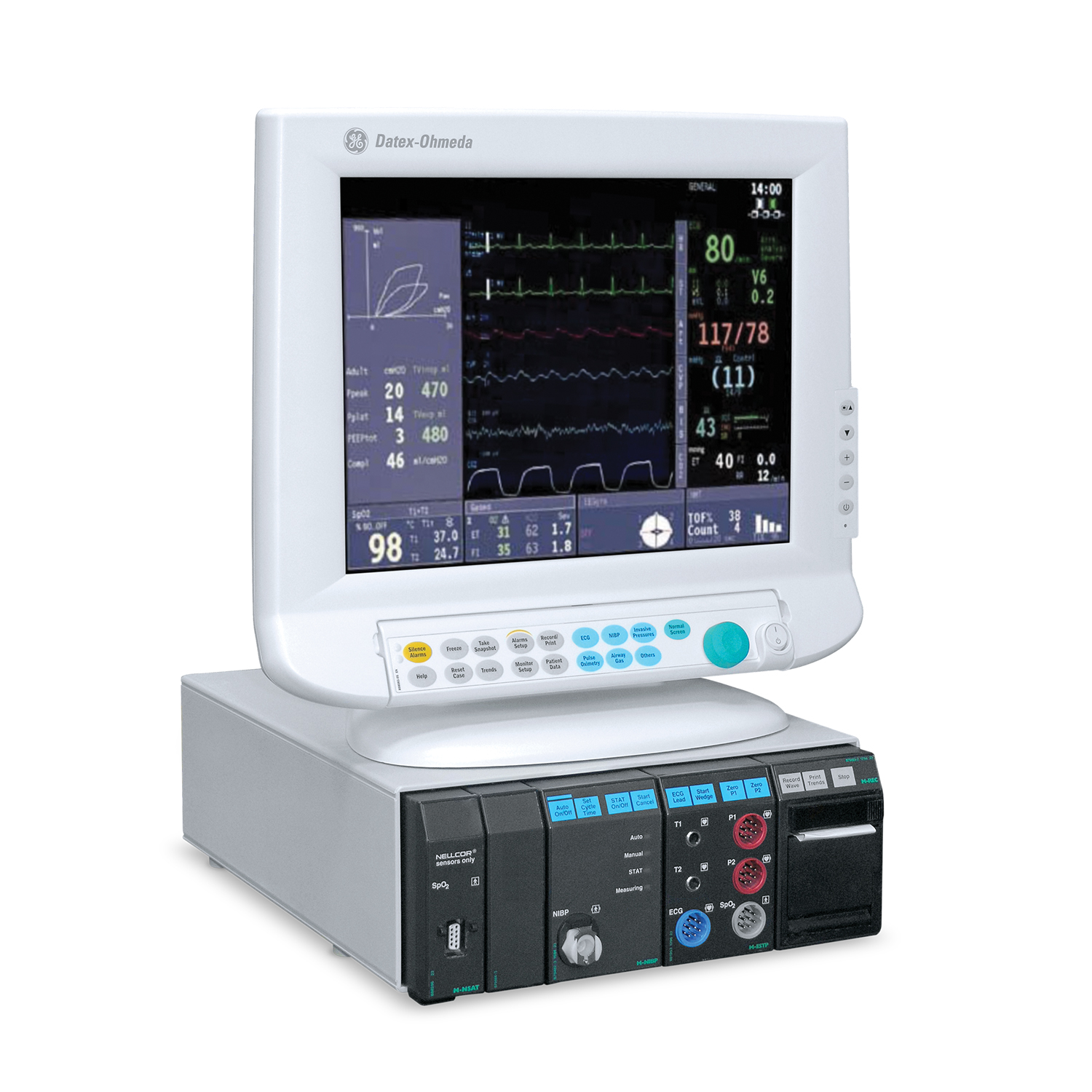

The Datex Ohmeda S5 is a modular workhorse with open architecture. It is user configurable and highly flexible in anesthesia environments. The Ohmeda S5 supports multiple screens, has a dedicated alarm system with automatic limits, and provides advanced reporting options. Upgrade at any time to the modules you need. Optional modules include: ECG, SpO2, Temp, CO2, 2-IBP, NIBP, and 5 Agent.
Ask Med Vest Technology Patient Monitoring about a professionally New system that offers reliability and is a trusted mainstay in surgical environments.
Features
Central Unit and Displays
- Central Unit and displays are physically separate components
- Four display options with integrated monitor controls: 15" or 17" high resolution color video display and 10.4" or 15" flat panel color LCD display
- Large 21" color slave CRT display
- User configurable display layout and colors
- Support for up to 8 waveforms on screen
- Support for user configurable second and third screen with different waveform and numerical information
- Anesthesia dedicated alarm system
- Alarms display and adjustment page
- 10-minute graphical mini trends referenced to set alarm limits
- Automatic alarm limits function
- Six user configurable modes and special cardiac bypass mode
- 24 hour numerical and graphical trends
- Split screen capability to show ST, spirometry loop, EEG, EP or mini trends permanently
- Four user-configurable graphical trend pages
- Trend cursor in both graphical and numerical trends
- Waveform snapshots to store and recall waveform samples
- Help function
- On-line help for menu functions
- Open software and hardware architecture
- Easy insertion/removal of plug-in parameter modules without interrupting other monitoring
- Anesthesia care oriented user interface
- Optional extended arrhythmia analysis
- Connector for Datex-Ohmeda S/5™ Device Interfacing Solution
S/5™ ComBar
- Anesthesia specific command bar for intuitive access to the monitoring functions
- Removable command bar brings monitor controls close to the user
S/5™ Extension Frame
- Frame with 4 additional module slots
- Moves patient cables close to the patient
- Single cable connects the Extension Frame to the s/5 anesthesia Monitor's Central Unit
- Reduces patient cable clutter
- Mounts to any vertical or horizontal pole
S/5™ Remote Controller
- Remote Controller for intuitive monitor operation
- ComWheel™ and 12 keys, direction function keys for most common functions
Specifications
Physical Weight & Dimensions
- Height: 13.4 inches (340 mm)
- Width: 13.2 inches (335 mm)
- Depth: 8.1 inches (205 mm)
- Weight (without modules): 24.2 lbs (11 kg)
Power Supply
- Rated voltage range and frequencies: 100 to 240v ±10%, 50/60 Hz.
- Maximum power consumption: 140 VA.
- Protection class: Class I.
- Grounding: Hospital grade.
Display
- Display size: 12.1 in diagonal.
- Display type: Active matrix color TFT LCD.
- Display resolution: SVGA resolution, 800 x 600.
- Number of traces: up to 8.
- Display layout and colors: User-configurable. Integrated Command Board with direct function keys, menu keys and ComWheel° for selections and adjustments in menus.
Frame
- Module capacity: 2+2 module slots.
- I/O connections: RS-232 computer serial output. 2 analog outputs. External keyboard connector.
- Network option: Compatible with Datex-Ohmeda Network for monitor-to-monitor communication and centralized viewing.
- Network and MemCard option: Activates MemCards to transfer the trended data of patient vital signs.
- Printing: Laser printing capabilities with serial printer supporting PCL5 language (Network and serial/parallel converter).
- Recorder option: Built-in three-channel thermal array recorder.
- Mounting options: Bed mount, wall mount and roll stand.
Battery
- Type: Built-in NiMH battery (2 pcs).
- Capacity: Up to 1.5 h typical on full charge at 23°C.
- Recharging: When connected to mains power.
- Charging time: 10 hours to full capacity.
- Battery operation alarm.
- Indicator: Battery bar displayed on the screen.
Trends
- Graphical: All parameters, selectable times between 30 min to 72 h.
- Numerical: Continuously measured parameters sampled every 5 minutes, NIBP and PCWP values updated after each measurement. Also marker triggers numerical trend updating.
- Trend cursor: In both graphical and numerical trends.
Alarms
Alarm system classified into three categories according to priority in critical care; color and audio tone coded. Central alarms display and adjustment page. 10 min graphical mini trends referenced to set alarm limits.
