Details

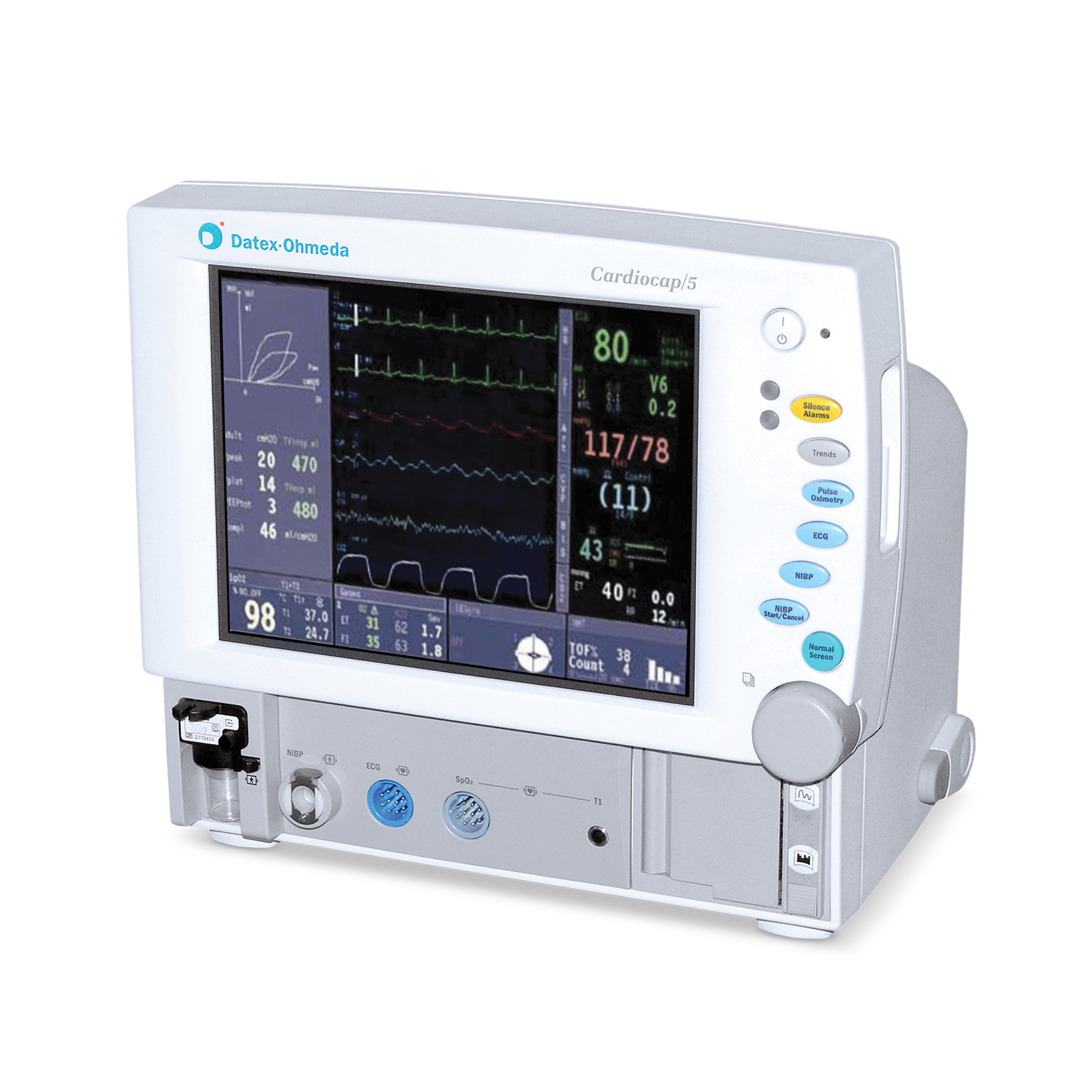

The Datex Ohmeda Cardiocap 5 provides anesthesia agent monitoring with a small footprint to save valuable space. The unit is designed for operating and recovery rooms. Models differ, but many offer built in hemodynamic and airway gas detection, ECG, respiration, and heart rate measurement. Ask your Med Vest Technology representative about models currently in stock.
Cardiocap 5 Features
- Small footprint bedside monitor with large 10.4" active matrix color display
- Proven easy-to-use S/5 user interface
- Shows up to 6 waveforms
- Color-coded, prioritized alarms
- 4 user-configurable modes for care-specific preconfigurations
- Waveform snaphot to store and recall waveform samples for later analysis
- 5 or 30-minute minitrends continuously on screen for quick historical view
- On-line help for menu functions
- 24-hour graphical trends of all parameters
- Adjustable display brightness
- Optional built-in, three-channel thermal array recorder
- Built-in back-up battery to handle sudden power down situations
- Wall mount, roll stand available for best workplace ergonomics
- Compatible with Datex-Ohmeda S/5 Network and Central for monitor-to-monitor communication and centralized viewing
Specifications
Cardiocap Monitoring Parameters
- Dimensions: 13.0" (W) × 8.7" (D) × 11.8" (H)/330 × 220 x300 mm
- Weight: <11.2 kg, 24.8 lbs (F-MXG); <10.2 kg, 22.6 lbs (F-MX)
- Power: 100-240 Vac ±10%, 60/50 Hz
- Back-Up Battery: 15 min guaranteed, charging time typically 5 h
- Graphical Trends: 20 min, 1, 2, 4, 6, 10, 12 and 24h
- Numerical Trends: All parameters, sampled every 5 min and after NIBP measurement
- Alarms: Adjustable high and low alarms
- Operating Temperature: +10...+40 °C (50...104 °F)
- Storage Temperature: –10...+50 °C (14...122 °F)
- Atmospheric Pressure: 67-106 kPa (500-800 mmHg)
Screen
- Display Size and Type: 10.4" LCD color
- Number of Traces: Up to 6
- Display Resolution: 640 x 480
ECG
- Number of Channels: 3
- Number of Leads: 3 or 5
- ST Analysis: 3 channels, continuous
Heart Rate
- Measurement Range: 30 to 250 beats per min (bpm)
- Measurement Accuracy: ±5% or ±5 bpm, whichever is greater
- Pacemaker Pulse Detection: 2 to 500 mV, 0.5 to 2 ms
Impedence Respiration
- Measurement Method: Measurement uses ECG electrodes to measure the impedance changes as a result of breathing
- Measurement Range: 4 to 120 breaths/min
