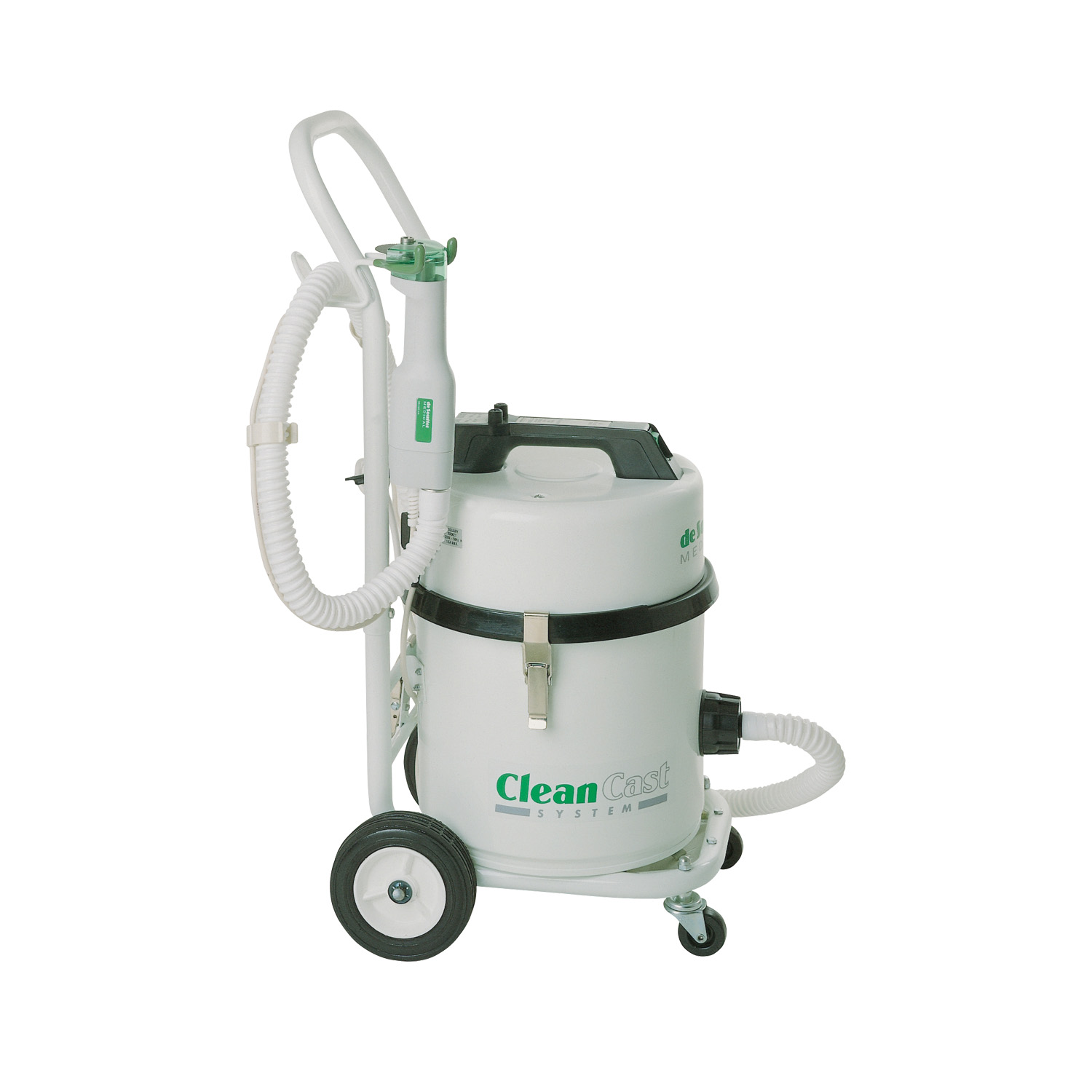

DeSoutter CC5A Cast Saw and Extraction System
DeSoutter CC5A Cast Saw and Extraction System
0 item is in your cart. View cart now
All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.
Details
The DeSoutter CC5 cast saw combines the latest technological features with a functional, ergonomic handgrip. The smooth contours are designed to fit comfortably in the hand while providing the ideal cutting position. The balanced weight distribution increases maneuverability and helps to reduce wrist fatigue. Visibility is enhanced with a dust extraction path that is ducted through the handpiece rather than around the outside.
The extraction system has a four-stage filtration system consisting of an easy-to-change synthetic collection bag, two cloth filters and a micro filter that retains 99.997% of all dust particles greater than 0.5 microns. Suction on the system can be switched between a powerful high and more quiet low setting to suit operator and patient convenience. Learn more about the CC5A Cast Saw and Extractor Unit by contacting a DRE equipment specialist today.
Features
- Ergonomic handgrip with smooth contours that fit comfortably.
- Balanced weight distribution for increased movement and reduced wrist fatigue.
- Rubber mounts reduce noise and vibration to the operator’s hand.
- Two speeds allow quiet operation or fast removal of thick body casts.
- Power supply is integral with the extraction unit with automatic on/off.
- Four stage filtration that retains 99.997% of all dust particles greater than 0.5 microns.
Specifications
Handpiece Specifications
- High Oscillating Speed: 16000 cpm
- Low Oscillating Speed: 11800 cpm
- Voltage: 22/29 Vdc
- Weight: 850 grams
- Sounds Level: 68 dB(A)
- Length: 245 mm
Extractor Specification
- Motor Power (max): 1 kW
- Supply Voltage: 240 or 100 - 120 Vac
- Supply Frequency: 50 - 60 Hz
- Suction: 2500 water gauge mm
- Filtration: 99.997% > 0.5 microns
- Dust Bag Capacity: 7.5 litres
- Sound Level: 58 dB(A)
