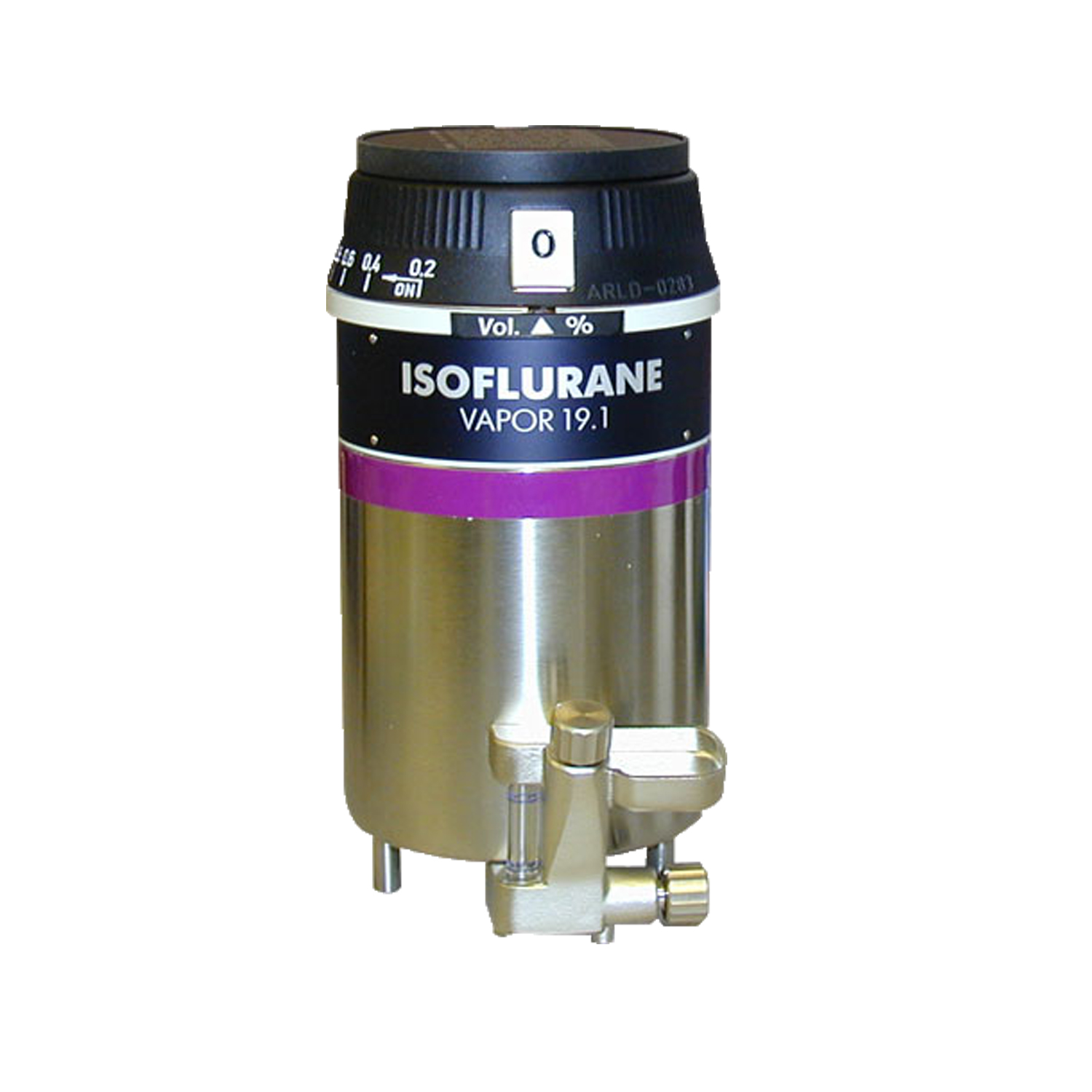

Drager 19.1 Anesthetic Vaporizer
Drager 19.1 Anesthetic Vaporizer
All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.
Details
The Vapor 19.1 is the successor of the Vapor 19. Prevents an inadvertent switching on of the Vapor 19.1. Can be used with all anesthesia machines which have formerly been fitted with a Vapor 19. Temperature Range: 59°F to 95°F (at normal atmospheric pressure of 1013mbar). Flow Range: 0.5 bis 15L/min. Weight: approx 14.3 lbs (6.5kg). The Vapor 19.1 may not be connected downstream the fresh gas outlet of the anesthetic machine.
Features
- Accurate delivery of anesthetic agents over a flow range of 300 mls to 15L.
- Excellent Reliability.
Options
- Forane 19.1 vaporizer
- Halothane 19.1 vaporizer
- Ethrane 19.1 vaporizer
Specifications
Physical Weight & Dimensions
- Height: 205 mm
- Diameter: 100 mm
- Weight: 6 kg
Other
- Temperature Range: 10-40°C
- Flow Range: 0.3 - 15I/min
- Pressure Difference at Pressure Change: 120 mbar
- Maximum Pressure: 200 mbar
- Maximum Inclination: 45 degrees
