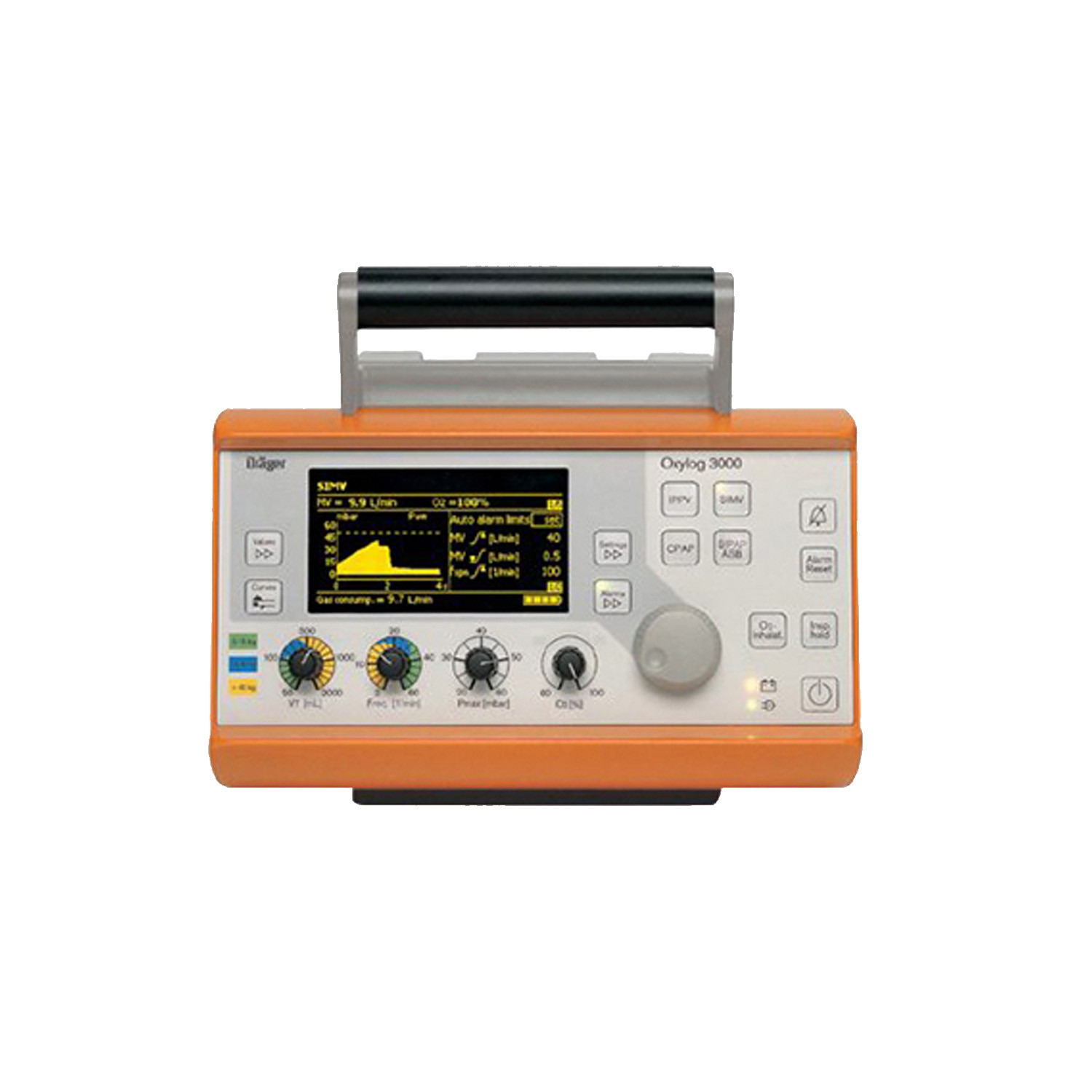

Drager Oxylog 3000 Plus Transport Ventilator
Drager Oxylog 3000 Plus Transport Ventilator
0 item is in your cart. View cart now
All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.
Details
Designed to support a various range of patients and medical conditions, the Drager Oxylog 3000 Ventilator offers sophisticated ventilation for patients during transport and in emergency situations. With the options of volume and pressure based models, the Oxylog 3000 offers reliable patient monitoring with features such as clear flow and pressure curves that are shown on a high-contrast display.
For more information about the Drager Oxylog 3000 Plus Transport Ventilator, contact an Med Vest Technology representative today.
Features
- High confidence during transport
- Integrated capnography
- Automatic altitude compensation (BTPS)
- Advanced data export functionality
- Wide range of ventilation modes and AutoFlow
- Ready for pediatric patients
- Enhanced Monitoring
- Simple Operation
- Portable
Specifications
Dimensions
- Height: 184mm
- Length: 175mm
- Weight: 8.5mm
- Width: 290mm
Power Supply
- Oxylog 3000 plus input voltage: 24 V ±6 VDC
- Battery type: Lithium ion battery
- Battery charging time: Approximately 4 hours
Operation Supply
- Operation time (fully charged, “typical” ventilation): Approximately 7.5 hours
- Temperature range: -20 to +50 °C for basic device
- Atmospheric pressure: 570 to 1,200 hPa for basic device
Gas Supply
- Mechanical strength: In accordance with MIL STD 810F, method 514.5
- Supply gas: Medical Oxygen
- Gas supply: From a pipeline system or from an O2 cylinder
