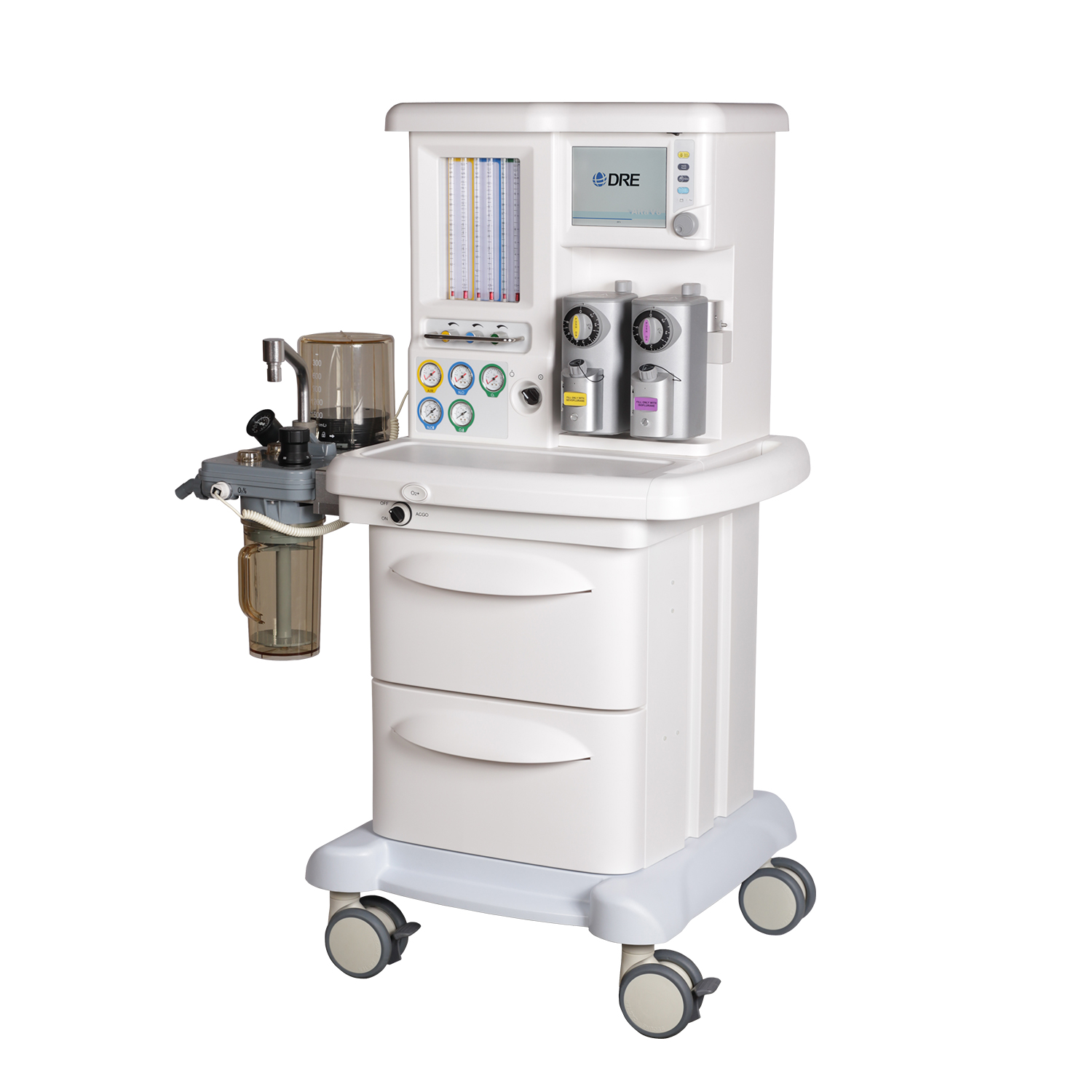

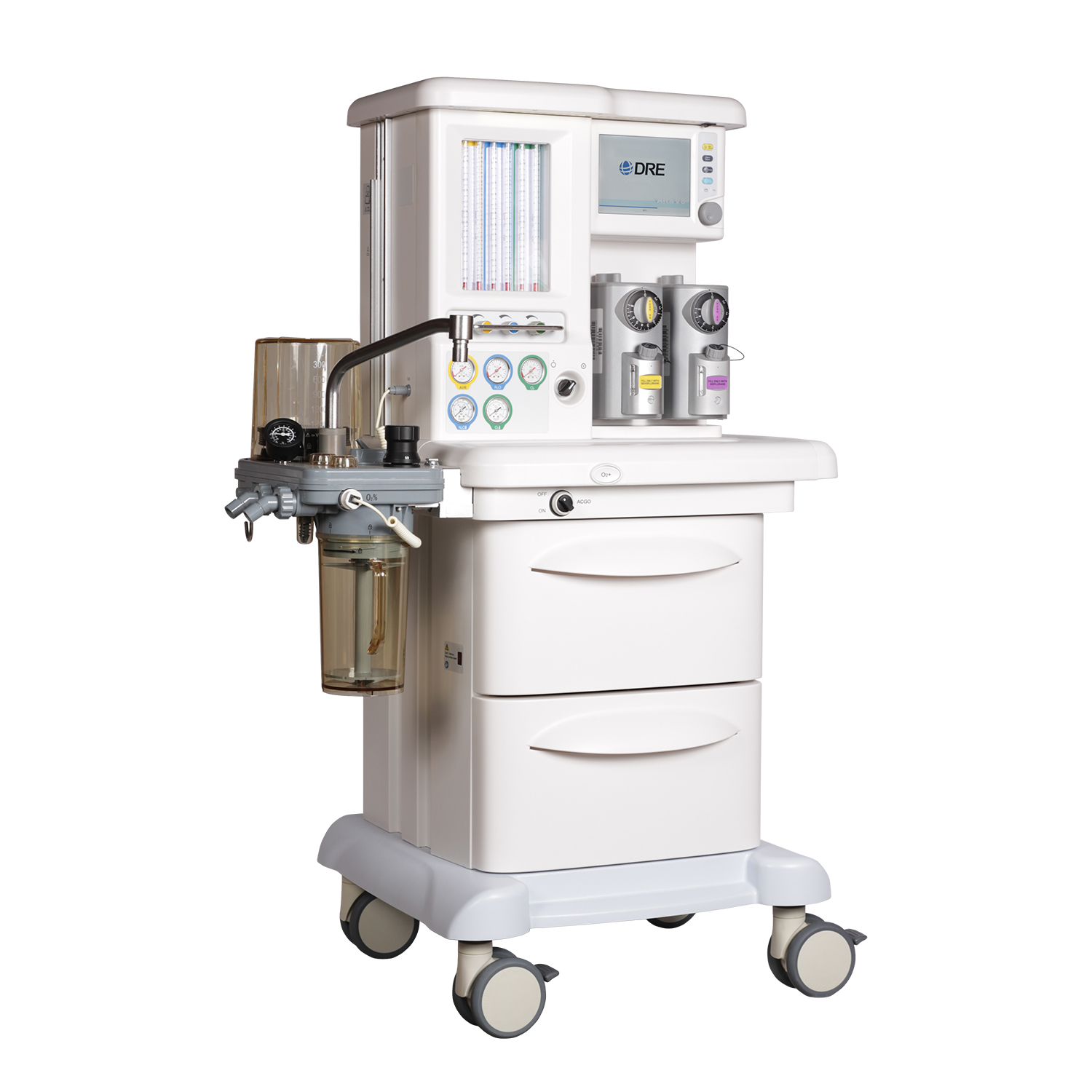

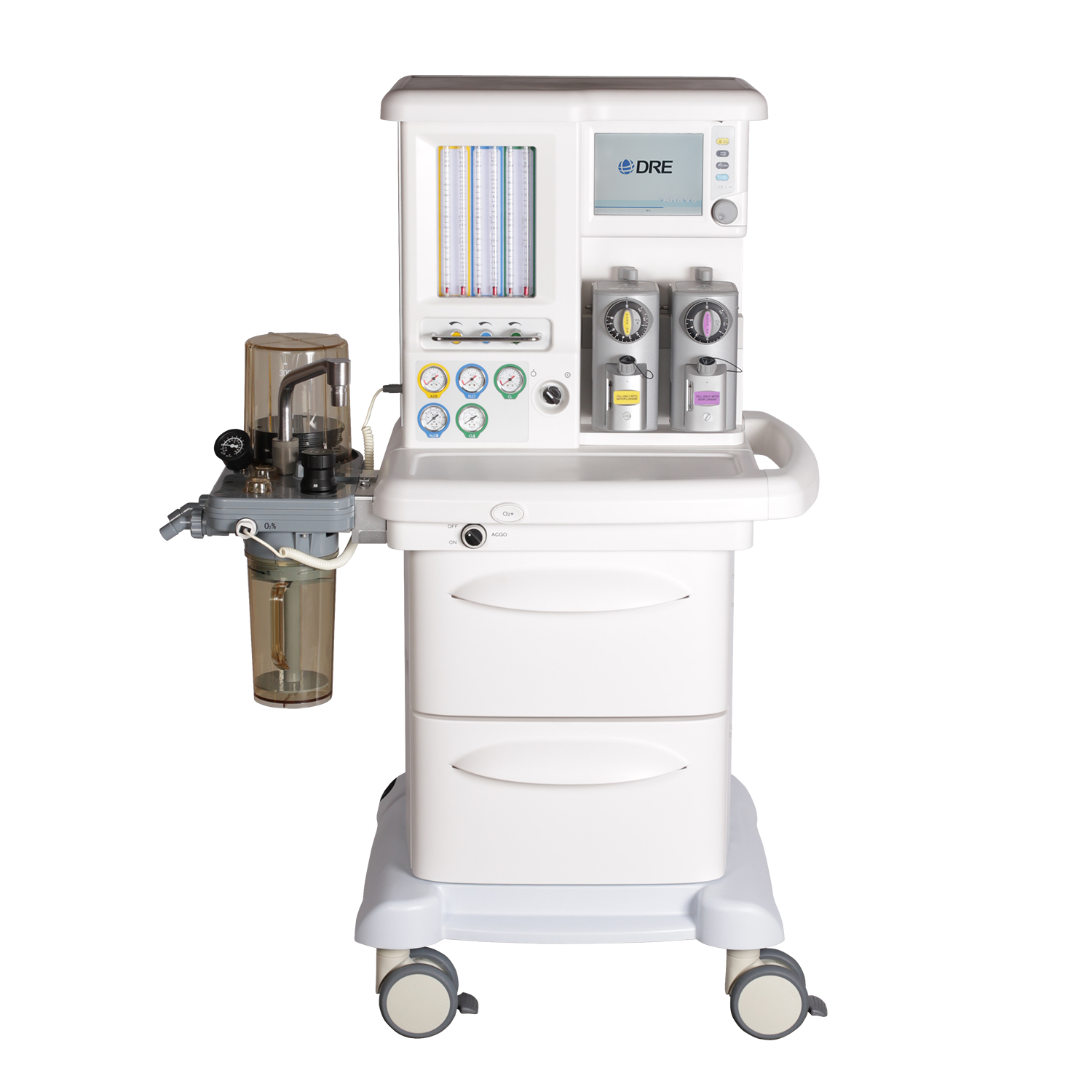

Med Vest Technology Alta V8 Anesthesia Machine
Med Vest Technology Alta V8 Anesthesia Machine
0 item is in your cart. View cart now
All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.
Details
The Med Vest Technology Alta V8 Anesthesia Machine provides industry-leading anesthesia capabilities at an affordable price.
The Med Vest Technology Alta V8 is a complete anesthesia delivery system designed for use in pediatric and adult care environments. The three-gas machine comes standard with advanced ventilation modes: VCV, PCV, PSV, SIMV-VC, SIMV-PC, Spontaneous, and Manual. Increase your surgical capabilities with this new, easy to use anesthesia system.
For more information on the Med Vest Technology Alta V8 Anesthesia Machine, contact an Med Vest Technology representative today.
Features
- Complete anesthesia system with various ventilation modes: VCV, PCV, PSV, SIM-VC, SIM-PC, Spontaneous and Manual.
- Designed for use in pediatric and adult care environments.
- Three gas machine (O2, N2O and Air) with six-tube flowmeter.
- Tidal volume setting: 50 ~ 1500 mL.
- Features a pneumatic system with hypoxic guard system, ORC and O2 flush.
- Active expiratory PEEP valve is built into the unit.
- Selectatec-compatible backbar holds up to two vaporizers.
- Integrated absorber system with heating function and bypass design is easy to assemble, autoclavable and helps to reduce leakage.
- Eight-inch TFT touchscreen is crisp, colorful and easy to read.
- Simple and intuitive user interface.
- Built-in battery.
- Optional — Auxiliary flowmeter with oxygen port.
- Optional — ACGO, 3 Yokes, AGSS and Suction.
Specifications
Measurement
- Pressure values: Ppeak, Pmean, Pplat, PEEP
- Volume/Flow values: Vti, Vte, MV, MV spont
- Waveforms: Paw, Flow, Volume
- Frequency, Rate Spont, I:E, O2 Percentage, Compliance, Resistance
- Optional: EtCO2, SPO2
Dimensions
- Machine size: 55 in H x 27 in W x 25 in D (1410 mm H × 950 mm W × 650 mm D)
- Machine weight: Approximately 242.5 lb (110 kg)
- Maximum bearing weight of the top cover: 66 lb (30 kg)
- Castors: 4, diameter 4.9 in (125 mm)
- Drawer 1: 7.8 in H x 15.4 in W x 15.6 in D (200 mm H × 392 mm W × 398 mm D)
- Drawer 2: 7.8 in H x 15.4 in W x 15.6 in D (200 mm H × 392 mm W × 398 mm D)
Display
- Type: Color TFTLCD (touch screen)
- Size: 8.4 in (213 mm)
- Resolution: 640 × 480 pixels
- Brightness: Fixed
- Knobs: 1, Support clockwise/ counterclockwise rotation and pressing operation
- Buttons: 4, Alarm pause, alarm reset, standby, back to the main screen
Audio Instructions / Alarms
- Speaker: Alarm sounds, tone: supports multi-level volume, alarm tone meet IEC60601-1-8 standards
- Alarms: MV, Paw, Continuous Paw high, Vte, Rate, O2 Percentage, Activate standby mode, Mains failure, Battery, Gas Supply failure, Apnea, EtCO2
Interface
- Power supply: An AC power inlet, three auxiliary output outlets
- Monitor: A standard color VGA monitor connector ,15-PIN D-sub socket
- Equipotential: An equipotential ground terminal
- USB: 1, standard USB connector
Power
- Input voltage: 100-240 V
- Input frequency: 50/60 Hz
- Input power: <150 VA
- System leakage current limit-do not exceed: Less than 500 u amps for the system and all systems connected to electrical outlets.
- Resistance to ground: Less than 0.2 Ω
- Fuse: T10AL/250 V
- Power Cord: 3M
- 3 Auxiliary output supplies
Internal Battery
- Internal battery: 1
- Type: NiMH
- Rated battery voltage: 12V DC
- Battery capacity: 4200 mAh
- Shutdown delay: Less than 1 0min (powered by new fully-charged battery after the first low-power alarm)
- Shortest supply time: 90 min
- Charging time: 4 h
Environmental
- Operating temperature: 10~40 °C
- Operating humidity: 5~95%, non-condensing
- Operating barometric pressures: 70~106 KPa
- Storage temperature: -20~55 °C
- Storage humidity: 10 ~ 95%, non-condensing
- Storage barometric Pressures: 50~106 KPa
