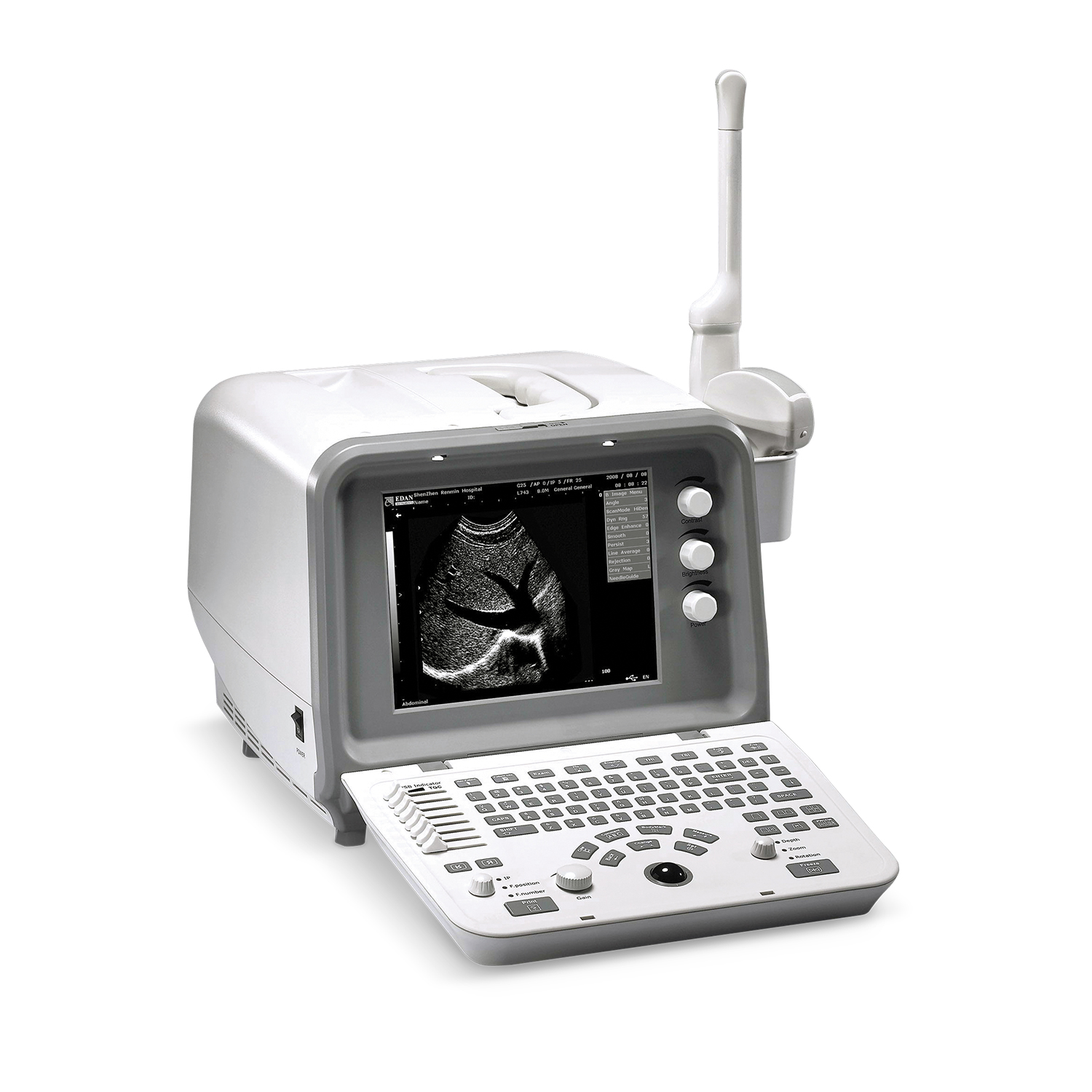

DRE FS-32P Digital Ultrasound Machine

DRE FS-32P Digital Ultrasound Machine

Brand: Med Vest Technology
Web ID: 1231
Product Number: 60138

0 item is in your cart. View cart now

Need help choosing?

Ask an Equipment Expert

(781) 302-6019

Listing Terms & Conditions

All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.

Details

Advanced digital beam-forming technology is featured in this affordable digital ultrasonic diagnostic imaging system

Innovative technology powers the DRE FS-32P and produces superb ultrasonic images. It has a maximum of 128 frames of built-in storage and a standard configuration of two transducer-connectors, offering you excellent flexibility. The DRE FS-32P also has features typically competing with higher-end systems.

Innovative technology

  • Dynamic frequency scan
  • Real-time dynamic aperture
  • Dynamic receiving apodization
  • Digital beam-forming
  • Multi-zone transmitting focusing
  • Dynamic receiving focusing

Powerful functions IP (image process) function

  • Ergonomic backlight keyboard design
  • Intelligent 8-segment TGC adjustment
  • Panoramic zoom function

Excellent functions

  • 256-frame cine loop
  • 128-frame image storage
  • VGA output
  • Dual USB port
  • DICOM 3.0 (optional)

Features a variety of multi-frequency transducers, providing optimal images

Specifications

General

  • Imaging mode B, B+B, 4B, B+M
  • Gray scales 256
  • Display 10" non-interlaced
  • Transducer frequency 2.5 ~ 10MHz
  • Transducer connector 2 standard
  • Beam-forming Digital beam-forming Dynamic receiving focusing Real-time dynamic aperture Dynamic frequency scanningDynamic apodizationTissue harmonic imagingTissue specific imaging
  • Scanning angle From 40 to 155 degree(depending on transducers)
  • Scanning depth (mm) From 40 to 240(depending on transducers)

Imaging Processing

  • Pre-processing:
    • Dynamic range
    • Edge enhancement
    • Frame correlation
    • Line correlation
    • Smooth
    • AGC8-segment TGC adjustment
    • IP (image process)
  • Post-processing:
    • Gray map
    • Gamma correction
    • Rejection
    • Left-right reverse
    • Up-down reverse

Functions

  • Cine loop 256 frames bidirectional cine-loop
  • Zoom X1.0, X1.2, X1.3, X1.6,X2.0, X2.4, X3.0, X4.0 in real-time
  • Storage media Built-in flash,external USB-memory stick
  • Storage 128 frames permanent image
  • Body mark 80 types
  • Transducer: Auto detection
  • 16-sement acoustic power output adjustment

Measurement & Calculation

  • B-mode Distance, circumference, area,volume, angle, residual urine volume
  • M-mode Distance, time, velocity, heart rate (2 cycles)
  • Software packages Abdomen, gynecology,obstetrics, urology,small parts, cardiology

Display

Date, time, probe name, probe frequency, frame rate, patient name, patient ID, hospital name, measurement values, body marks, annotation, probe position, full-image regioned it

  • Peripheral port:
    • Video output 1
    • VGA output port 1
    • USB port 2
    • DICOM3.0 1 (optional)
  • Power supply: 100-240VAC±10% 50Hz/60Hz
  • Dimensions: 353mm (W) × 315mm (L) × 253mm (H)
  • Net weight: 11.5Kg

Standard Configurations

  • Main unit
  • 10" non-interlaced monitor
  • Two transducer connectors
  • 256 frames cine loop memory
  • 128 frames built-in image storage
  • Two USB ports
  • Measurement and calculation software packages
  • Convex array transducer C363-1 (2.5/3.5/5.0MHz)

Options

  • Linear array transducer L743 (6/8/10MHz)
  • Endorectal transducer E743 (6/8/10MHz)
  • Endovaginal transducer E613 (5/6.5/8MHz)
  • Micro-convex array transducer C321(2.5/3.5/5.0MHz)
  • Convex array transducer C343-1 (2.5/3.5/5.0MHz)

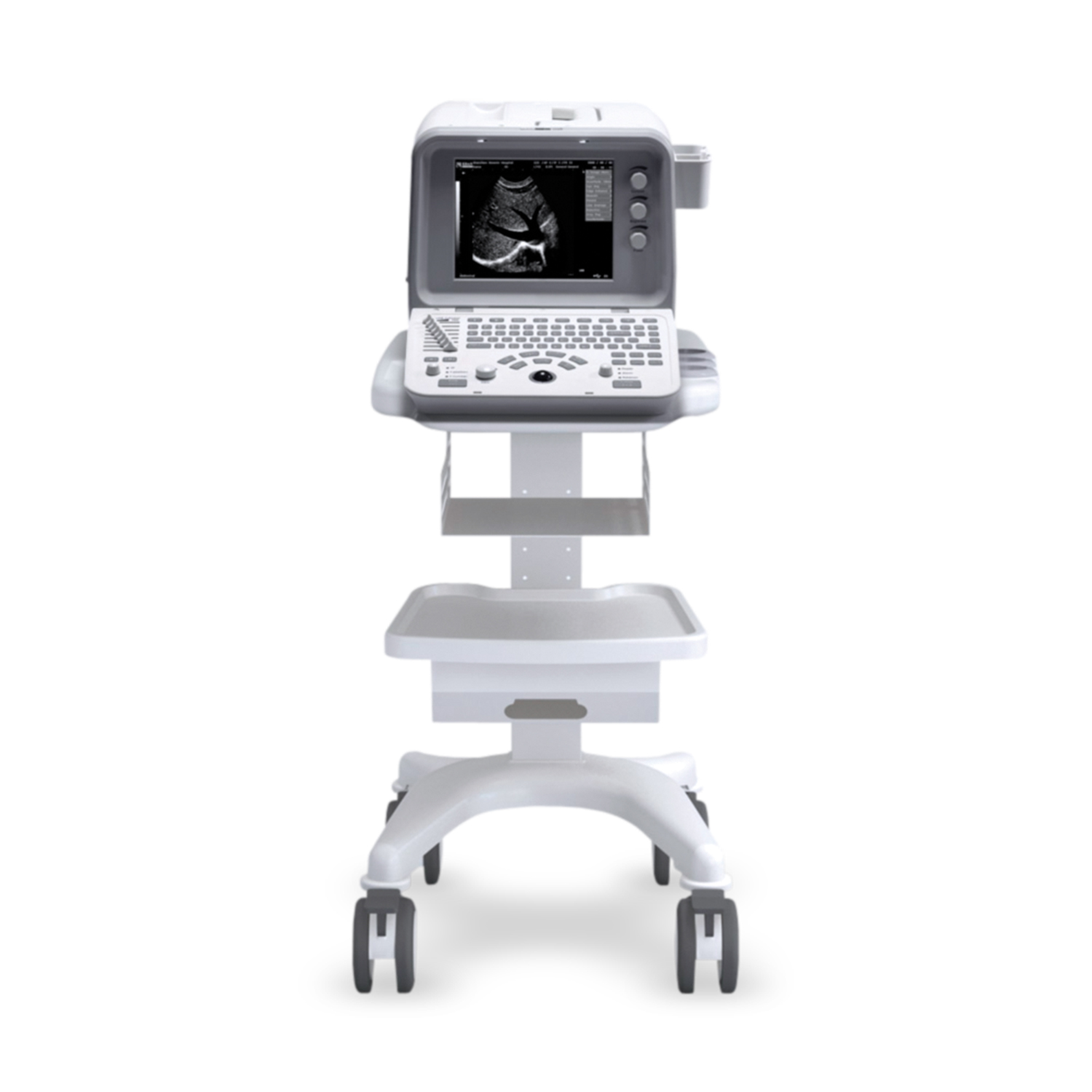

  • Also available: Video printer, laser printer, biopsy guide,DICOM3.0, Footswitch, Mobile trolley, hand carrying bag
