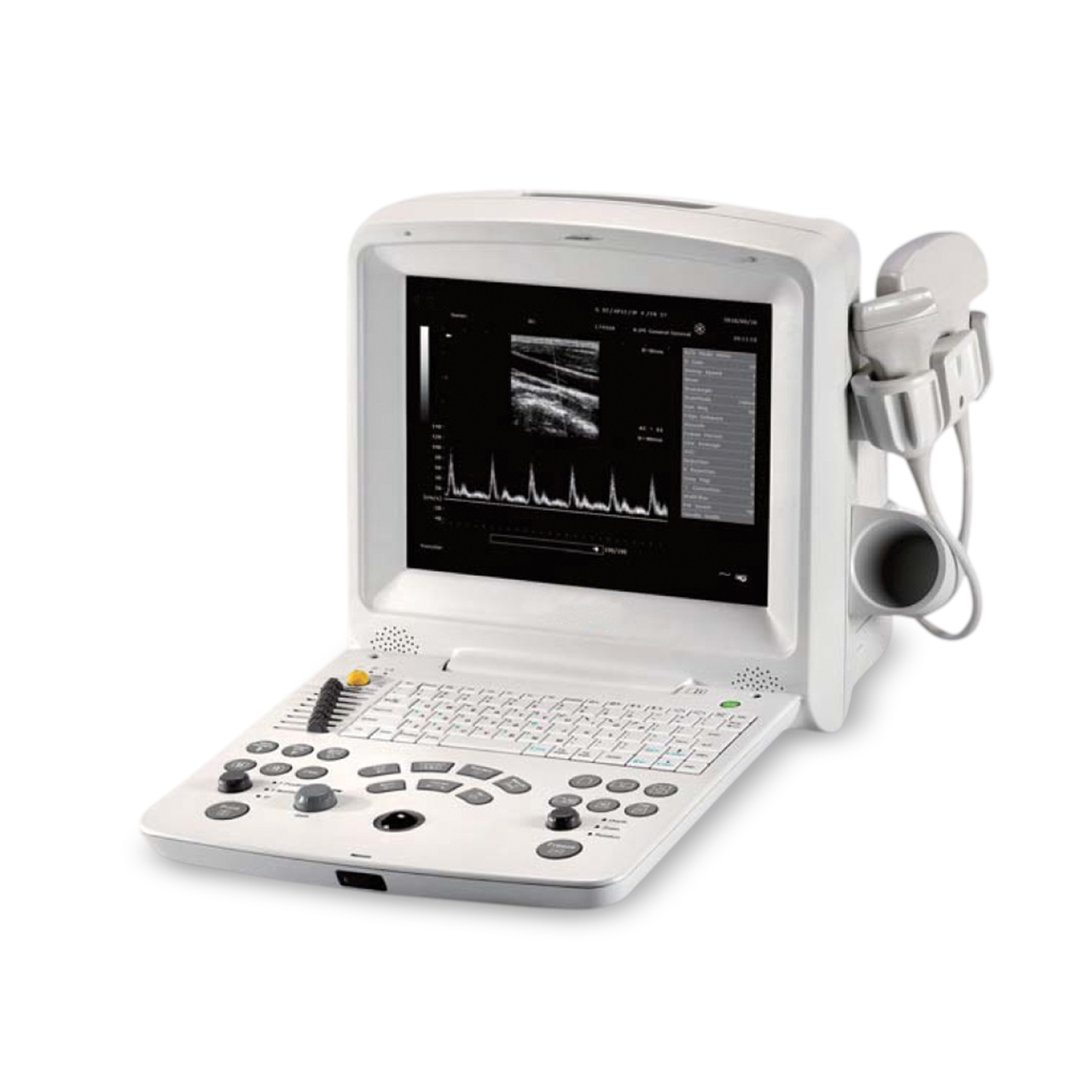

DRE FS-60 Advance Digital Ultrasound Machine
DRE FS-60 Advance Digital Ultrasound Machine
0 item is in your cart. View cart now
All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.
Details
Affordable digital ultrasonic diagnostic imaging system features enhanced support of PW imaging
Powered by innovative technology, the DRE FS-60 provides optimal ultrasonic images. It has a maximum of 128 frames of built-in storage and a standard configuration of two transducer-connectors, giving you greater flexibility. The DRE FS-60 also has features typically exclusive to higher-end systems.
Powerful Technology
- Complete digital beam forming technologies achieve high quality imaging
- THI and TSI technology present sharp and clear imaging
- PW Doppler brings more clinical diagnostic values on vascular disease
- 5 frequency broadband transducer selection for wide clinical applications
Compact and Portable
- Compact and lightweight design for superior mobility
- 12.1" folding high resolution TFT-LCD screen generates image clarity
- Built-in battery ready for scanning two hours at point of care
User-Friendly Operation
- One-touch image quality optimization by smart IP key
- Backlit palm controller
- User-defined keys contribute smooth operation
- Quick-save keys for improved operation
Feasible Elements for Enhanced Operation
- Intelligent 8-segment TGC for precise adjustment
- Multi-format data transferring via USB and DIACOM
- Multiple color enhancement options for personalized needs
Options
- Linear array transducer L743UA (6.0/7.0/8.0/9.0/10.0MHz)
- Linear array transducer L763UA (6.0/7.0/8.0/9.0/10.0MHz)
- Convex array transducer L343UA (2.0/3.0/4.0/5.0/6.0 MHz)
- Micro-convex array transducer C321UA(2.0/3.0/4.0/5.0/6.0 MHz)
- Micro-convex array transducer C613UA(4.5/5.5/6.5/7.5/8.5 MHz)
- Endorectal transducer E743UA (6.0/7.0/8.0/9.0/10.0MHz)
- Endovaginal transducer E613UA (4.5/5.5/6.5/7.5/8.5MHz)
- Needle-guided brackets for transducers
- Also available: Video printer, laser printer,DICOM3.0, Footswitch
- Mobile trolley, carrying bag, Lithium Battery
Specifications
General
- Scanning angle From 30 to 155 degree(depending on transducers)
- Scanning depth (mm) From 20 to 250(depending on transducers)
- Imaging mode B, B+B, 4B, B+M, M and PW
- Gray scales 256
- Display 12.1" TFT-LCD
- Transducer frequency 2.0 ~ 10MHz
- Transducer connector 2 standard
- Beam-forming:
- Digital beam-forming
- Dynamic receiving focusing
- Real-time dynamic aperture
- Dynamic frequency scanning
- Dynamic apodization
- Tissue harmonic imaging
- Tissue specific imaging
Imaging Processing
- Pre-processing:
- Dynamic range
- Edge enhancement
- Frame correlation
- Line correlation
- Smooth
- AGC
- 8-segment TGC adjustment
- IP (image process)
- Post-processing:
- Gray map
- Gamma correction
- Rejection
- Colorization
- Left-right reverse
- Up-down reverse
Functions
- Cine loop: 256 frames bidirectional cine-loop
- Zoom: X1.0, X1.2, X1.4, X1.6,X2.0, X2.4, X3.0, X4.0 in real time
- Storage media: Built-in flash,external USB-memory stick
- Built-in image achive: 504 MB built-in image storage
- Body mark: >80 types
- Transducer: Auto detection
- 16-segment acoustic power output adjustment
Measurement & Calculation
- B-mode: Distance, circumference, area,volume, ratio, stenosis%, and angle
- M-mode: Distance, time, slope and heart rate
- D-mode: Time, heart rate, velocity, acceleration, trace and RI
- Software packages: abdomen, gynecology,obstetrics, urology,small parts, cardiology,
- Software packages: orthopedics, cardiology, periperal vessels, and urology
Display
- Date, time, probe name, probe frequency, frame rate, patient name, patient ID,
- Hospital name, measurement values, body marks, annotation, probe position, full-image-regionedit
Standard Configurations
- 12.1" TFT-LCD monitor
- Two transducer connectors
- 256 frames cine loop memory
- 504 MB built-in image storage
- Two USB ports
- Measurement and calculation software packages
- Convex array transducer C363-1 (2.5/3.5/5.0MHz)
