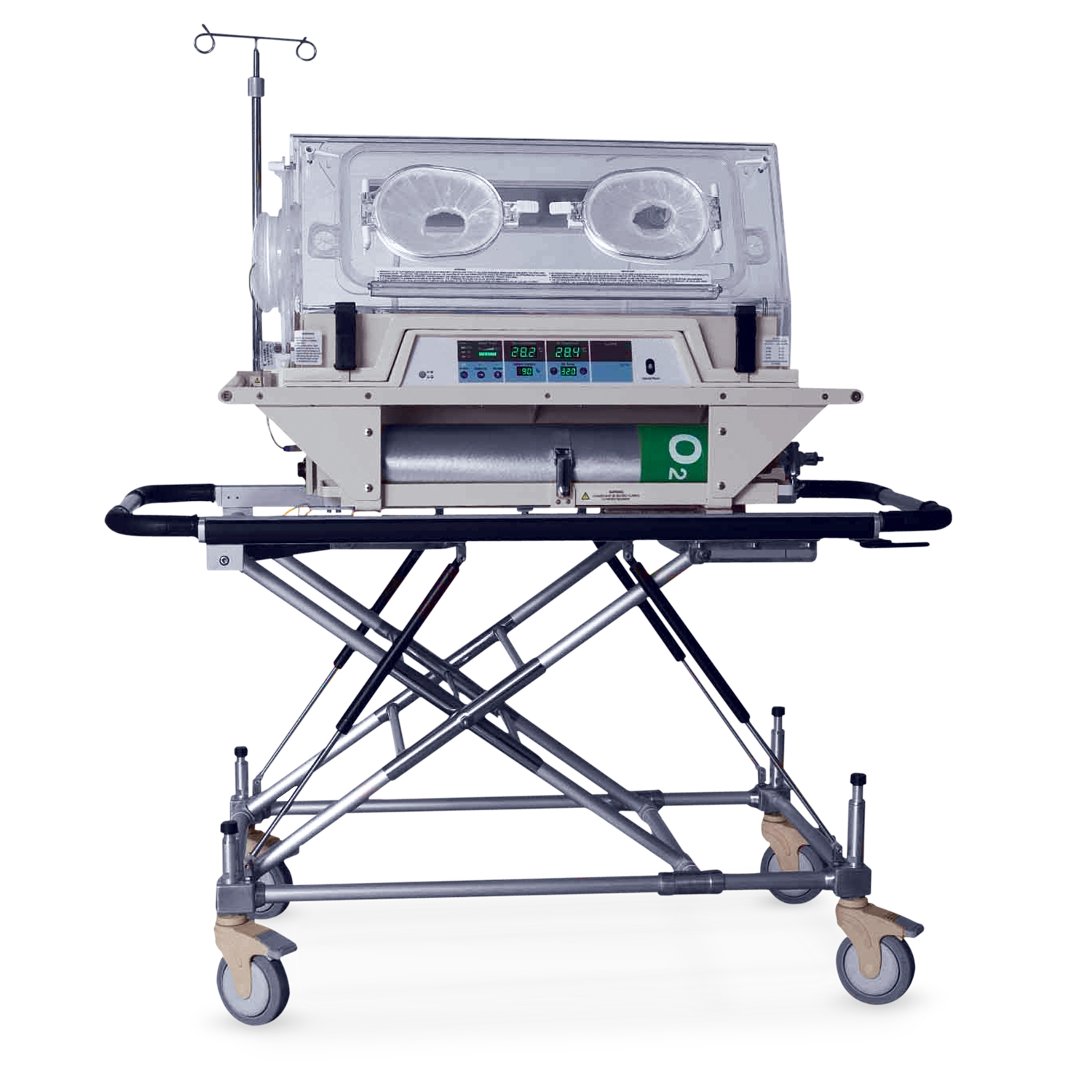

Med Vest Technology NeoGlider Transport Infant Incubator

Features multiple temperature control modes, each controlled by micro-computer

Features

• Use AC power and DC power alternatively, and DC 12V or DC 24V power in an ambulance
• Set temperature, air temperature, baby temperature and internal battery voltage can be displayed separately
• Can be equipped with >37°C temperature set function
• Failure alarm indication
• Double wall hood with side door for pulling out the bassinet
• Natural air flow humidity
• Adjustable height

Configurations available with:

• Main body, including the hood, controller, bassinet, internal batter and observation lamp
• Oxygen cylinders
• Oxygen supply system
• Skin temperature sensor
• IV pole
• Mattress
• Adjustable stand
• >37° C override temperature mode (optional)

Specification

General

• AC power supply: AC110V - 240V/50-60Hz
• DC power supply: DC12V/10A or DC24V/6A
• Input power: 400VA
• Air-temperature control range: 25° - 37°C
  • - Override mode: 37° - 38°C
• Baby temperature control range: 34° - 37°C
  • - Override mode: 37° - 37.5°C
• Skin temperature sensor accuracy: ≤0.3° C
• Temperature variability: ≤1.0° C
• Temperature uniformity: ≤1.5° C (mattress is on the horizontal position)
• Noise inside hood: ≤55dB(A)
  • - Environment noise ≤45dB(A)
• Failure alarm: Over-temperature alarm, temperature deviation alarm, sensor alarm, motor fan failed alarm, power failure alarm
• Operating at temperature equilibrium: 90 min (Set temp: 36° C | Ambient temperature: 15° C)

Environmental Temperature

• Operating range: 10° C ~ 30° C
• Set temperature should be 3° C higher than the environment temperature
• Ambient air movement rate: <1.0 m/s

Package

• Size:
  • Main body: 109 cm × 65.5 cm × 76 cm
  • Cabinet: 138 cm × 61 cm × 40 cm
• Gross Weight:
  • Main unit: 80 kg
  • Cabinet: 53 kg
