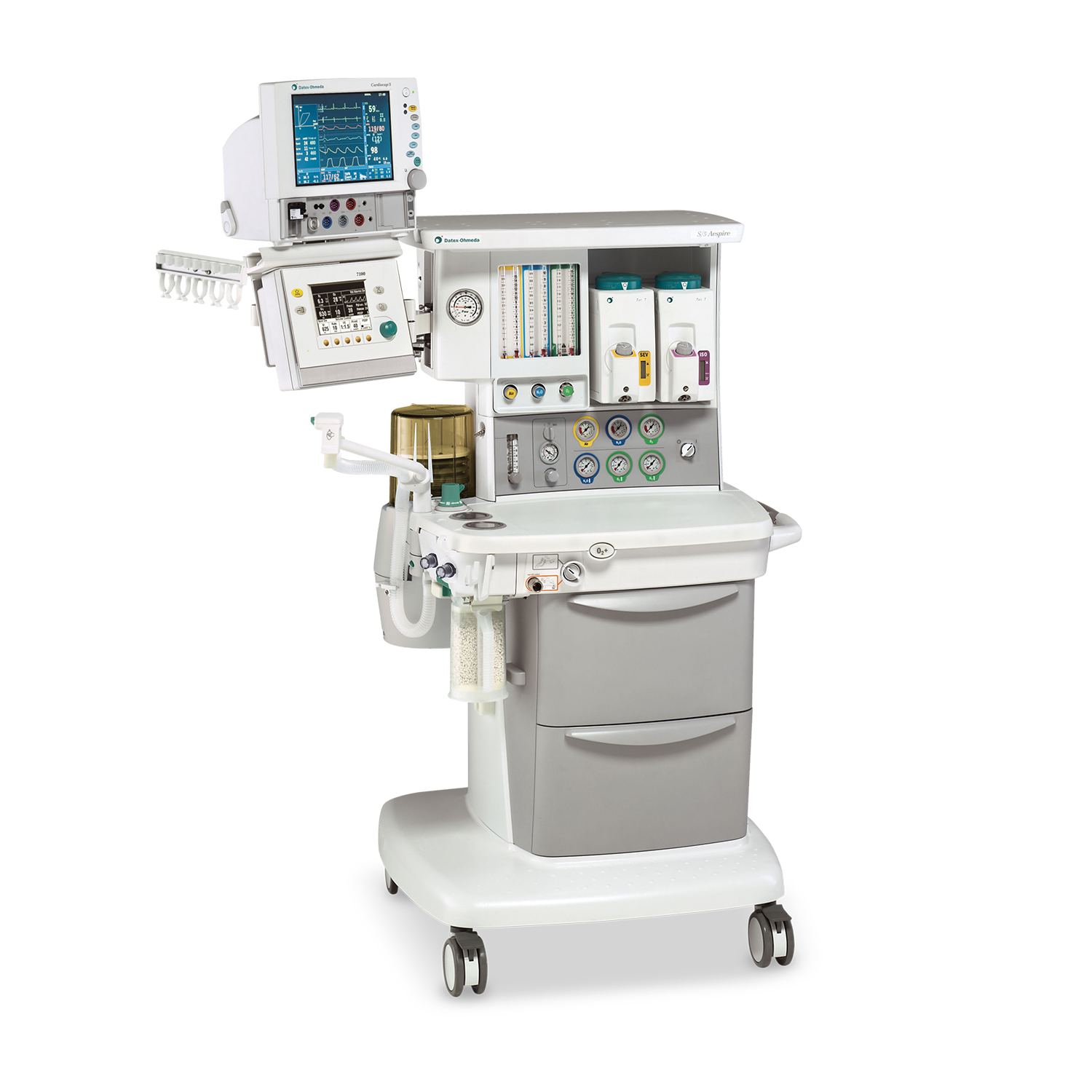

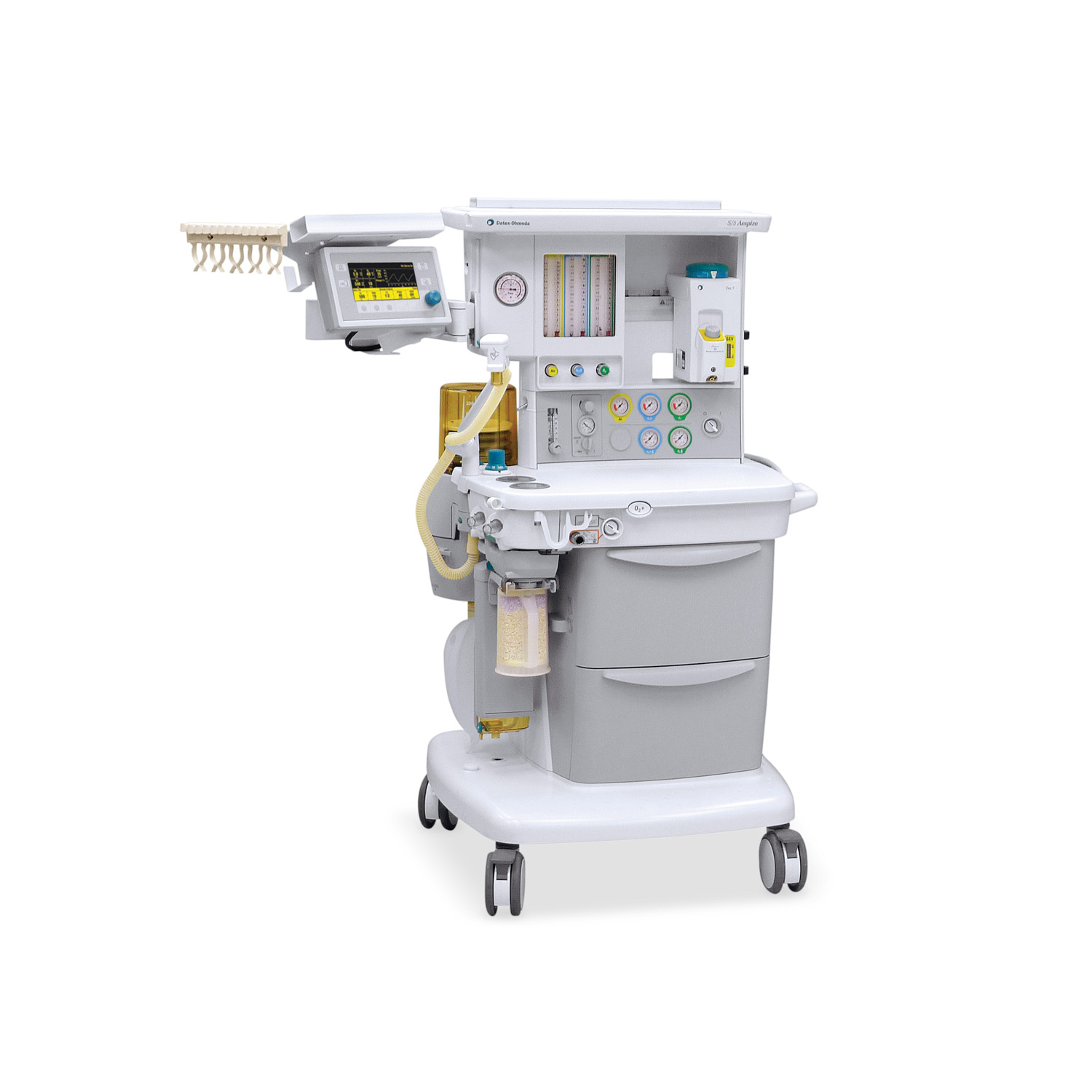

GE Aespire S5 Anesthesia Machine with 7900 Smartvent
GE Aespire S5 Anesthesia Machine with 7900 Smartvent
0 item is in your cart. View cart now
All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.
Details
Clinician-inspired solutions help improve patient care
Features
- Enhanced monitor integration capabilities with the GE / Datex Ohmeda Anesthesia Monitor Series.
- Lightweight and compact for easy maneuverability
- Optional integrated auxiliary O2 flowmeter and suction control
Advanced Breathing System (ABS™)
- One step bag/vent switch turns the ventilator on/off
- Minimal number of parts and tube connections greatly reduces the potential for leaks and misconnects
- Ease of disassembly (no tools)
- Fully autoclavable and latex-free
7900 SmartVent Ventilator
- Volume and Pressure modes with electronic PEEP
- Synced intermittent mandatory ventilation ( SIMV )
- Direct access to ventilator parameter settings
- PSVPro ( Pressure support with Apnea backup mode. )
- Smart alarms direct user to specific problems and affected parameters
- Ideal for spontaneously breathing patients
Improved low flow/reduced life cycle costs
- Only one scheduled maintenance check per year
- Fresh gas flow compensation – automatically (available with tidal volume compensation option)
- Minimum O2 flow of 50 mL
- Dual air flow tubes standard for higher resolution of low flows
Specifications
Physical Weight & Dimensions
- Height: 134.5 cm/52.9 in
- Width: 72 cm/28.3 in
- Depth: 73 cm/28.7 in
- Weight: Approximately 108 kg/238 lb
Top Shelf
- Weight limit: 34 kg/75 lb
- Width: 66 cm/26 in
- Depth: 40 cm/15.75 in
Work Surface
- Height: 81.7 cm/32.2 in
- Size: 2160 cm-2/334 in-2
DIN Rail
Side of machine: 34.5 cm/13.6 in
Drawers (internal dimensions)
- Height: 17.5 cm/6.9 in
- Width: 33 cm/13 in
- Depth: 26.5 cm/10.4 in
Absorber Bag Arm (optional)
- Arm length: 30.5 cm/12 in
- Bag arm height (adjustable): 87 cm (34.3 i) to 104 cm (40.9 in)
Casters
- Diameter: 12.5 cm/5 in
- Brakes: Individual locking front casters
Electrical Specifications
Current Leakage
- 100/120 V: < 300μA
- Power
- Power input: 100-120 Vac, 50/60 Hz
- Power cord: Length: 5 m/16.4 ft
- Rating: 15A @ 120 Vac
Inlet/outlet modules (120 V)
- System circuit breakers: 15A
- Outlets (optional): 4 outlets on back, 3-2A, 1-3A individual breakers, optional isolation transformer
Pneumatic Specifications
Auxiliary Common Gas Outlet
Connector: ISO 22 mm OD and 15 mm ID
Gas Supply
- Pipeline input range: 240 kPa to 600 kPa/35 psig to 88 psig
- Pipeline connections: DISS-male, DISS-female, DIN 13252, AS4059, S90-116 or NIST (ISO 5359). All fittings available for O2, N2O, and Air, and contain pipeline filter and check valve.
- Cylinder input: Pin indexed in accordance with CGA-V-1 or DIN (nut and gland); contains input filter and check valve
Note: Maximum 3 cylinders; two inboard mounted, one outboard mounted. - Primary regulator diaphragm minimum burst pressure: 2758 kPa/400 psig
- Primary regulator nominal output: < 338 kPa/49 psig Pin indexed cylinder connections
- < 407 kPa/59 psig DIN cylinder connections
Environmental Specifications
System Operation
- Temperature: 10° to 40°C/50° to 104°F
- Humidity: 15 to 95% relative humidity (non-condensing) per IEC 68-2-3
- Altitude: -440 to 3565 m/500 to 800 mmHg
System Storage
- Temperature: -15° to 50°C/-5° to 122°F
- Humidity: 10 to 95% relative humidity (including condensing) per IEC 68-2-3
- Altitude: -440 to 3565 m/500 to 800 mmHg
- Oxygen cell storage: -15° to 50°C/5° to 122°F; 10 to 95% relative humidity; 500 to 800 mmHg
Electromagnetic Compatibility
- Immunity: Complies with all requirements of EN 60601-1-2
- Emissions: CISPR 11 group 1 class B
- Approvals: UL 2601-1; CSA C22.2 #601.1; EN/IEC 60601-1; CE 0197
