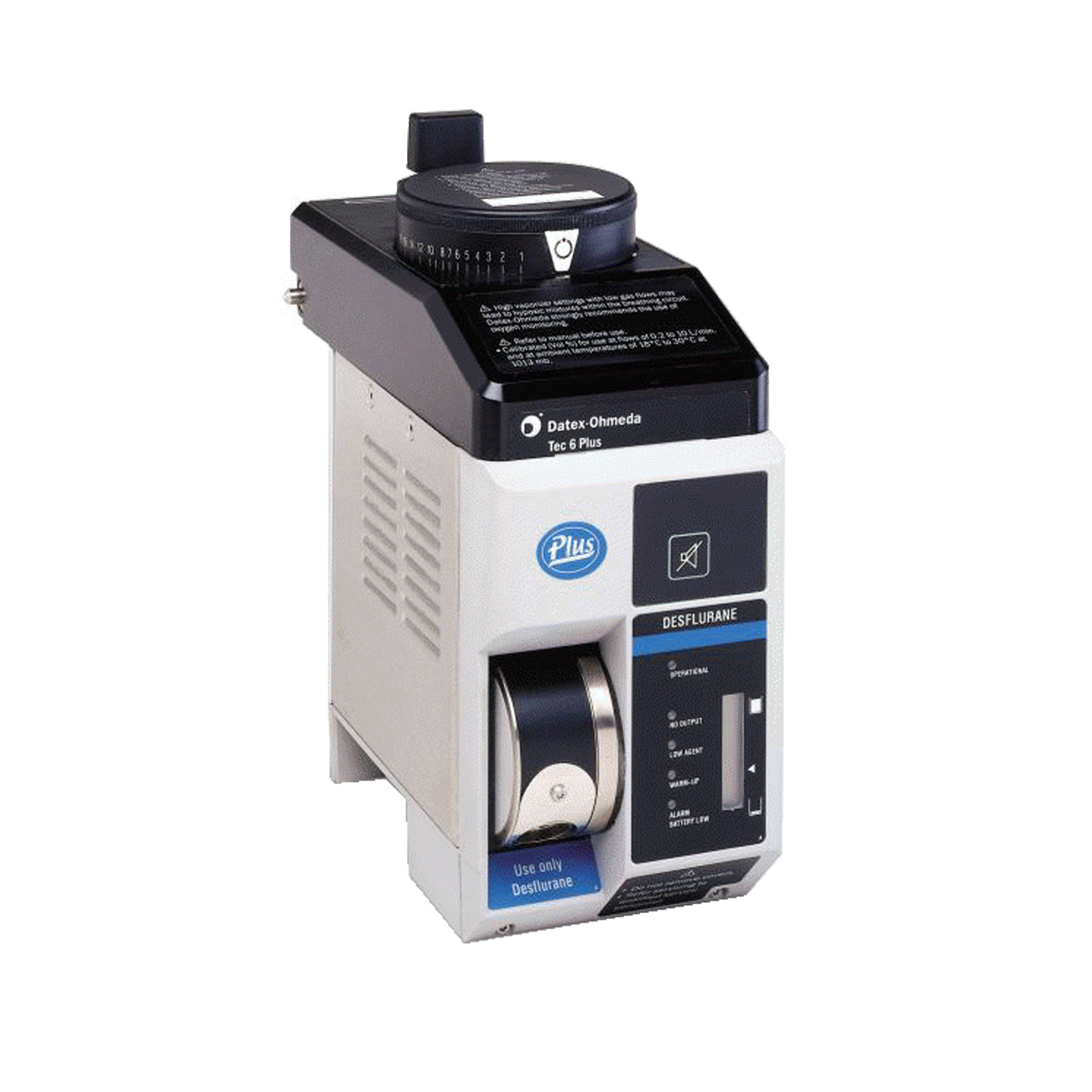

GE Datex Ohmeda Tec 6 Plus Anesthesia Vaporizer
GE Datex Ohmeda Tec 6 Plus Anesthesia Vaporizer
0 item is in your cart. View cart now
All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.
Details
The GE Datex Ohmeda Tec 6 Plus is an ideal choice for facilities requiring a reliable, electronic, desflurane anesthesia vaporizer. With an on-board LED screen to indicate no output, low agent, battery low, and warm-up, the Tec 6 Plus delivers constant, carefully-monitored amounts of desflurane with your patient.
The Tec 6 Plus also features self-diagnostic protocols to check the machine every time it is turned on. It has a sump capacity of 425 mL, allowing clinicians to use the vaporizer for extended periods between refills. The vaporizer can be refilled during use.
Features
- Various safety features make providing desflurane anesthesia safe and effective.
- Completes self-diagnostic exams each time the vaporizer is turned on.
- Sump capacity up to 425 mL, nearly 2 bottles of Desflurane, for extended use between refills.
- On-board LED display indicates: no output, low agent, battery low, warm-up.
- Refilling can be done while the vaporizer is in use.
- Unique Saf-T-Fill valve designed to fit the complementary Tec 6 Plus filling device, helping to prevent accidental release of vapors.
Specifications
Dimensions
- Weight: 21 lbs (9.5 kg)
- Depth: 9.25 in (235 mm)
- Width: 4.33 in (110 kg)
- Height: 9.84 in (250 mm)
Electrical
- Voltage requirement: 100 to 120V AC 50/60 Hz | 220 to 240V AC 50/60 Hz
- Power consumption: 250 VA nominal
- Current input: Maximum current requirement is 2.0A
Performance
- Concentration range: 1 to 18%
- Scale: 1% from 1 to 10% | 2% from 10 to 18%
- Calibrated flow range at 21 ± 2° C: 0.2 to 10 liters/minute
- Accuracy at 5 liters/min O2: ± 0.5% v/v of delivered agent or ± 15% dial setting (whichever is greater)
- Liquid capacity: 390 ml nominal volume (indicated on level display) | 240 ml refill capacity indicator nominal ml reserve (not indicated on level display)
- Flow resistance: Less than 50 cm H2O at 5 liters/minute of O2 at 21 °C | Less than 250 cm H2O at 15 liters/minute of O2 at 21 °C
- Battery: Duracell MN 1604 or VARTA Energy 2000
- Operating temperature range: 18 °C to 30 °C (64 °F to 86 °F)
- Operating humidity range: 30% to 75% relative humidity (non-condensing)
- Storage temperature range: -40 °C to 60 °C (-40 °F to 140°F)
- Storage relative humidity range: 0% to 95% relative humidity at 40 °C (non-condensing)
- Storage atmospheric pressure: 70.0 to 106.0 kPa
