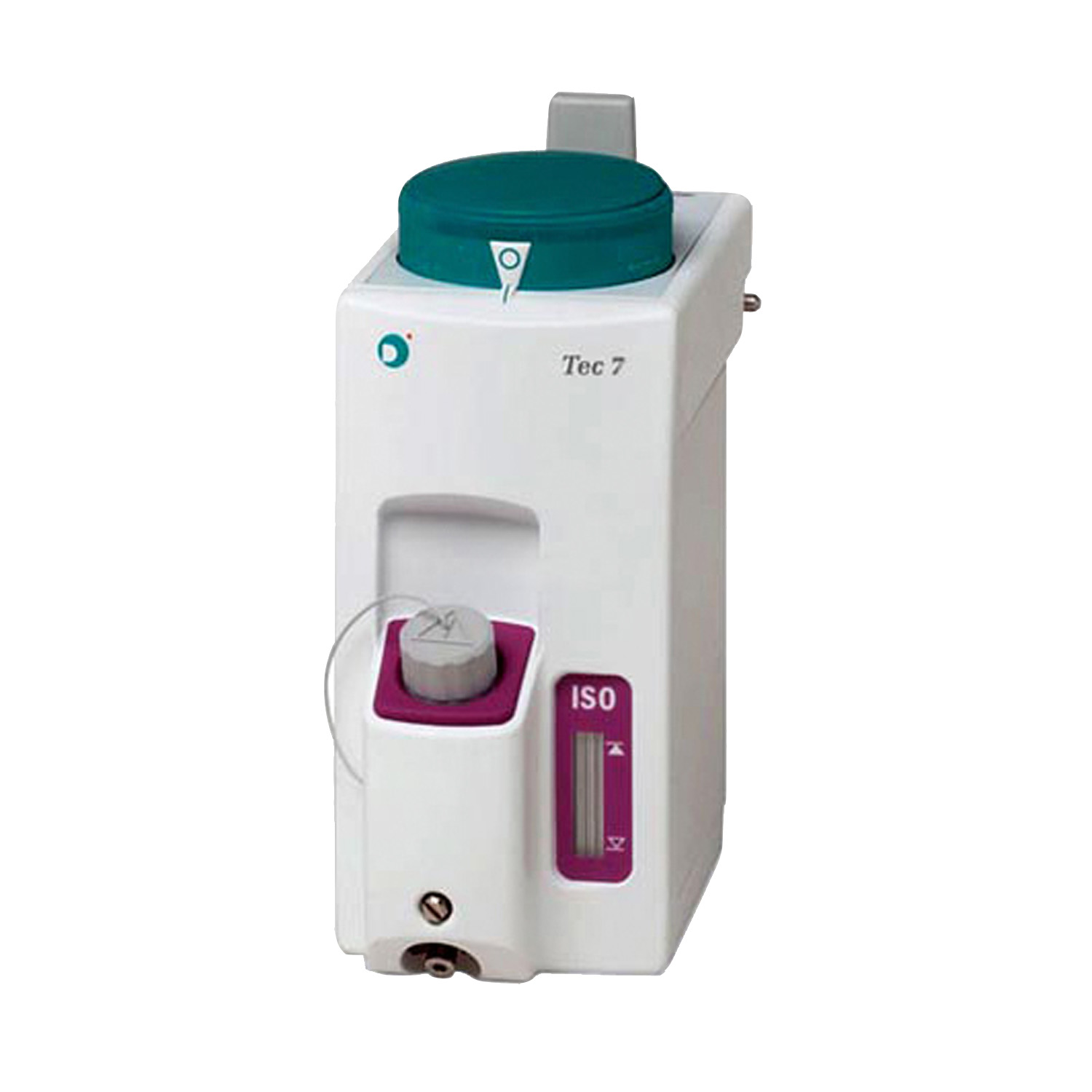

GE Datex-Ohmeda Tec 7 Anesthesia Vaporizer

Brand: GE

Type: Anesthesia Vaporizers

Web ID: 1405

Condition: Brand New

View Accessories

0 item is in your cart. View cart now

Need help choosing?

Ask an Equipment Expert

(781) 302-6019

Listing Terms & Conditions

All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.

Details

The GE Datex Ohmeda Tec 7 Anesthetic Vaporizer delivers isoflurane, sevoflurane, enflurane and halothane with industry-leading performance and reliability. With unique Easy-fil technology, clinicians can fill anesthetic agents with ease and minimize the chances of leaks. During clinical use, the Tec 7 provides consistent output with a finely-tuned adjustment dial that offers small gradations.

Speak with your Med Vest Technology representative today to learn more about the GE Datex Ohmeda Tec 7 Anesthetic Vaporizer.

Features

Available isoflurane, sevoflurane, enflurane and halothane models.
Reliable, high-performing vaporizer designed with ergonomic benefits.
Provides consistent agent output: 200 mL/min to 15 L/min.
Large, easily manipulated dial adjusts the output with precision.
Fine gradations of 0.2% between 0 and 1%, and 0.5% to 1% to 8%.

Vaporizer holds 225 mL of anesthetic agent to reduce filling frequency.
Factory-service free, eliminating the need for regularly scheduled service.
Unique design helps to minimize agent leaks.
Two filling options: Easy-fil or Quik-fil (Sevoflurane only).

Specifications

Physical

Weight (empty): 15 lbs 6 oz (7 kg)
Depth: 8.25 in (210 mm)

Width: 4.375 in (110 mm)
Height (unlocked position): 9.875 in (250 mm)

Performance

Accuracy at 5 liters/min O2 21 ± 2 °C: Vaporizer 5%: ± 0.25% of delivered agent or ± 15% dial setting (whichever is greater), Vaporizer 8%: ± 0.4% of delivered agent or ± 15% dial setting (whichever is greater)
Liquid capacity: To fully charge a vaporizer with dry wicks: 300 ml (nominal), Retained by wick system: 75 ml (nominal), To fill minimum to maximum mark: 5% Vaporizer: 170 ml (nominal), 8% Vaporizer (Sevotec): 137 ml (nominal)
Flow resistance at 5 liters/minute of O2 at 21 ± 2 °C: 10 - 15 cm H2O with Vaporizer setting ON +0%
Operating temperature range: 18 °C to 35 °C (64 °F to 95°F)
Storage temperature range: –40 °C to 65 °C (–40 °F to 149°F), Note: Do not let the vaporizer packaging condensate.
