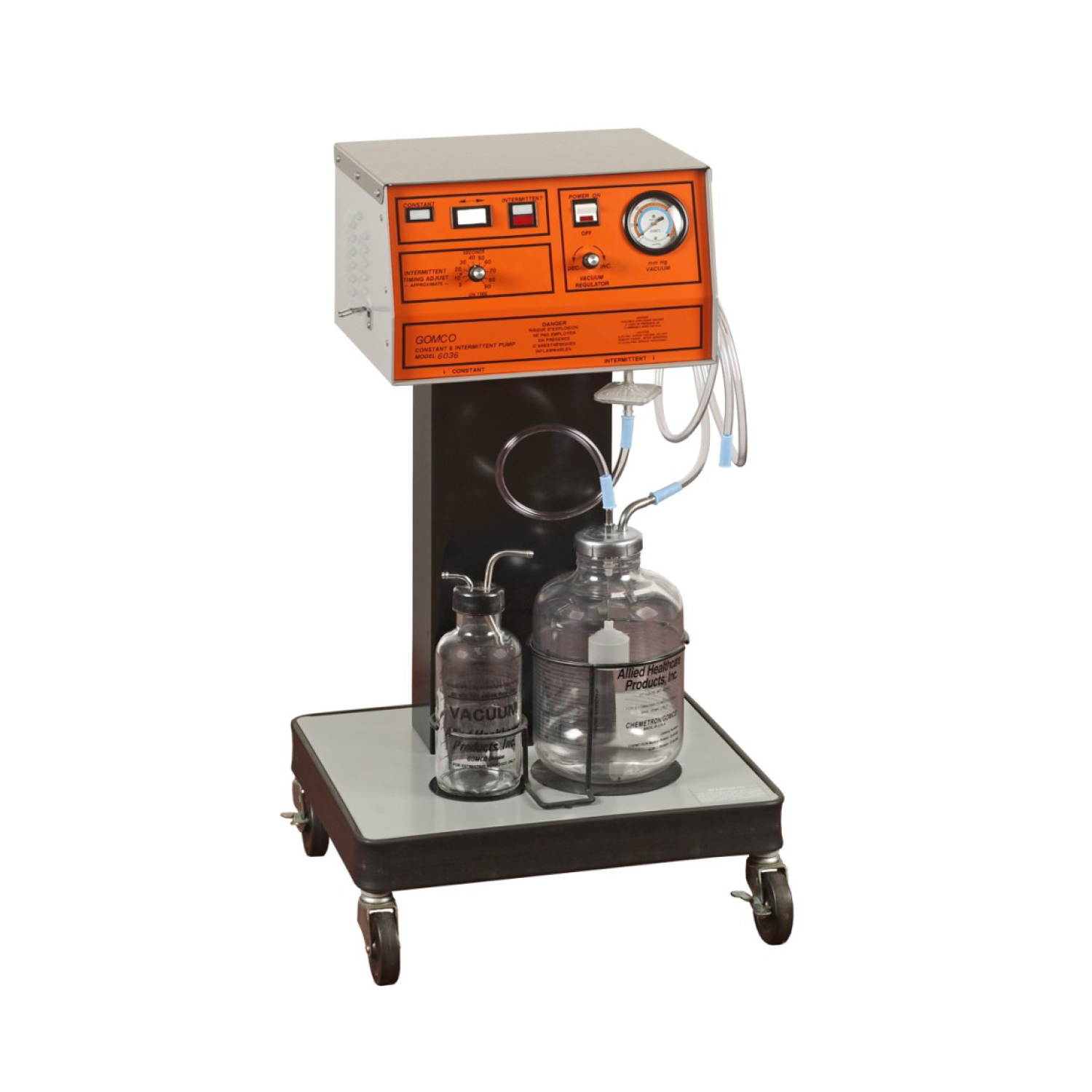

Gomco 6036 Suction Pump
Gomco 6036 Suction Pump
0 item is in your cart. View cart now
All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.
Details
The Gomco 6036 is a constant and intermittent pump that provides exceptional versatility through a unique vacuum capability. This new concept utilizes a diaphragm vacuum source with an automatic lock feature that maintains a separate collection system for the two mode selections (constant or intermittent). UL/ULC listed.
The 6036 pump provides suction for all routine suction procedures with one versatile mobile vacuum source. Operation is simple and consists of four basic steps:
- Set the mode switch to Constant or Intermittent
- Set the Intermittent timing, if needed
- Turn on the power
- Adjust the vacuum level
This pump is designed to provide the following performance specifications for each mode selection:
In Constant Mode
- Vacuum Range: 0-250 mmHg
- Adjustable On/Off Cycle Time: Pm - 5-90 seconds
In Intermittent Mode
- Vacuum Range: 0-200 mmHg
- Adjustable On/Off Cycle Time: Off - 23 seconds
The 6036 is provided with two collection bottle systems, one for each mode selection (one 2800 mL and one 600 mL).
Specifications
General
- Motor: 1/8 hp Continuous Duty
- Compressor: Diaphragm
- Vacuum Range: 250 mmHg (constant), 200 mmHg (intermittent)Z
- Flow Rate: 20 lpm (constant), 3 to 4 lpm (intermittent)
- Dimensions: 33 (H) × 23 (W) × 17 (D) inches
- Shipping Weight: 78 lbs
