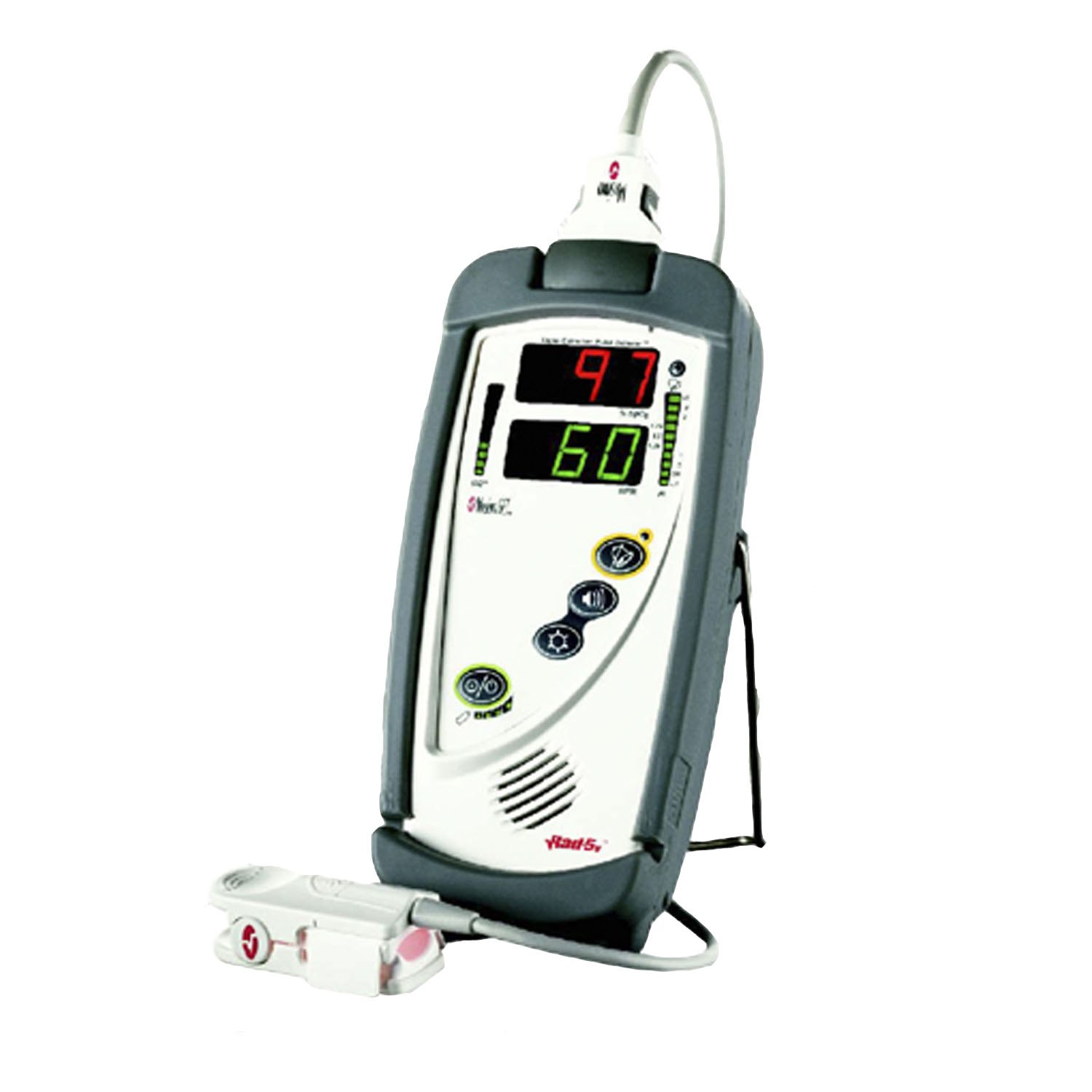

Masimo Rad-5v Signal Extraction Pulse Oximeter
Masimo Rad-5v Signal Extraction Pulse Oximeter
All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.
Details
The power of Masimo SET® in the palm of your hand.
- Masimo SET technology is scientifically and clinically proven accurate during motion and low perfusion
- Lightweight, convenient handheld
- Long battery life - up to 48 hours on 4 AA batteries
- Designed for spot check monitoring
- Perfusion Index & Signal IQ® displays
- Audible and visual alarms for Sensor Off & Low Battery
Features
- One of the first dedicated handhelds with Masimo SET technology, clinically proven to read-through motion, provide the highest sensitivity, specificity, fidelity and reliability of any pulse oximeter technology available
- Designed for spot check applications in hospital or home use
- Perfusion Index (PI) indicates arterial pulse signal strength and may be used as a diagnostic tool during low perfusion
- Four AA alkaline batteries deliver up to 48 hours of continuous use
- FastStart allows for rapid measurement from the time the instrument is first turned on
- Signal IQ(SIQ) bar for signal identification and quality indication during motion and low signal to noise situations
- SmartToneTM beeps in sync with pulse, even under patient motion conditions
Specifications
Measurement Range
- SpO2: 1 - 100%
- Pulse Rate: 25 - 240 bpm
- Perfusion Index: 0.02% - 20%
Saturation Accuracy
- Saturation: 70% to 100%
- No Motion:
- Adults, Pediatrics: ±2 digits
- Neonate: ±3 digit
- Motion:
- Adults, Pediatrics: ±3 digits
- Neonate: ±3 digits
- Low Perfusion:
- Adults, Pediatrics: ±2 digits
- Neonate: ±3 digits
Pulse Rate Accuracy
- Pulse rate: 25 - 240 bpm
- No Motion: Adults, Pediatrics, Neonate: ±3 digits
- Motion: Adults, Pediatrics, Neonate: ±5 digits
- Low Perfusion: Adults, Pediatrics, Neonate: ±3 digits
- Resolution:
- Saturation (%SpO2): 1%
- Pulse Rate (bpm): 1 bpm
Electrical
- Batteries:
- Type: 4 AA Alkaline
- Capacity: up to 48 hours
Environmental
- Operating Temperature: 41°F to 104°F (5°C to 40°C)
- Storage Temperature: -40°F to 158°F (-40°C to 70°C)
- Operating Humidity: 5% to 95%, non-condensing
- Operating Altitude: 500 mbar to 1060 mbar pressure
Physical Weight & Dimensions
- Dimensions: 15.8 cm × 7.6 cm × 3.6 cm
- Weight: 13 oz (.317 kg)
- Alarms: Sensor condition, system failure and low battery alarms
Display/Indicators
- Data display: %SpO2, pulse rate, perfusion index, alarm status, Signal IQ
- Type: LED
Compliance
- EMC Compliance: EN60601-1-2, Class B
- Equipment Classification: IEC 60601-1-1 / UL 2601-1
- Degree of Protection: Type BF-Applied part
