Newport HT 50 Ventilator
Newport HT 50 Ventilator
0 item is in your cart. View cart now
All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.
Details

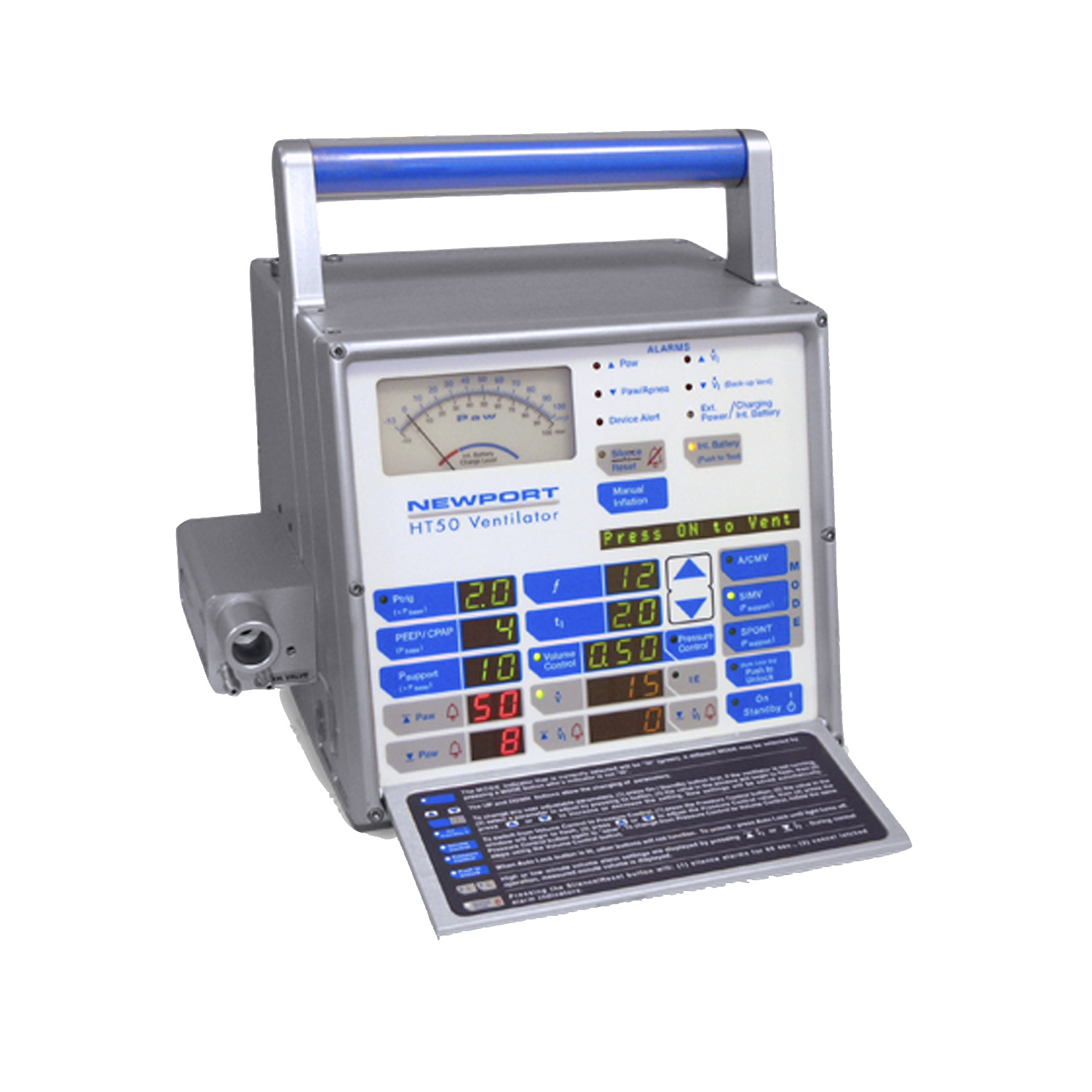

The Newport HT50 Ventilator is the value leader in ventilatory care. With its rugged construction, easy trigger sensitivity, and fast re-charge from AC or external DC, the HT50 Ventilator is ideally suited for extended care, transport, hospital and homecare applications.
This is the ventilator you've been waiting for - compact, lightweight, unsurpassed reliability, and self contained. Its comprehensive, versatile features meet the demands of almost any healthcare setting. Suitable for both pediatric (10kg) and adult patients for invasive or non-invasive ventilation, it's easy to use and inexpensive to maintain.
Features
- Volume or Pressure Control Ventilation
- Invasive or Non-Invasive Ventilation
- Pressure Support
- PEEP/CPAP, Built-in
- Comprehensive Alarms/Monitoring
- Internal Battery, long lasting with fast recharge
- Unique Gas Delivery System Requires No External Air Compressor
- Optional Air/Oxygen Mixer for high pressure 0.21-1.00
- Optional Blending Bag for Low Flow Systems
Specifications
Physical Weight & Dimensions
- Height: 10.24 inches (26 cm)
- Width: 10.63 inches (27 cm)
- Height: 10.24 inches (26 cm)
- Weight: 15lbs (6.8kg) (w/o humidifier)
Patient Range
Pediatric (10 kg) - Adult
Control Settings
- Modes (Pressure or Volume): A/CMV, SIMV, SPONT
- Volume Control (Tidal volume): 100 to 2,200 mL
- ƒ(Frequency): 1 to 99b/min - tl (Inspiratory Time): 0.1 to 3.0 sec
- PEEP/CPAP: 0 to 30 cmH2O/0 to 30 mbar
- Psupport (Pressure Support): 0 to 60 cmH2O/0 to 60 mbar
- V (Flow): 6 to 100 L/min
- I:E Ratio: 1:99 to 3:1
- Pressure Control (Target Pressure): 5 to 60 cmH2O/5 to 60 mbar
- P trig (Sensitivity): -9.9 to 0 cmH2O/-9.9 to 0 mbar
- Panel Lock: ON/OFF
- Manual Inflation: 3 sec maximum (single operator controlled breath)
- FIO2: .21 to 1.00
Monitor Parameters
- Paw (Peak, Mean, Base): VT (insp. tidal volume); Proximial Airway Temperature: (insp. minute volume)
- Internal Battery: ƒ total (total frequency)
